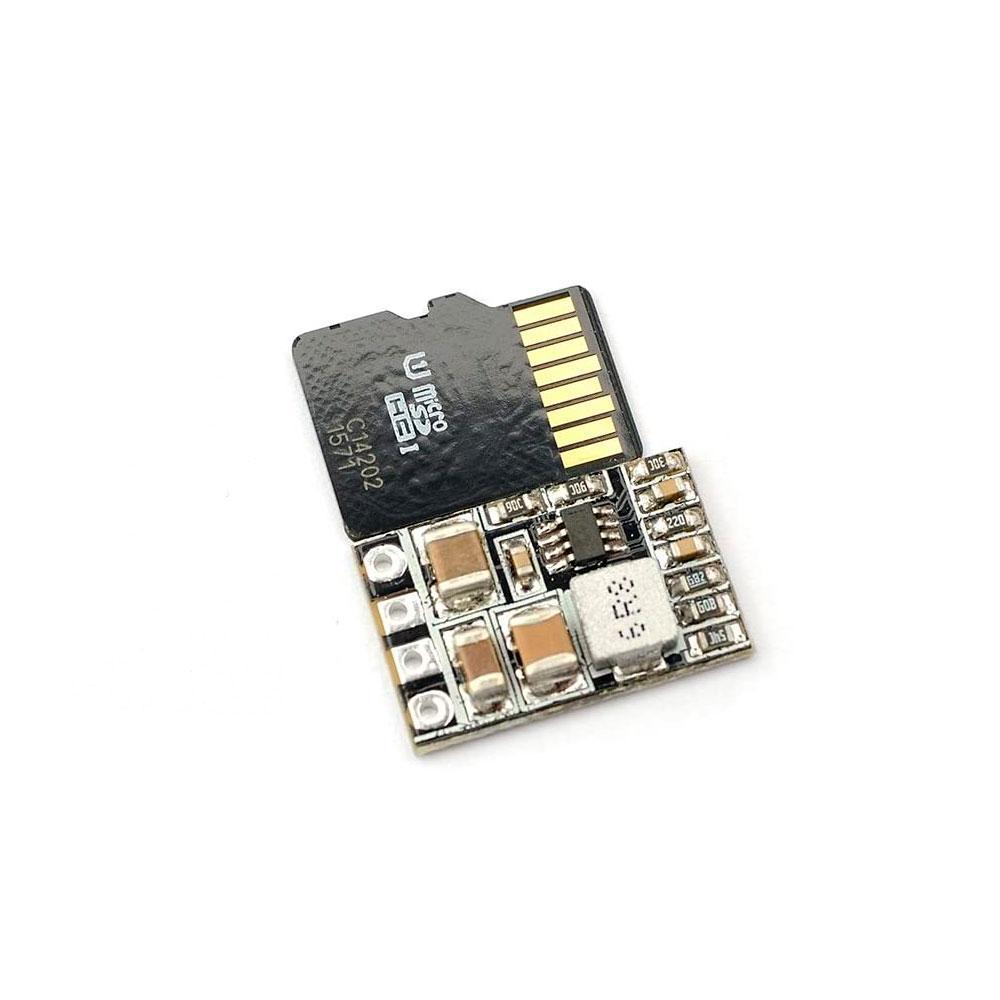

Matek 2-5S (7-21V) to 5V or 12V Micro BEC

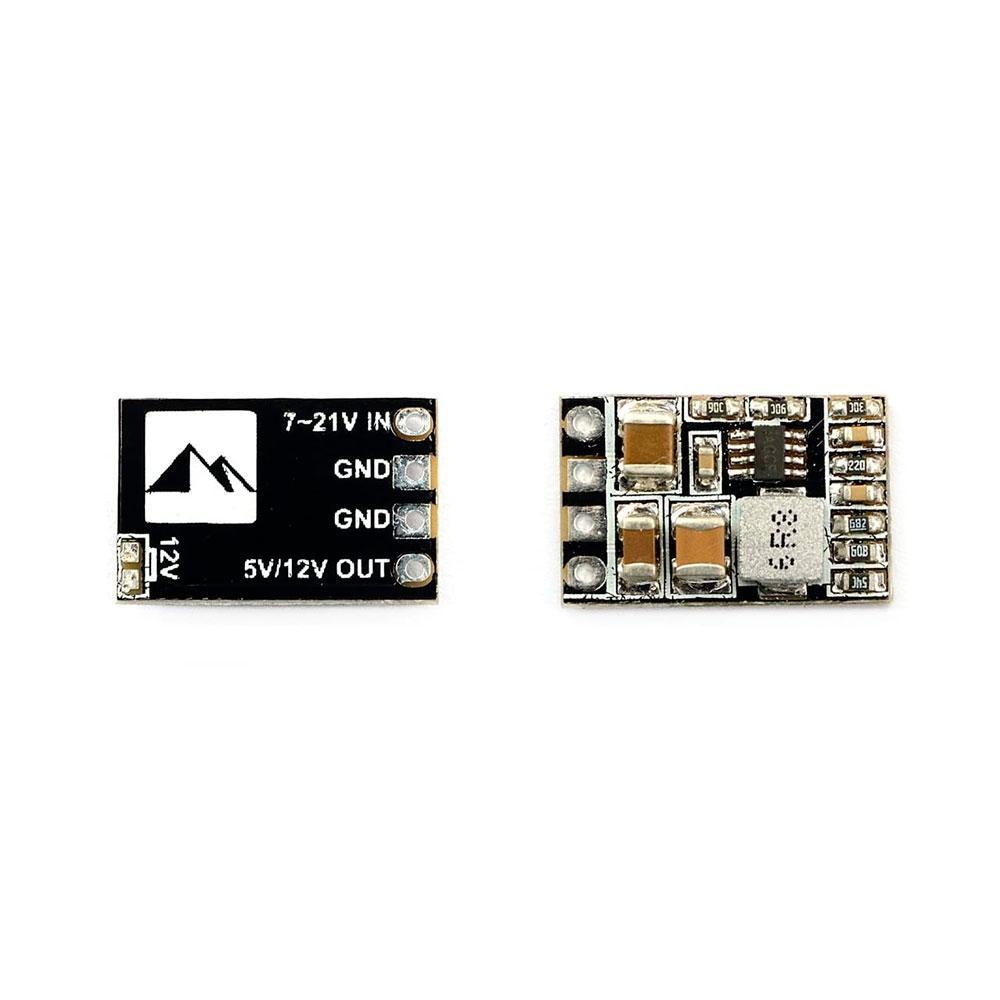

The Matek 2-5S (7-21V) to 5V or 12V Micro BEC is a high efficiency rectified step-down switch mode converter. It offers a very compact solution to acheive 1.5A continuous output power over a wide input supply range. This Micro UBEC will convert 7V~21V Input to 5V or 12V Output for Flight Controller or FPV camera and video transmitter. By default it’s 5V, bridging the 12V pads on the board makes it 12V output.

Features

• High Efficiency Synchronous Mode
• Wide 7Vto 21V Operating Input Range
• Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
• VOut 5V or 12V Adj. Default is 5V.
• VOut Load Regulation: 2%
• Standby current: <5mA
• Maximum Duty Cycle: 95%
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (5 seconds/minute)

Specifications

• Input Voltage Range: 7-21v
• Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
• Voltage Out: 5V or 12V Adj. Default is 5V.
• VOut Load Regulation: 2% Standby current: <5mA Maximum Duty Cycle: 95%
• Output Ripple: 20mV(VIn=16V, 40mV(VIn=16V,
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (5 seconds/minute)
• Pins distance: 2.54mm
• Size: 11x17x3mm
• Weight: 1g

Includes

• 1x Matek 2-5S (7-21V) to 5V or 12V Micro BEC
