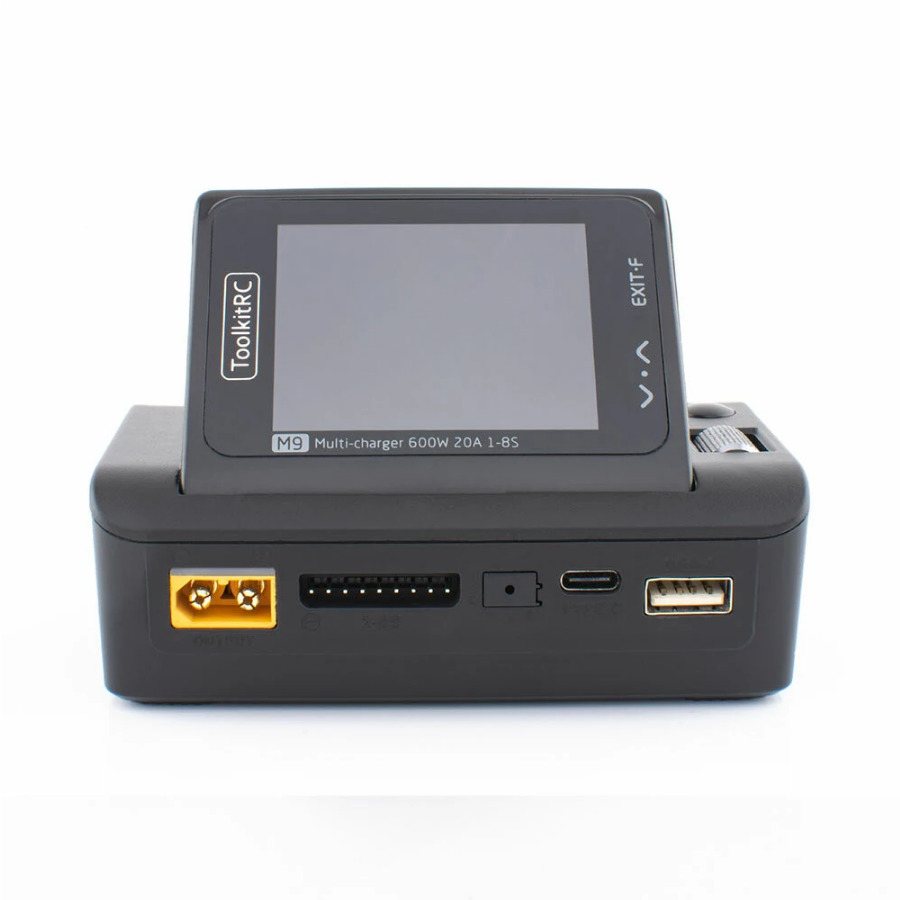

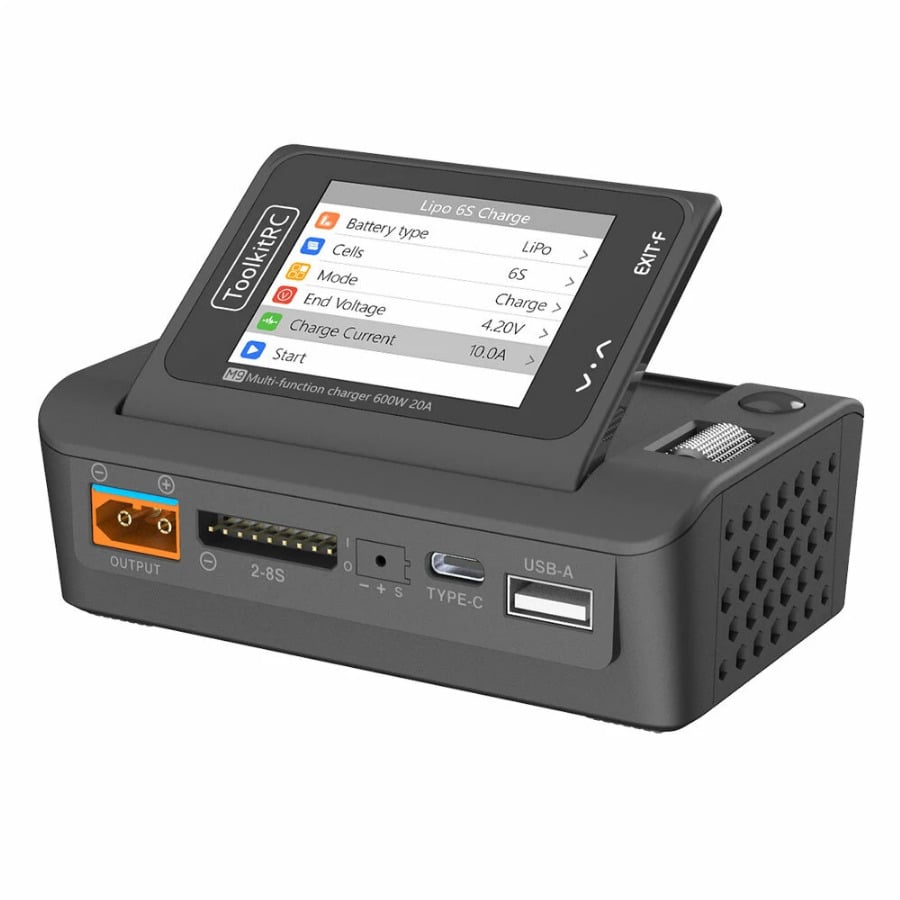

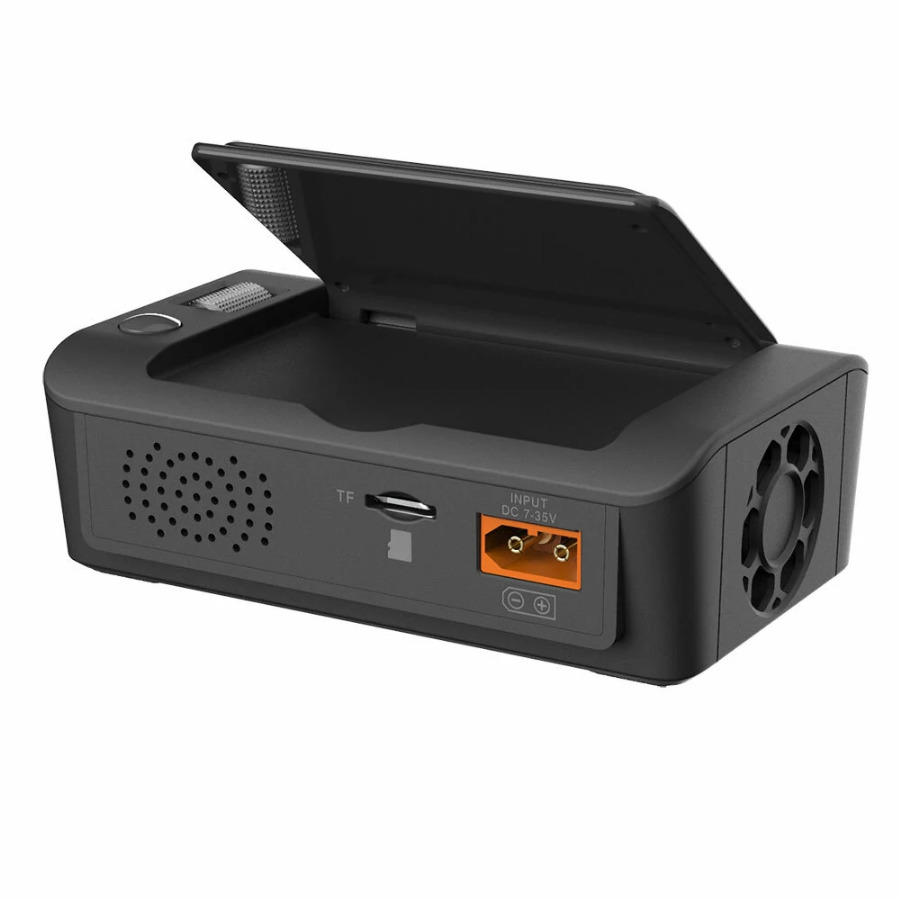

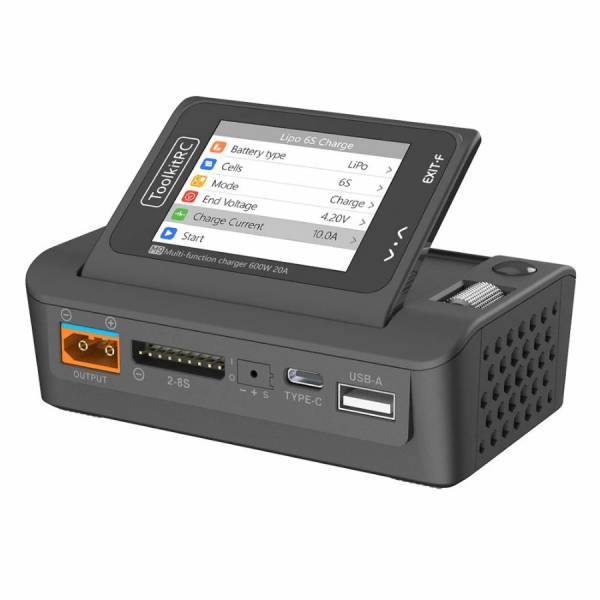

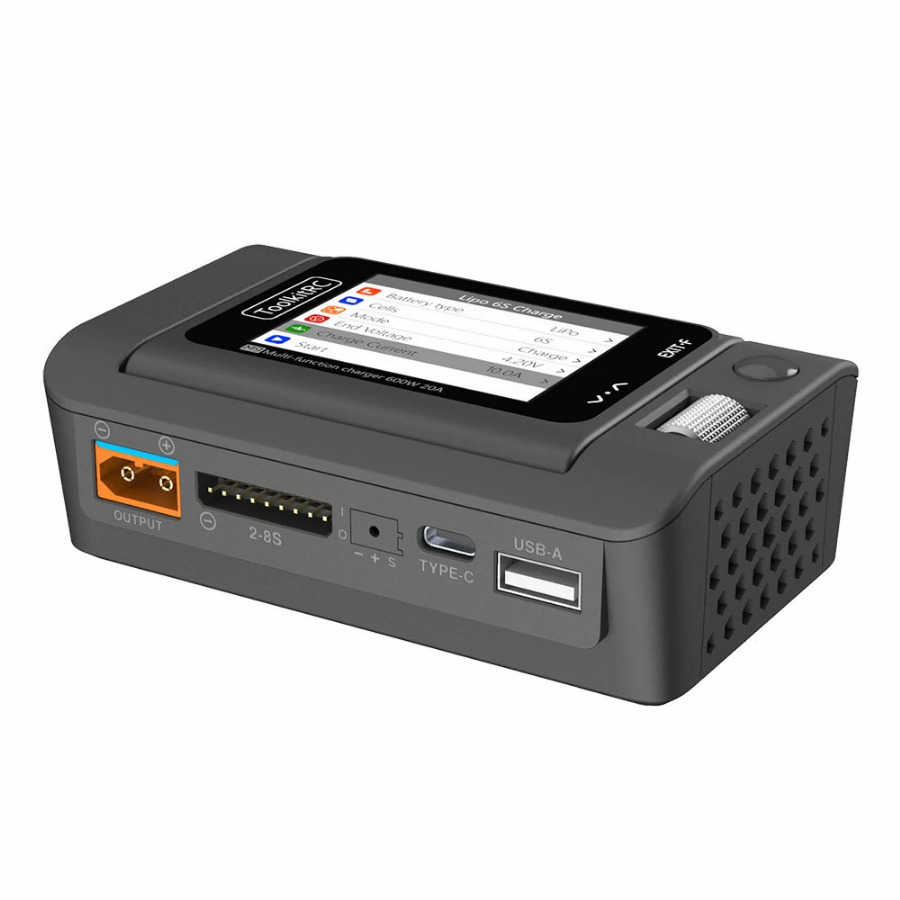

ToolkitRC M9 Multi-Function 600W 20A DC Smart Charger with Audio Function

See all of our ToolkitRC Products! Make sure to pick up a ToolkitRC power supply too!

Professional-Grade Multi-Function Charging Solution
The ToolkitRC M9 combines powerful charging capabilities with advanced testing functions in a compact, feature-rich package. This 600W charger supports virtually all battery chemistries while offering unique audio testing features for FPV equipment.

Key Features:

• Wide Compatibility: Charges LiPo/LiHV/LiFe/Li-ion/LTO (1-8S), NiMH (1-20S), and Pb (1-10S)

• High-Power Charging: 600W maximum output (20A current)

• Advanced Testing Modes: PWM/PPM/SBUS signal analysis and generation

• Smart Power Supply: 65W USB PD/QC/PPS output (USB-A + USB-C)

• High-Resolution Display: 2.4″ IPS RGB screen (320×240)

• Comprehensive Protection: Built-in safeguards for all operations

Technical Specifications:

• Input Voltage: 7-35V DC (max 35A)

• Charging Current: 0.1-20A

• Discharge Power: 600W (external), 20W (internal)

• Balance Current: 1000mA @4.2V

• Signal Analysis:

  • PWM: 880-2200μs @20-400Hz

  • PPM: 880-2200μs (8CH) @20-50Hz

  • SBUS: 880-2200μs (16CH) @20-100Hz

• Power Supply Mode: 1.0-20A @1-35V (CC+CV)

Package Includes:
1 × ToolkitRC M9 Charger

Unique Audio Functions:

• ESC signal generation and analysis

• Voltage output simulation (1.0V-5.0V @1-6S)

• Comprehensive servo/radio testing capabilities
