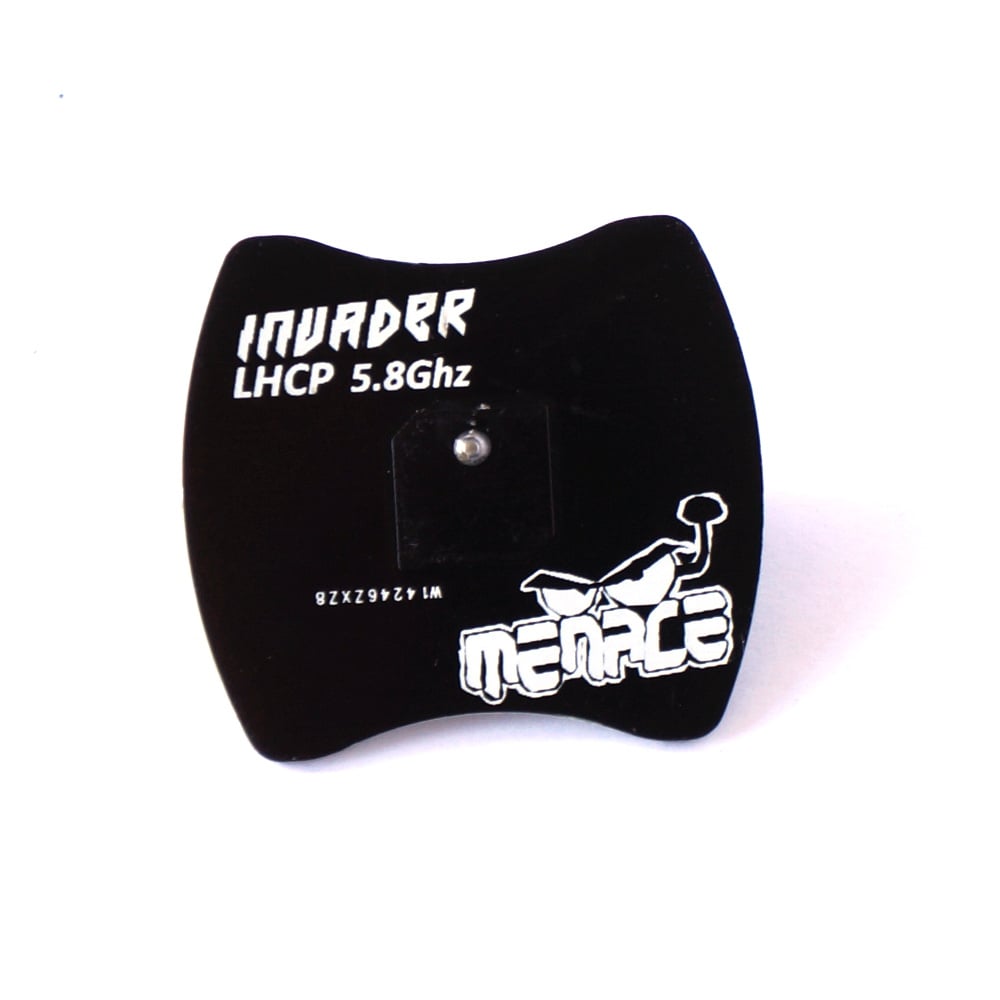

Menace RC Invader Antenna 5.8Ghz LHCP Polarized Receiver Patch

Check out all of our Menace Products!

Upgrade your FPV goggles with the Menace RC Invader, a compact and high-performance 5.8GHz patch antenna designed for outstanding video reception. This antenna provides an excellent balance of directional gain and a wide beam width, making it the perfect “everyday patch” for pilots who want to improve their signal clarity and range without the narrow focus of ultra-high-gain antennas. This is the LHCP version.

Boost Your Range & Signal Clarity The Invader’s directional design features a $6.5\text{dBi}$ gain, which focuses the receiving power in front of you. This allows your goggles to pick up a cleaner, more stable video signal from your FPV drone at greater distances. It also offers superior rejection of multipath interference compared to standard omnidirectional antennas, giving you a clearer picture when flying in challenging environments like parks with trees or parking garages.

Wide Beam for Easy Flying A standout feature of the Invader is its wide, user-friendly beam width. At 90∘, the reception “cone” is very forgiving, meaning you don’t need to aim it perfectly at your FPV drone at all times. This makes it an ideal patch antenna for dynamic freestyle flying, not just straight-line long-range, providing a solid link as you fly around yourself.

Key Features:

• Balanced 6.5dBi Gain: Provides a significant boost in range and signal clarity over omnidirectional antennas.
• Wide 90° Beam Width: A forgiving reception beam that is perfect for freestyle flying without losing signal.
• Excellent Multipath Rejection: The patch design helps to reduce video breakup and static for a cleaner image.
• Compact & Goggle-Friendly: A low-profile design that fits cleanly on most FPV goggles without being bulky or heavy.
• LHCP Polarization: Must be paired with a matching LHCP antenna on your drone for optimal performance.

Important: Check Your Connectors & Polarization To ensure compatibility and the best possible signal, please verify your equipment before ordering:

• Connector Type: This antenna uses a standard SMA Male connector.
• Polarization: This version is LHCP (Left-Hand Circular Polarized). It must be paired with an LHCP antenna on your FPV drone’s video transmitter for optimal signal quality.

Specifications

• Brand: Menace RC
• Model: Invader Patch
• Frequency Range: $5645–5945\text{ Mhz}$
• Gain: $6.5\text{ dBi}$

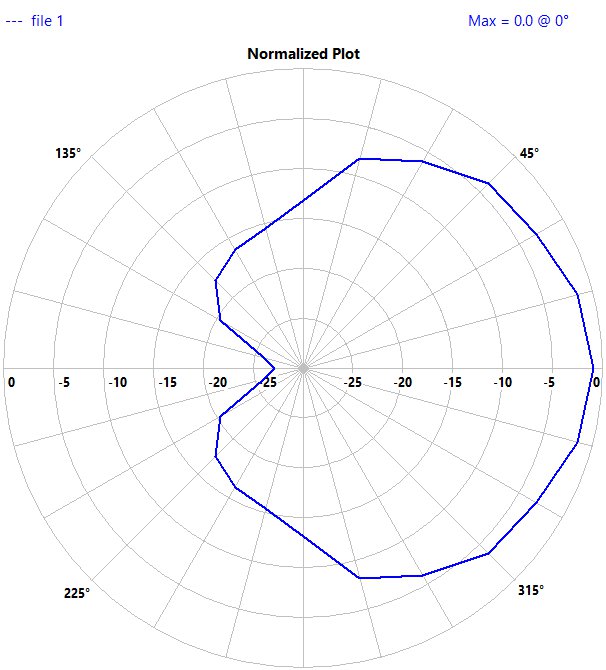

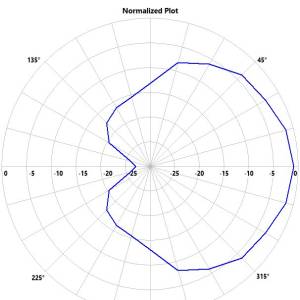

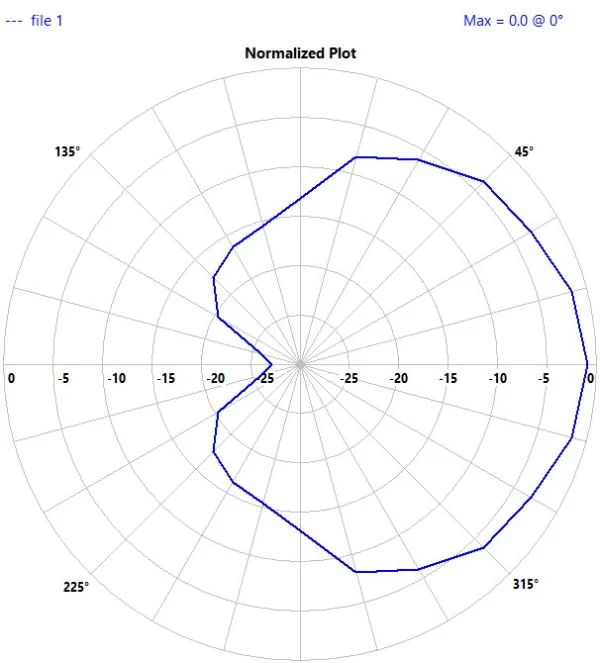

• Beam Width: 90∘ (@ -3db)
• Dimensions: $45\text{mm}\times 41\text{mm}\times 16\text{mm}$
• Weight: $11\text{g}$
• Connector: SMA Male
• Polarization: LHCP

What’s in the Box?

• 1x Menace RC Invader 5.8GHz LHCP Patch Antenna (SMA)

We also have this antenna in RHCP!
