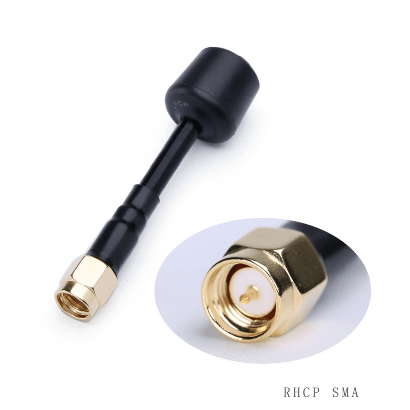

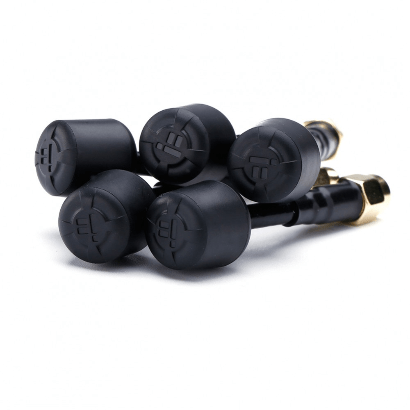

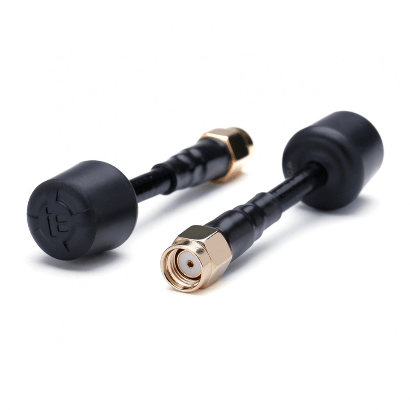

iFlight Albatross RHCP 5.8GHz SMA FPV Antenna
Check out all of our Iflight Products!
Durable 5.8G antenna for Analog or Digital FPV.
Use RP-SMA LHCP (Left Hand Polarization) for DJI Digital FPV! Default antennas are LHCP and Goggle Antennas are LHCP, both sides need to match!Â
This depends on which version you select, this version is the SMA – NOT RP-SMA
Specifications:
Frequency range:Â 5000-6000MHzÂ
Gain: 3Dbi
Cable: RG141
Axial Ratio: 0.7
Weight: 6.8g
Dimension: Total length: 60mm, cable length:45mm
Interface:Â RHCPÂ SMA
Polarization: RHCP
SWR: ≤1.5 (ON 5.8GHz)
Weight: 6.8g
Color: Black
Package includes:
1pcs x 5.8GHz FPV Antenna – SMA Version
