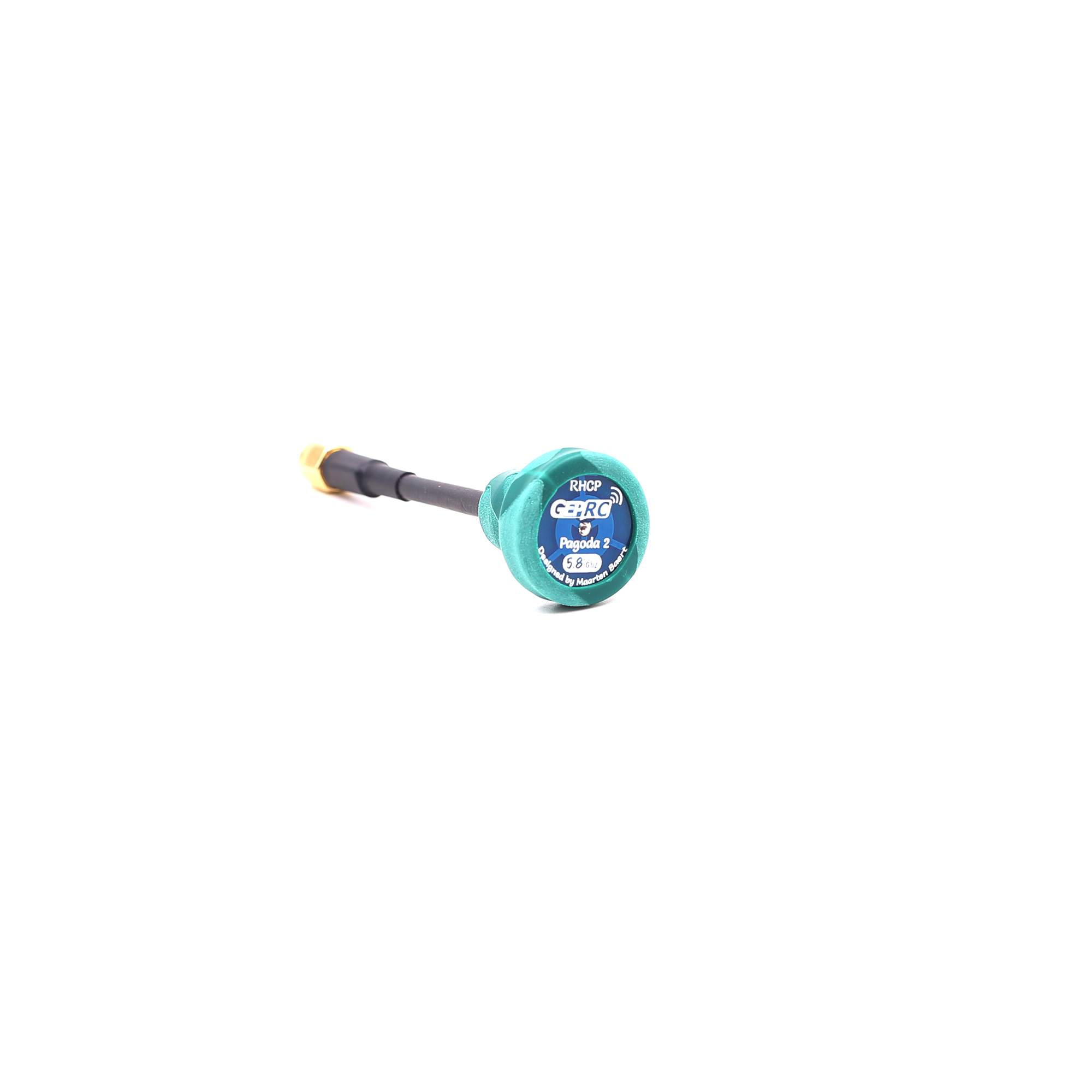

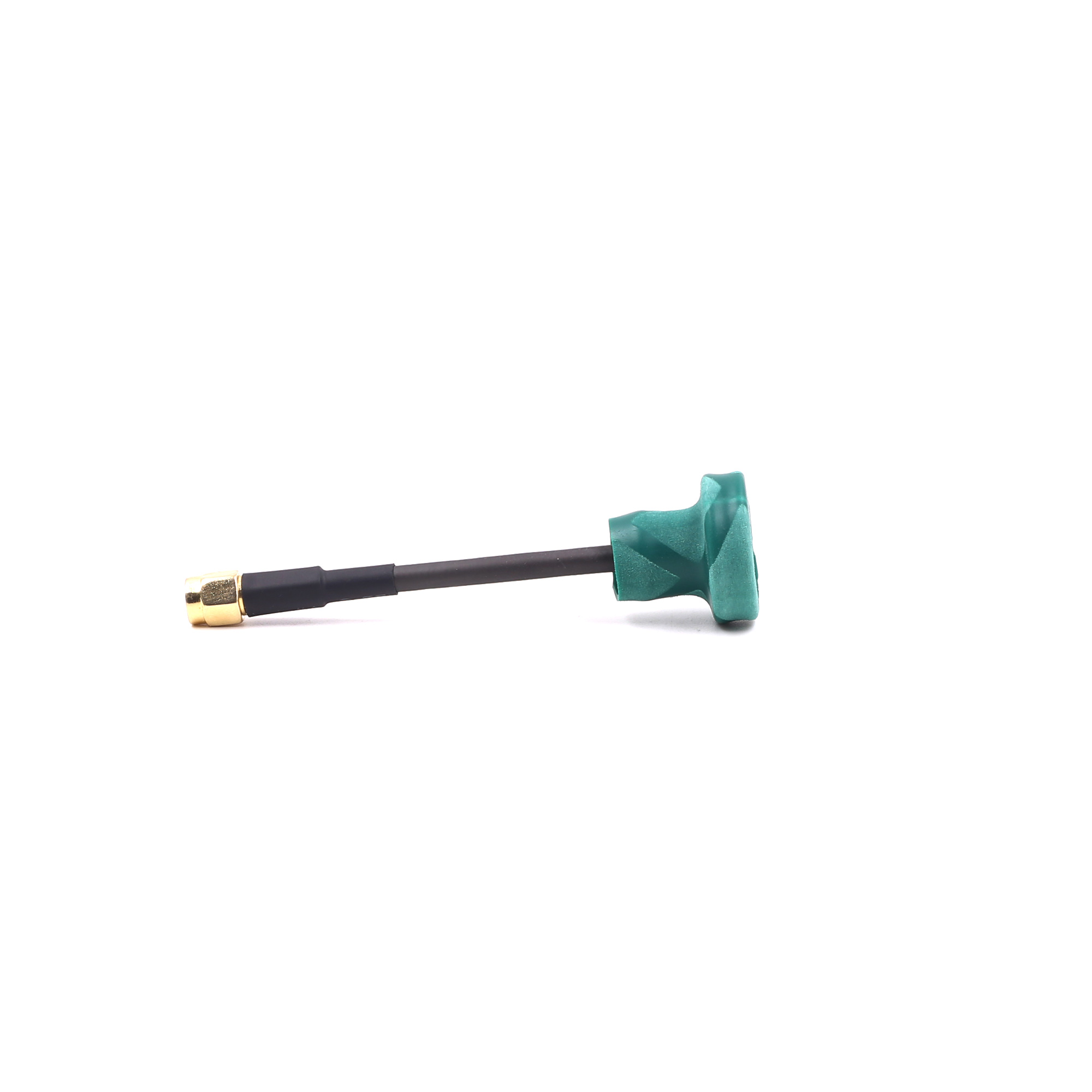

GEPRC Pagoda2 5.8G Antenna RHCP SMA (2 Pieces)

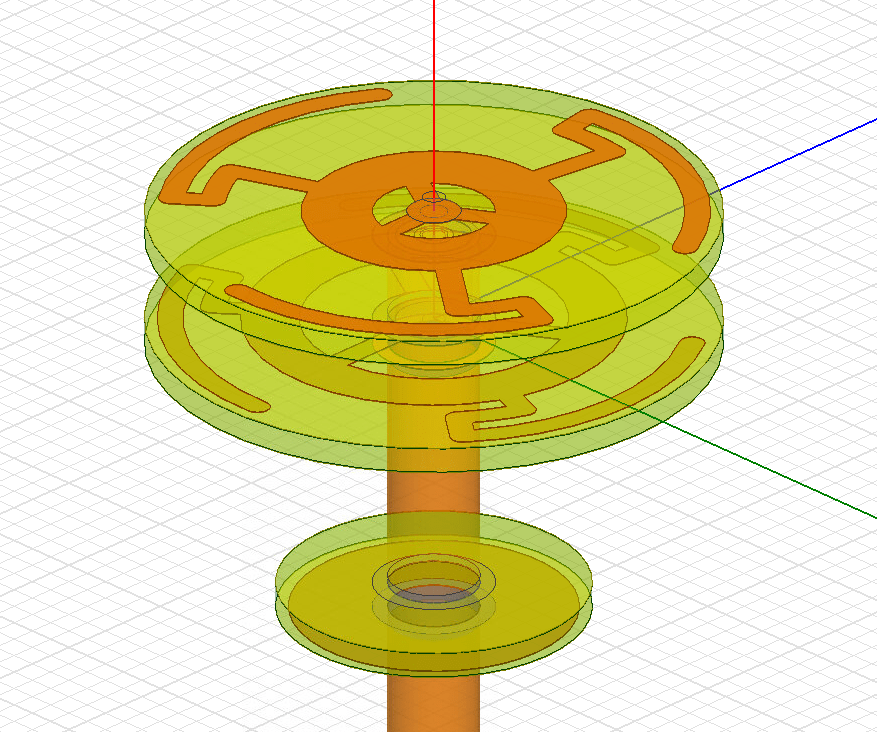

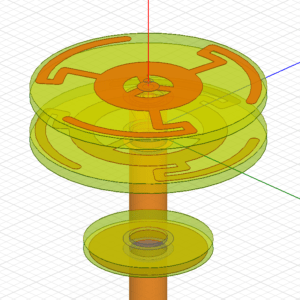

Structure consists of three layers of 1 oz copper foil embedded PCB, only 8 grams of weight, use special heat shrink packaging, solid, durable, and beautiful. PCB materials used 1.0 mm FR – 4, 1 oz copper foil (strictly according to Maarten Baer design requirements, learn more, please click: http://www.maartenbaert.be/quadcopters/antennas/pagoda-antenna/)

Pagoda 2 has natural advantages, axis ratio is below 1.3, standing wave ratio of 1.2.Can be used for transmitting antenna and receiving antenna (transmit and receive all use pagoda2 antenna is better).



Specifications and features：

• Model：GEP-Pagoda2
• Center frequency: 5.8 GHz
• Bandwidth: 500 MHz (5.55 – 6.05 GHz)
• Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
• Axial ratio: < 1.3
• Radiation efficiency: 95%
• Height: 85mm
• Weight: 8grams
• Color: Green

Includes:

• 2x GEPRC Pagoda 2 5.8GHz Antenna (RHCP)
