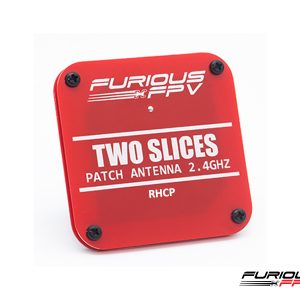

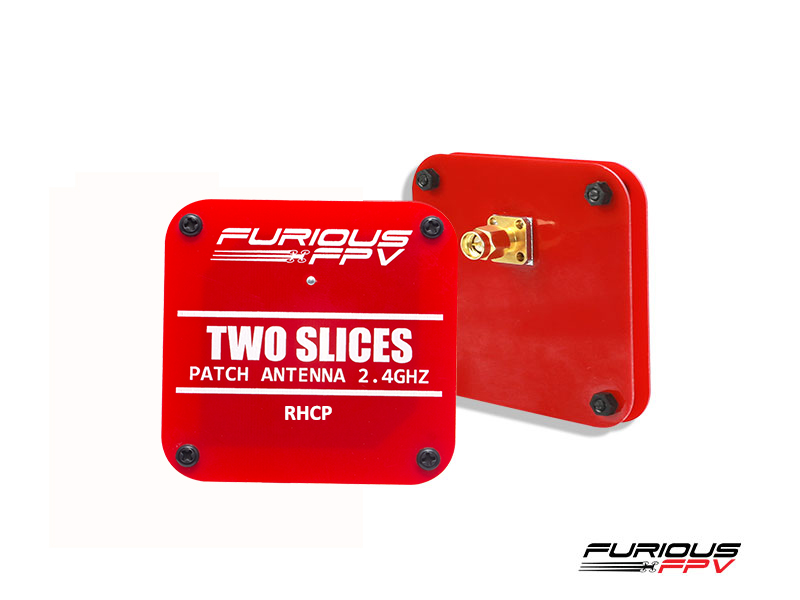

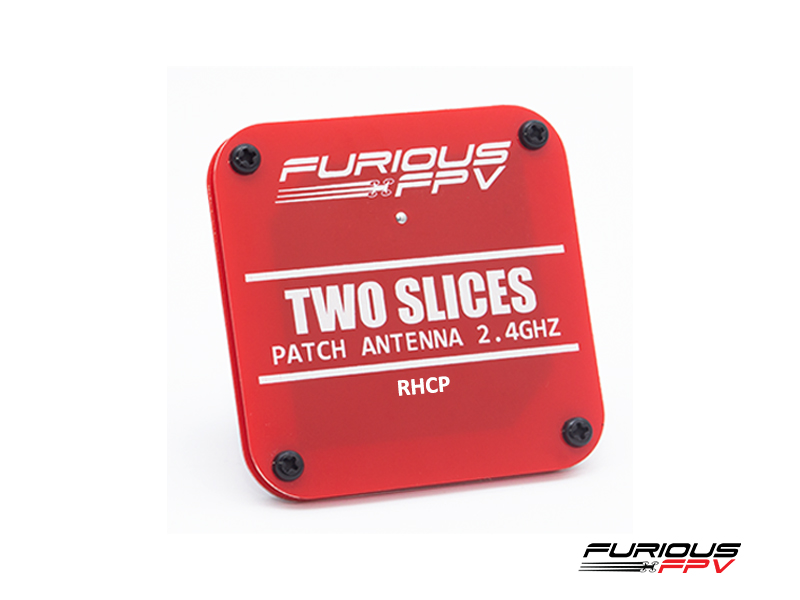

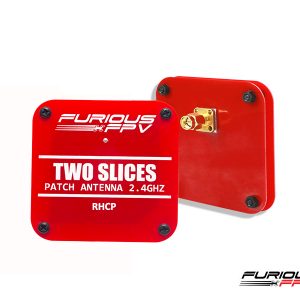

FuriousFPV Two Slices 2.4G Patch Antenna RHCP

Two Slices 2.4G Patch Antenna RHCP

Dramatically increase the range and signal penetration of your 2.4GHz FPV system with the FuriousFPV Two Slices Patch Antenna. This high-gain directional antenna is engineered for long-range pilots and those flying in challenging RF environments. With an impressive 8.6dBi gain and Right-Hand Circular Polarization (RHCP), it’s the ultimate upgrade for your FPV goggles or ground station to achieve a rock-solid 2.4GHz video or control link.

High-Gain Directional Performance

Unlike an omnidirectional antenna that receives signals from all directions, the Two Slices is a patch antenna that focuses its receiving power in a 71-degree cone in front of it. This focused “beam” allows it to pull in weaker signals from much further away, significantly boosting your usable range. For the best performance, simply keep the flat face of the patch antenna pointed in the general direction of your FPV drone.

Optimized for 2.4GHz Links

While many 2.4GHz systems use linear polarization, this RHCP antenna offers superior rejection of multipath interference. This is a major advantage when flying around solid objects like trees, buildings, or through abandoned structures, resulting in a cleaner, more stable link with fewer glitches and breakups.

Key Features:

• High 8.6dBi Gain: Significantly increases the effective range and signal penetration of your 2.4GHz FPV system.
• Directional Beam: Focuses receiving power for a stronger, more stable link at long distances.
• RHCP Polarization: Provides excellent rejection of multipath interference, resulting in a cleaner and more reliable signal.
• Premium Construction: A compact and durable design from a trusted FPV brand.
• Standard SMA Connector: A robust, screw-on connector for easy installation on most FPV goggles and ground station receivers.

Important Usage Information:

This is a directional RHCP antenna with an SMA connector, designed for receiving 2.4GHz signals. For best performance, keep the antenna pointed towards your aircraft and pair it with a matching RHCP antenna on your drone’s transmitter.

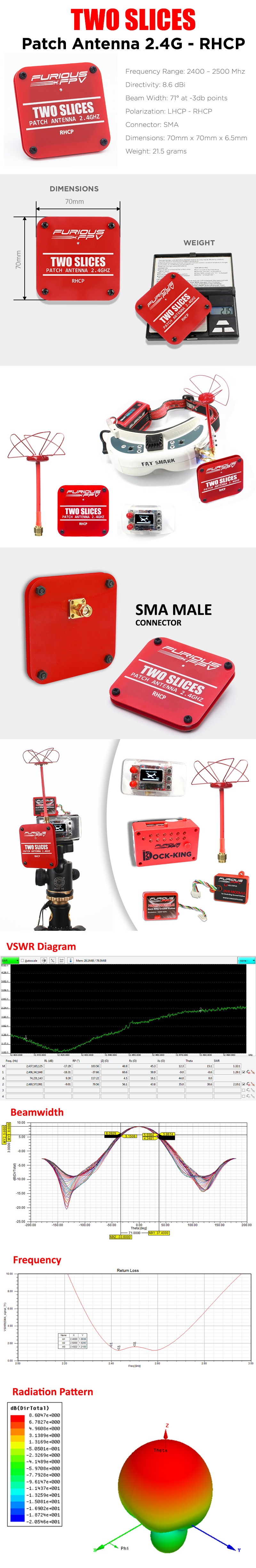

Technical data

• Frequency range: $2400-2500\text{MHz}$
• Gain: $8.6\text{ dBi}$
• Beam Angle: 71∘ at -3dB points
• Polarization: RHCP
• Connection: SMA Male
• Size: $70\text{mm}\times 70\text{mm}\times 6.5\text{mm}$
• Weight: $21.5\text{g}$

Content

• 1x FuriousFPV Two Slices 2.4G Patch Antenna (RHCP)
