Let’s welcome the iFlight Alpha series, a new way to fly FPV. This Alpha A65 is an even smaller size 65mm light weight 24.5g whoop. Stuffed with our newest electronic components and technology, this thing will guarantee loads of hours practice or racing across the smallest spaces. This is what we came up with to combine flight time efficiency with sufficient power.

Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

FEATURES：

• 24.5 grams (without battery)
• Butter smooth XING 0802 22000KV (more torque and efficiency with longer flight times)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings

Alpha A65 w/800TVL  150° camera BNF Specs:

• SucceX F4 1S 5A AIO Whoop Board  w/VTX
• XING 0802 22000KV FPV Micro Motor

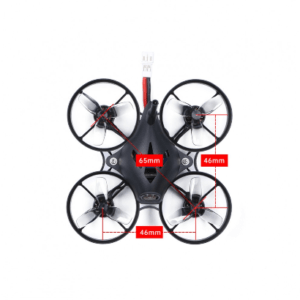

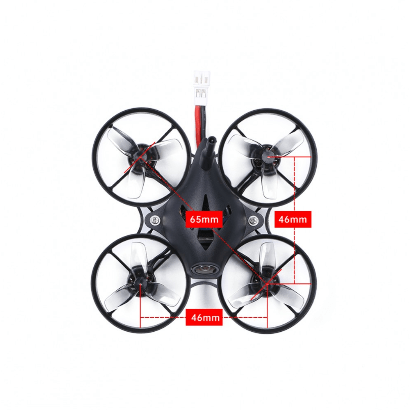

• Wheelbase: 65mm
• Body size: 46*46mm
• Ducted propeller size: 31mm
• FC pattern: 25.5*25.5mm

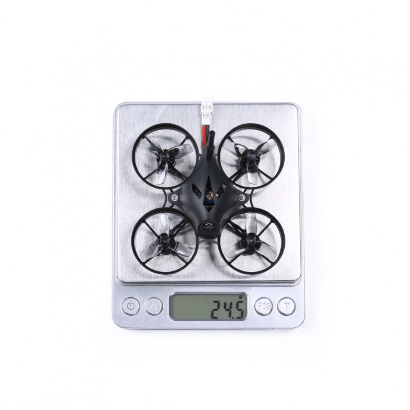

• Weight: 24.5g (without battery)
• Flight time: 3-4 min cruising (1S 300mAh)

PRE-TUNED & PRE-SETUP:

– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”

– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

Alpha A65 w/800TVL 150° Camera Quad BNF Included Components and Parts

• Prebuilt and tested Quadcopter
• 1x Alpha 65mm Frame
• 1x 800TVL 150° Camera
• 1x SucceX F4 1S 5A AIO Whoop Board (MPU6000) w/VTX
• 1x Whip antenna
• 2sets HQ 31mmx3 1mm (Set of 4 – Color May Vary)

FC // SucceX F4 1S 5A AIO Whoop Board

• Size：29*29mm
• Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)
• Connector：Micro-USB
• Weight: 5.4g (with power cable, vtx, and vtx antenna)
• MCU：STM32F411
• Gyro：MPU6000
• Blackbox：no
• BEC output：5V 1.2A
• INA pad：n uart2
• Barometer：no
• FC Firmware：MatekF411RX

ESC Firmware：O-H-05 BLS

ESC // 5A

• Current: 5A continuous and peak 6A
• Current scale: 400
• Input：1S
• Signal Support: Dshot，Oneshot，Multishot
• Current sensor：yes
• BLHeli：BLHeli-S
• ESC Telemetry：no

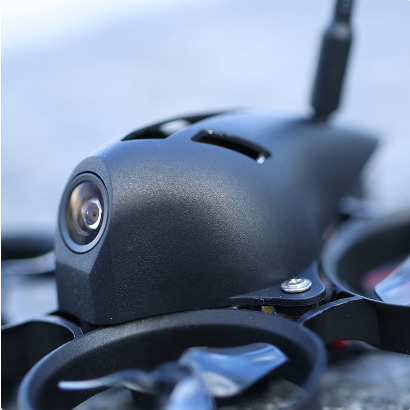

FPV cam:

• Power DC: 5V
• Size: 14*12.2*12mm
• Net weight: 1.6g
• 800TVL 150°

VTX：

• Input voltage: 5V
• Channels: 48CH
• Power: PIT/25/50mW
• Connector:UFL/IPEX

Important:

• Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.
• If you have none frsky transmitter,please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
