Pavo Pico II Brushless Whoop Quadcopter
Check out all of our BetaFPV Products!

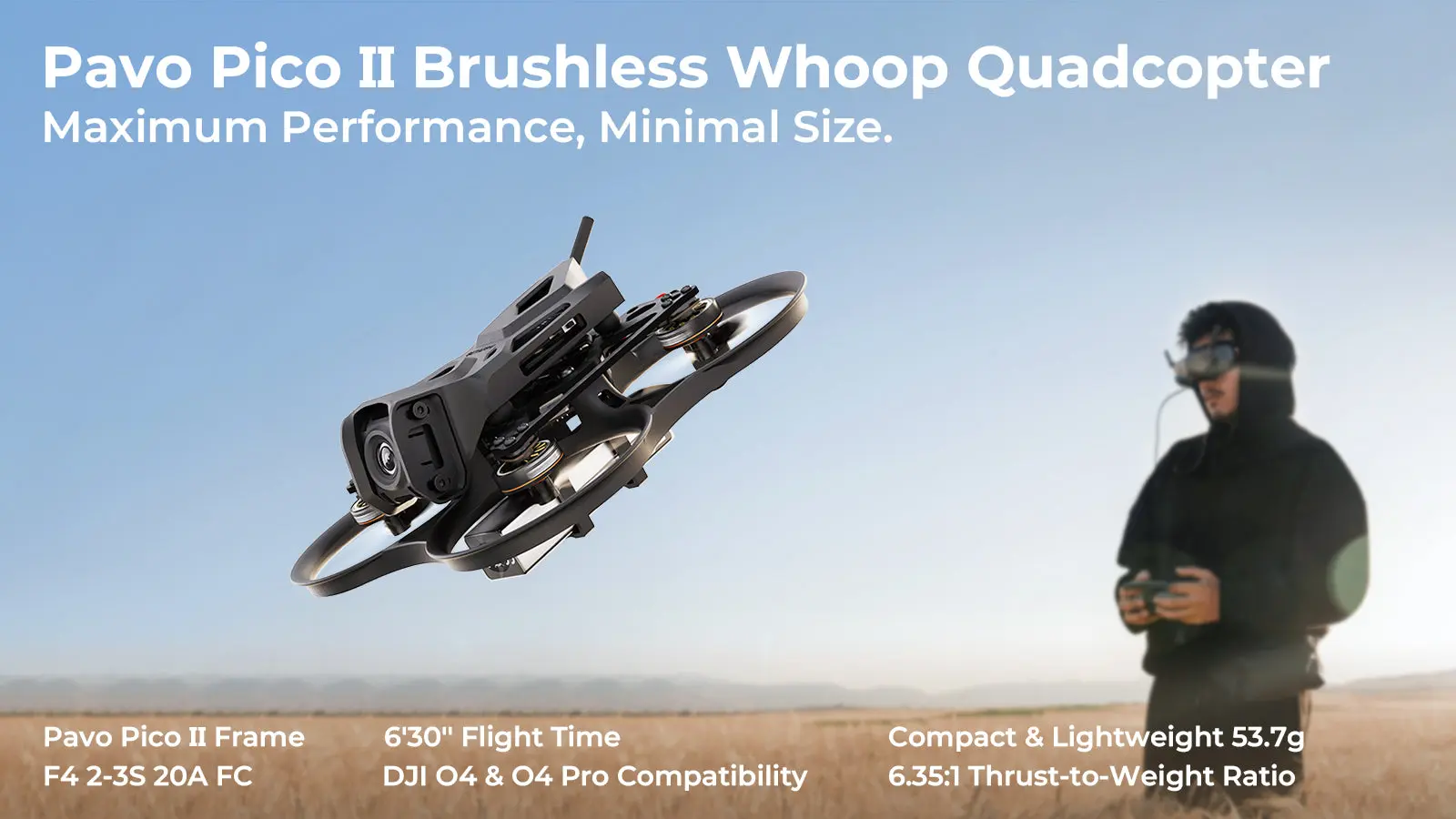

Maximum performance meets minimal size. The BetaFPV Pavo Pico II is the next-generation compact cinewhoop, completely redesigned to be the perfect host for the DJI O4 and O4 Pro Air Unit systems. Weighing in at a mere 53.7g with an 80mm wheelbase, this pocket-sized powerhouse delivers stunning 4K/60fps footage with a flight feel that defies its size.
Jello-Free O4 Bracket II

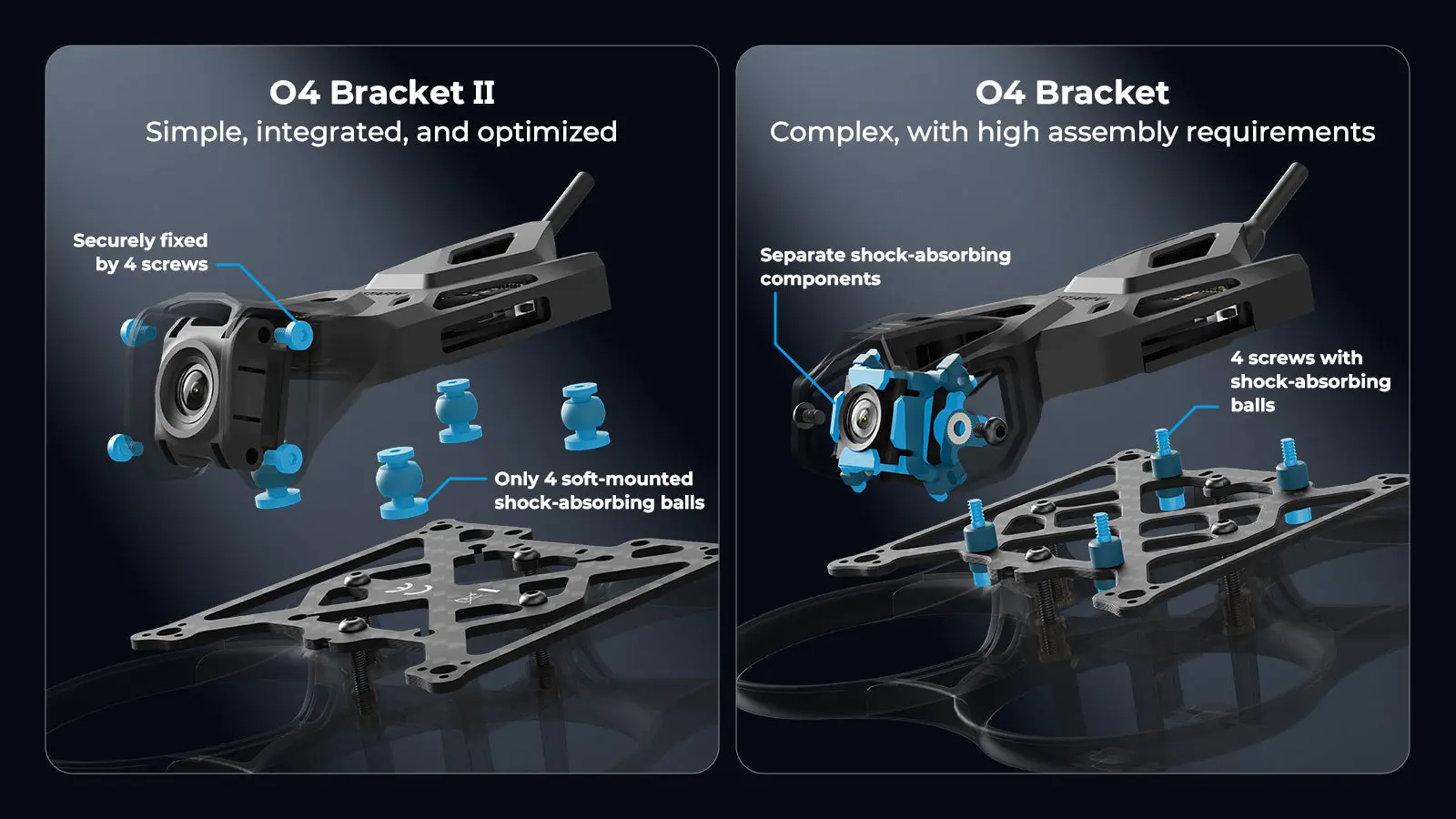

Say goodbye to shaky footage. The Pavo Pico II features the innovative O4 Bracket II, which integrates 4 soft-mounted shock-absorbing balls to fully isolate the camera from motor vibrations. Unlike the previous generation, this unified damping system eliminates complex assembly and guarantees “butter-smooth” video right out of the box.

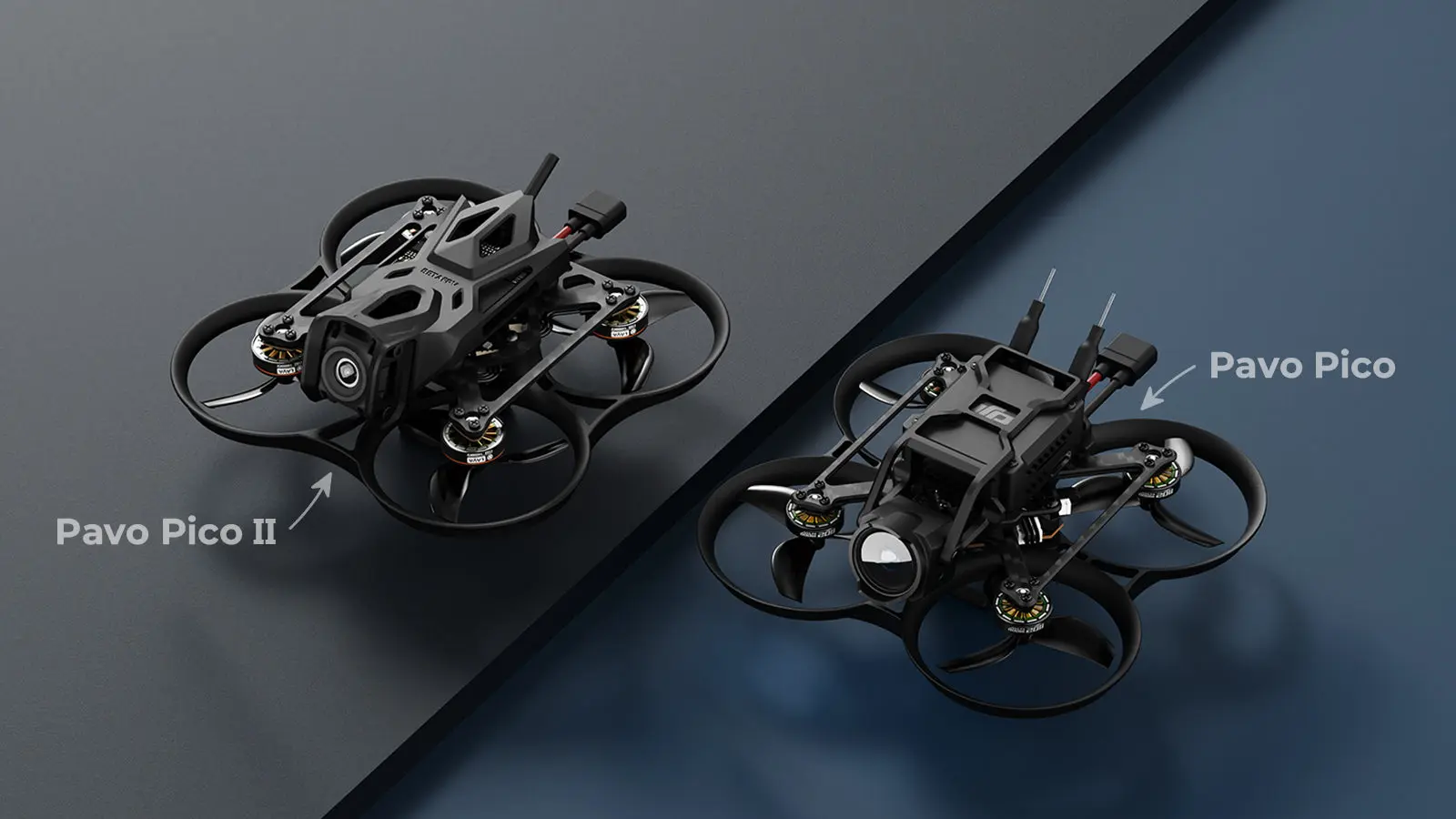

Redesigned Rigid Frame

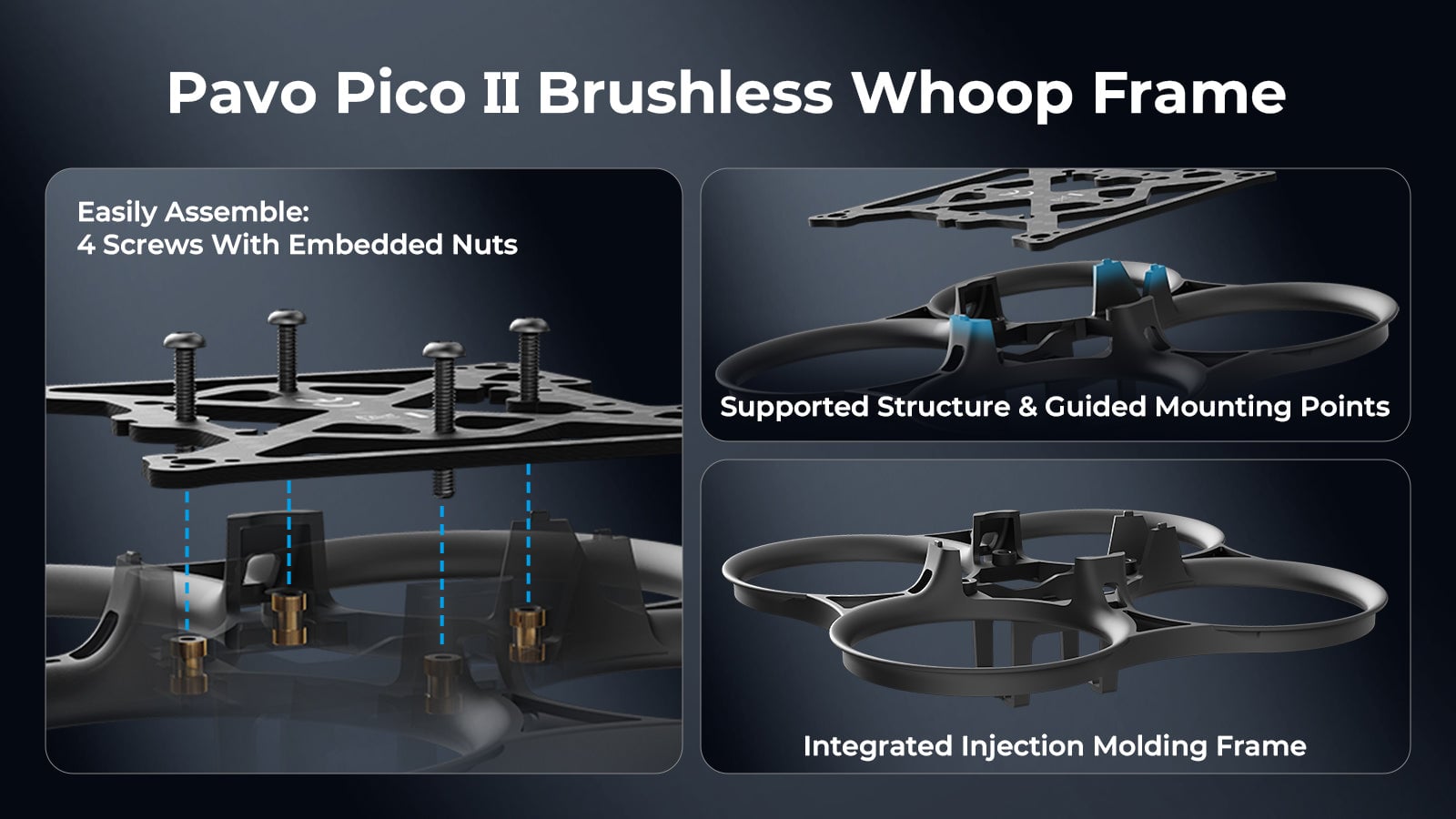

BetaFPV has revolutionized the assembly process. The new frame utilizes embedded nuts and a supported structure that requires only 4 screws for a secure lock. This makes the frame incredibly rigid for flight performance and significantly easier to disassemble for maintenance. The included carbon plate is versatile, seamlessly fitting both the DJI O4 and DJI O4 Pro Air Units.
Explosive LAVA Power

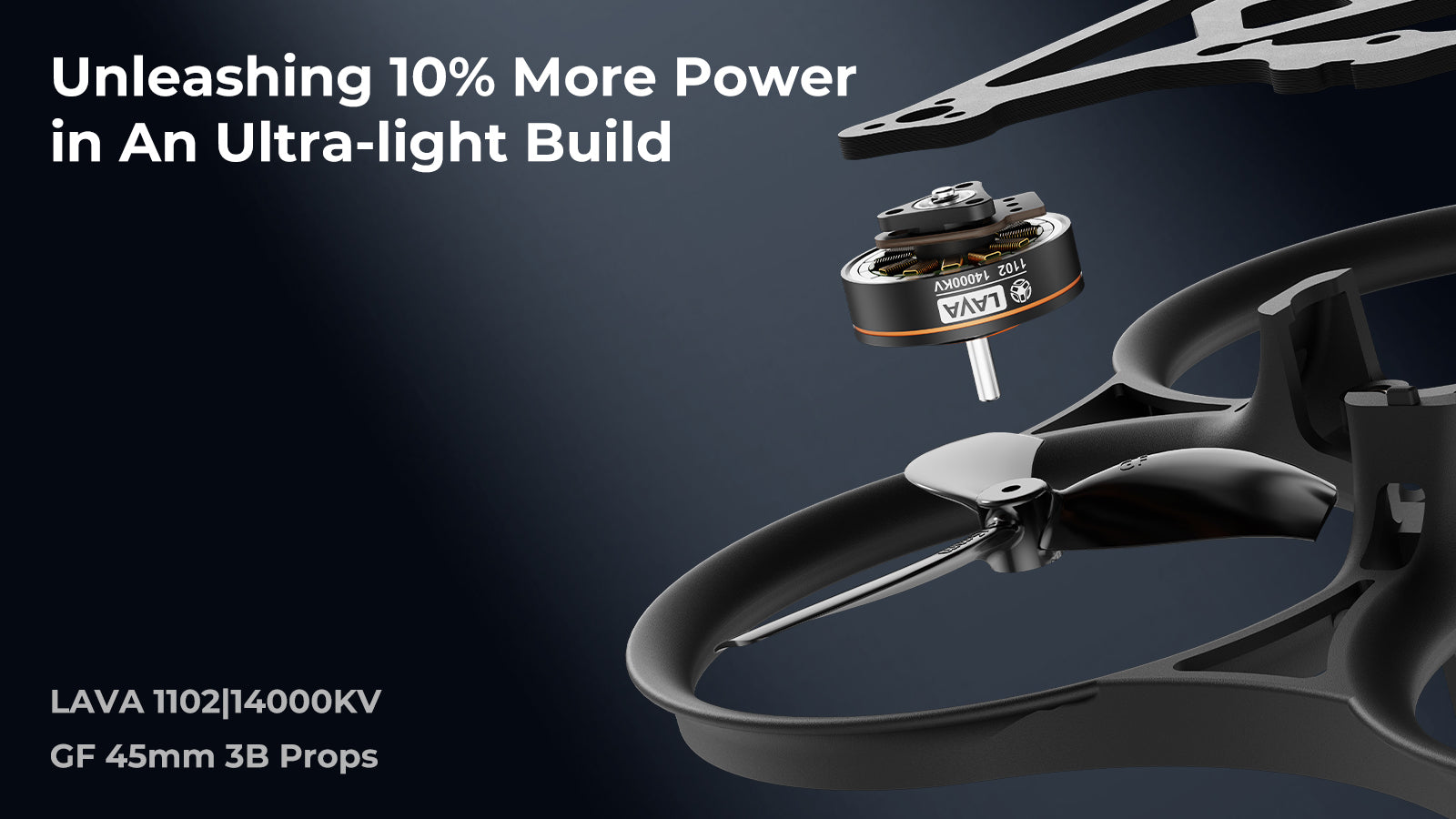

Small size doesn’t mean small power. The propulsion system has been upgraded with LAVA 1102 14000KV motors and Gemfan 45mm 3-Blade props. This combo delivers a massive 10% increase in thrust for agile dives and freestyle maneuvers, while maintaining high efficiency for flight times up to 6 minutes and 30 seconds (using 2S 550mAh).
Advanced Electronics

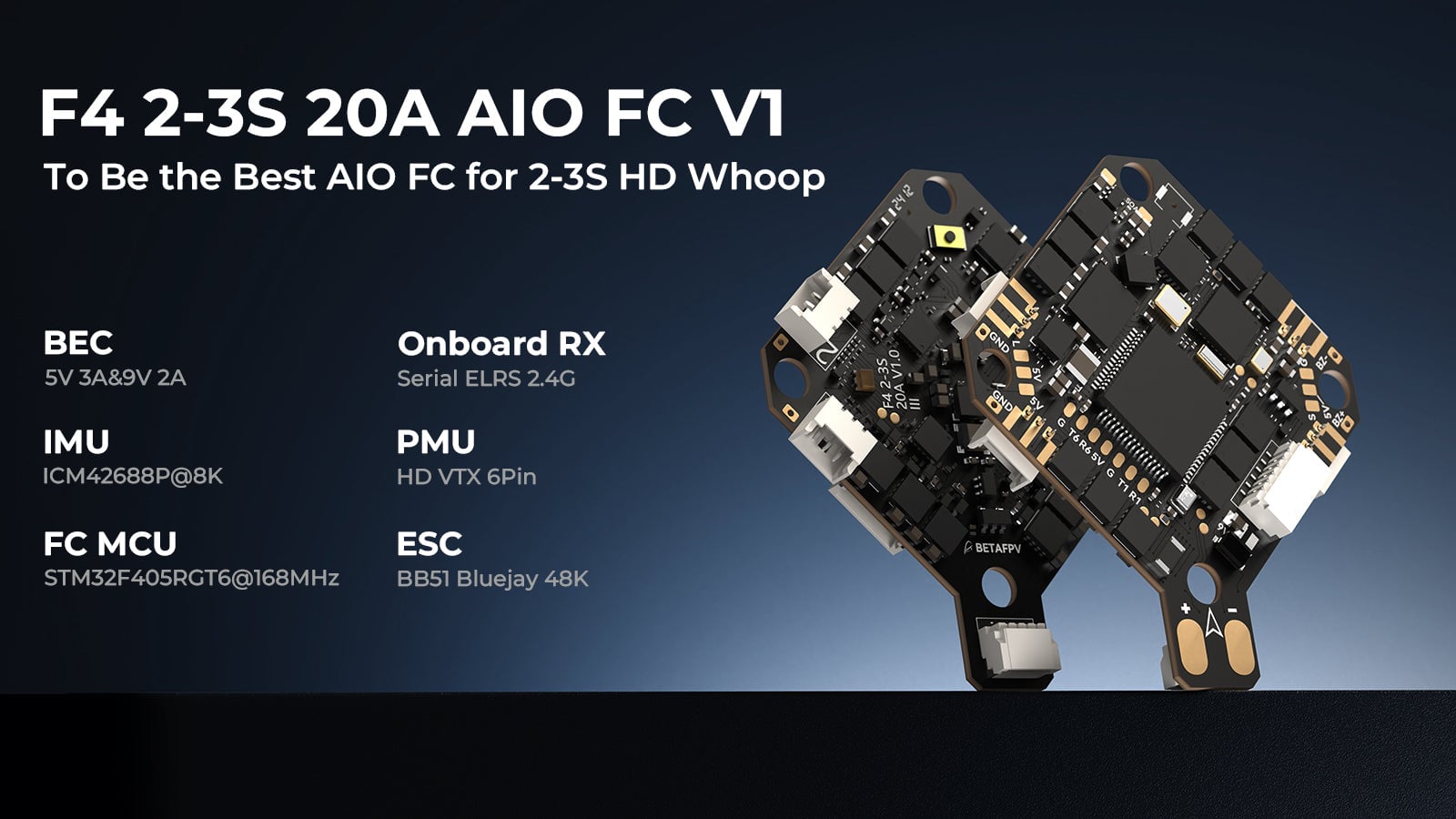

At the core is the F4 2-3S 20A AIO Flight Controller, specifically tuned for HD digital systems. It features a dual BEC solution (9V 2A for the VTX / 5V 3A for peripherals) to ensure stable power delivery even during aggressive throttle punches.
Key Features:
-

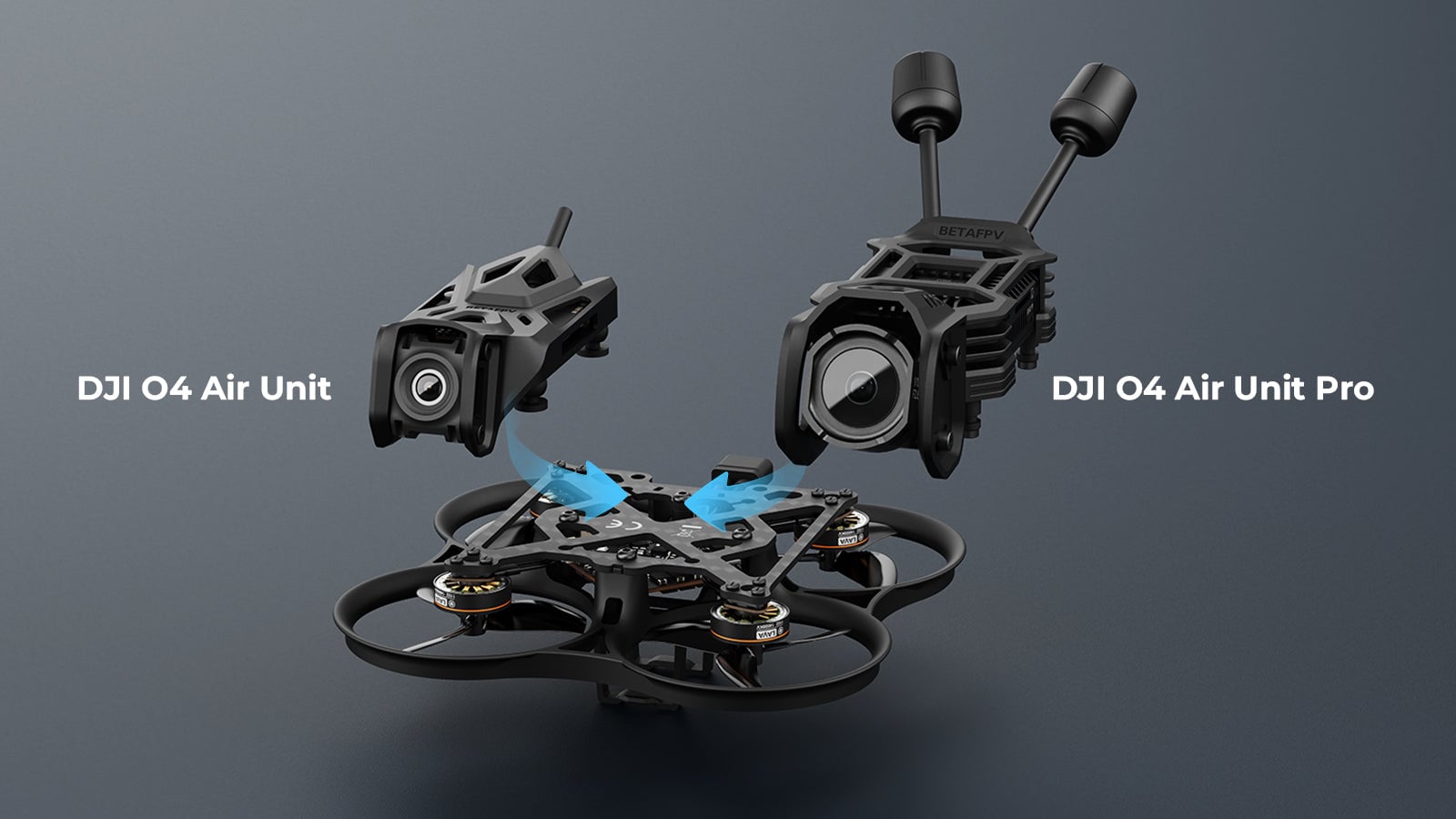

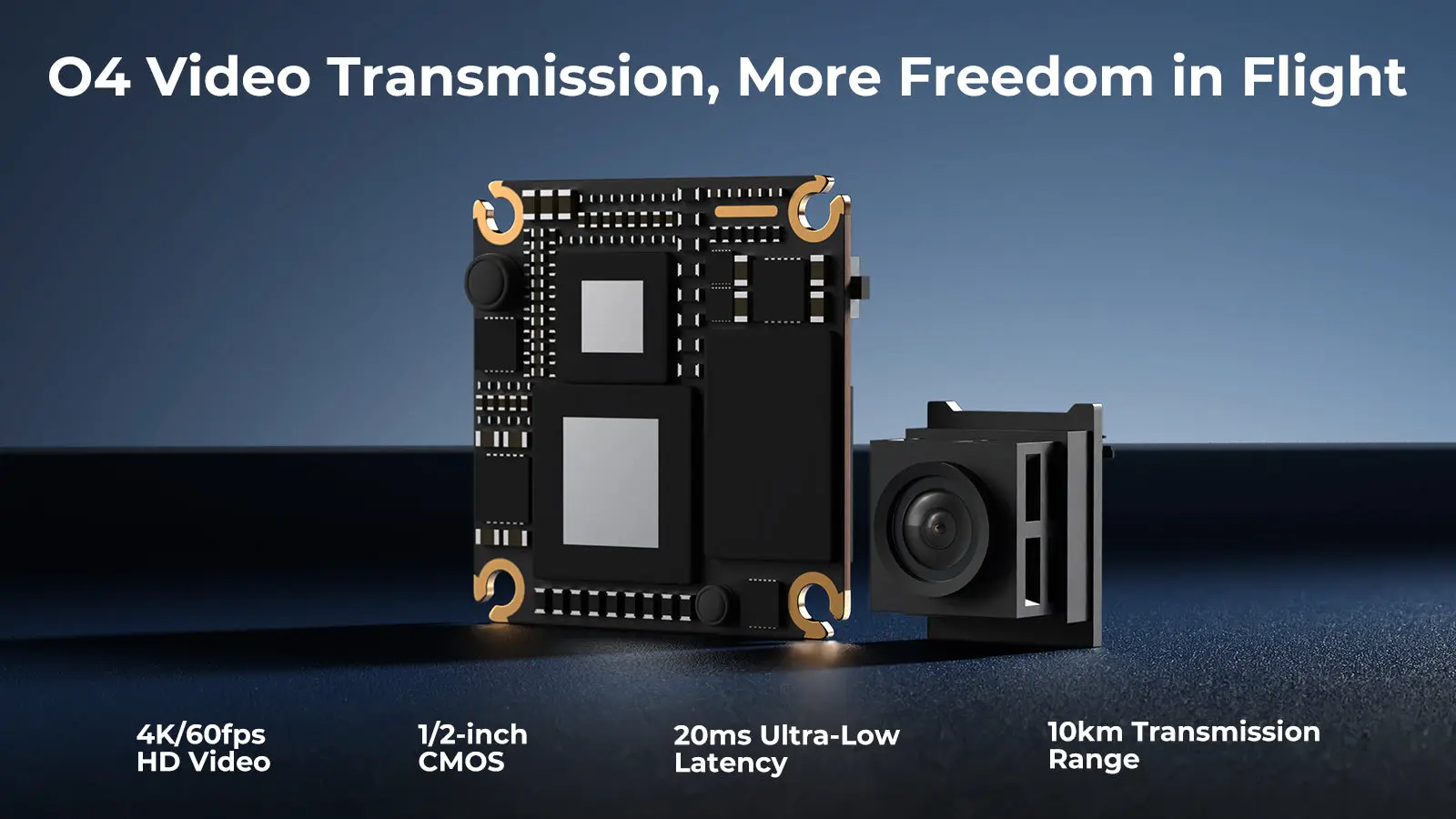

O4 Optimized: Designed specifically for DJI O4 / O4 Pro Air Units.
-
Jello-Free: Integrated O4 Bracket II with shock absorbers.
-
Easy Assembly: Rigid frame design uses only 4 screws.
-
More Power: 10% thrust increase via LAVA 1102 Motors.
-
Ultra-Light: Only 53.7g (O4 Version) / 39.1g (PNP).
-
Long Flight: Up to 6:30 mins on 2S 550mAh.
Specifications:
-
Model: Pavo Pico II Brushless Whoop
-
Wheelbase: 80mm
-
FC: F4 2-3S 20A AIO FC
-
Motors: LAVA 1102 | 14000KV
-
Props: Gemfan 45mm 3-Blade
-
Receiver: Serial ELRS 2.4G
-
Battery Connector: XT30
-
Recommended Battery: LAVA 2S 450mAh or 550mAh
-
Weight: 39.1g (PNP) / 53.7g (With O4 installed)

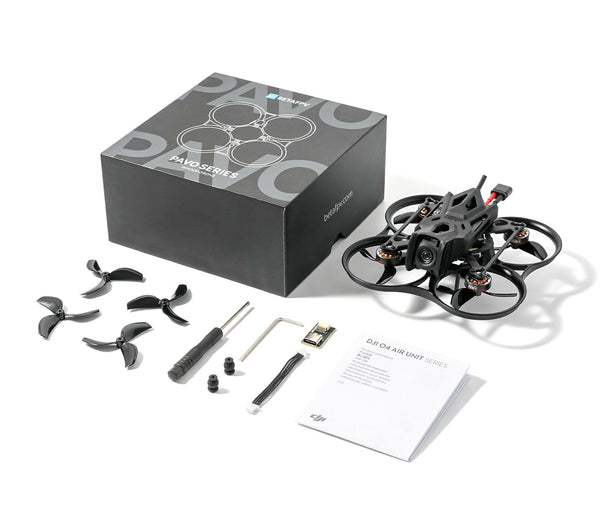

What’s in the Box? (O4 Version)
-
1x Pavo Pico II Brushless Whoop Quadcopter
-
4x Gemfan 45mm 3-Blade Propellers
-
1x DJI O4 Air Unit User Manual
-
1x Type-C to SH1.0 Adapter
-
1x SH1.0 4-Pin Adapter Cable
-
2x Spare Shock-Absorbing Balls (8.8mm)
-
1x Hardware Kit (Screwdriver & Hex Driver)
