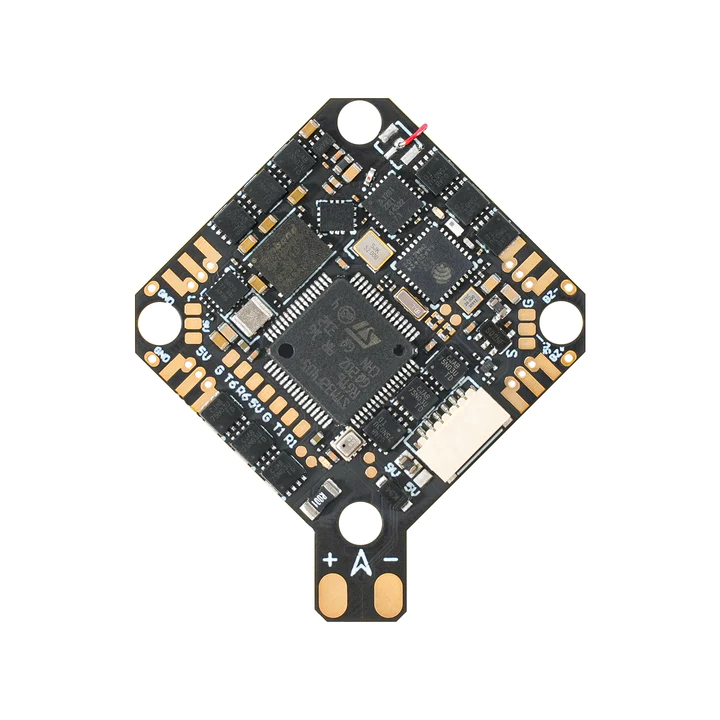

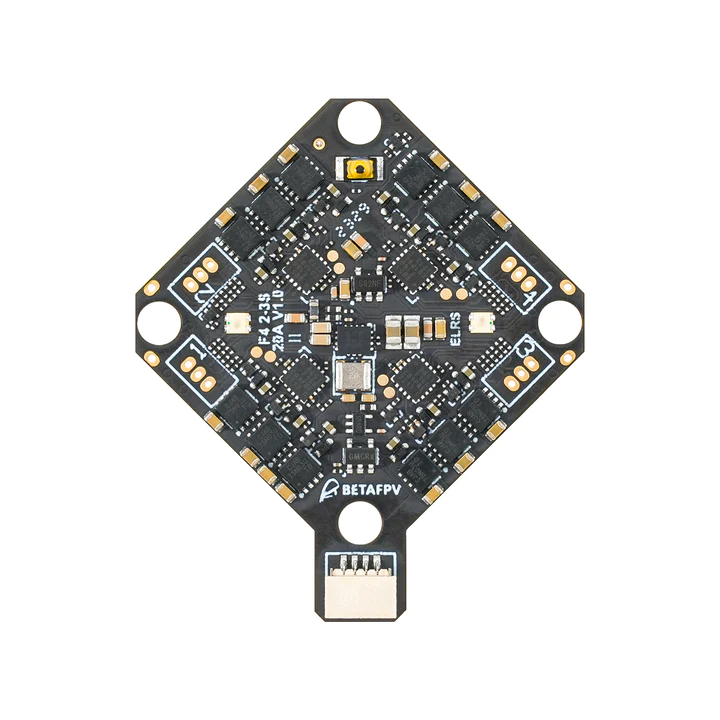

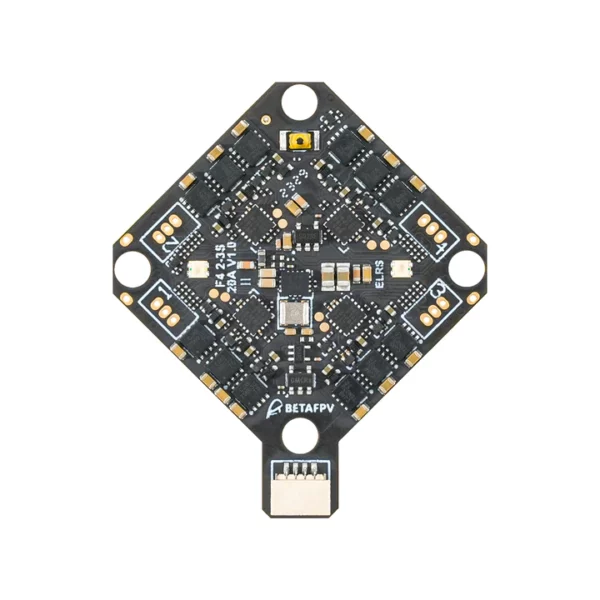

Build the ultimate lightweight HD FPV drone with the BetaFPV F4 20A AIO V1 Flight Controller. This all-in-one board is a powerhouse of integration, combining a powerful F4 flight controller, a robust 20A 3S ESC, and a Serial ELRS 2.4G receiver onto a single, compact whoop-style board. It is specifically designed for modern HD FPV builds with plug-and-play support for the DJI O3 system, making it the perfect core for a high-performance cinewhoop or toothpick.
Seamless HD FPV Integration

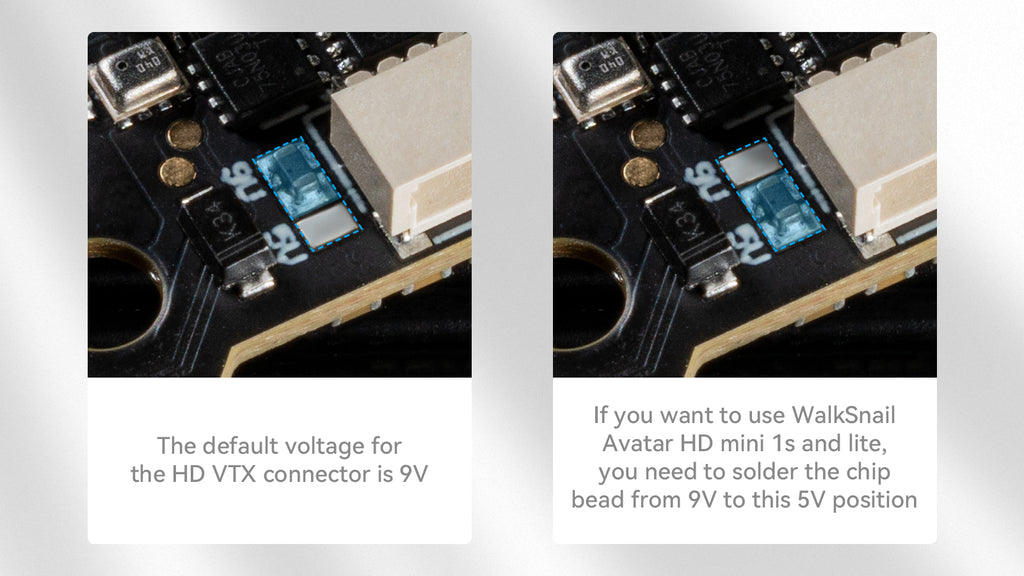

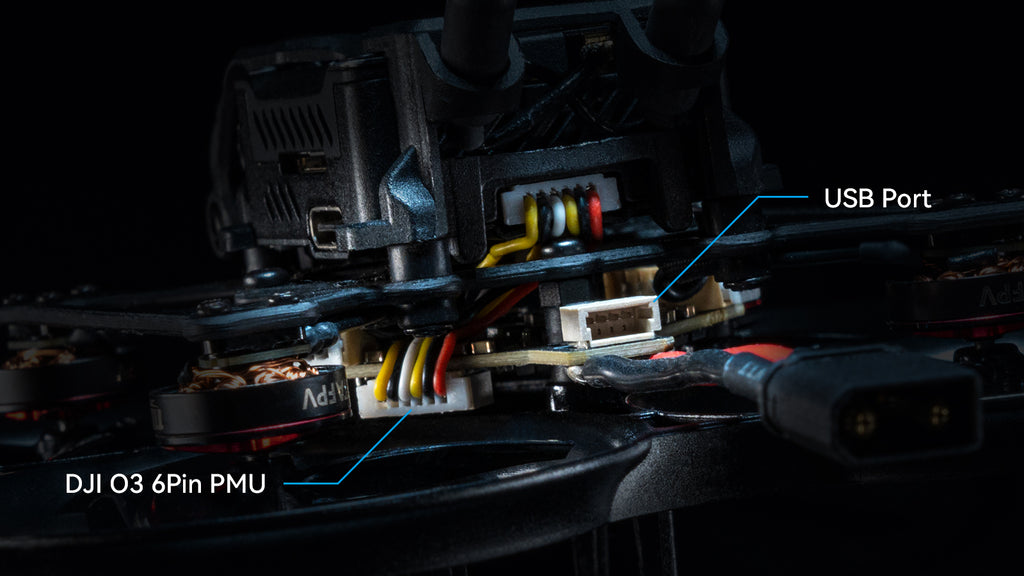

This AIO is engineered to make building an HD whoop easier than ever. It features a dedicated 6-pin connector for the DJI O3 Air Unit, allowing for a direct, solder-free installation. To ensure a stable, flicker-free video feed, the board includes a robust 9V @ 2A BEC to provide consistent power to the power-hungry DJI O3 system, preventing blackouts during throttle punches.
Built-in ELRS & Powerful Performance
Forget about soldering a separate receiver. This board comes with a Serial ExpressLRS (ELRS) 2.4G receiver integrated, providing a reliable, high-performance, long-range control link right out of the box. The integrated 4-in-1 ESC can handle a continuous current of 20A on 2-3S LiPo power and comes flashed with modern Bluejay firmware, which supports bi-directional DShot for RPM filtering. This results in an incredibly smooth and locked-in flight feel with fewer vibrations and less propwash.
Key Features:
- All-in-One Integration: Combines an FC, 20A ESC, and Serial ELRS Receiver on one board for a clean, lightweight, and easy-to-assemble build.
- DJI O3 Ready: A dedicated plug-and-play port and a robust 9V/2A BEC provide simple and reliable power for the DJI O3 Air Unit.
- Serial ELRS 2.4G Receiver: A top-tier, updatable long-range radio link is built-in, no extra receiver needed.
- Bluejay ESC Firmware: Enables RPM filtering on the 20A ESCs for superior propwash handling and smoother motor performance.
- Feature-Rich FC: A powerful F405 MCU, 16MB blackbox, barometer, and 4 free UARTs provide top-tier performance and connectivity.
- Complete Hardware Kit: Comes with all necessary screws, dampers, and adapter cables for a hassle-free installation.
Specifications
Flight Controller:

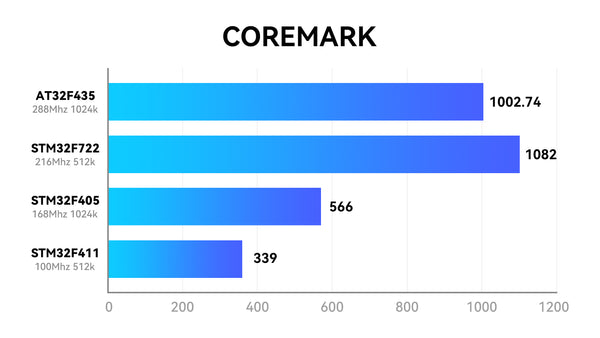

- CPU: STM32F405RGT6 (168MHz)
- Gyro: ICM42688P
- Mounting: 26mm x 26mm Whoop Pattern
- Blackbox: 16MB Onboard Flash
- Receiver: Integrated Serial ELRS 2.4G
- BEC Outputs: 5V @ 3A & 9V @ 2A
ESC:
- Input Voltage: 2-3S LiPo
- Continuous Current: 20A
- Peak Current: 25A (10s)
- Firmware: Bluejay (C_X_70_48_V0.19.2.hex)
- Supported Protocols: DSHOT300, DSHOT600
What’s in the Box?
- 1x F4 2-3S 20A AIO FC V1
- 4x M2x10 Machine Screws
- 4x M2x10 Nylon Screws
- 4x M2 Nuts
- 4x Shock Absorbing Balls
- 1x SH1.0 4-Pin Adapter Cable
- 1x Type-C to SH1.0 Adapter
- 1x XT30 Power Cord & Filter Capacitor
- 1x VTX Connector Wire (for DJI O3)
