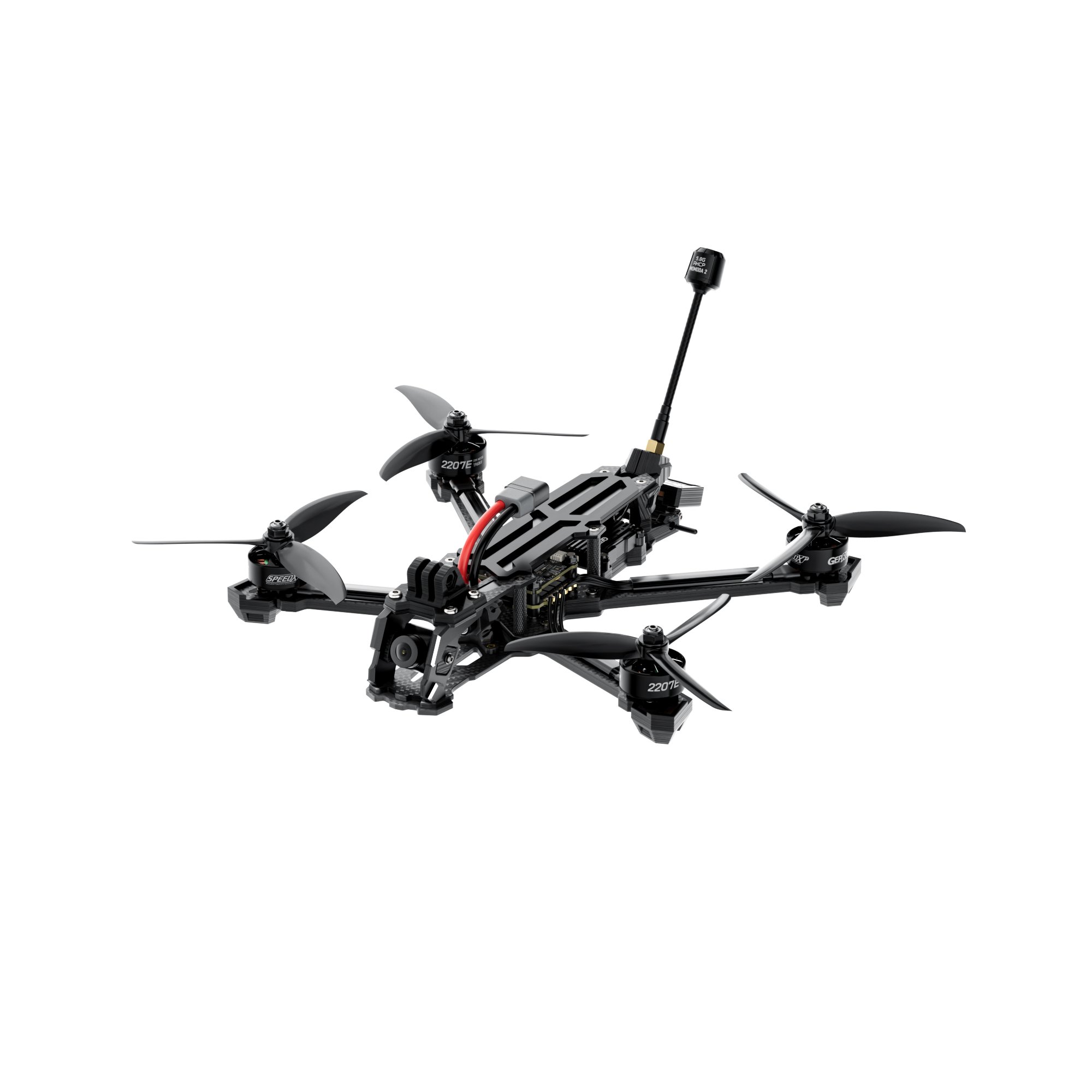

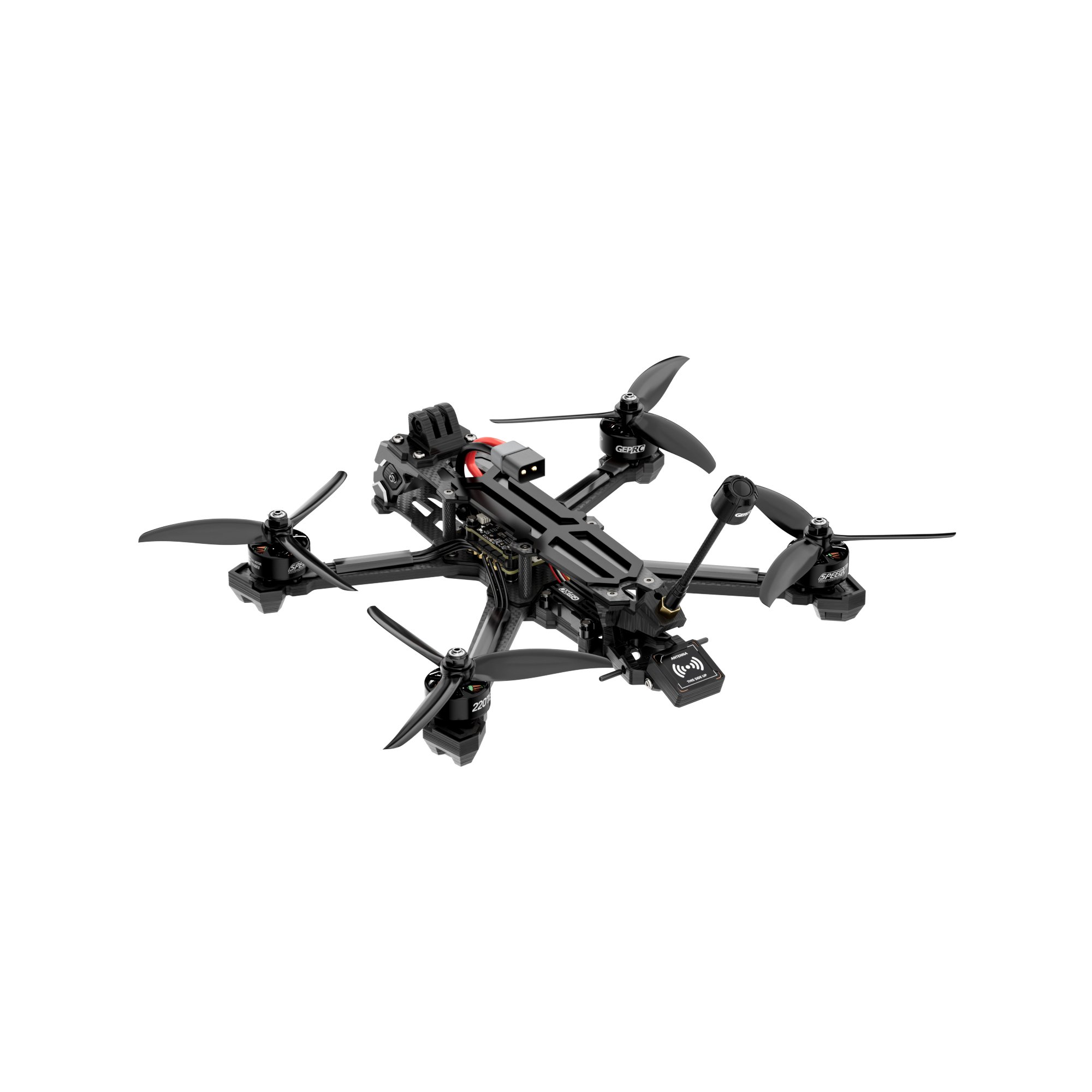

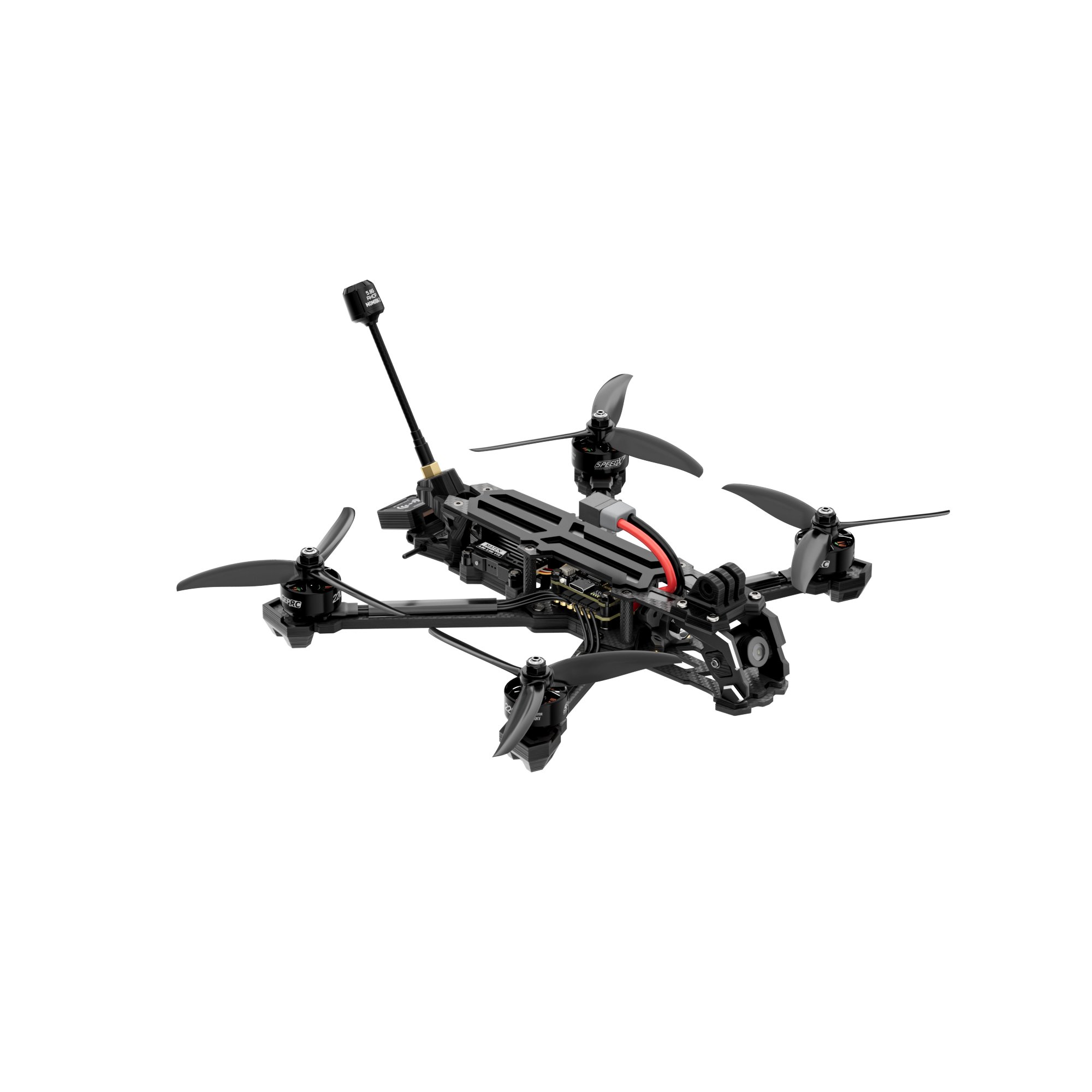

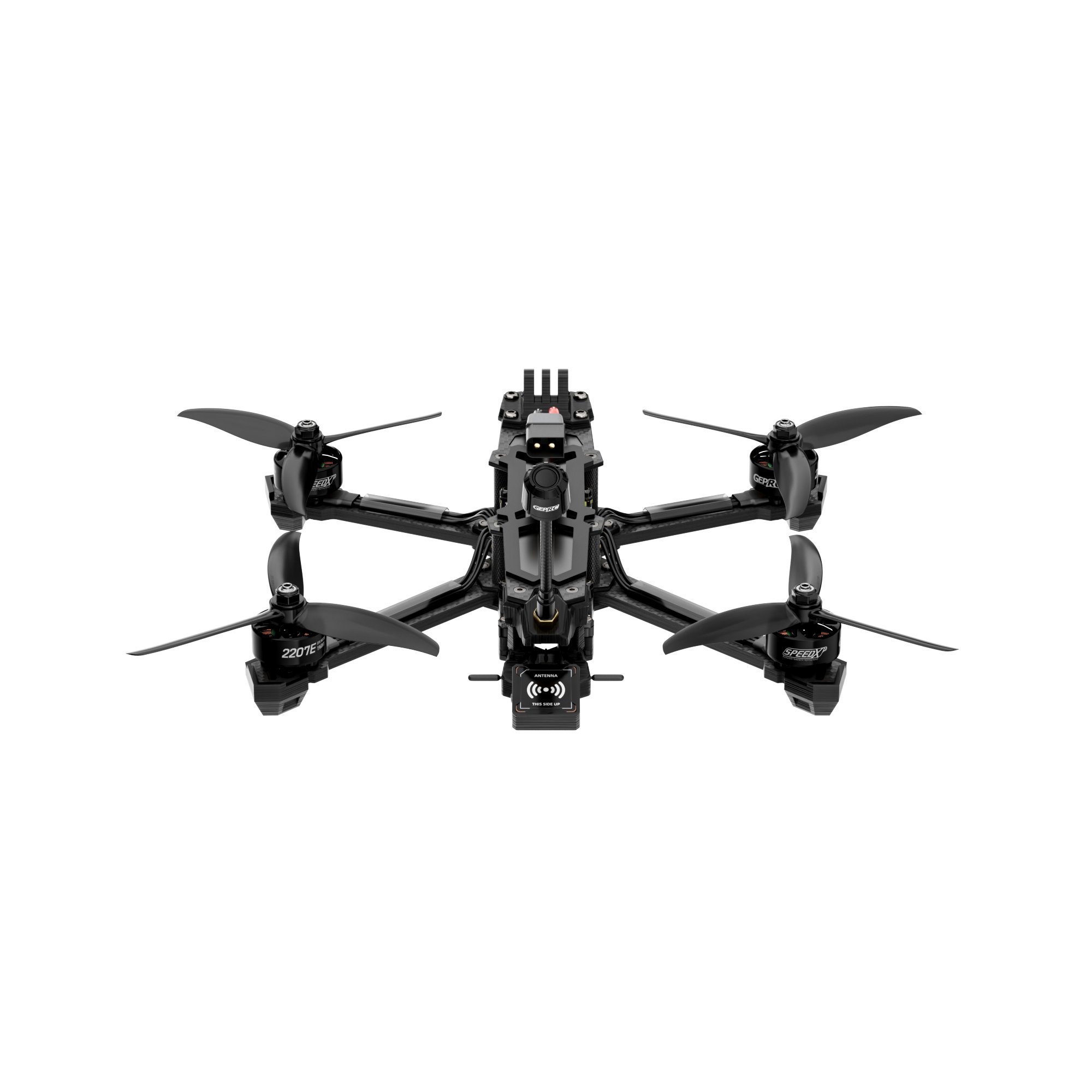

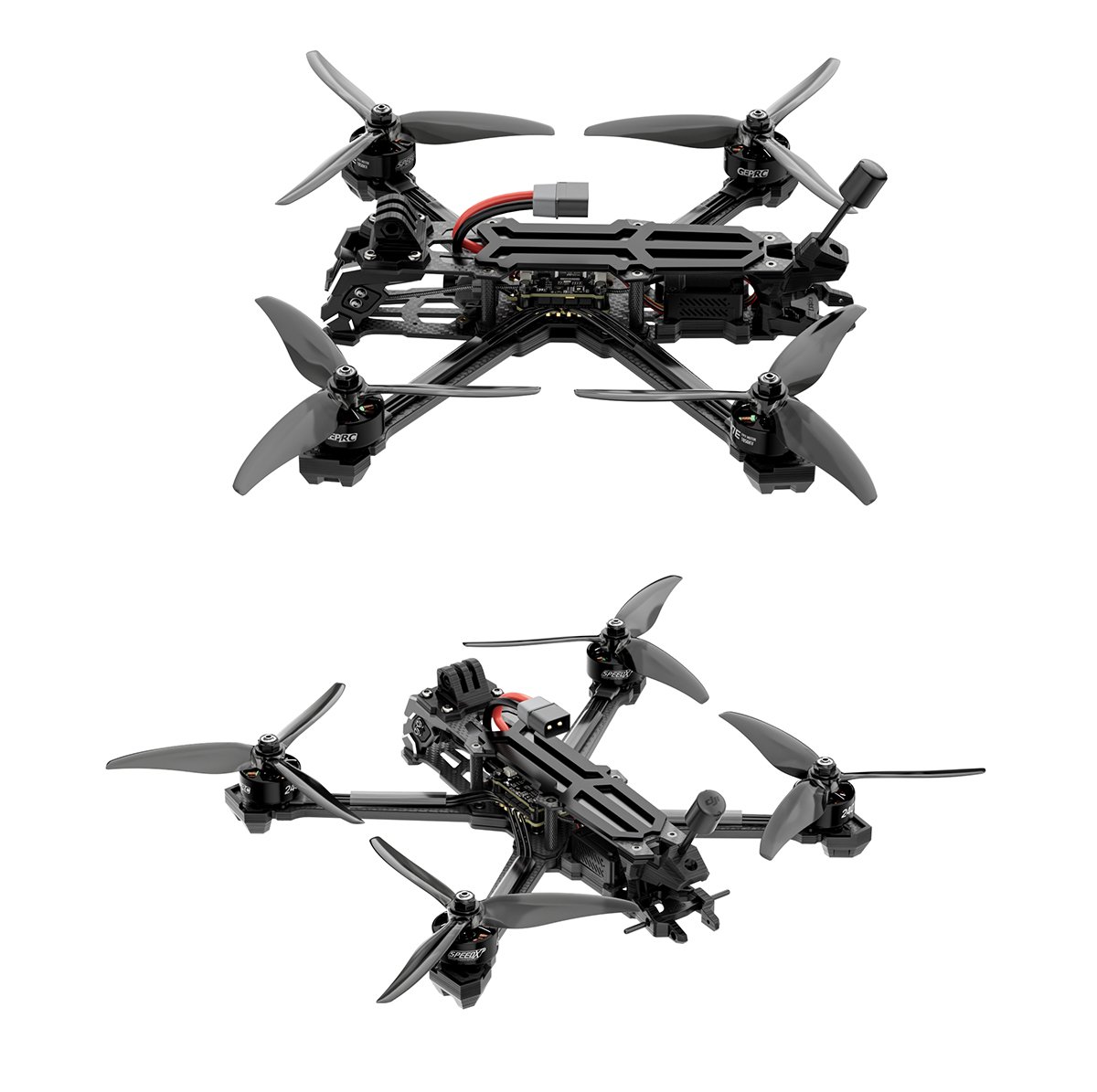

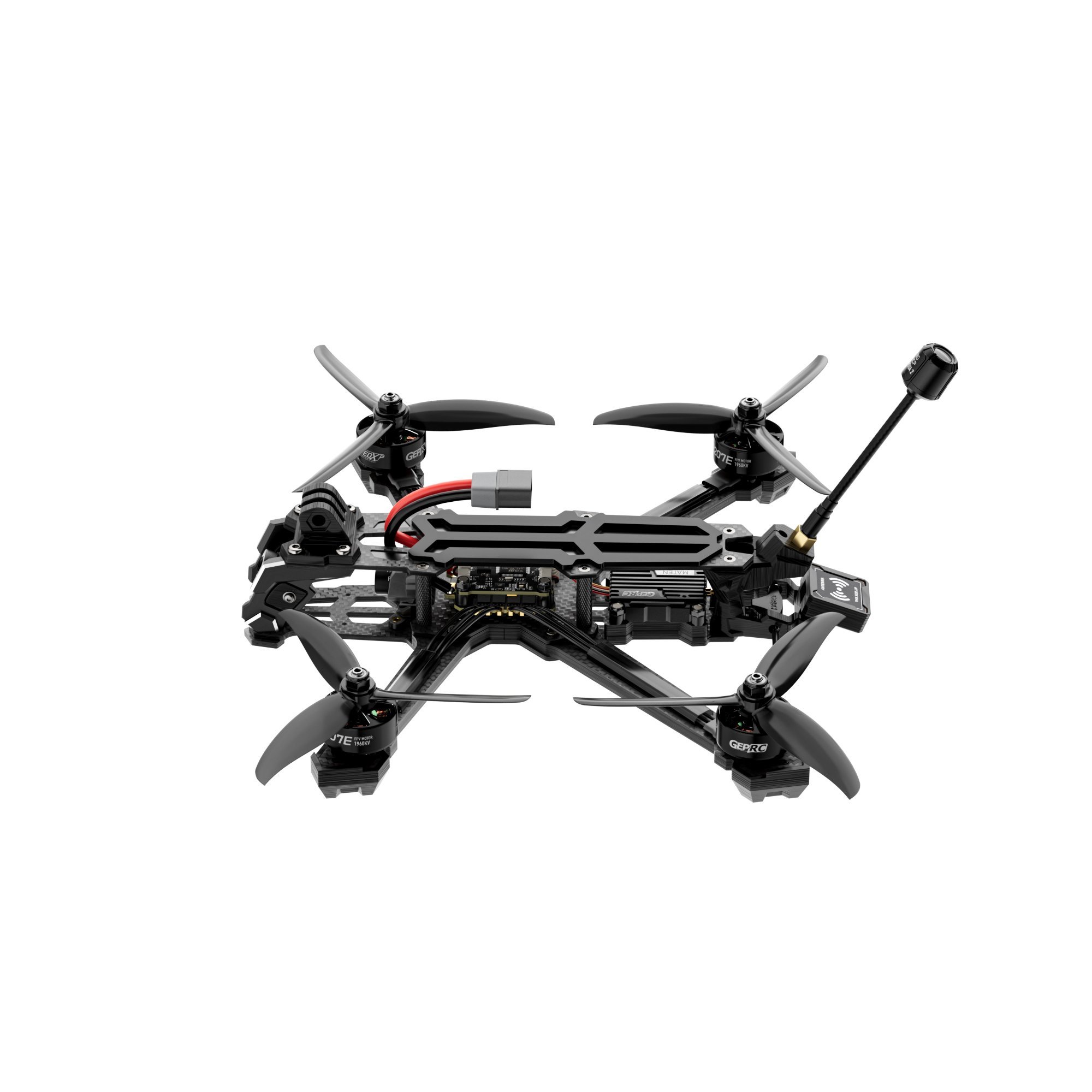

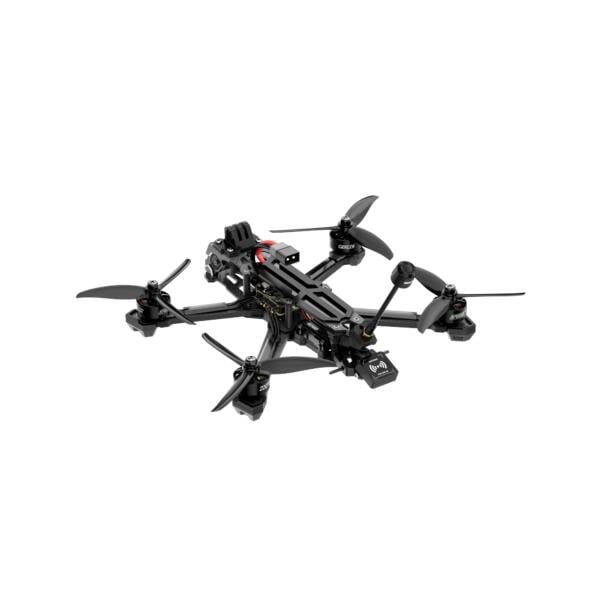

GEPRC Vapor-D5 Analog FPV Drone

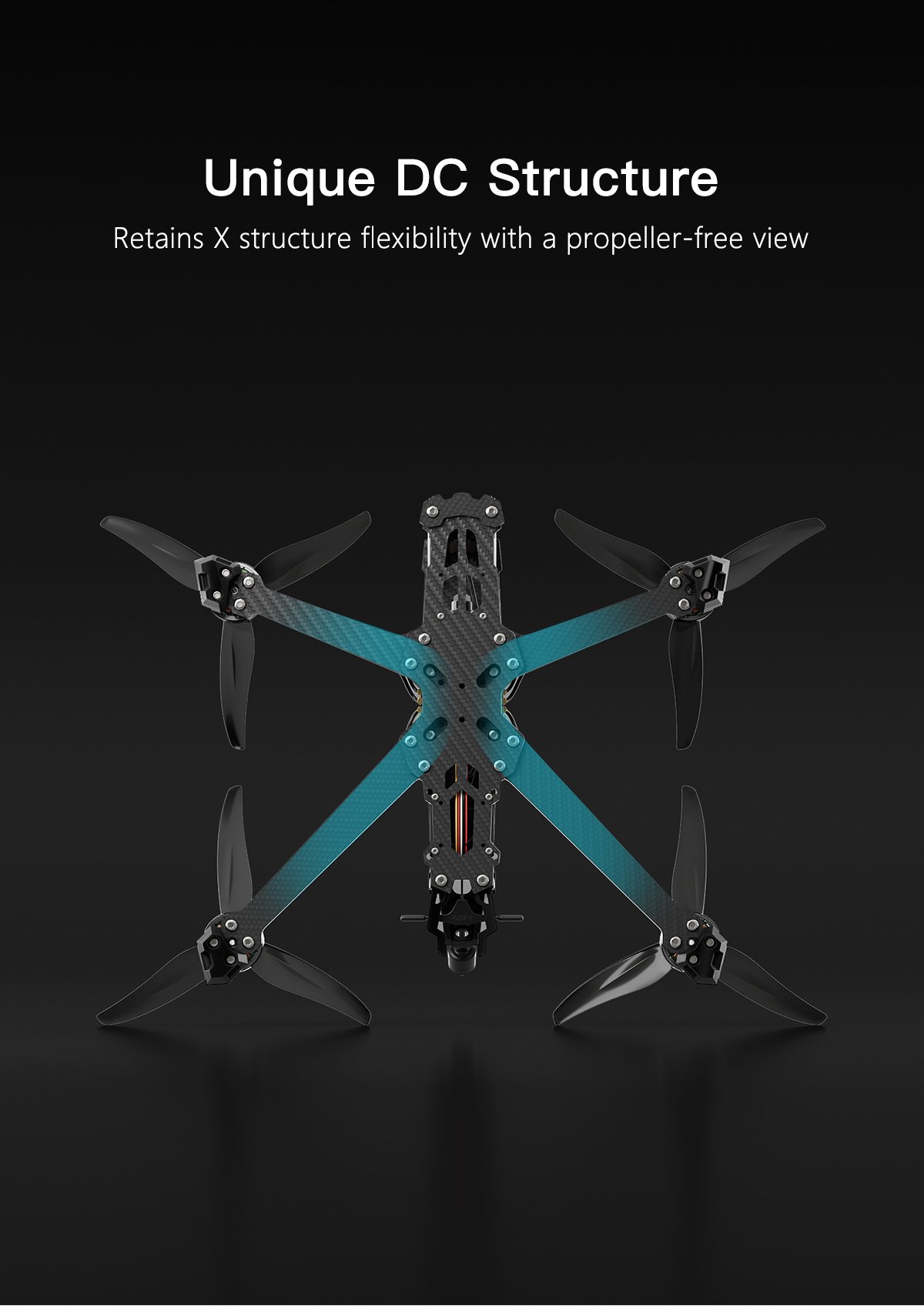

Experience the classic low-latency feel of analog FPV combined with a modern, high-performance platform in the GEPRC Vapor-D5 Analog FPV Drone. This pre-built PNP drone features a cinematic “Deadcat” (DC) frame style, ensuring your propellers stay completely out of the camera’s view. It’s the perfect choice for freestyle pilots and videographers who love the analog FPV experience but want a durable, stylish, and expertly assembled machine without building an FPV drone kit from scratch.
High-Power Analog FPV & Prop-Free View
The Vapor-D5 Analog is built for a superior analog experience. It comes equipped with a powerful MATEN 5.8G 1.6W VTX for a strong, reliable video signal and a quality Caddx H1 camera. This powerful video system, combined with the DC frame’s clear field of view, allows you to capture clean, immersive flight footage, making it an exceptional FPV drone for capturing dynamic action.
Built for Performance and Style

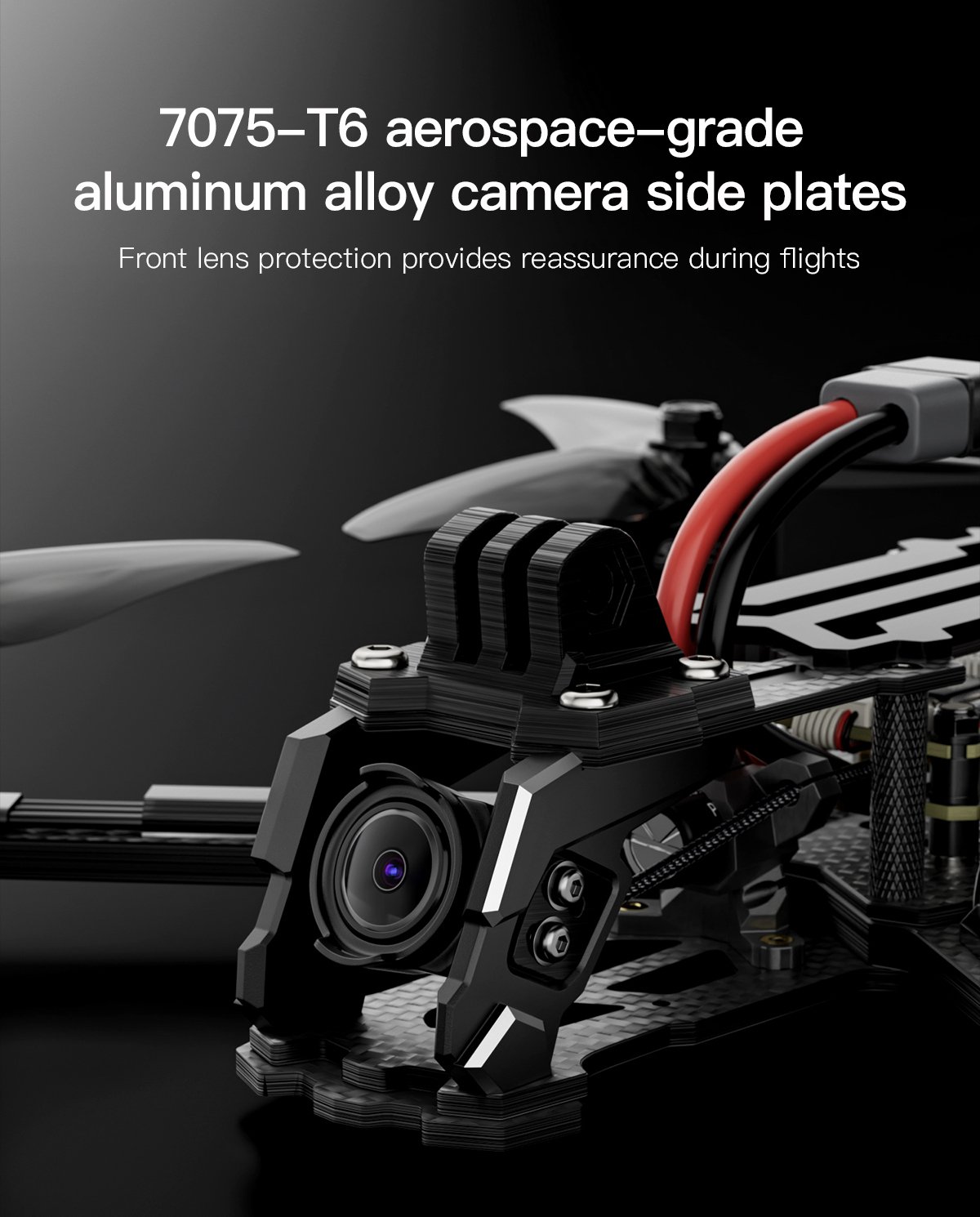

This FPV drone is engineered for both durability and aesthetics. The frame features sleek CNC aluminum alloy side panels that protect the camera while giving it a unique look. Wider 5mm carbon fiber arms provide robustness for aggressive flying, and a dedicated front lip guard offers extra lens protection. Powered by GEPRC’s proven SPEEDX2 E-series motors and a TAKER H60 60A ESC, the Vapor-D5 delivers a smooth, powerful, and responsive flight experience.

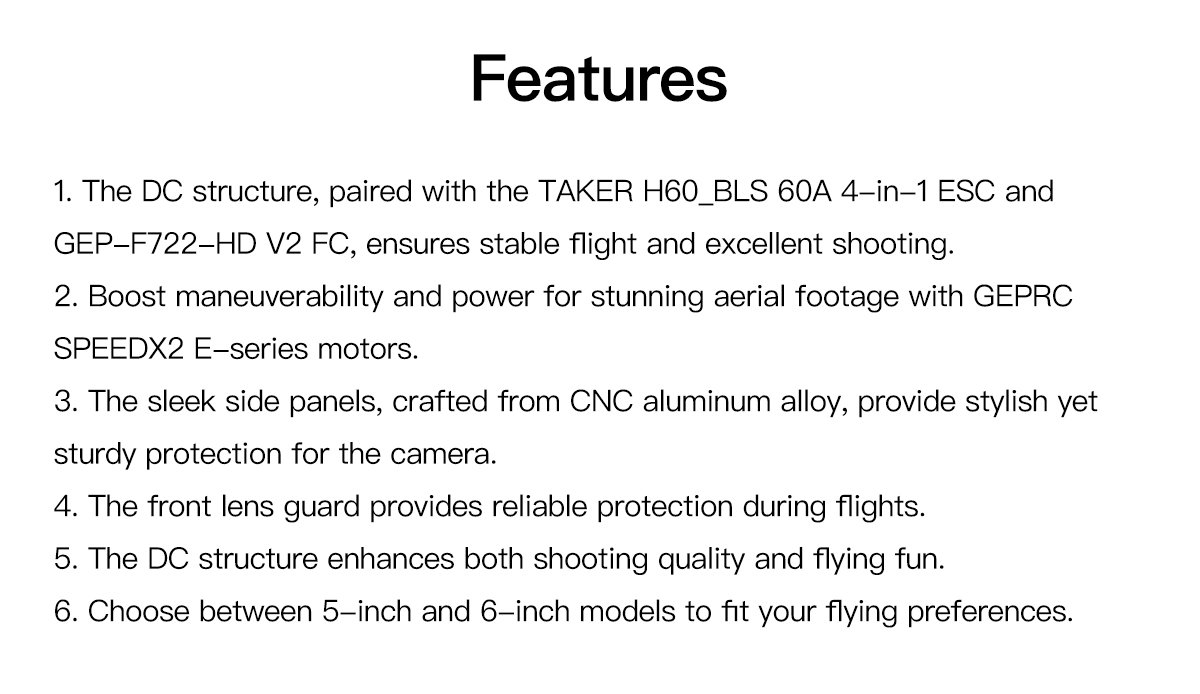

Features at a Glance
- Cinematic DC Frame: “Deadcat” style frame guarantees a clear, prop-free camera view.

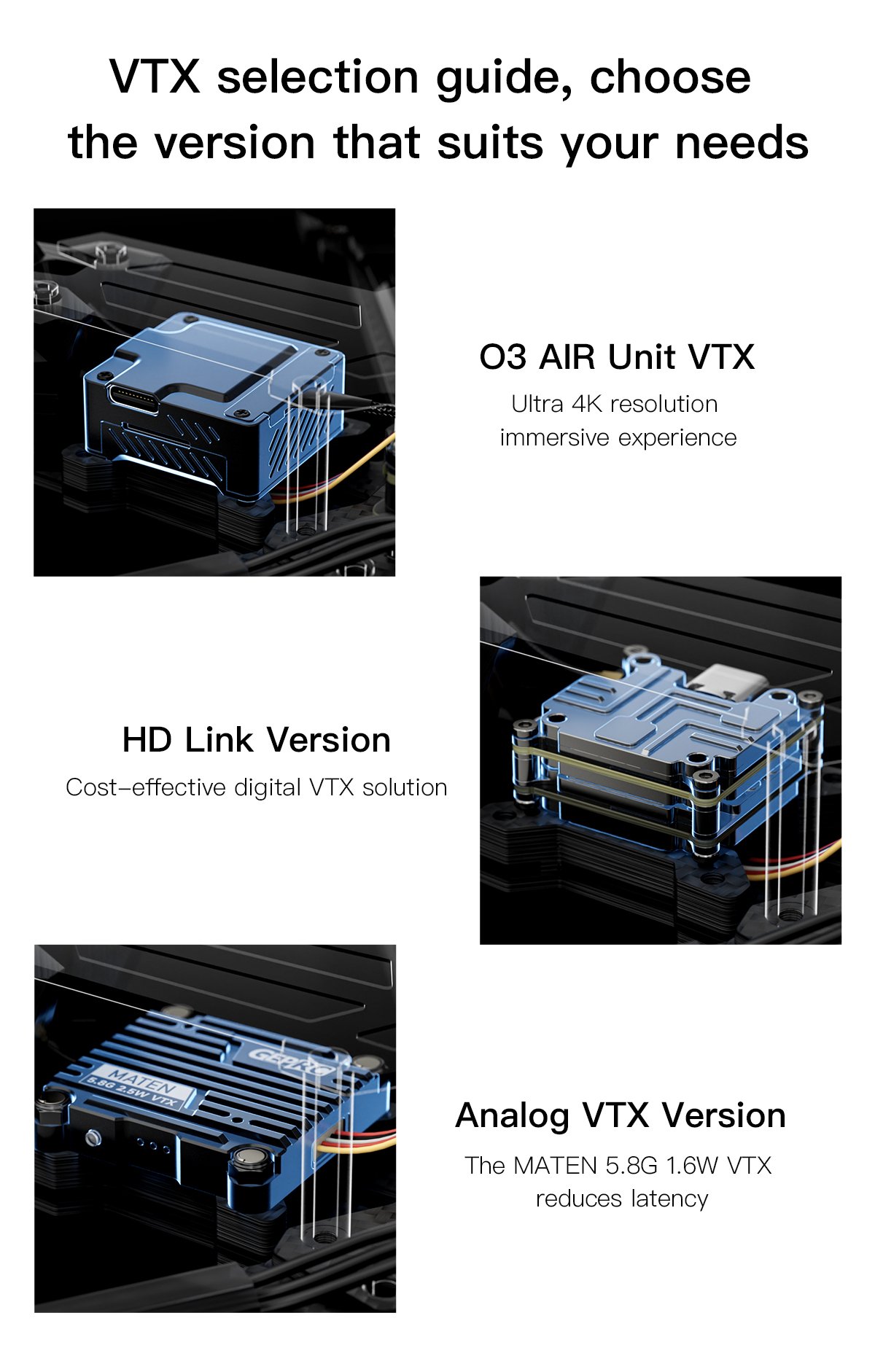

- Powerful Analog Video: Equipped with a high-power MATEN 5.8G 1.6W VTX for excellent signal penetration.

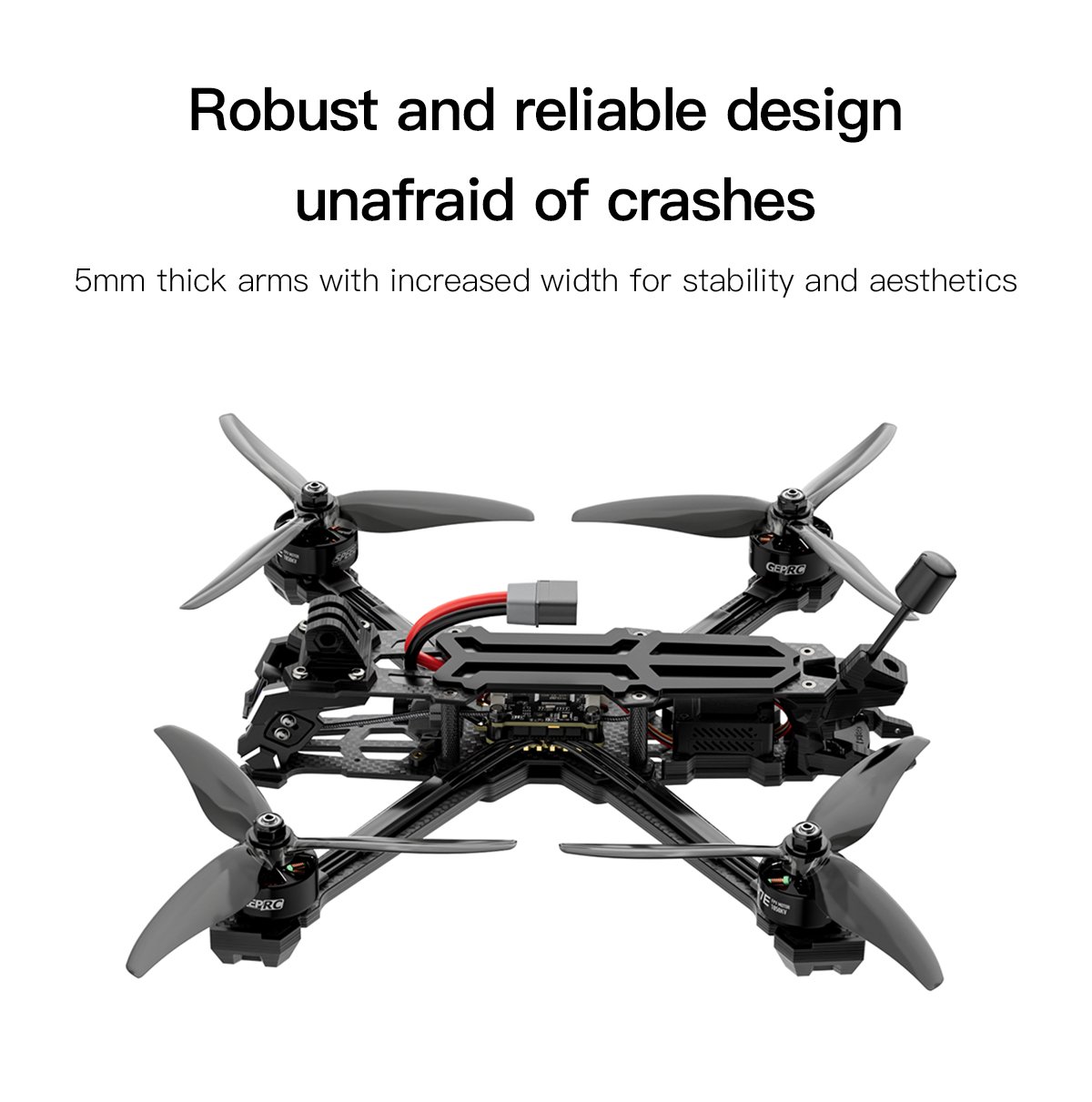

- Durable by Design: Features wide 5mm carbon fiber arms, CNC aluminum side panels, and a protective front lip.

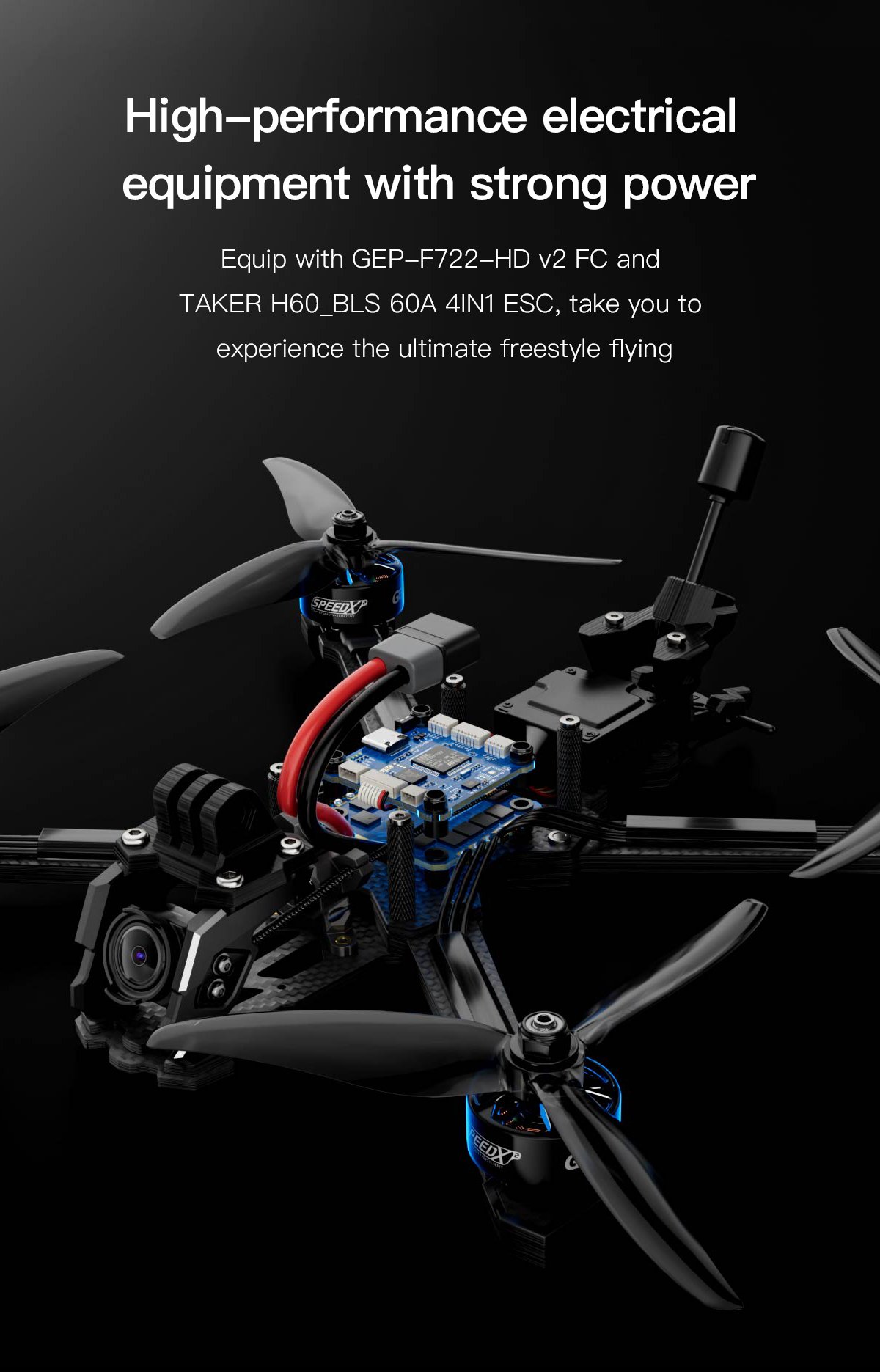

- High-Performance Core: The GEP-F722-HD V2 FC and TAKER H60 60A ESC ensure stable and responsive flight.
- Proven Power: GEPRC SPEEDX2 E-series motors deliver smooth and potent thrust for freestyle maneuvers.

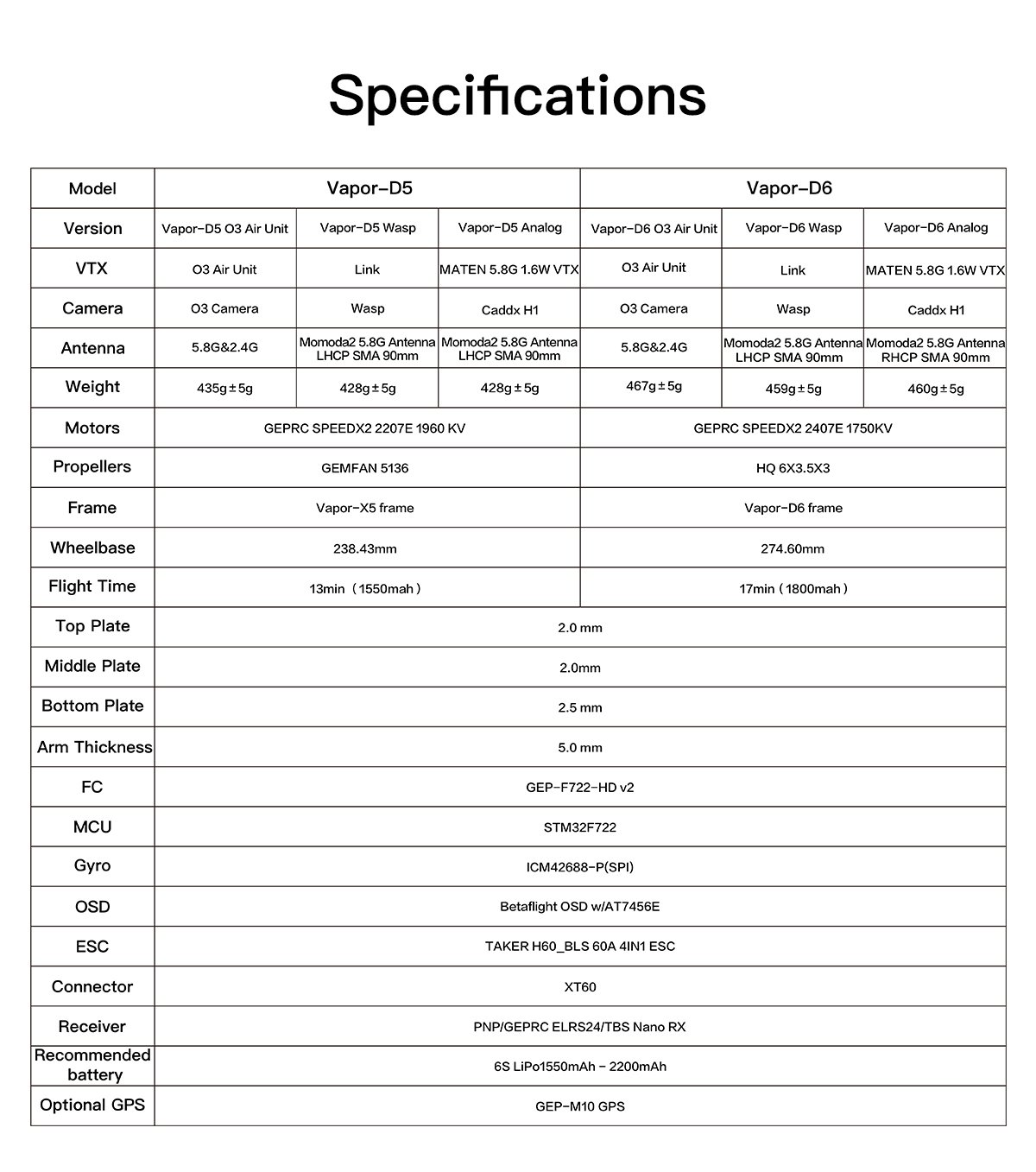

Specifications
- Model: Vapor-D5 Analog FPV Drone
- Wheelbase: 238.43mm
- Arm Thickness: 5.0 mm
- Flight Controller: GEP-F722-HD v2
- ESC: TAKER H60_BLS 60A 4IN1
- VTX: MATEN 5.8G 1.6W VTX
- Camera: Caddx H1

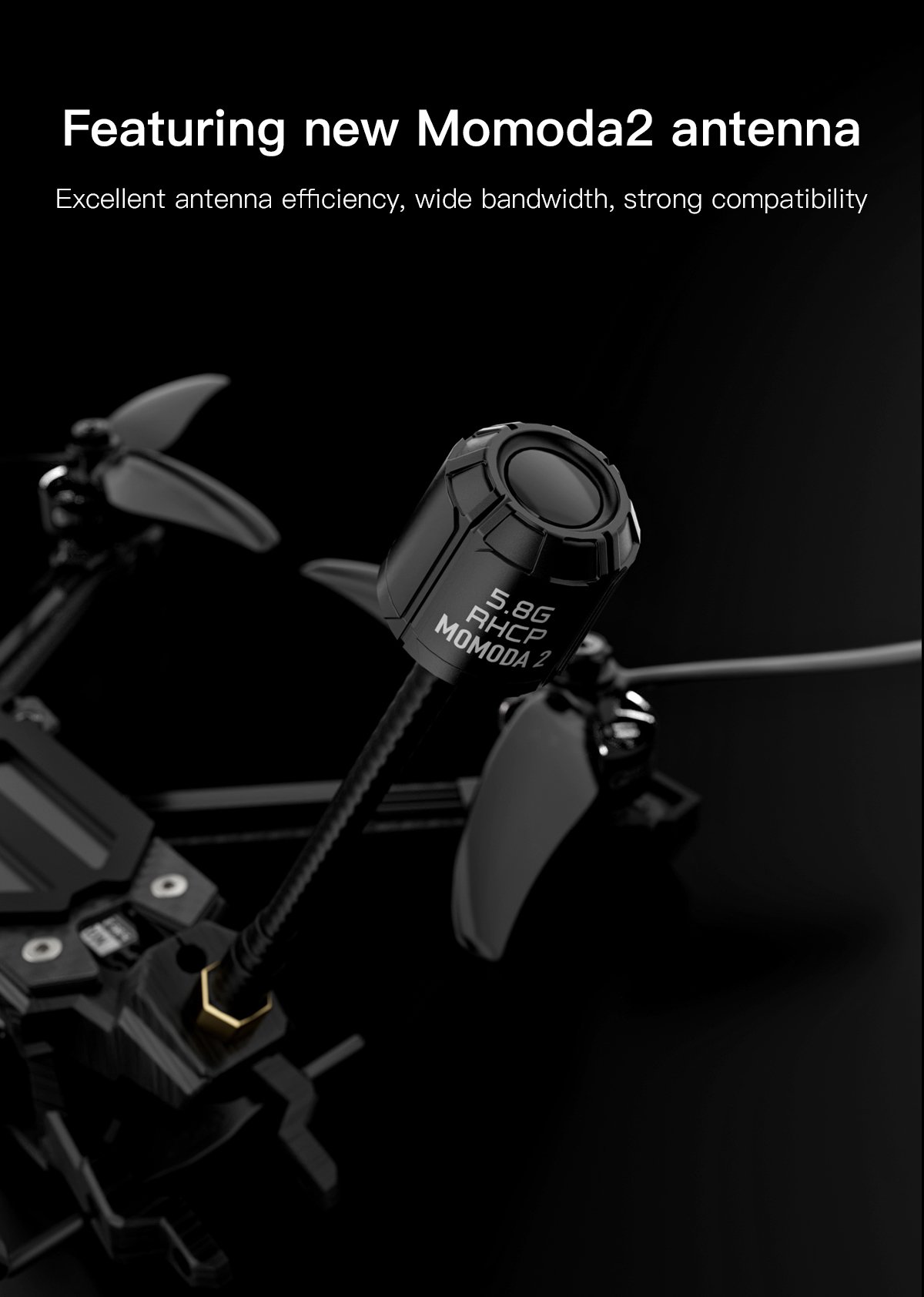

- Antenna: GEPRC Momoda2 5.8G RHCP SMA
- Motor: GEPRC SPEEDX2 2207E 1960 KV
- Propeller: GEMFAN 5136
- Receiver: PNP (Plug-N-Play – No receiver included)
- Recommended Battery: 6S LiPo 1550mAh – 2200mAh
- Weight: 428g ± 5g

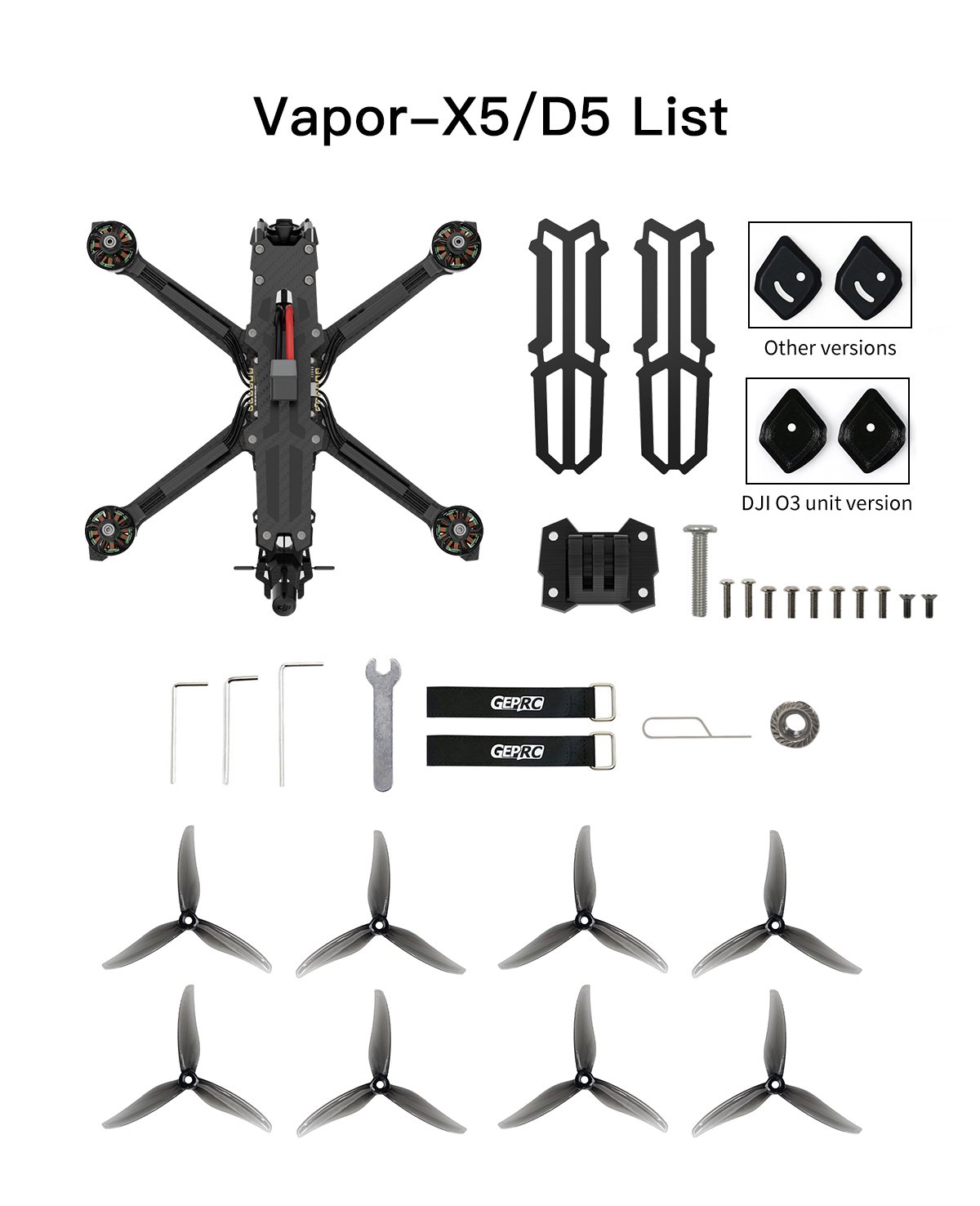

What’s in the Box?
- 1x Vapor-D5 Analog FPV Drone
- 2x GEMFAN 5136 Propeller Sets (4x CW, 4x CCW)
- 2x Battery Anti-slip Pads
- 1x Spare Screw Pack
- 2x M20*250mm Battery Straps
- 1x L-shaped Screwdriver 1.5mm
- 1x L-shaped Screwdriver 2.0mm
- 1x GoPro Mount
Note: This is a Plug-N-Play (PNP) FPV drone. A radio receiver is not included. You will need to install and configure your own compatible receiver.
