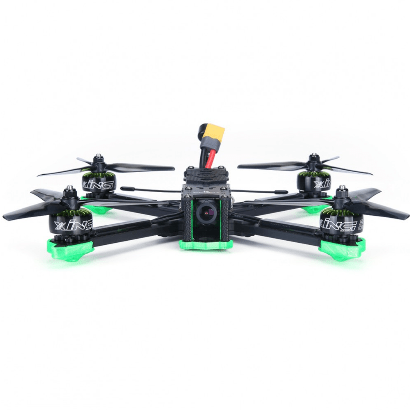

After our popular TITAN DC5 (DeadCat style frame) approach we decided to take a step back to the roots and create a new X-Geometry frame to get the best performance on both axis and better weight distribution for freestyle.

Tips:

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

HIGHLIGHTS:

• – 6mm arm design for more durability

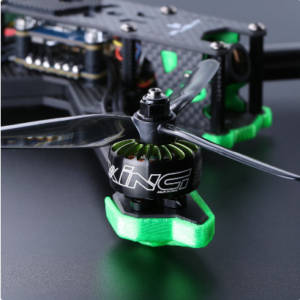

• – XING 2208 motors (6S 1800KV) for more power
• – GPS pre-installed for more safety at distance

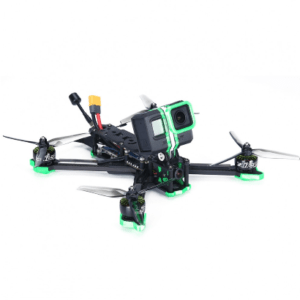

• – Variable GoPro TPU mount (supports ND-Filter inserts)
• – 360° TPU protection and Antenna mounts

PRE-TUNED & PRE-SETUP:

– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”

– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!

Please check our linked article on “How to disable Angle-Mode, activate Acro-Mode”

– GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.

Please check our linked article on“GPS Rescue Mode // Setup”

FRAME // TITAN XL5：

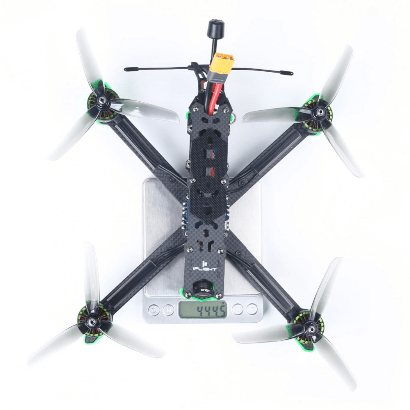

• – Weight ：145g
• – Wheelbase: 250mm
• – Main body dimension: 185*133mm
• – Bottom to top distance: 30mm

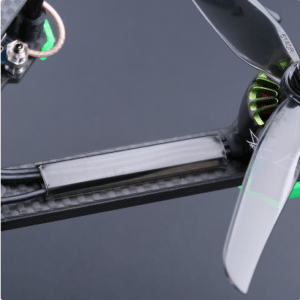

• – Arm thickness: 6mm
• – Bottom plate thickness: 2mm
• – Top plate thickness: 2mm
• – Camera plate thickness: 2mm (2.5mm included TPU inserts)

CHANGELOG:

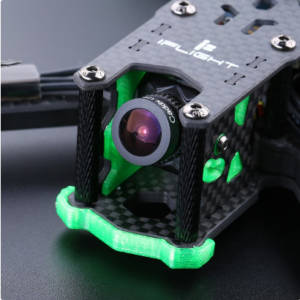

June 2021: Caddx Ratel, 2.1mm lens camera changed to RaceCam R1 Mini 1200TVL 2.1mm 19*19

ELECTRONICS // SucceX-E F4 Stack (45A 4-in-1 ESC)：

SucceX-E F4

• – MCU：STM32F405
• – IMU：MPU6000
• – Betaflight OSD：YES
• – Blackbox：8MB
• – 4X Uarts（1 2 3 6 )
• – 8 x Dshot/Proshot/Oneshot output
• – 8 x individual ESC power/ signal pads
• – 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
• – VTX protocol：YES（IRC Tramp）
• – WS2812 led Strip：YES
• – Baro：No
• – Beeper：YES
• – Input：2-6S（Max 8S）
• – BEC：5V/2.5A cont
• – Firmware :betaflight_4.0.5_BETAFLIGHTF4.hex

SucceX-E 45A 4in1

• – Dimension: 40*43mm
• – Mounting Holes: 30.5*30.5mm/Φ3mm
• – Weight:14.4g
• – Supports 2-6S Lipo input
• – STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware
• – Current sensor: YES
• – BEC: NO
• – Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• – Target: G-H-30 BLS 16.7

SucceX Force 5.8GHz 800mW VTX Adjustable

Feateures:

• – The output power is stable;
• – Transmit power 4 gear switch: 25mW/100mW/400mW/800mW;
• – Output 40 channels.
• – Frequency lock fast, the boot does not interfere with companions;
• – Built-in output power self-check function;
• – Full format video format: NTSC /PAL;
• – Wide input voltage range. low power consumption:
•   7V～36V，+12V/380mA@800mW;
• – Small size:36*36*3mm
• – Mounting holes 4-M3
• – Lightweight: 7.2g(excluding antenna)

Specs:

• – Item: SucceX-Force 800mW adjustable VTX
• – Input voltage: 7-36V
• – Output voltage/ Max current: 5V 1A
• – 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@100mW，250mA@400mW, 380mA@800mW
• – Channel: 40
• – size:36*36*3mm
• – PIT/25mW/100mW/400mW/800mW
