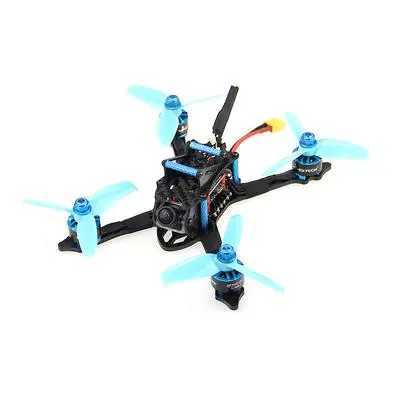

HGLRC XJB V1.2 – 145mm FPV Racing Drone (PNP) – Blue
The XJB is an amazing 3 inch Quad. Flies and maneuvers like a full size quad, just in a smaller package. It can run 4s batteries all day long, with amazing long range because of its powerful VTX, it is switchable allowing you to turn down to fly with friend’s and turn up when you freestyle by yourself. They have dropped hardware throughout the frame to shred weight to make the XJB a extremely fast Micro Quad.
XJB VX145 Frame Kit

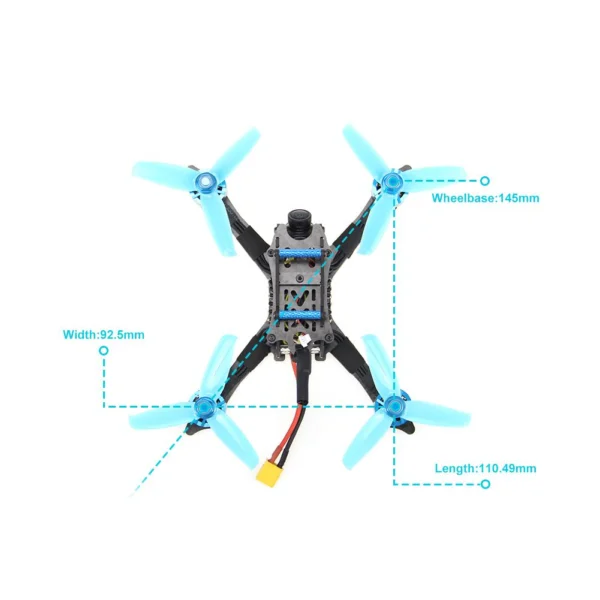

Wheelbase:145mm
Type:3″ Freestyle Frame
Weight:51.7g
Forward F4 Mini Flight Controller
Input Voltage:3-6S
MPU: MPU6000
Installing Hole: 20X20mm,M2
Weight:4.7g
Forward 35A 3-6S 4in1 ESC
Input Voltage:3-6S
Constant Current: 35A
Peak Current: 40A（10 sec）
ESC Firmware:BLheli_32
Weight:6.5g
FLAME 1407 3600KV Brushless Motor
Motor:KV3600
No.of Cells(Lipo):3-4S
Recommended Prop(inch):3 Inch
Weight:14g
RunCam Nano 2 Camera
Input Power:DC 5V
Lente:2.1mm
Image Sensor:1/3″ CMOS
Dimensions:14mm*14mm*16mm
Net weight:3.2g
Forward MT VTX mini
Built-in Microphone
Input voltage:DC 5V
Antenna interface:IPEX
Weight:3.9g
Gemfan 3052 3 Inch 3-Blade Propeller
Quantity:3 CW & 3 CCW
Package Included:
1x Forward F4 Mini Flight Control
1x Forward 35A 4in1 3-6S ESC
4x FLAME 1407 3600KV Brushless Motor
1x RunCam Nano 2 Camera
1x Forward MT VTX mini
1x XJB VX145 Frame Kit
6x Gemfan 3052 propeller
Recommended Parts: ( Not Included )
Manual：XJB145 V1.2Â
If you are a Newer Pilot you should run these batteries, if you are an Experienced Pilot or you want to push this rip monster to it’s Max run these batteries. This Quad can run 4s all day long.
Extra Props can be found here.
