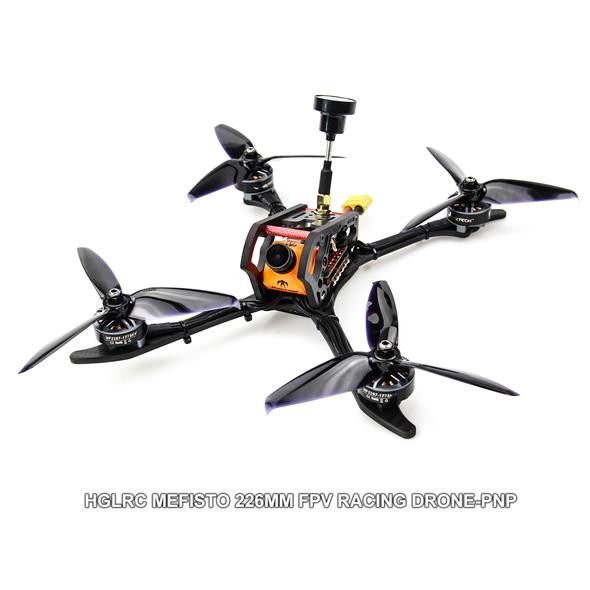

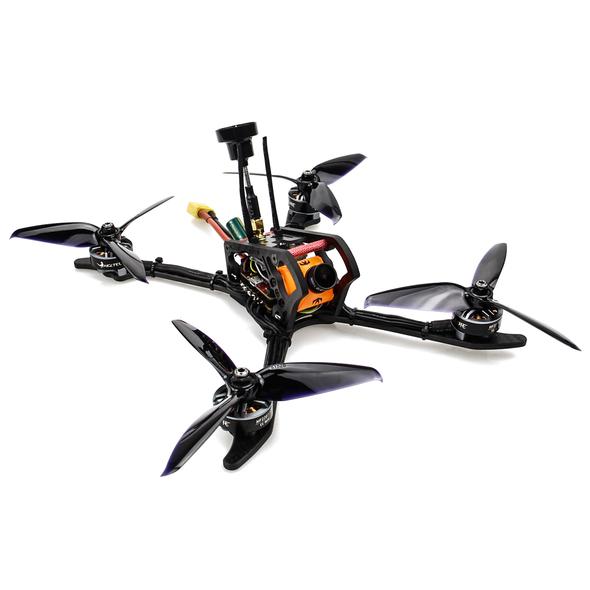

HGLRC 5s/6s Mefisto 226MM FPV Racing Drone (PNP)
Experience raw power with this Mefisto Racing Drone from HGLRC. Built for 5-6s batteries, you can tear through the sky at amazing speeds with this quad.
This is a Plug N Play drone, make sure to select a receiver above if you don’t have one.

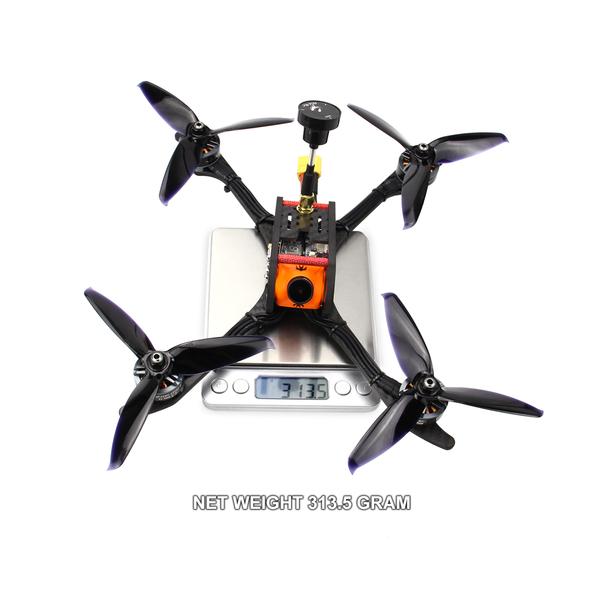

Net Weight: 313.5g

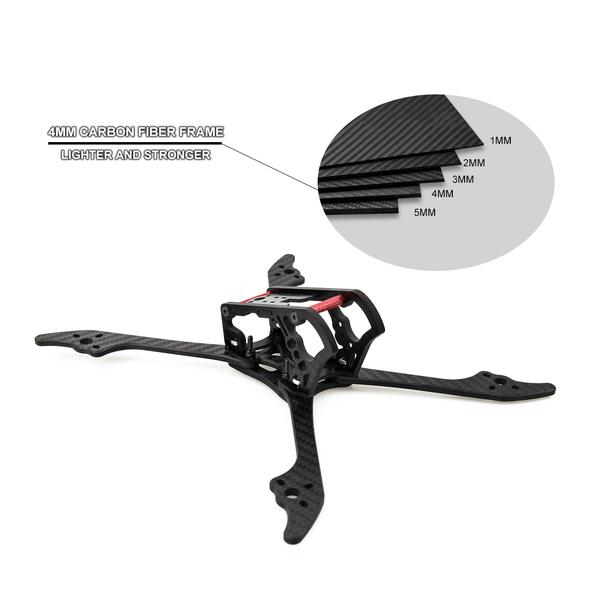

Mefisto 226MM Carbon Fiber Frame KitÂ
- Wheelbase: 226mm
- Arm Plate Thickness: 4mm
- Bottom Plate Thickness: 4mm
- Material: Carbon Fiber
- Weight: 76g
Airbus F4 OSD Flight Control Board ( D-Shot Version)Â Â
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 36x36mm board, 30.5mm mounting holes (M3)
Weight:8.3g
Support SBUS/PPM/DSMX receiver
DinoShot 60A BL32 3-6S 4-in-1 ESCÂ
Input Voltage: 3-6S Lipo battery
Constant Current: 60A-4S/50A-5S/40A-6S
Peak Current: 70A
BEC Ouput: NO
Firmware:32bit ESC with BLHELI_32 firmware
Size: 36x36mm (main board)/40x48mm (including pad)
Installing Hole: 30.5×30.5mm,M3
Weight: 12.9g
CPU:STM32F051
MOS Tube: TOP QUALITY MOSFET
Protocol:DSHOT1200/600/300/150/Oneshot125/42,MultiShotDamped
GTX226 V2 VTX (Transmitter)Â
Output power: PIT/25mW/100mW/200mW/400mW switchable
Control mode:BFOSD control(RX)/button
BAT: 7-26V,BEC 5V-1A
240mA—-400mW
Video system: NTSC/PAL
Antenna: IPX
Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
Size: 20mm×25.5mm×8.5mm
Weight: 5.3g

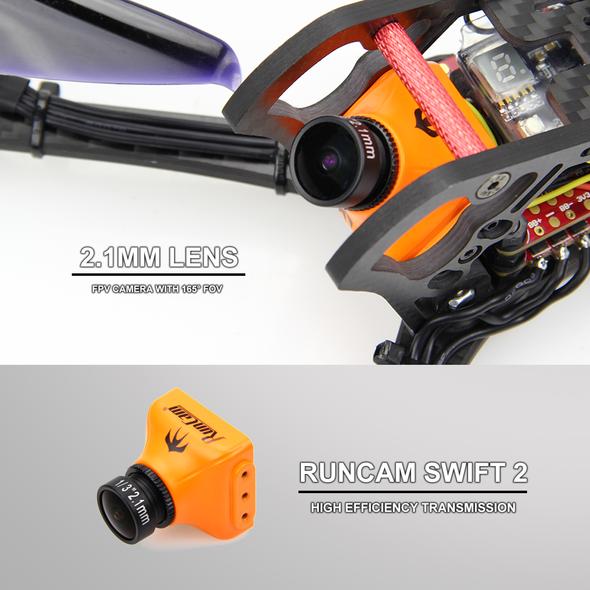

RunCam Swift 2 CAMERAÂ
Image Sensor: 1/3″ SONY Super HAD II CCD
Horizontal Resolution: 600TVL
Lens: 2.1mm Lens
FOV: 160 degree(2.1mm)
Signal System: PAL
S/N Ratio: >60dB(AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control(AGC): YES
Back light compensation(BLC): YES
Min.illumination: 0.01Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Color / Auto / B&W
Power: DC 5 to 36V
Net weight: 14g
Dimensions: 28.5mm * 26mm * 26mm
HF2207 1775KV 5-6S MotorÂ
KV: 1775KV
Stator Diameter: 23mm
Stator Thickness: 6mm
No.of Stator Arms: 12S
No.of Rotor poles:14P
No-load Current(A/10V):0.89A
Motor Resistance:62mΩ
Max Continuous Current:34A
Max Continuous Power:660W
Weight:30.7g
Rotor Diameter:27.5mm
Shaft Diameter:5mm
Body Length:17.7mm
Overall shaft Length:30.9mm
No.of Cells(Lipo):5S~6S
Wire type:18AWG 150mm
Gemfan 5152 5 Inch 3-Blade PropellerÂ
Color: Black
Quantity: 3 CW & 3 CCW
Package Included:
1x HGLRC AIRBUS F4OSD Flight Control Board
1x HGLRC 60A BL32_60A 3-6S 4in1 BLHeli_32 ESC
1x HGLRC GTX226 V2 VTX FPV Transmitter
1x RunCam Swift 2 CAMERA
1x Mefisto 226MM Carbon Fiber Frame Kit
4x HGLRC 5-6S HF2207 1775KV Motors
6x Gemfan 5152 3 propeller
1x Battery Strap
1x Pagoda 5.8G Antenna
