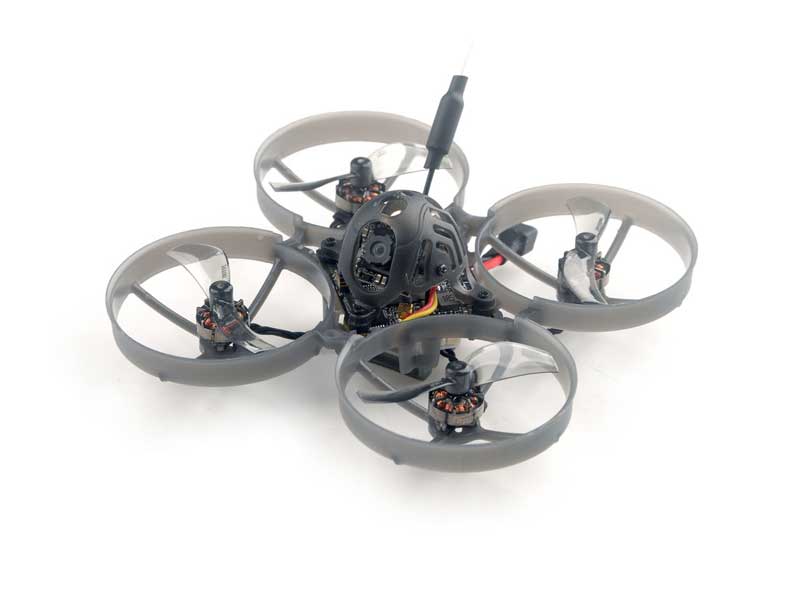

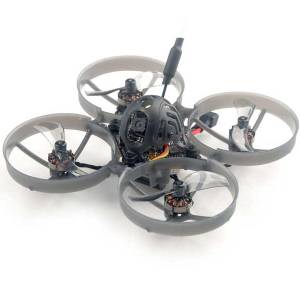

HappyModel Mobula7 1S Analog Edition BNF – FrSky
Check out all of our other HappyModel products! Also, take a look at our selection of Pre-Built Drones! We also have just the frame!
Ultra lightweight 1S 75mm whoop with FrSKY SPI Rx. Packed with the X12 board (5-in-1 FC w/ 12A ESC), OPENVTX (up to 400mW output power) and the RS0802 20000kv brushless motors.
Notes: DO NOT FLASH THE BOARD WITH 4.3.1. There are SPI related issues when using 4.3.1. A fix is coming with a new firmware that will be available soon (4.3.2). STAY ON 4.3.0 OR BELOW.
Although D8 is still recommended, if using BF 4.3.0, you can now use D16 as well.
Features:
- X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
- VTX Power up to 400mw
- RS0802 KV20000 motors
- Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
- Compatible for 1S Lipo/LIHV
- Smooth and powerful
Specifications:
- Wheelbase: 75mm
- Size: 99mm*99mm*40mm
- Weight: 24g
- FrSKY D8/D16 SPI receiver
- ESC: BLHeliSuite 12A (DSHOT300)
- 1S ONLY
- OPENVTX (up to 400mW output) w/ smartaudio
Notes:
The included series charger only works if you already own a charger with XT60 ports.

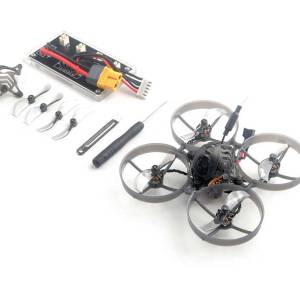

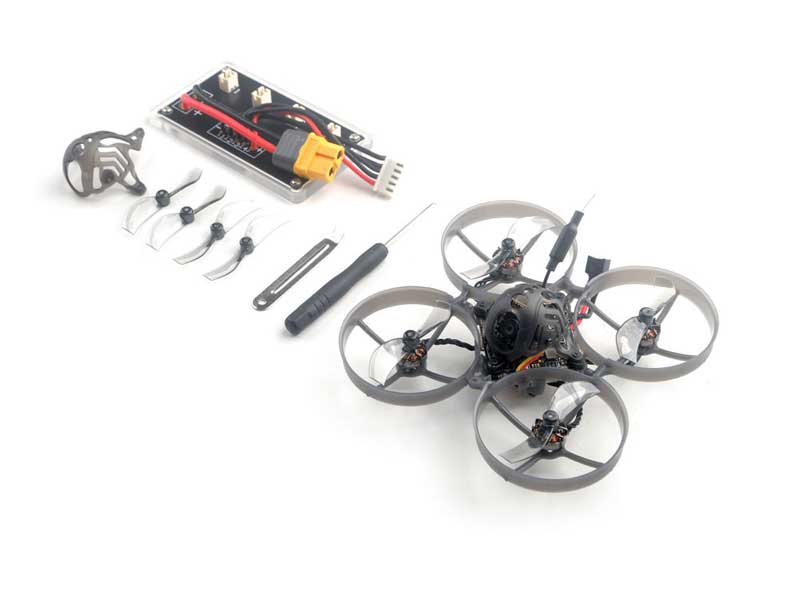

Package:
- Mobula7 1S drone x1
- Gemfan 1610-2 bi-blade propellers(4cw+4ccw) x2
- 1S series charging board x1
- Propeller disassembly tool x1
- Extra camera canopy x1
