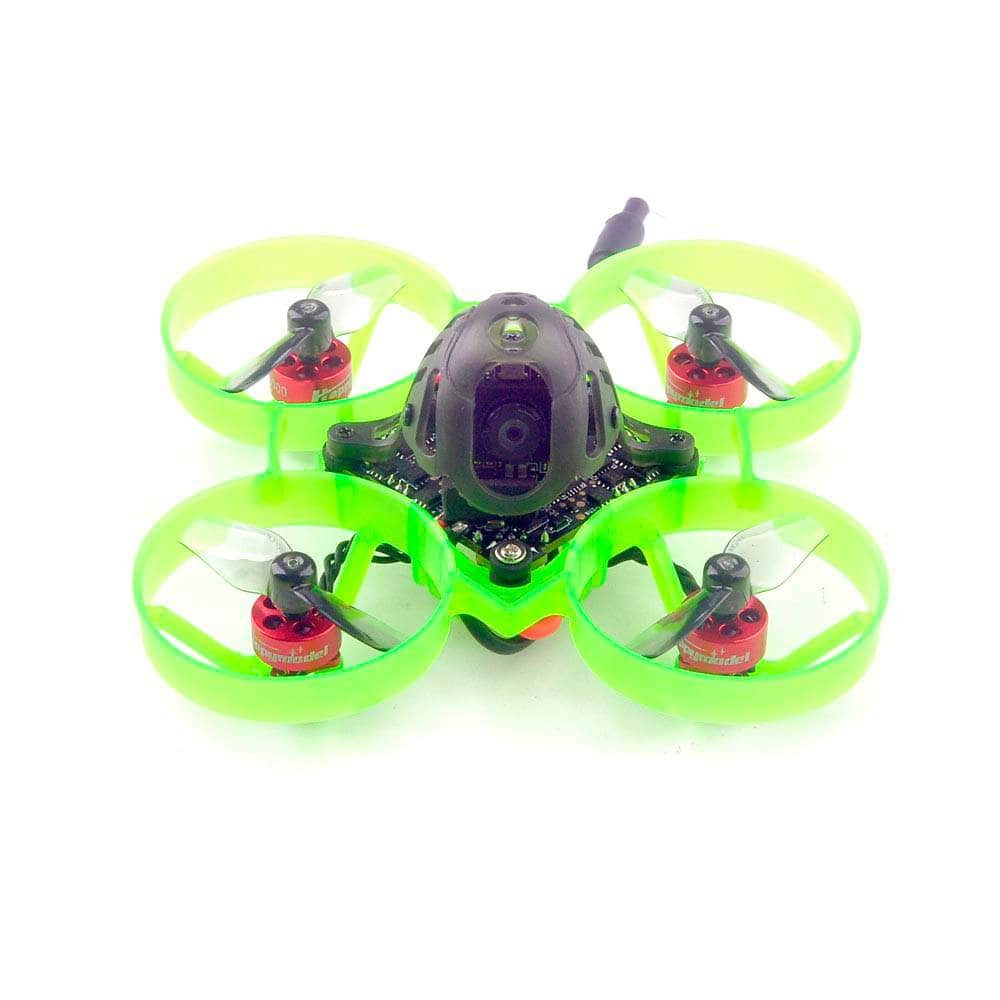

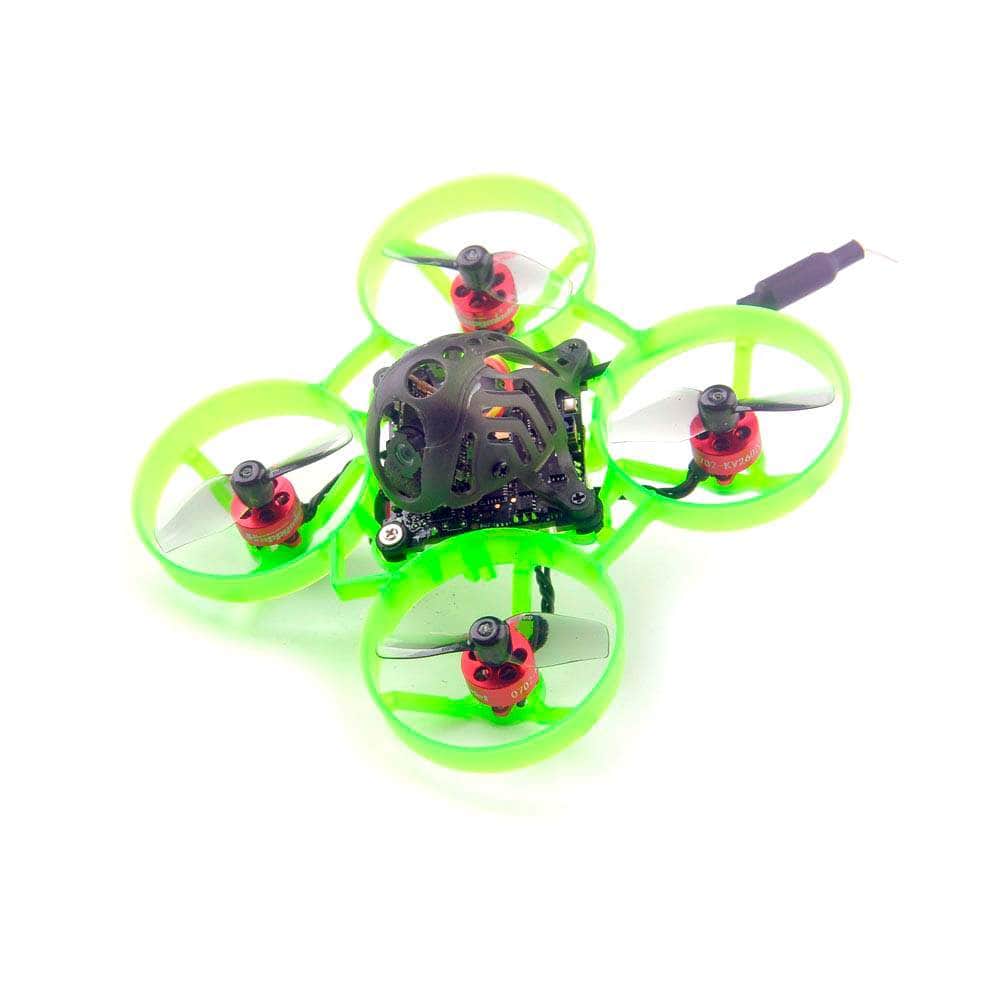

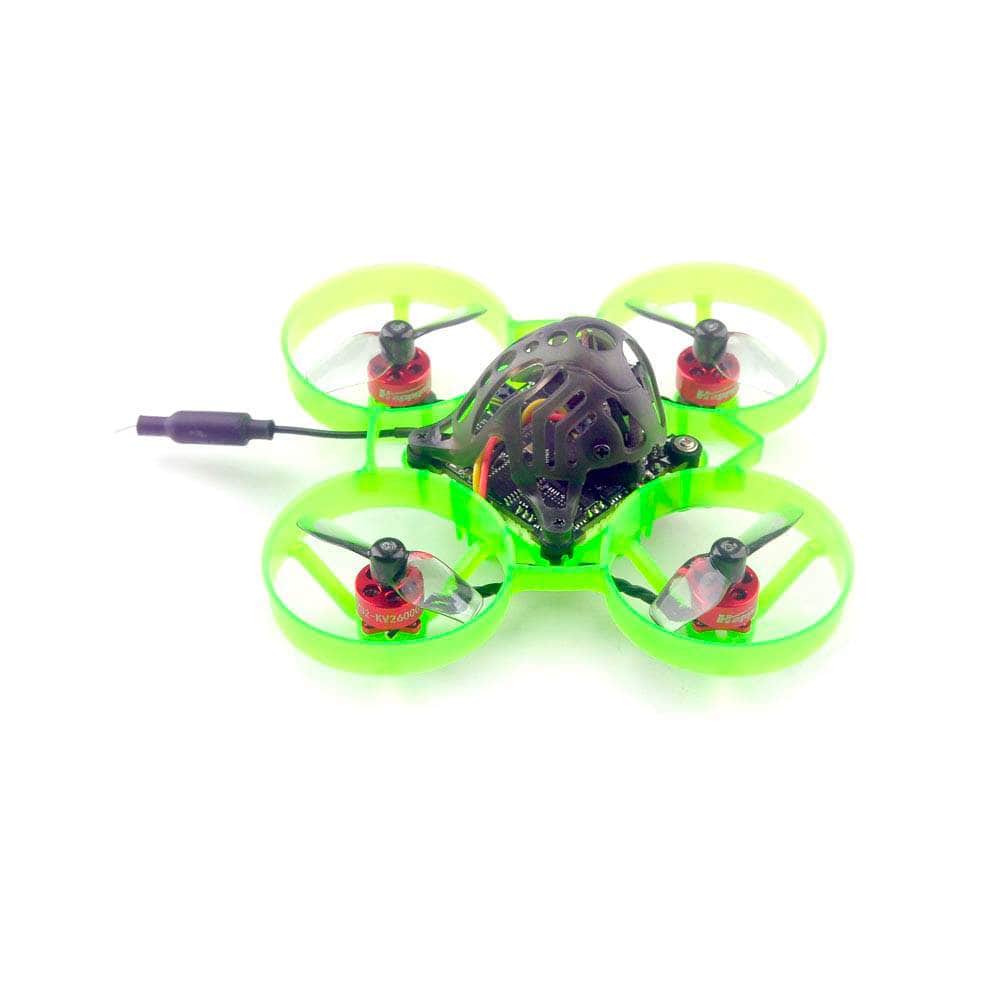

HappyModel Mobula6 ELRS 65mm Brush-less Whoop – 2.4GHz

Equipped with an ExpressLRS built-in SPI receiver, you’ll never have to worry about range when whooping! Current 2.4GHz receivers have a range limit that is sometimes met before the limits of analog 5.8Ghz video, especially when flying in a noisy environment. This version of Mobula6 also has another new feature: 0702 motors! These motors are the lightest brush-less whoop motors available, weighing only 1.46 grams each. Lighter whoops are easier to fly and super fast.

This is the ELRS 2.4GHz version.

Specifications

• Weight: 18.7g
• Recommended Battery: 1S 300mAH
• Propeller Size: 65mm
• Antenna: Linear Dipole

HappyModel Crazy F4 FC

• Input Voltage: 1S LiPo
• MCU: STM32F411CEU6
• Gyro: MPU-6000
• OSD: Yes
• UARTs: 2 Sets
• ESC Connections: Yes
• FC Firmware: CRAZYBEEF4DX
• BEC: 5V 1A
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: No
• Black Box: No
• Max. Continuous Current: 5A
• Max Burst Current: 6A (10sec)
• ESC Firmware: BLheli_S
• Stack Size: 25x25mm
• Dimensions: 29x29mm
• Weight: 5g

Happymodel SE0702 0702 26000Kv Motor

• Kv: 26000Kv
• Input Voltage: 1SS LiPo
• Configuration: 9N12P
• Motor Dimensions: Φ9.5mm x 14mm
• Stator Dimensions: Φ7mm x 2mm
• Shaft Diameter: 1mm
• Mounting Pattern: Φ7mm
• Weight: 1.46g

Runcam Nano 3 Camera

• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens: 2.1mm(M8) FOV 160°
• Signal System: NTSC
• S/N Ratio: > 50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: color
• Power: DC 3-5.5V
• Current: 110mA@5V
• Housing Material: ABS
• Net Weight: 1.1g

Includes

• 1x HappyModel Mobula6 ELRS 65mm Brush-less Whoop – 2.4GHz
• 4x 1S 300mAH Batteries
