Universal Receiver plug port Standard –  Frsky R-XSR JST1.25，XM+

Mamba F411 AIO Stack Diagram

Specification:

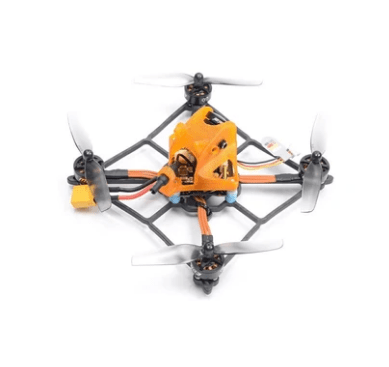

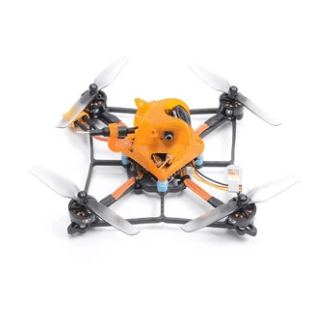

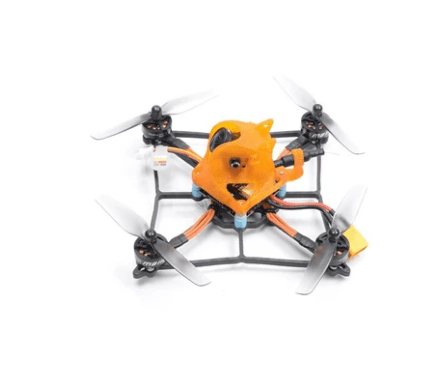

• Item name: DIATONE GTB 229
• Props：2.5inch  3inch
• Weight about ：46g -55g

Caution：

• 2S – Triblades             GF 3016 Fine

FC Specifications

• MAMBA F411AIO
• STM32F411
• Input voltage 2-4S Lipo
• Gyro: MPU6000
• 2x UART ports
• OSD inbuilt
• BEC 5V 1.5 A
• Size:28.5*28.5mm
• Mounting holes: 25.5*25.5mm M2
• Weight: 6.1g
• BF target : Mamba F411
• Input voltage : 2-4S LIPO
• CONTINUE CURRENT: 13A×4
• Camera:  RUNCAM NANO2 Camera
• Antenna: Copper pipe antenna
• VTX: TBS UNIFY PRO32 NANO
• Motor: MAMBA Racing MB1103 1105
• Lipo:
• 2S version 300-450mah
• CUBE 229 Bottom Thickness：3 mm  1103 8500KV 2S
• ESC Specifications
• INPUT VOLTAGE:2~4S Lipo (8.4~16.7V)
• CONTINUE CURRENT: 13 A×4
• BEC: NO SOFT: Dshot600
• MOUNTING: 20mm/M2

FC Firmware

BetaFlight
Target: MAMBA F411
