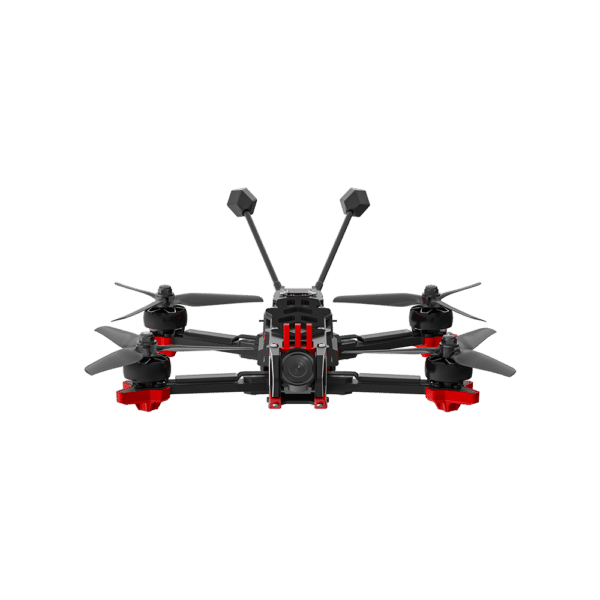

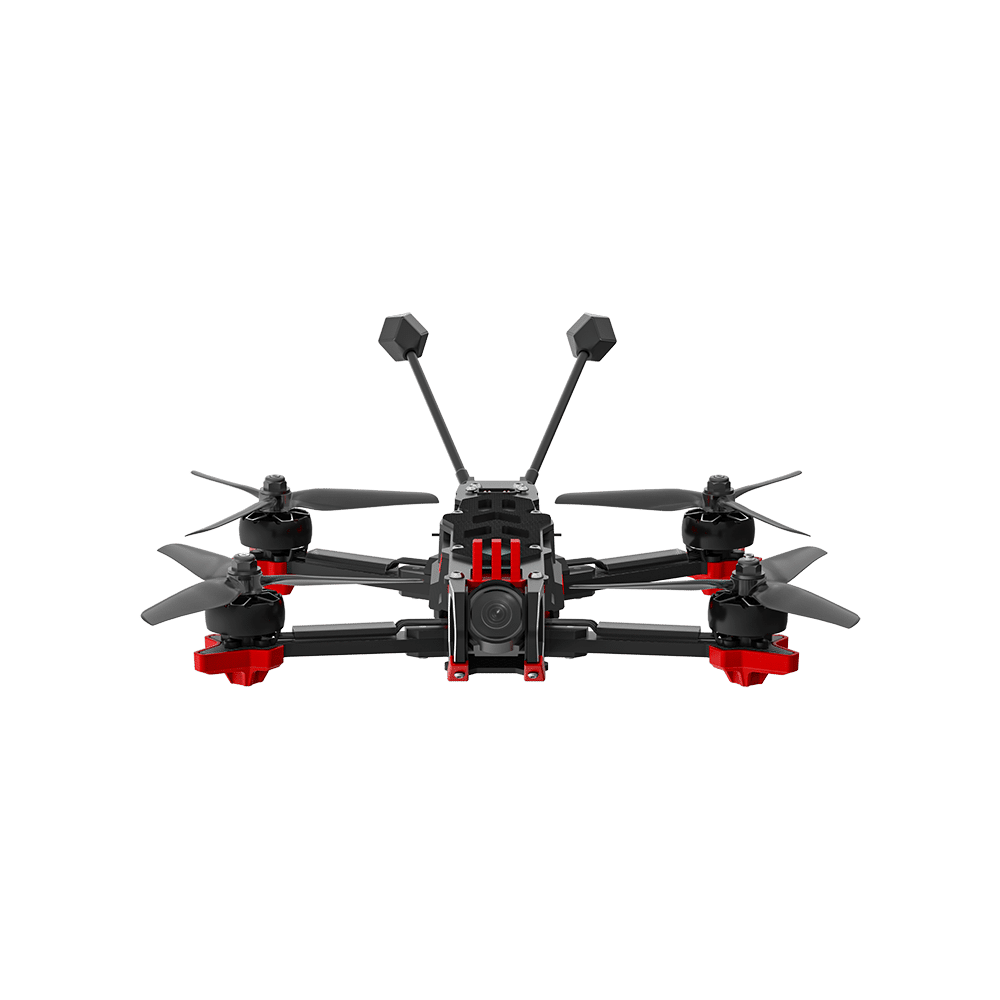

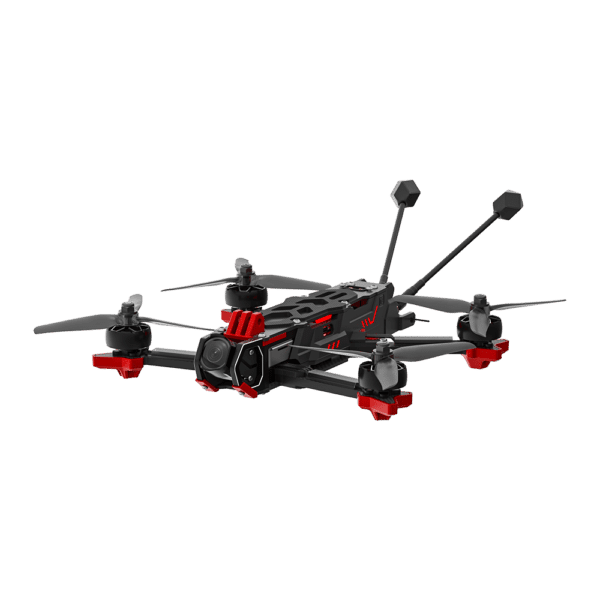

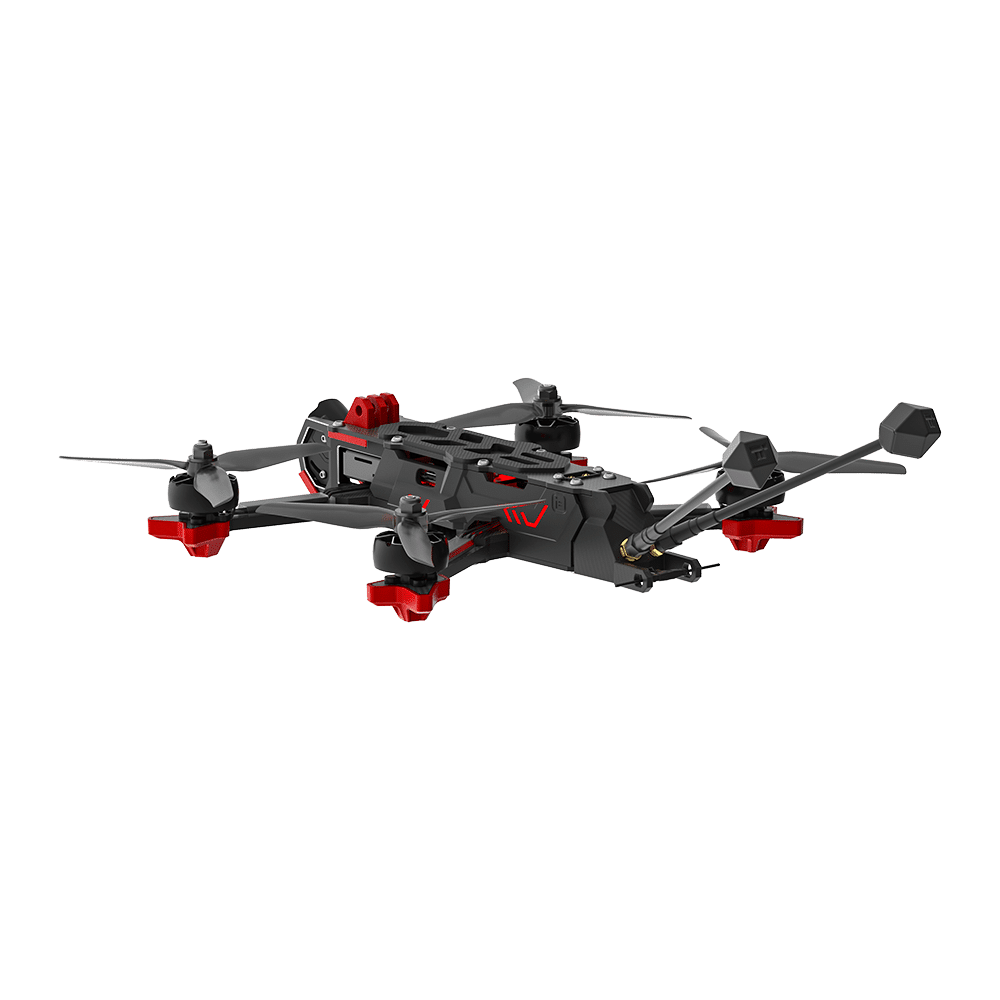

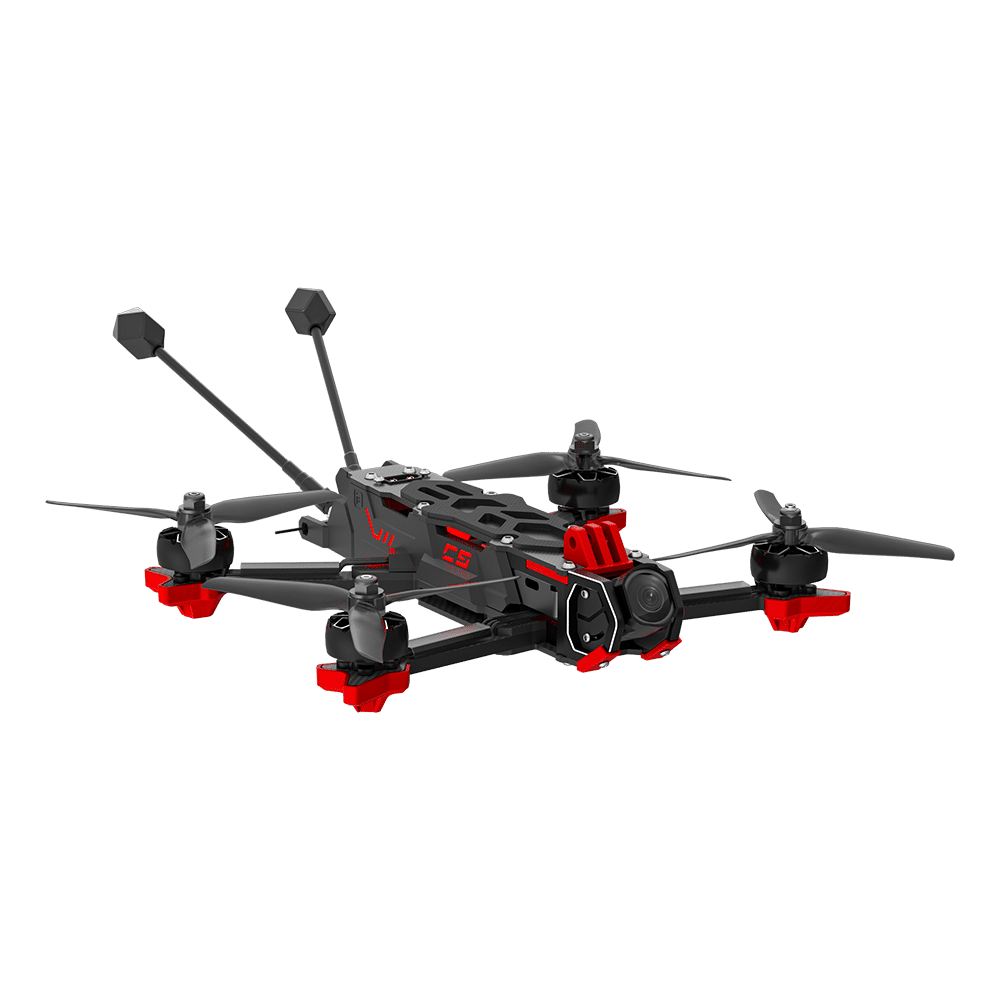

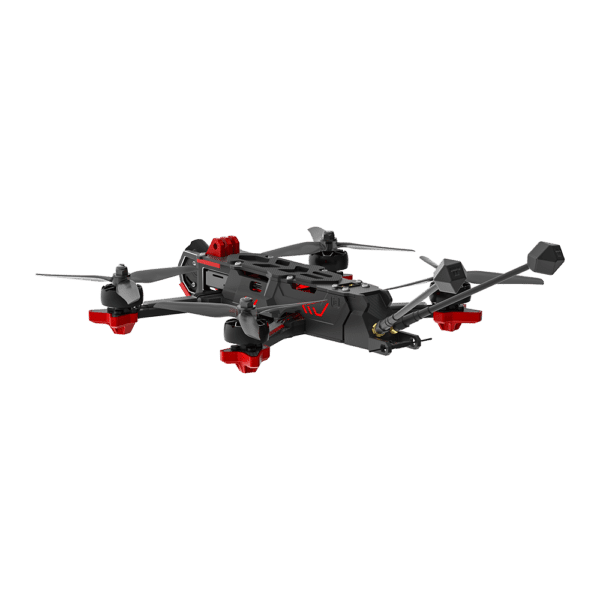

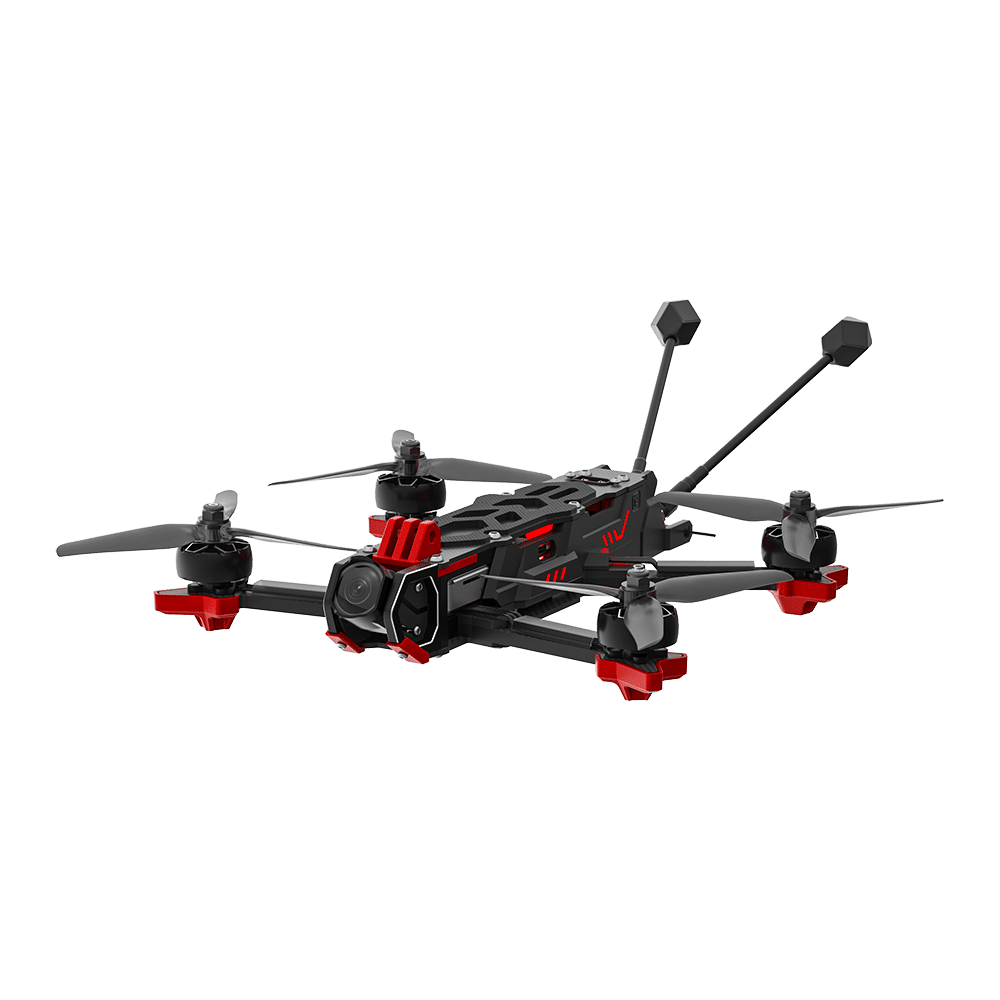

iFlight’s new generation FPV drone, the 5-inch cinematic freestyle CineFlow 5, combines sleek design, easy maintenance, and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording, CineFlow 5 delivers exceptional flight performance and cinematic-quality footage. Whether you’re tackling freestyle tricks, high-speed pursuits, or long-range filming, CineFlow 5 is engineered to meet diverse flying needs with precision and reliability.

Mar.11, 2025: The material of some TPU Parts in BNF is changed to injection molded parts.

Innovative Frame Design, No Props in View

SH Series adopted an innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output, provides enhanced overall flight performance.

Quick-release Side Panels

Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.

O4 Video Transmission, Enhanced Perception

SH Series is equipped with the latest DJI O4 Air Unit Pro, upgraded with 1.1/1.3-inch image sensor, it captures delicate details in low-light environments. With a 155° ultra-wide angle, capturing breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience.

Down to 17% Hover Throttle

With powerful flight performance, CineFlow 5 can achieve a minimum takeoff throttle of 17%, and enhanced maneuverability for extreme high-speed chasing or acrobatic flights.

High-performance Core Electronics System

Equipped with racing-grade BLITZ Mini F7 FC and BLITZ E55R 4-IN-1 ESC for high-intensity flight maneuvers. It features a larger MOS, and offers a 65A max burst current, which enhances stability and improves heat dissipation.

Built-in high-precision GPS Module

The integrated high-precision GPS module with TPU cover prevents signal loss from external damage, reducing flyaway risks and enhancing device safety.

More Details

Rear-mounted battery plug with anti-spark filter optimizes weight distribution while increasing flight stability. Prevents circuit damage and enhances safety.

Front-mounted Air Unit enhances cooling efficiency and minimizes overheating risks, ensuring the air unit’s stability and performance while extending its lifespan, no need to replace coaxial cable.

Integrated action camera base mount, sleek and integrated design, redefines aesthetics.

Strengthened the connection between the arm base and the drone to improve durability.

Product Name: CineFlow 5 O4 HD BNF

Geometry: H-shaped

FC: BLITZ Mini F7 Flight Controller

ESC: BLITZ Mini E55R 4-IN-1 ESC

Video Transmission: DJI O4 Air Unit Pro

Frame wheelbase: 222mm

Motor: XING2 2207 2050KV motors

Prop: Nazgul F5 propellers

Dimensions (L×W×H): 182*133*42mm

Weight: 488±5g

Takeoff Weight: Approx. 733±5g (With 6S 1400mAh Battery)

Max Speed: 190 km/h

Maximum Takeoff Altitude: 7000 m

Max Hover Time: Approx. 12 mins

Max Flight Distance: 5 km

Max Wind Speed Resistance: Level 7

Operating Temperature Range: -20° to 40° C

Antennas: Dual Antennas

GNSS： GPS+SBAS+Galileo+QZSS+Glonass

Product Name: DJI O4 Air Unit Pro

Image Sensor: 1/1.3-inch

Lens: FOV: 155°

ISO: 100-25600

Video Resolution: 1080p/100fps H.265

Video Format: MP4, Max Video Bitrate: 130Mbps

Color Mode: Normal Mode/D-Log M

Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

Live View Quality: 1080P@100fps

Operating Frequency: 5.170-5.250 GHz  & 5.725-5.850 GHz

Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))

Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

Communication Bandwidth: Max 60 MHz

Antenna: Dual antennas

Built-in Storage: 4GB

Supported SD cards: microSD (up to 512GB)

Operating Temperature: -10° to 40° C

Weight: Air Unit (camera module included): Approx. 32 g

Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

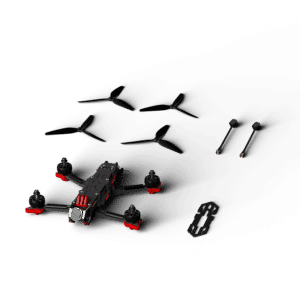

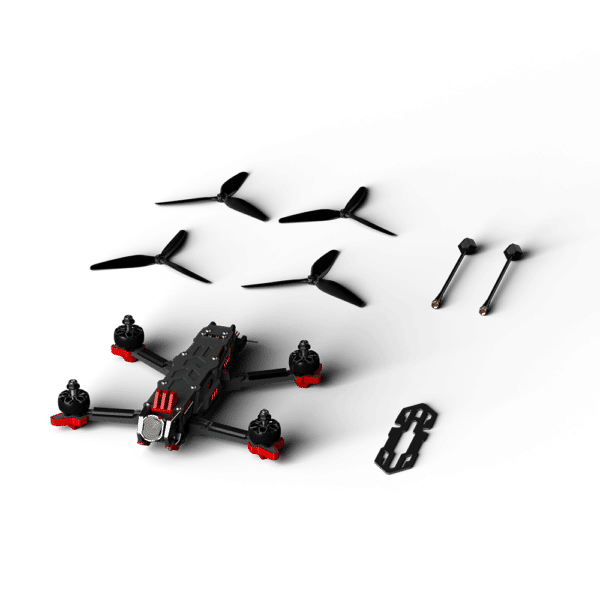

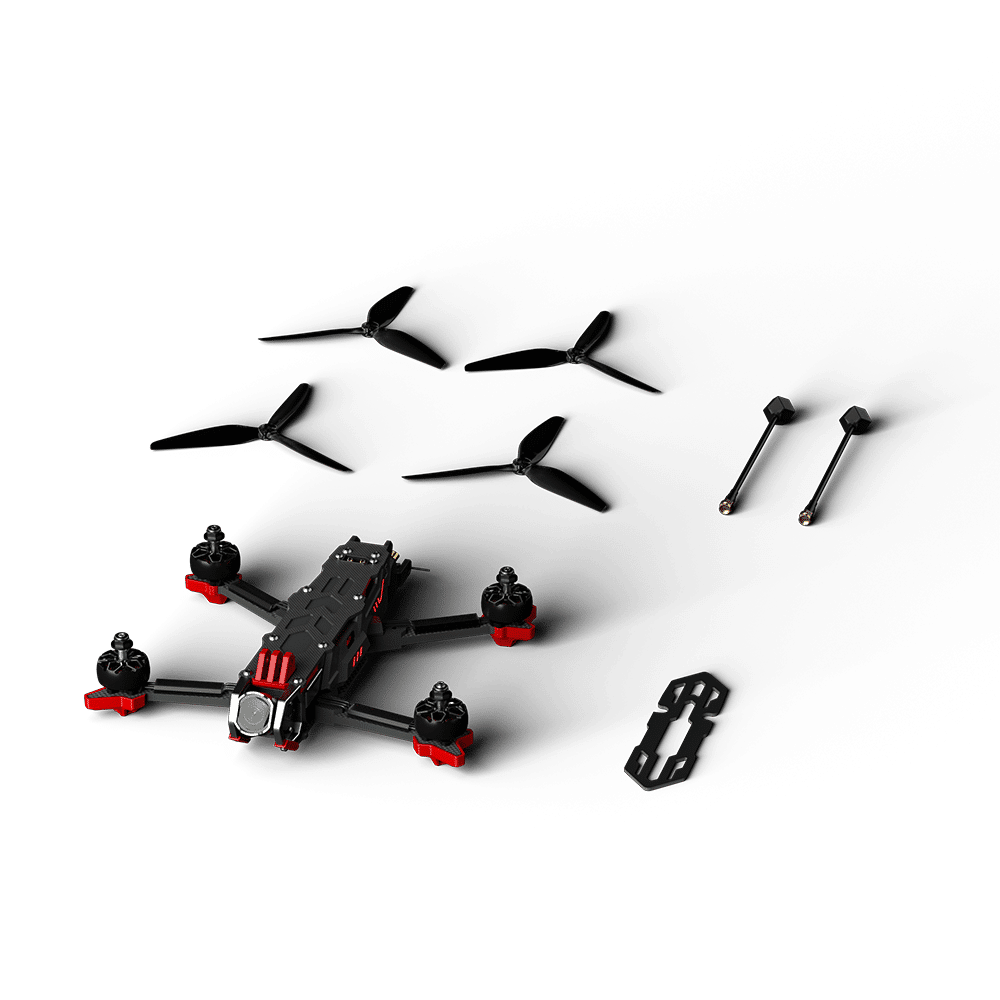

1 x SH CineFlow 5 O4 6S HD BNF

2 x Antennas

1 x Battery pad

2 x propeller(Pairs)

2 x Battery strap
