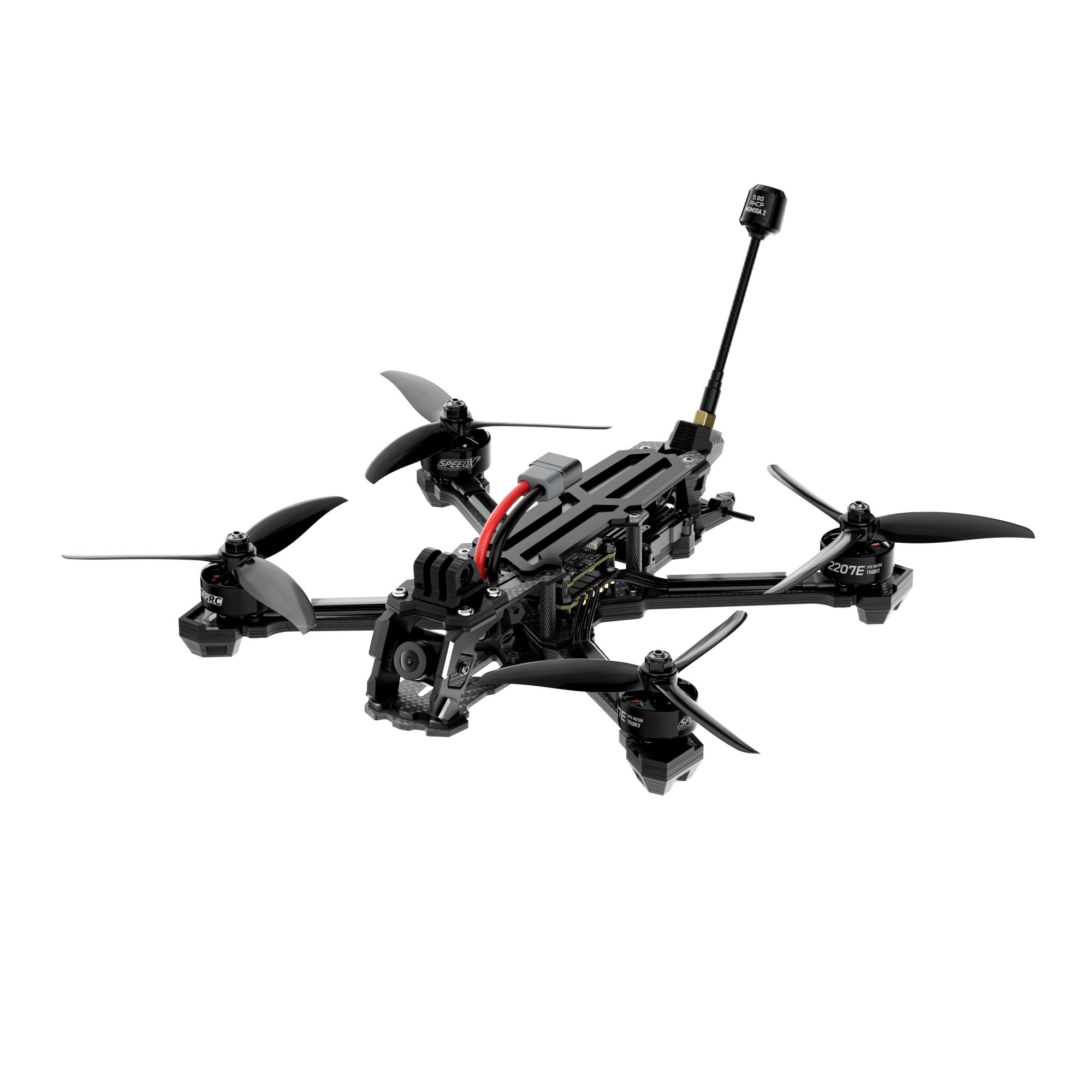

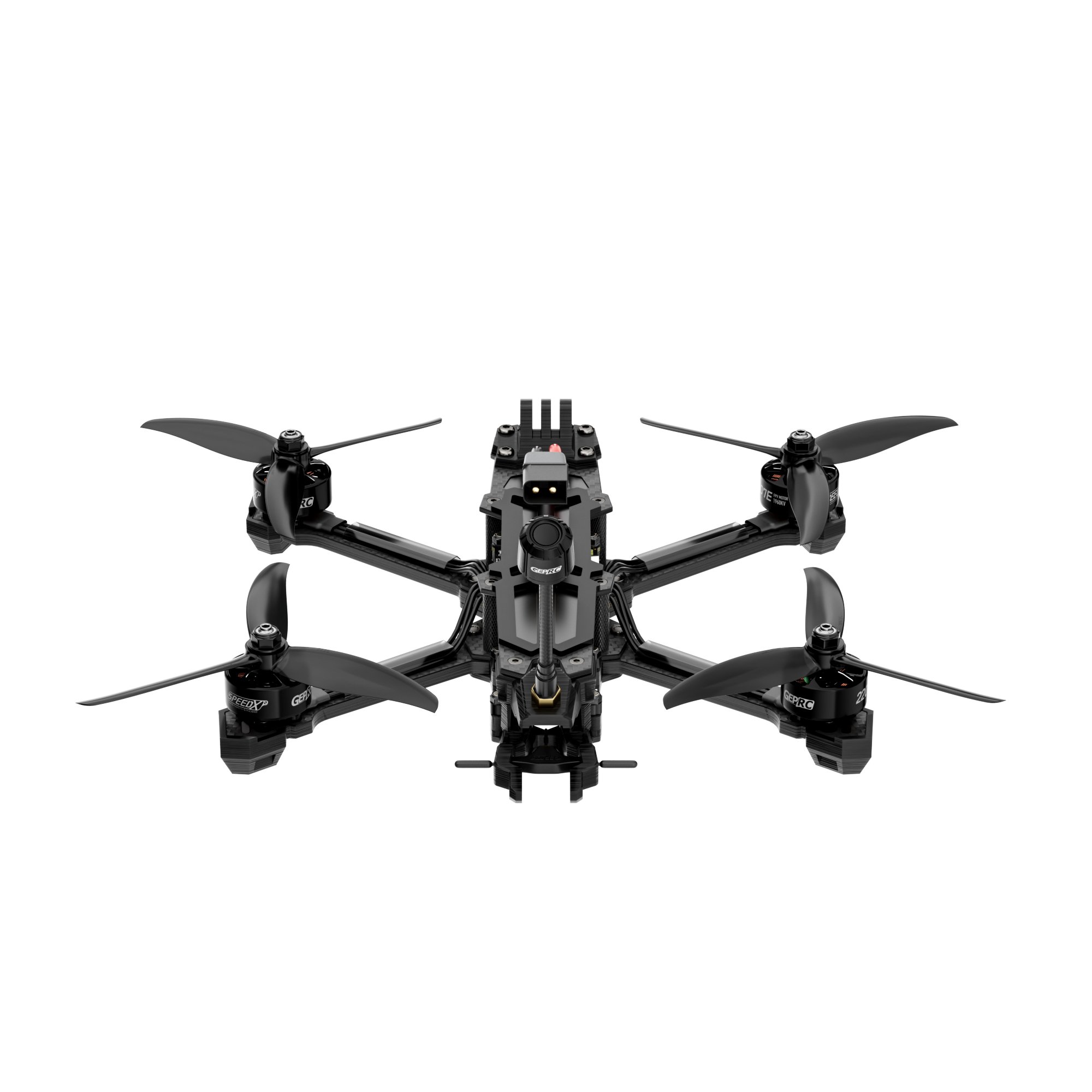

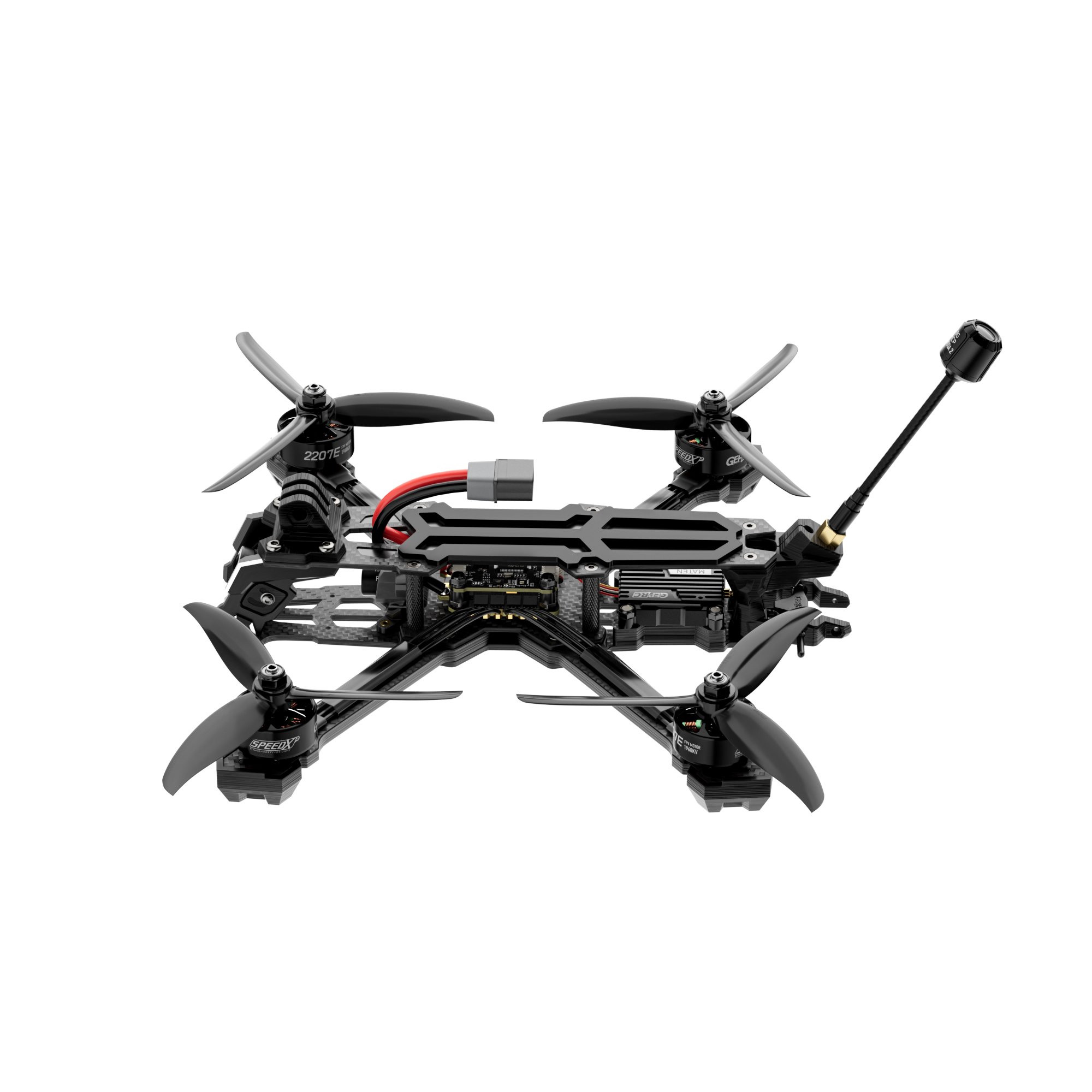

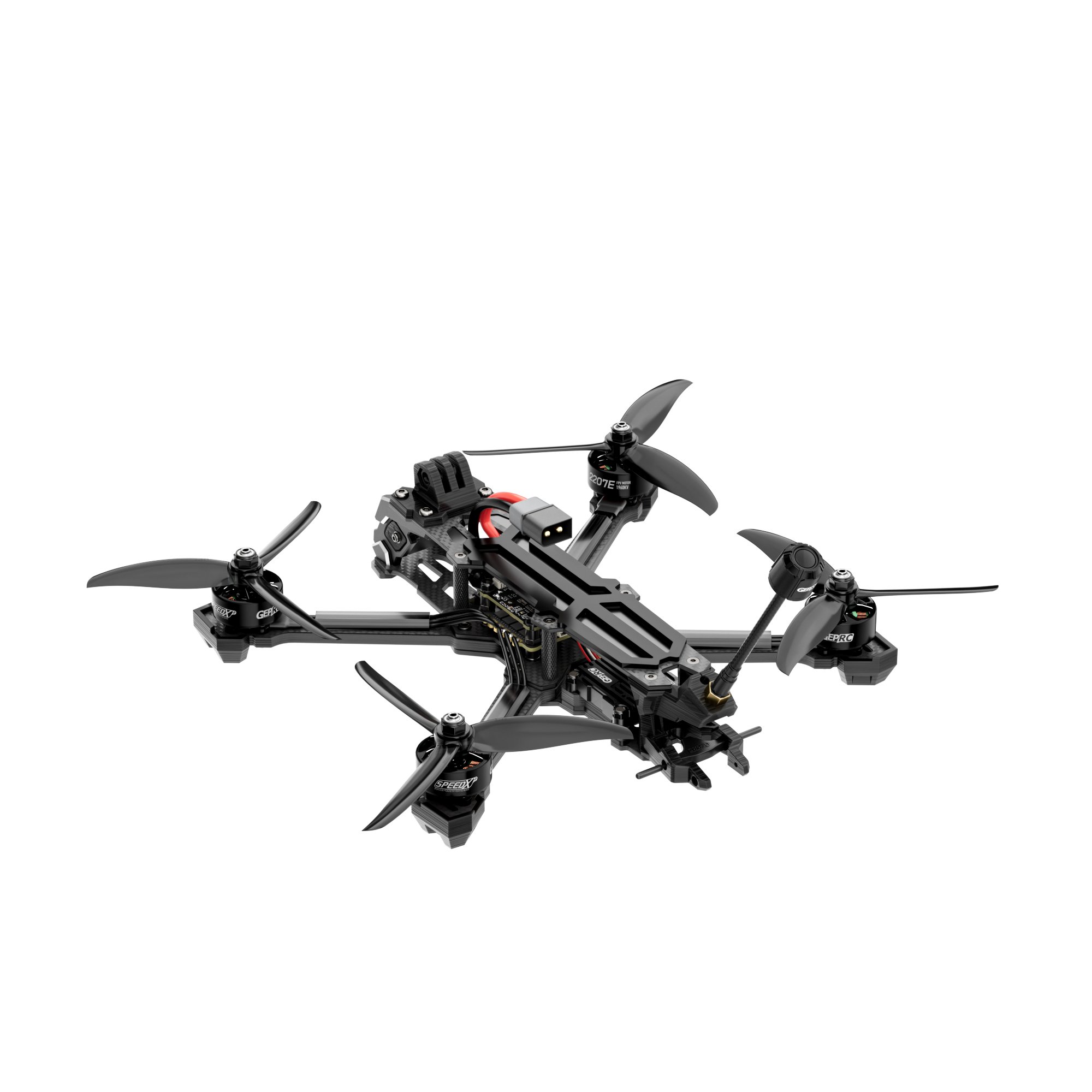

GEPRC Vapor-X5 Analog Freestyle FPV Drone
Unleash your freestyle potential with the GEPRC Vapor-X5 Analog, now in a Bind-N-Fly (BNF) version with an ELRS 2.4GHz receiver pre-installed. This high-performance FPV drone is built for pilots who love the classic analog experience and want a robust machine ready for aggressive flying. It features a balanced “Wide X” frame and comes expertly assembled, ready for you to bind your ELRS radio and hit the sky.
Powerful Analog Freestyle Performance
The Vapor-X5 is engineered for a top-tier analog experience. It comes equipped with a high-power MATEN 5.8G 1.6W VTX for excellent signal strength and a quality Caddx Ratel2 camera, beloved for its great image quality. This video setup, paired with the potent GEPRC SPEEDX2 motors and a TAKER H60 60A ESC, provides the power and low-latency video feed necessary for executing demanding freestyle tricks with confidence.
Engineered for Durability
Designed to handle the rigors of freestyle flying, the Vapor-X5 boasts several durability features. The frame uses wider 5mm carbon fiber arms for increased strength and rigidity. Sleek CNC aluminum alloy side plates not only add to the aggressive aesthetic but also provide sturdy protection for the FPV camera, while a dedicated front lip guard offers another layer of defense during hard landings. These robust drone parts let you fly harder with more peace of mind.
Features at a Glance
- ELRS 2.4GHz Installed: Comes with a reliable, long-range ExpressLRS receiver for a rock-solid control link.
- Wide X Frame: Classic X-shaped frame design provides balanced and responsive handling ideal for freestyle.
- Powerful Analog Video: Equipped with a MATEN 5.8G 1.6W VTX and Caddx Ratel2 camera for a strong, clear signal.
- Robust Construction: Features wide 5mm carbon fiber arms and CNC aluminum camera protection for enhanced durability.
- High-Performance Core: The GEP-F722-HD V2 FC and TAKER H60 60A ESC ensure stable and powerful flight.
Specifications
- Model: Vapor-X5 Analog FPV Drone
- Wheelbase: 230 mm
- Arm Thickness: 5.0 mm
- Flight Controller: GEP-F722-HD V2
- ESC: TAKER H60_BLS 60A 4IN1
- VTX: MATEN 5.8G 1.6W VTX
- Camera: Caddx Ratel2
- Antenna: GEPRC Momoda2 5.8G RHCP SMA
- Motor: GEPRC SPEEDX2 2207E 1960 KV
- Propeller: GEMFAN 5136
- Receiver: ELRS 2.4GHz (Installed)
- Recommended Battery: 6S LiPo 1550mAh – 2200mAh
- Weight: 409g ± 5g
What’s in the Box?
- 1x Vapor-X5 Analog FPV Drone with ELRS 2.4GHz Receiver
- 2x GEMFAN 5136 Propeller Sets (4x CW, 4x CCW)
- 2x Battery Anti-slip Pads
- 1x Spare Screw Pack
- 2x M20*250mm Battery Straps
- 1x L-shaped Screwdriver 1.5mm
- 1x L-shaped Screwdriver 2.0mm
- 1x GoPro Mount
Note: This is a Bind-N-Fly (BNF) FPV drone. It comes with an ELRS 2.4GHz receiver installed. You will need your own compatible ELRS 2.4GHz radio transmitter to bind and fly.
