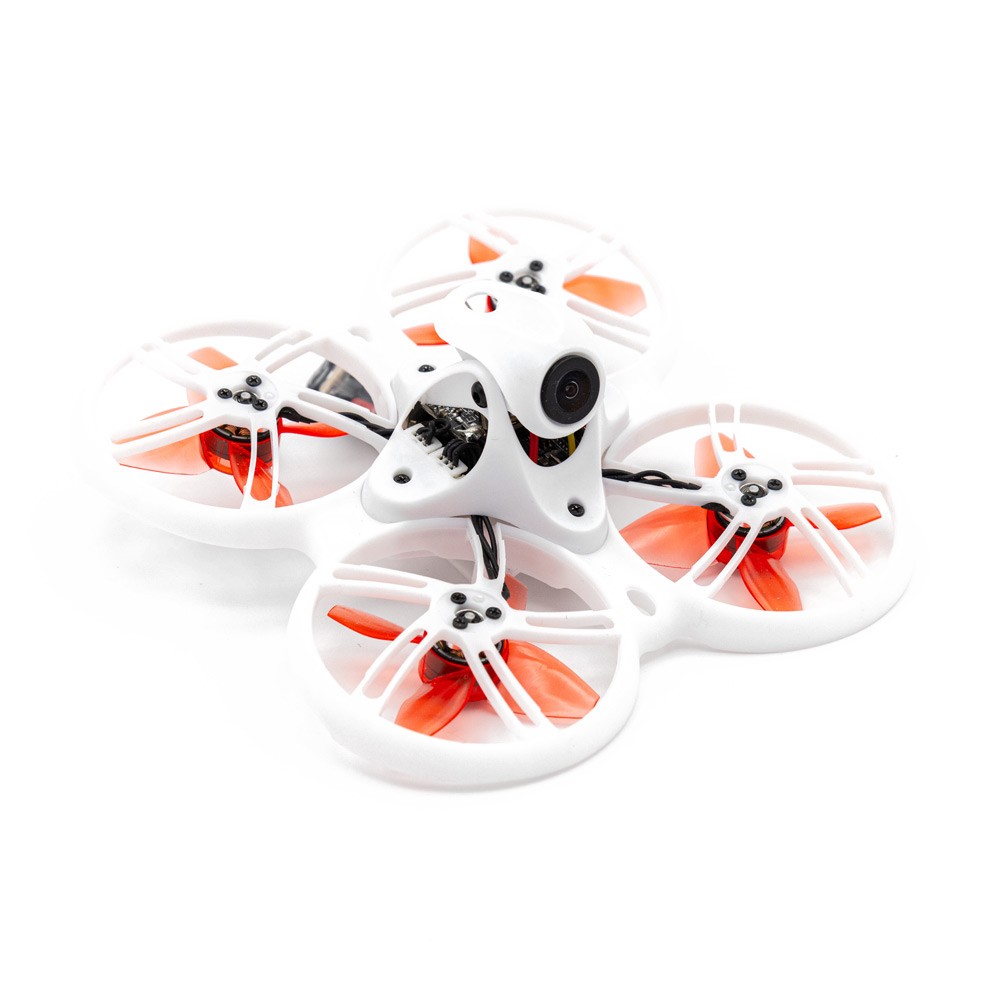

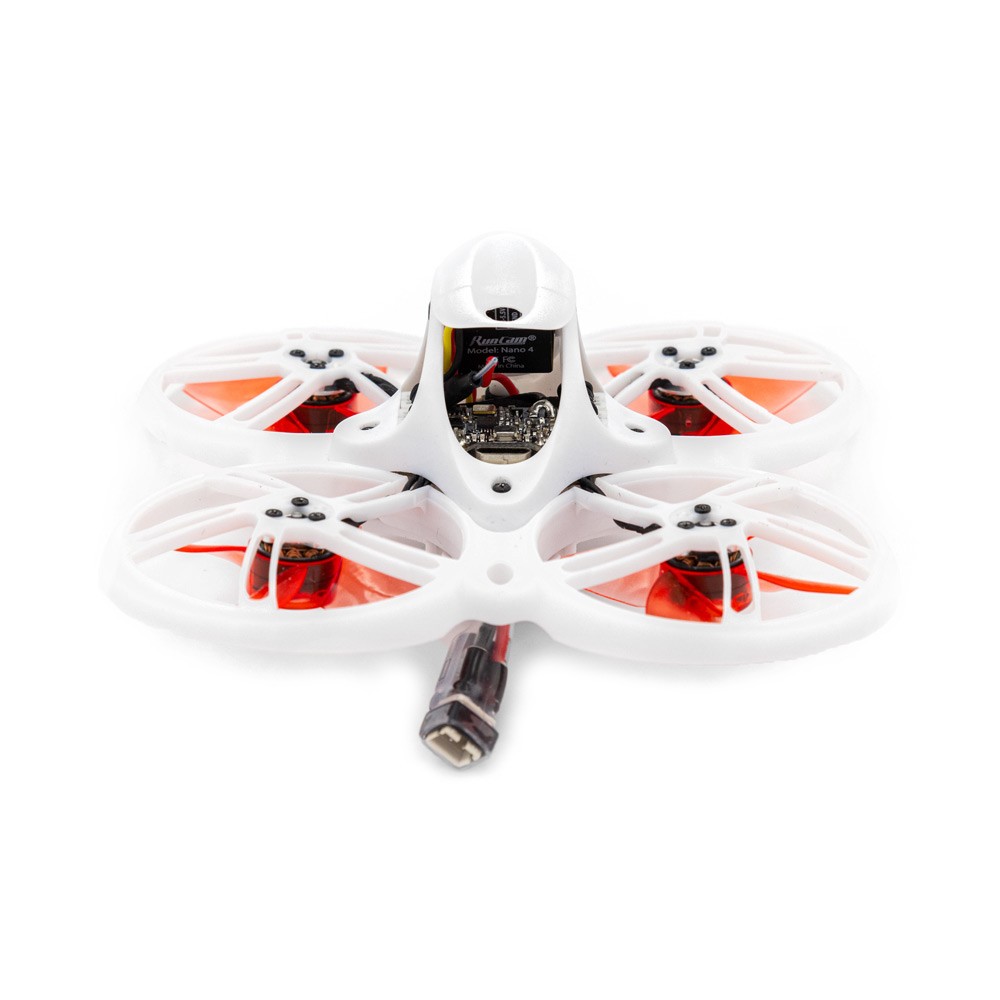

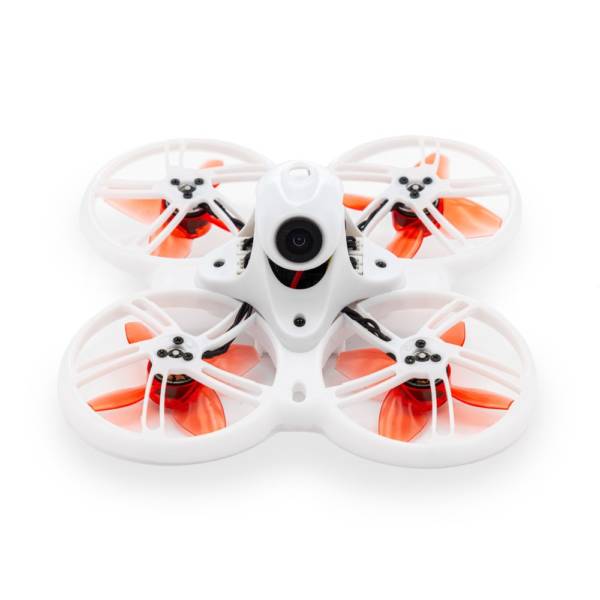

Introducing… the EMAX TinyHawk III RTF Bundle!!
By partnering with experts over at RunCam, EMAX was able to update its bundle to the TinyHawk III! The TinyHawk III features the RunCam Nano 4 Camera, known for its higher resolution, realistic colors, low-light night vision, and ISP. Modifying the video transmitter with more filters and power has allowed the Tinyhawk III to have a cleaner video than ever.

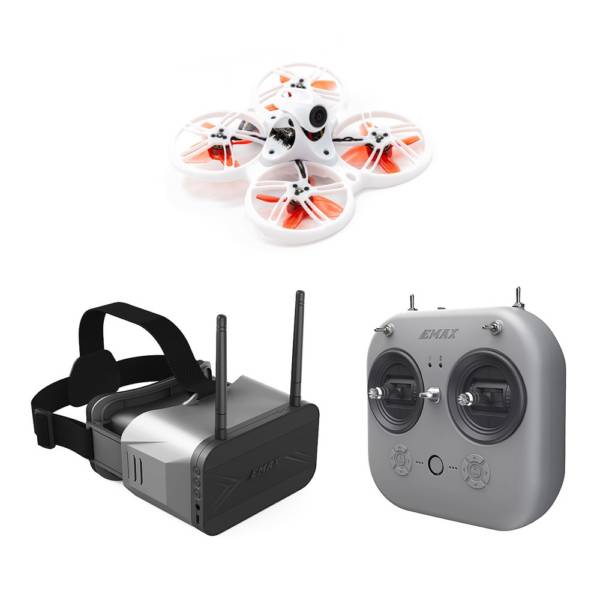

This RTF Bundle gives you everything you need to start flying in just minutes. Everything is included – Transporter 2 Goggles, E8 Radio Transmitter, and of course the TinyHawk III quadcopter! This bundle is the perfect solution for anyone to learn the basics of FPV flying – for beginners and pros alike!
The included receiver is compatible with the SPI and FrSky D8 modes.
VIDEO:Â EMAX – Introducing Tinyhawk III
Features

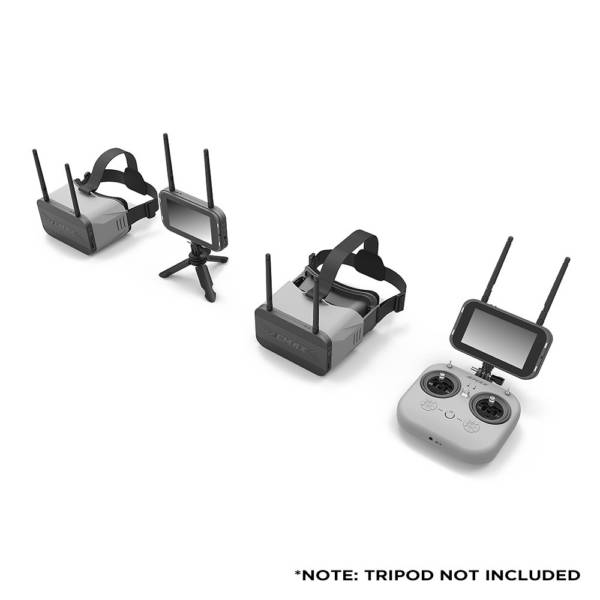

- Reimagined EMAX Transporter 2 FPV Goggles with a detachable screen and built-in DVR
- Flight controller has an MCU (STM32F411CEU6) with an MPU6000 gyro

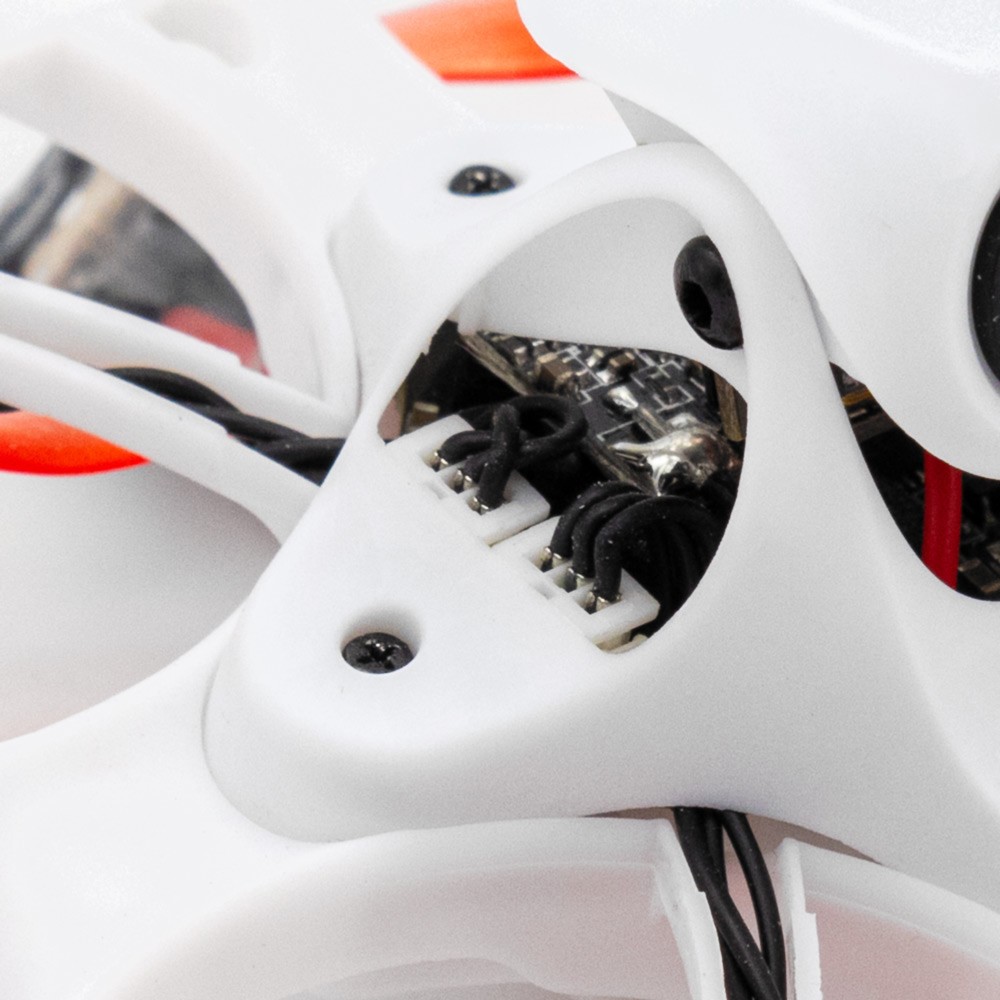

- Simple Repairability with centralized mounts and improved motor plugs
- EMAX Transporter 2 Goggles have a built-in 3000mAh Lithium Battery
- TinyHawk III Receiver with 8 Channels – SPI / FrSKy D8 Compatible
- Smart Audio function to change VTX channel via your transmitter
- EMAX E8 Radio Transmitter with high-quality gimbals
- 1S High Voltage (HV) 450mah LiPo battery included
- Beginner, Intermediate, and Advanced Flight Modes
- Drastically redesigned frame with higher durability
- Motors and electronics are highly protected
- Sleek Carrying Case for easy transporting

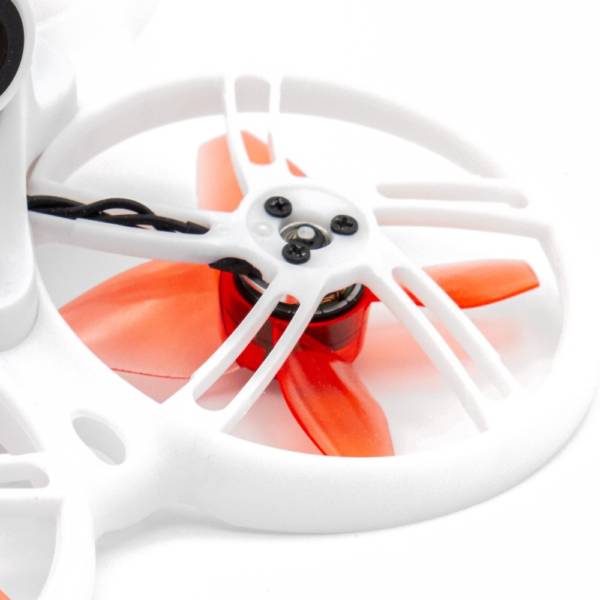

- Quick Swap TH0802 II 15000KV Motors
- New AVIA TH 4-Blade Propellers
- Betaflight OSD VTX Settings
- RunCam Nano 4 Camera
- TinyHawk III VTX
TINYHAWK III MAIN CONTROL BOARD – TinyHawk III main control board contains four 5A electric regulators and an 8-channel receiver. The receiver is integrated into the main control board and set through betaflight.
TINYHAWK III FLIGHT CONTROLLER –  This flight controller has an MCU(STM32F411CEU6) with an MPU6000 gyro. TinyHawk III flight controller comes pre-programmed and properly tuned for optimal flight. For a full tune and configuration setting file (CLI dump file) please visit https://emaxusa.com/ for the CLI dump file.
Specifications

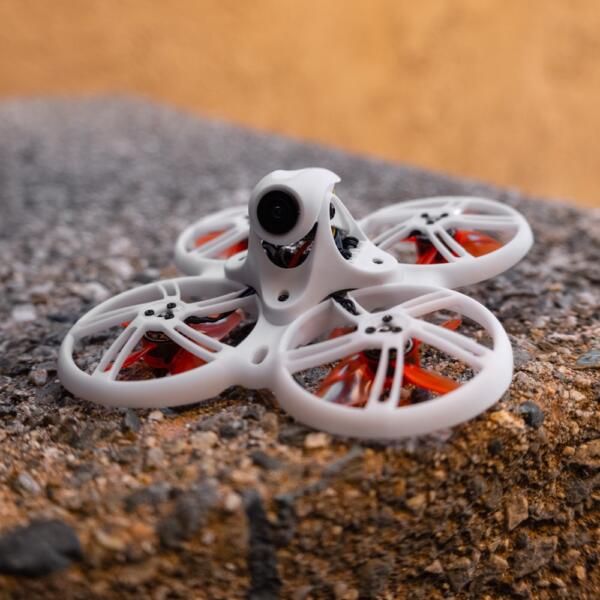

EMAX TINYHAWK III RTF
- VTX: 200-100-25mW 37CHÂ (Adjustable frequency)
- Receiver:Â EMAX Tiny Receiver (SPI/Frsky_D8)
- Maximum Size: L*W*H=105x105x45mm
- Camera: RunCam Nano 4 Camera
- FC: F4 (STM32F411 firmware)
- Weight (Without battery): 32g
- Propeller: Avia TH Propeller
- Motor: TH0802 II 15000KV
- Battery: 1S HV 450mAh
- Support: SmartAudio
- ESC: 4in1 /5A ESC
- Wheelbase: 76mm

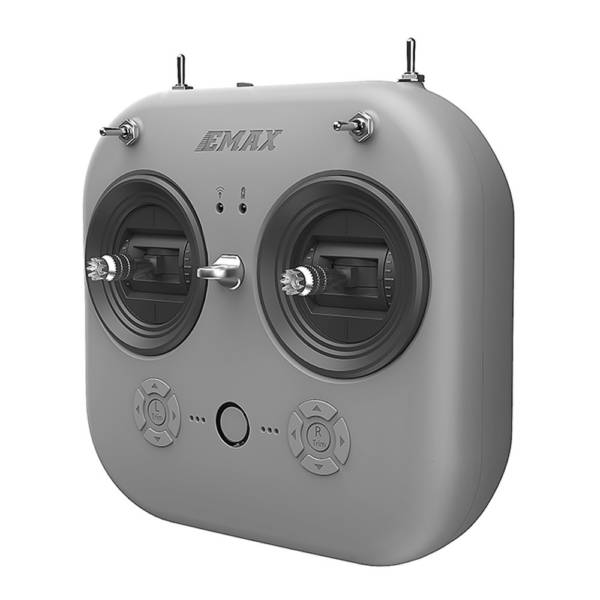

EMAX E8 RADIO TRANSMITTER
- Charging System: Built-in USB 5V–1A linear lithium-ion battery charging system
- External interface: Micro USB,3.5mm Audio interface (wired coach interface)
- Frequency 2.4GHz (2400MHz-2483.5MHz)
- Maximum Size: L*W*H=150x140x45mm
- Battery: 18650 Lithium-ion battery
- Weight (Without Battery): 260g
- Number Of Channels: 8CH
- Working Voltage: 4.2V-3.3V
- Output: 22dbm

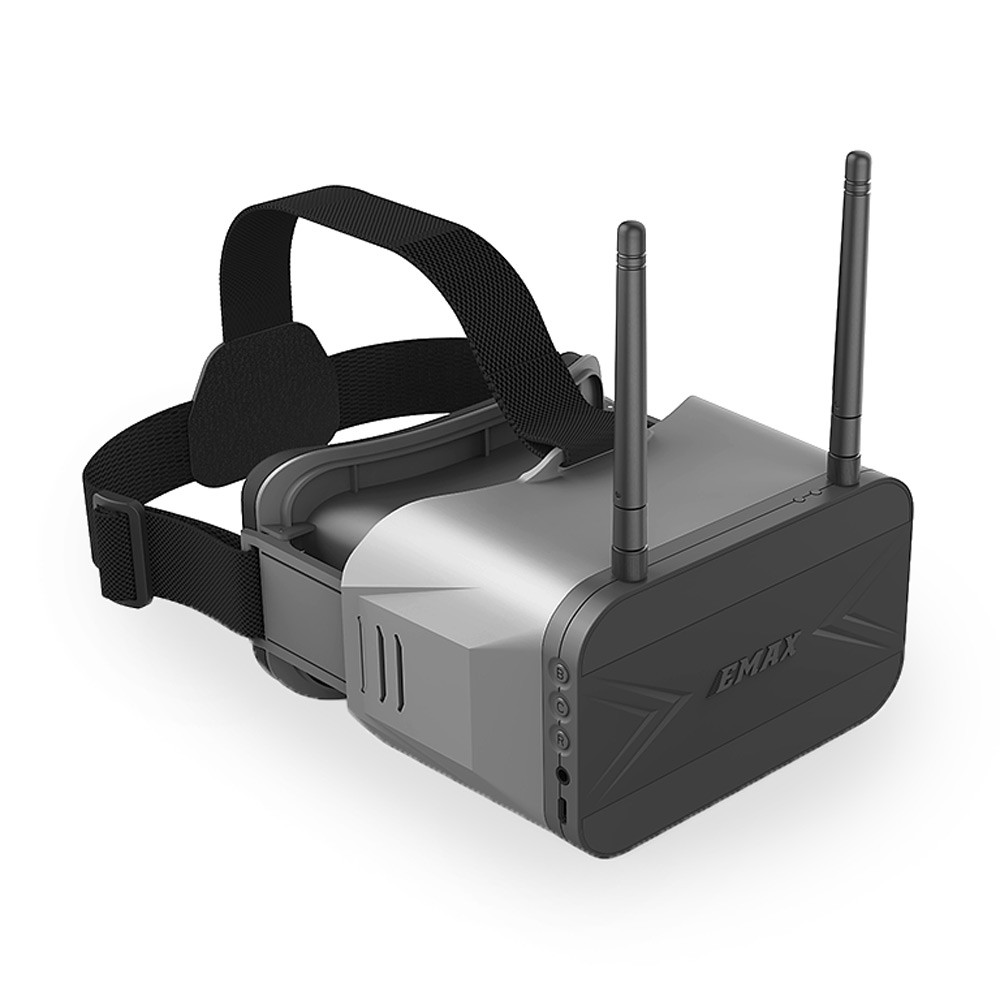

EMAX TRANSPORTER 2 GOGGLES
- Charging System: Built-in USB 5V–1A linear lithium-ion battery charging system
- Maximum Size:Â (Without antenna – Folded) 155x100x90mm
- Frequency: 5.8GHz（5658MHz-5945MHz)
- Video: VGA/D1/HD (Off/3min/5min/10min)
- DVR: 32G TF card (max), MJPEG, AVI
- Battery: 1300mAh Lithium-ion battery
- Screen resolution: 480X800
- Weight (With battery): 398g
- Working Voltage: 4.2V-3.7V
- Screen size: 4.3 inch
RUNCAM NANO 4 CAMERA
- Dimensions: L14mm*W14mm*H14mm
- Current:Â 160mA@5V 180mA@3.3V
- Min. Illumination: 0.01Lux@1.2F
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Horizontal Resolution: 800TVL
- Lens: 2.1mm(M8) FOV 155°
- Image Sensor: 1/3″ CMOS
- Model: RunCam Nano 4
- Housing Material: ABS
- Signal System: NTSC
- Power DC: 3.3-5.5V
- S/N Ratio: >50dB
- Net Weight: 2.9g
- Day/Night: Color
- D-WDR: Auto

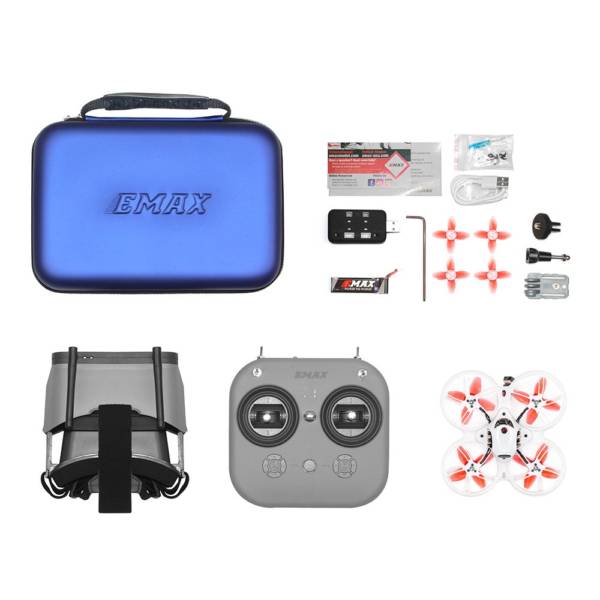

Includes
- 1x EMAX TinyHawk III BNF Quadcopter
- 1x Avia TH 4-Blade Propellers (Set of 4)
- 1x EMAX Transporter 2 FPV Goggles
- 1x EMAX E8 Radio Transmiiter
- 1x 1S HV 450mAh LiPo battery
- 1x USB 4-port USB Charger
- 1x Phillips screwdriver
- 1x Carrying Case
- 1x USB Cable
