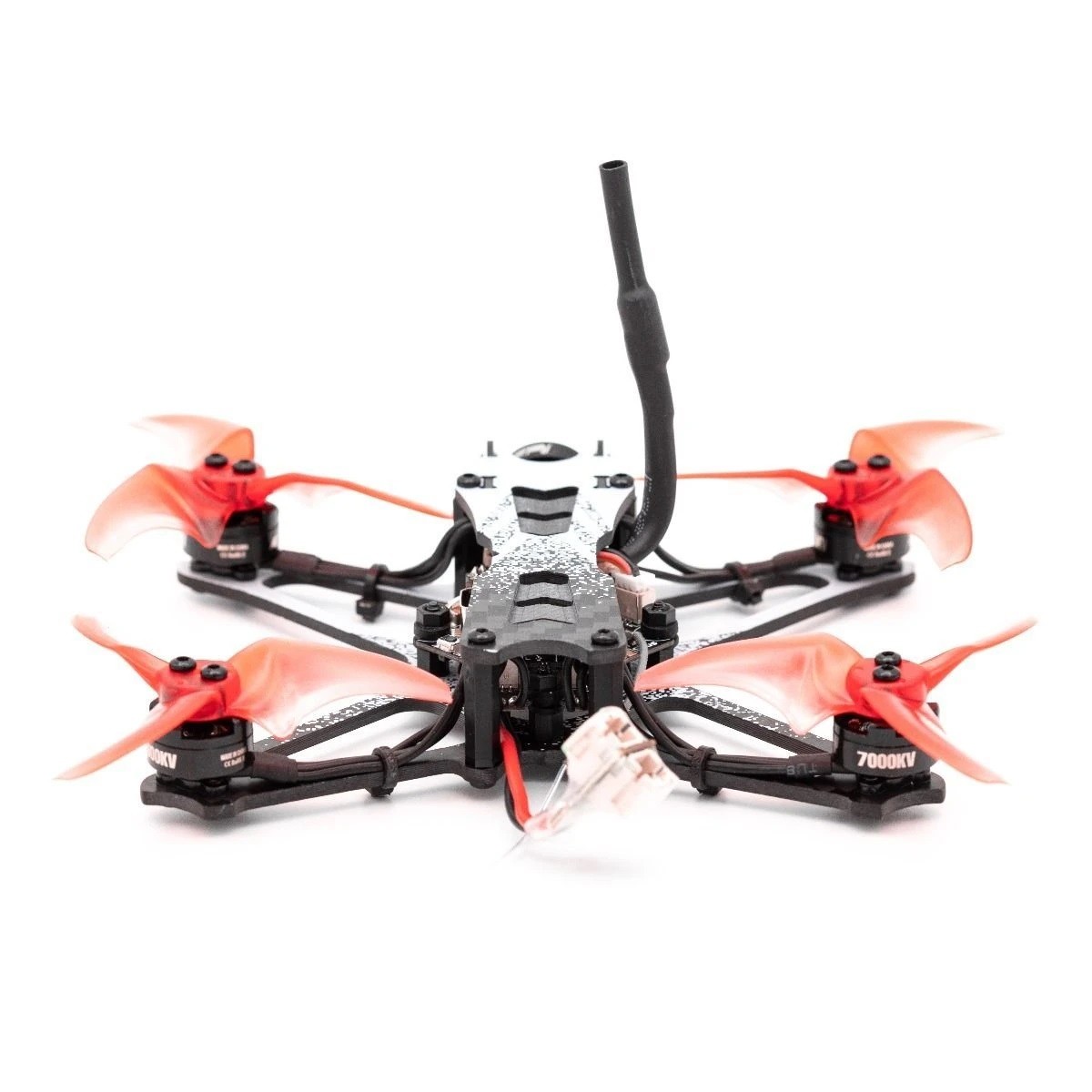

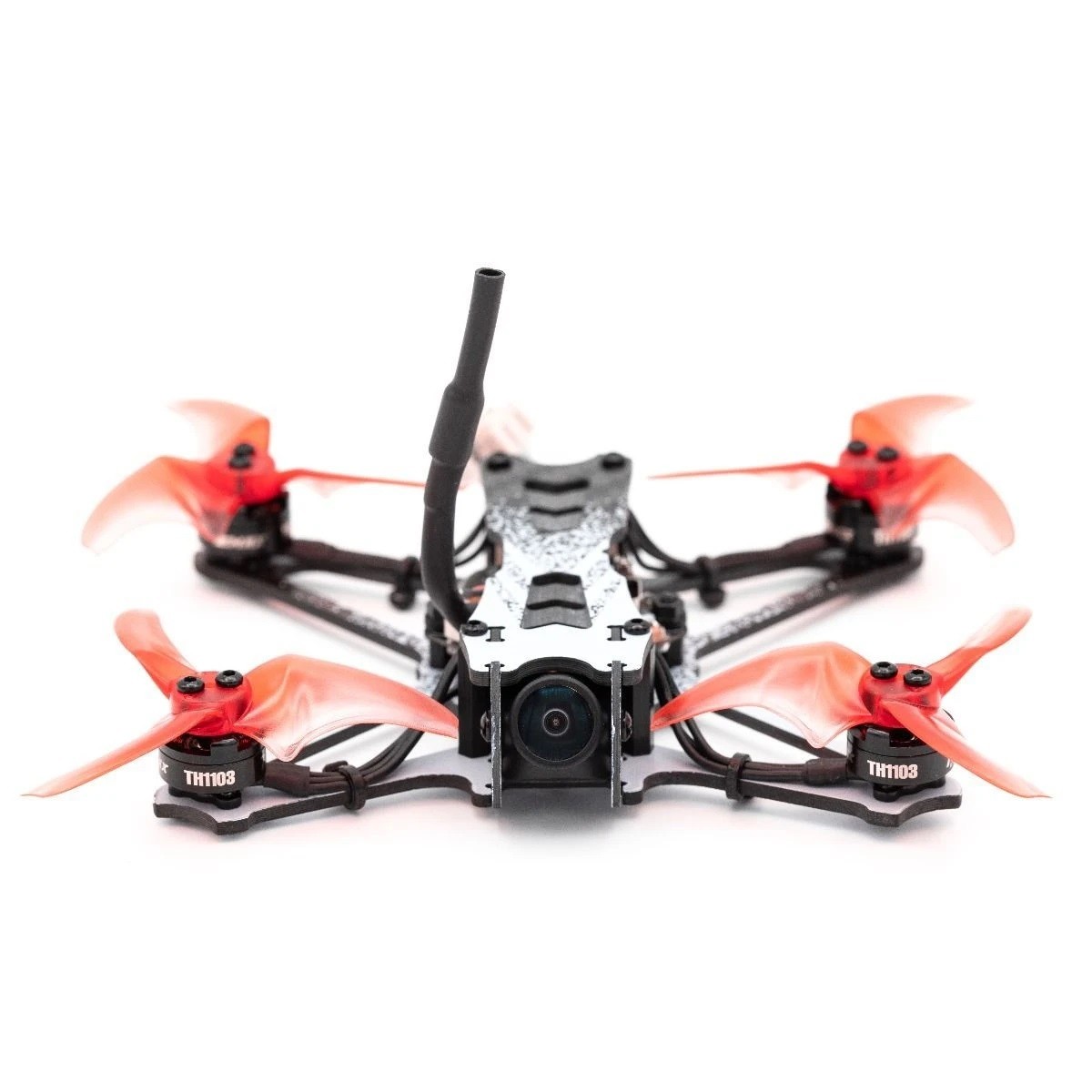

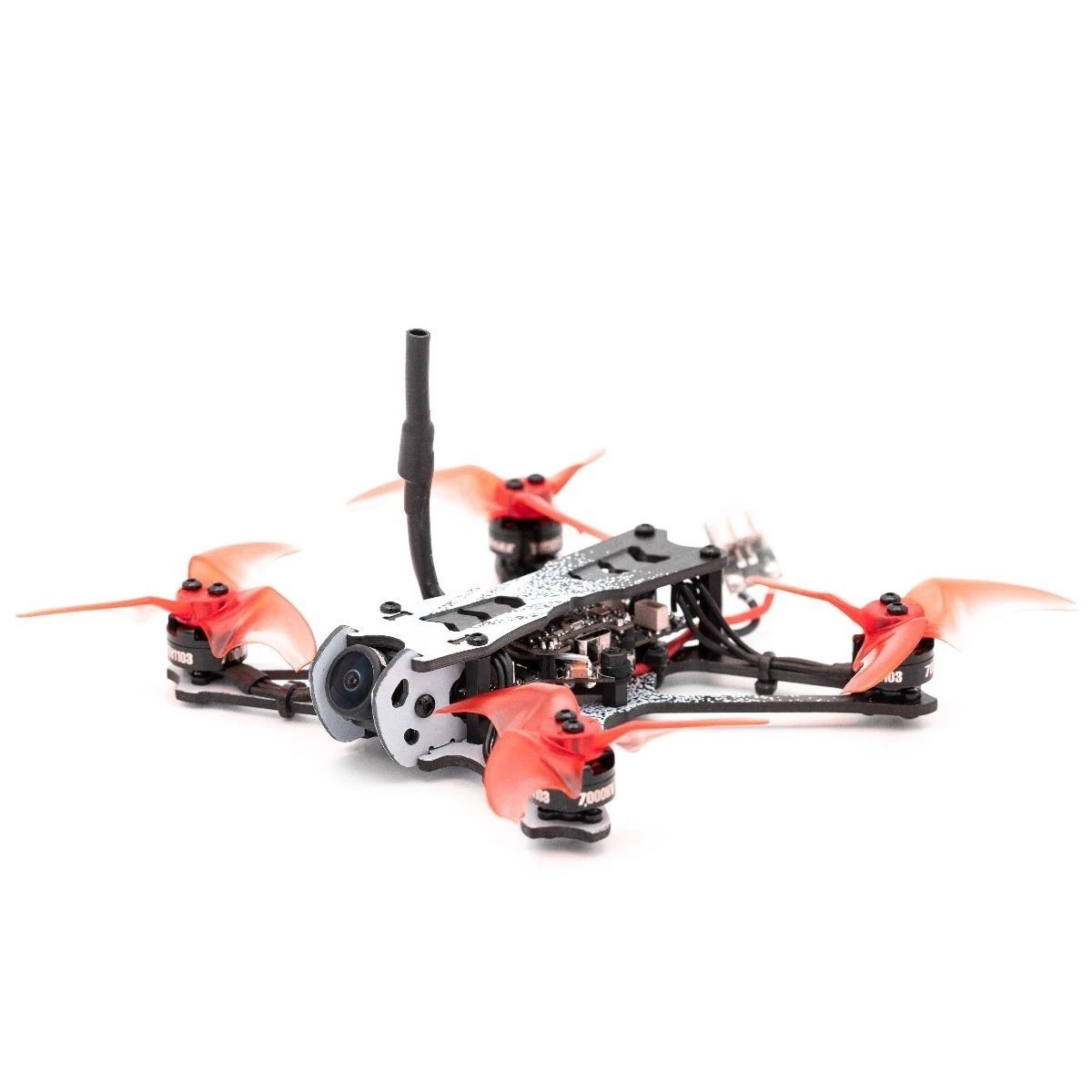

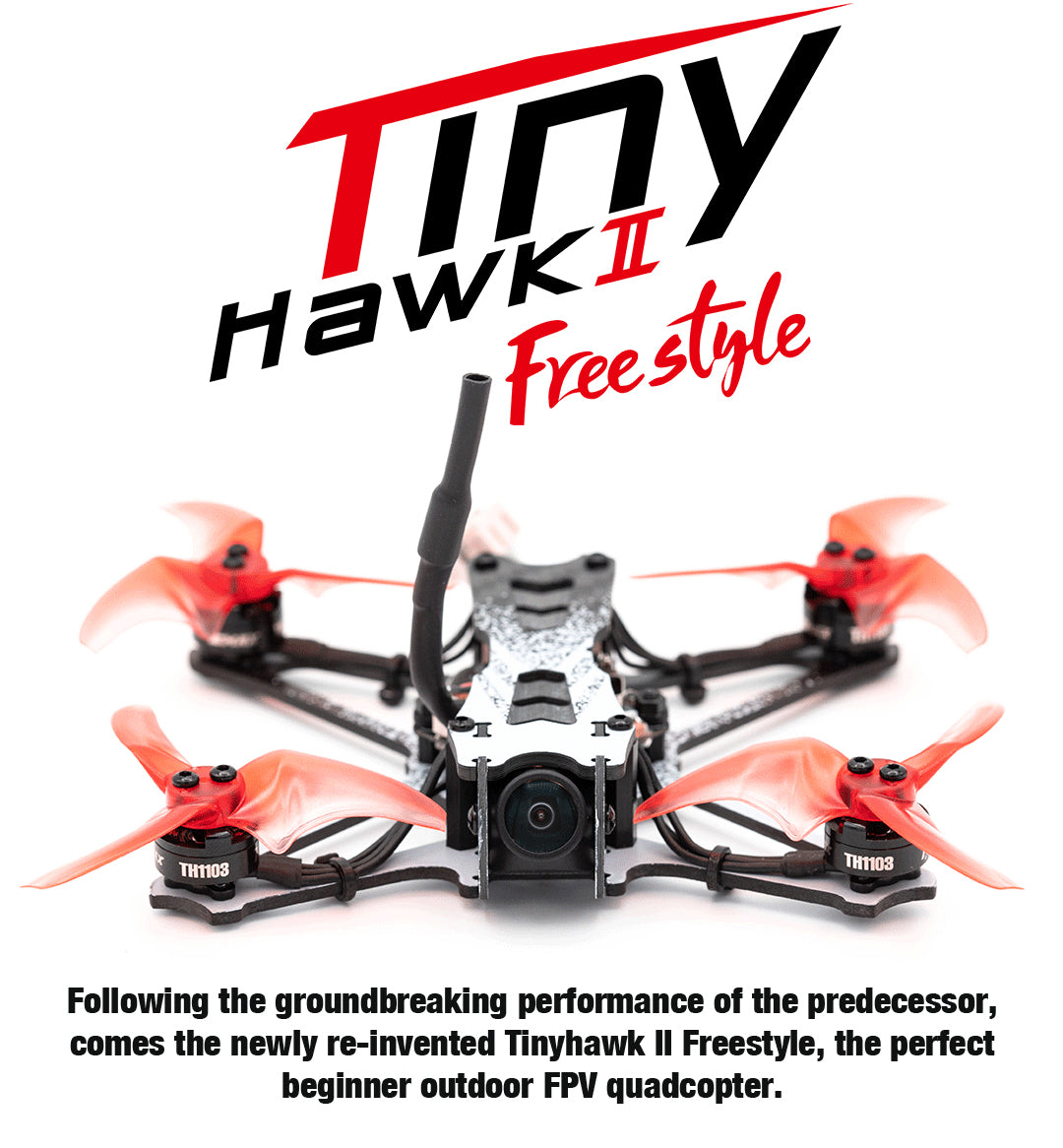

EMAX BNF TinyHawk II Freestyle Quad – FRSKY
Check out all of our Emax Products!
Features

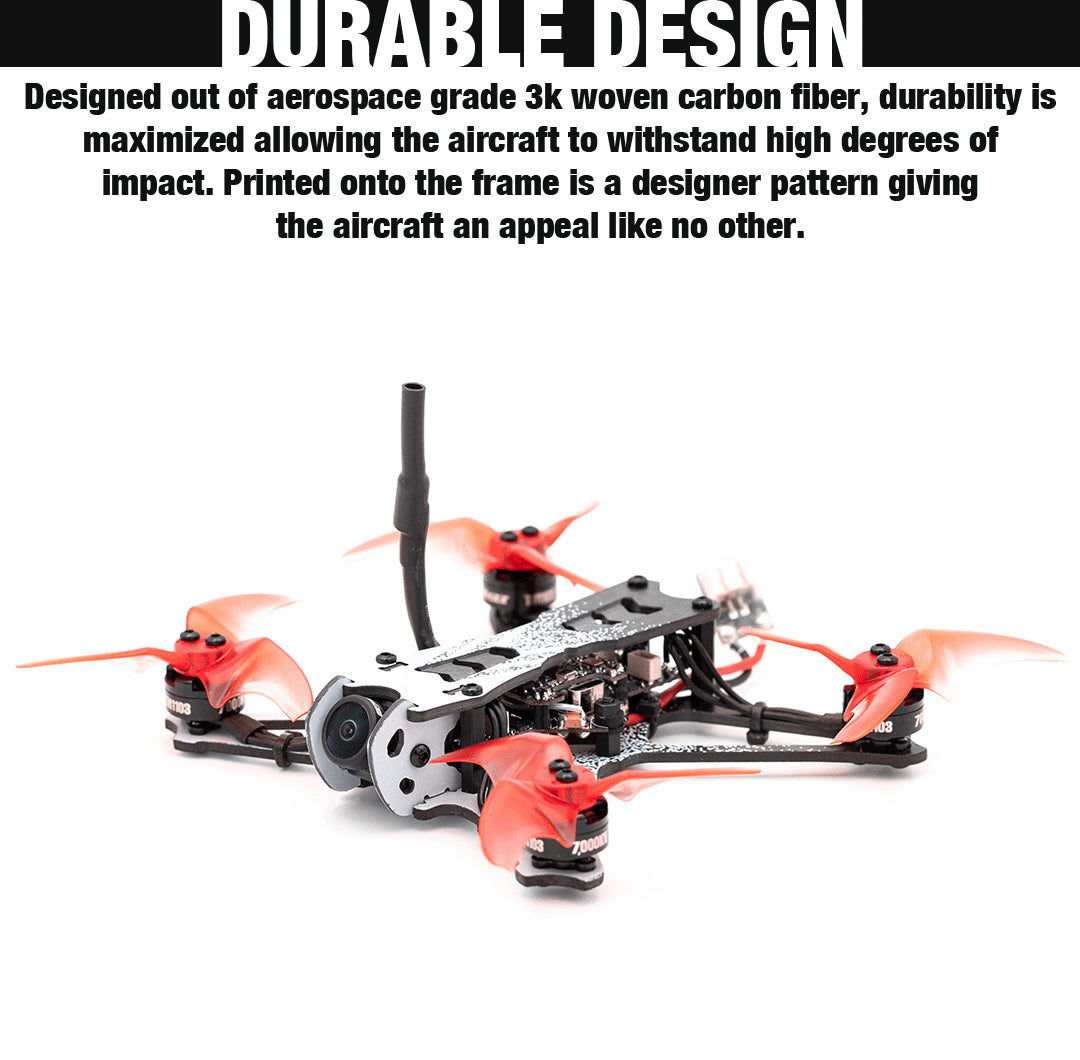

- Durable aerospace grade 3k woven carbon fiber
- BlHeli_S ESC
- F4 (MATEKF411RX Firmware) Flight Controller
- RunCam Nano 2 FPV camera
- More powerful VTX with 25/100/200mw power levels
- Smart Audio connected
- FRSKY D8 compatible

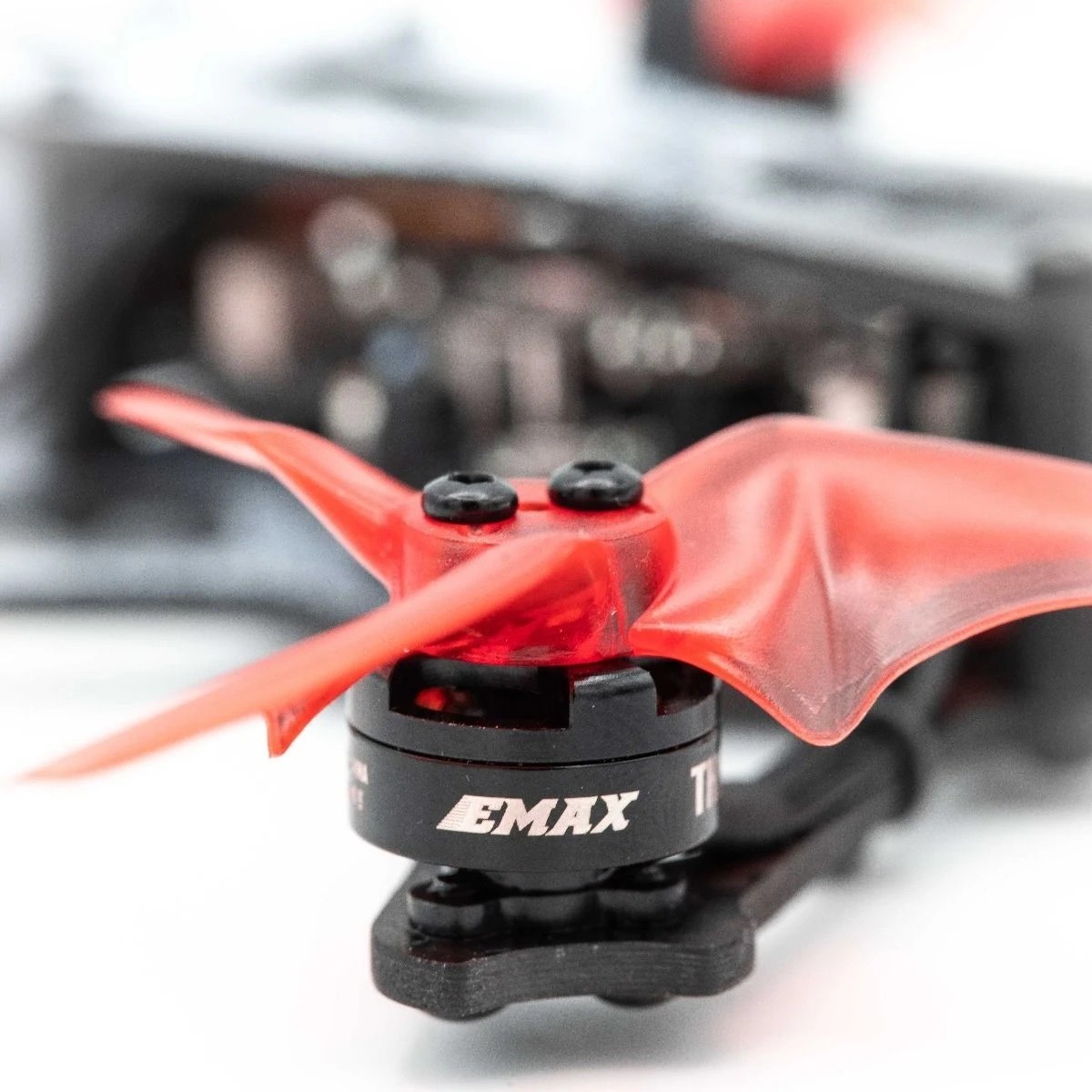

- Efficient Emax 1103 7000Kv brushless motors
- Avan Rush 2.5″ props
Specifications

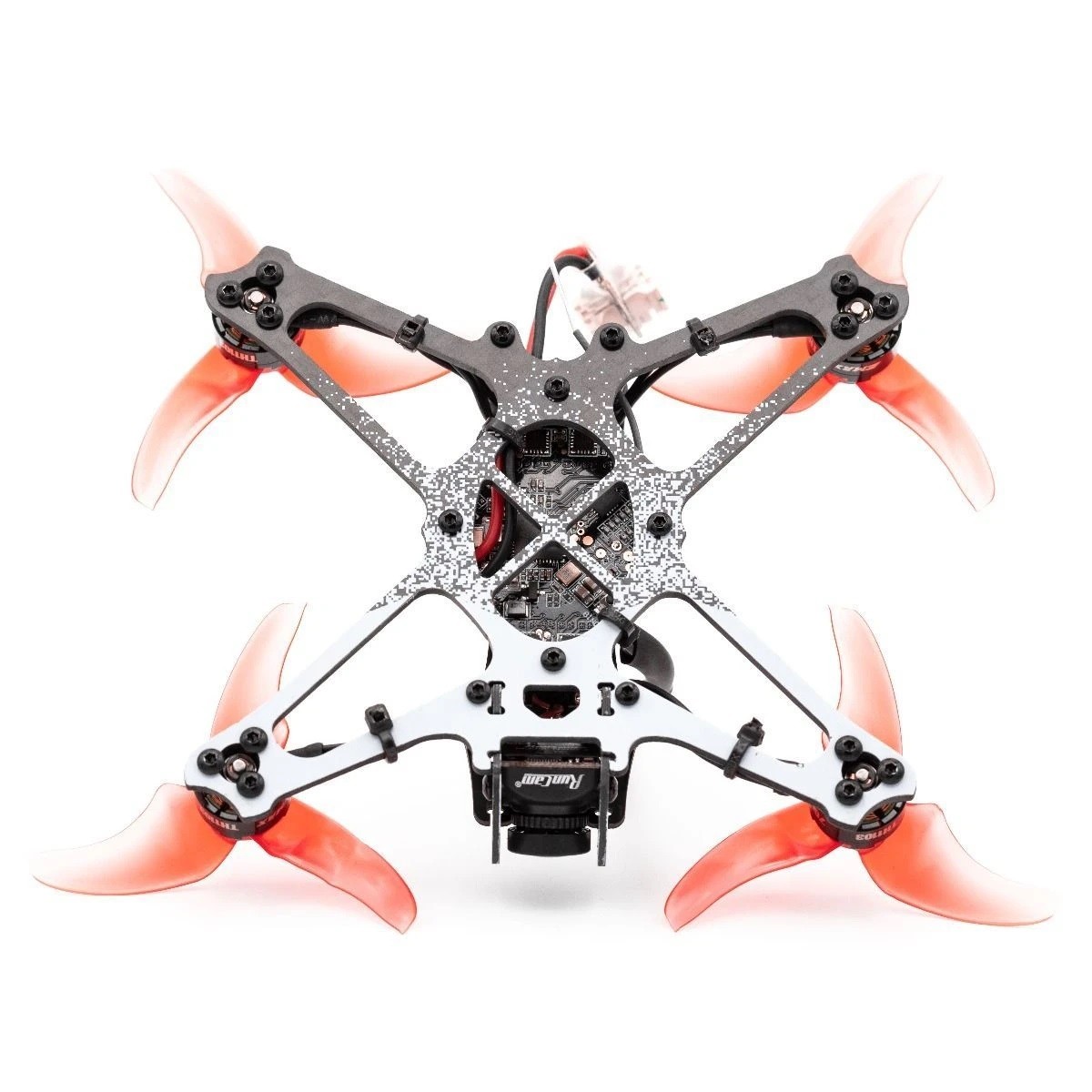

Frame
- Wheelbase: 115mm
- Dry Weight: 49g
- All Up Weight: 79g with 2x 450mAh 1S battery
- Frame Material: Carbon Fiber

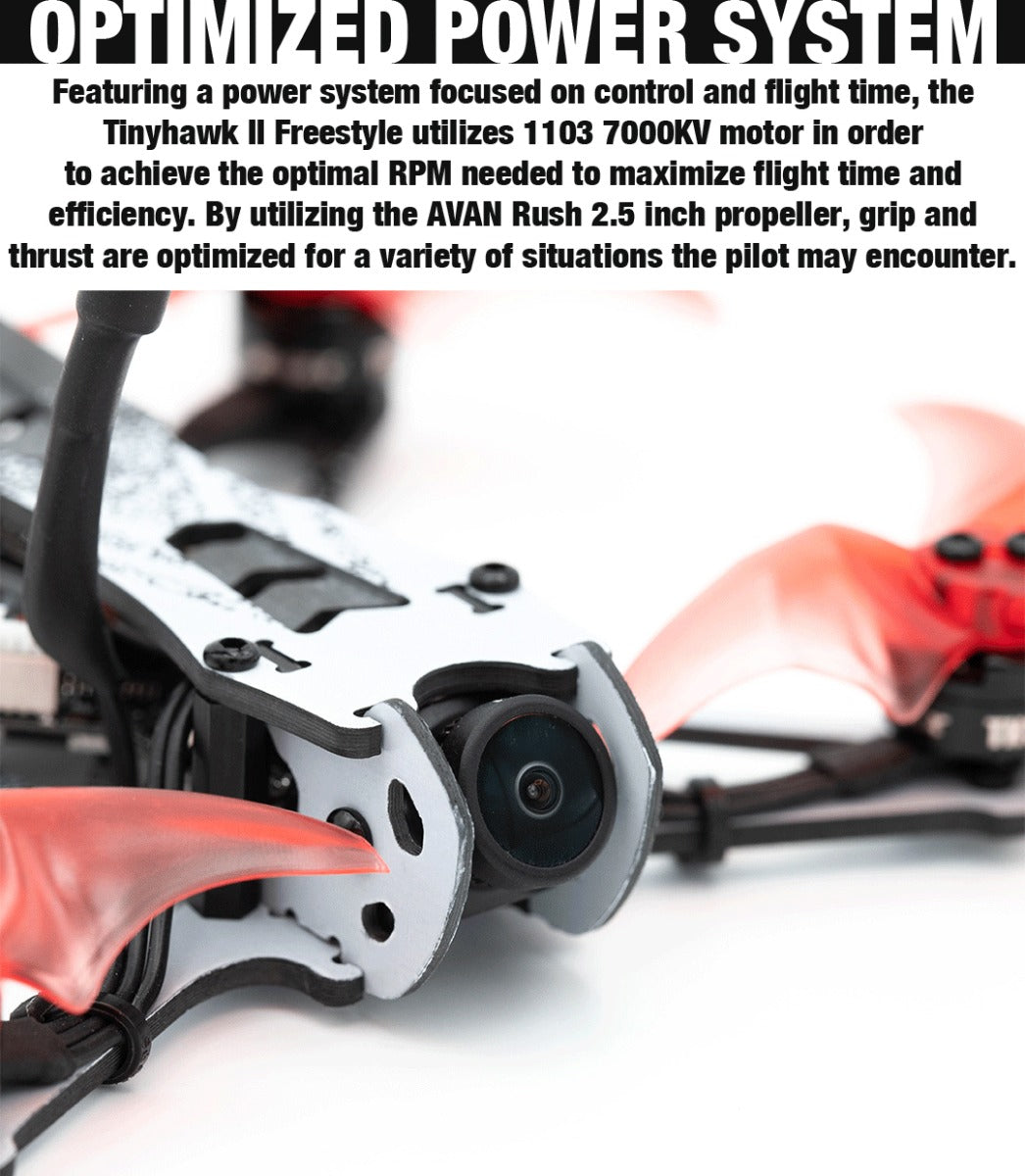

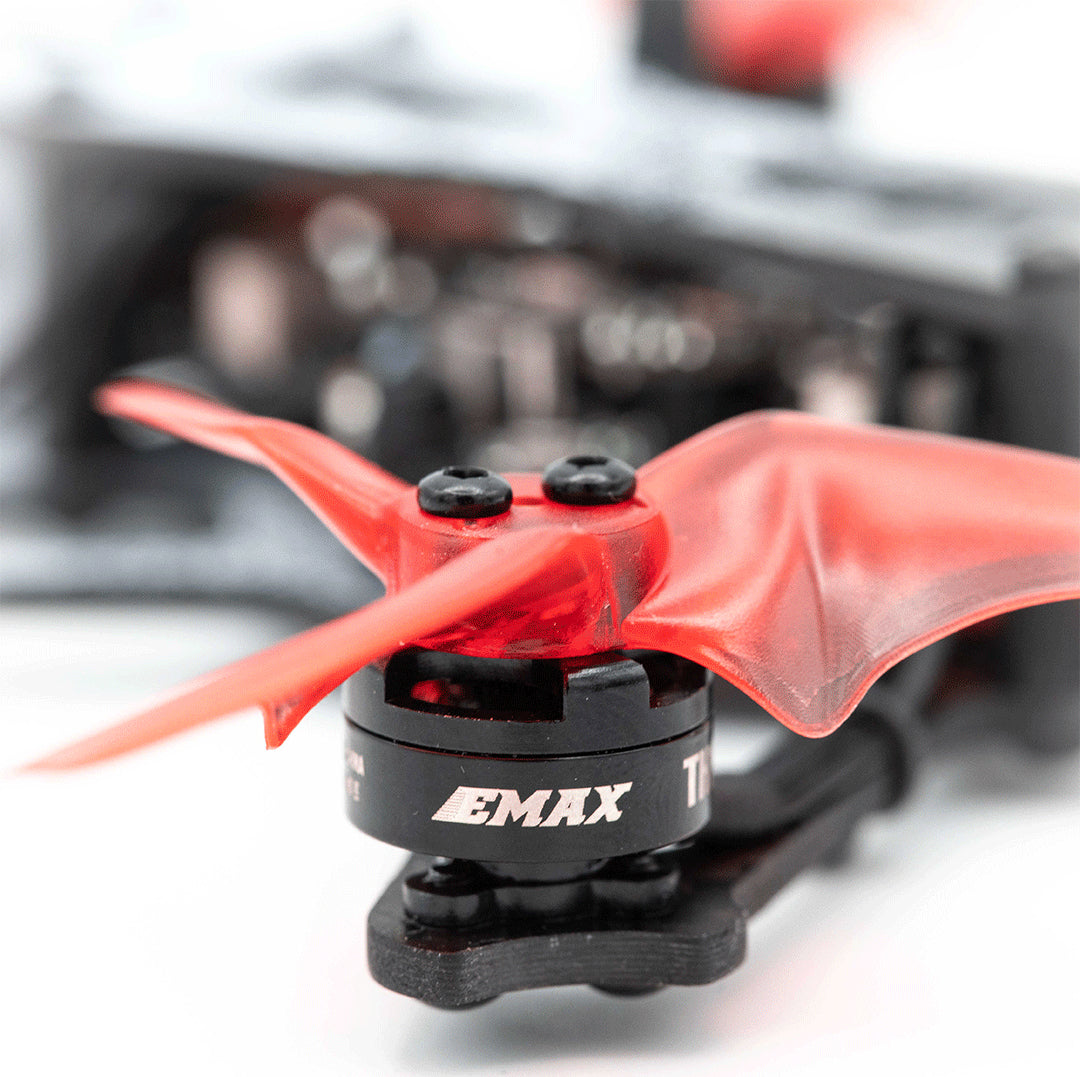

Motors
- Stator Size: 1103
- Kv: 7000kv
- Propeller Mount: T-mount, 1.5mm shaft
- Propeller: Avan Rush 2.5″

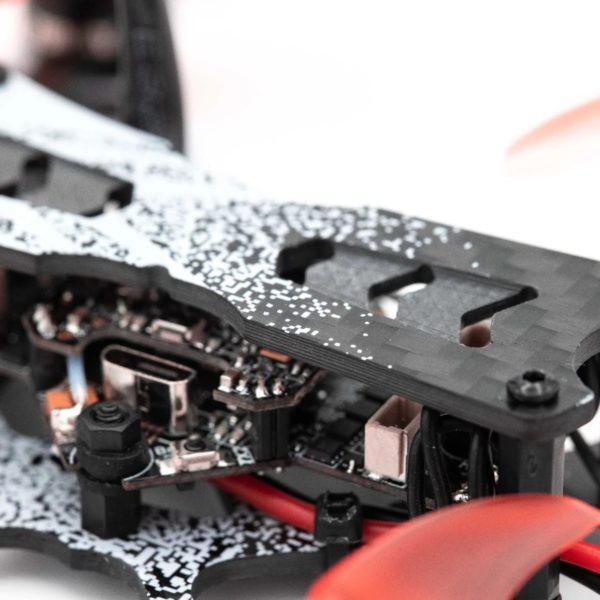

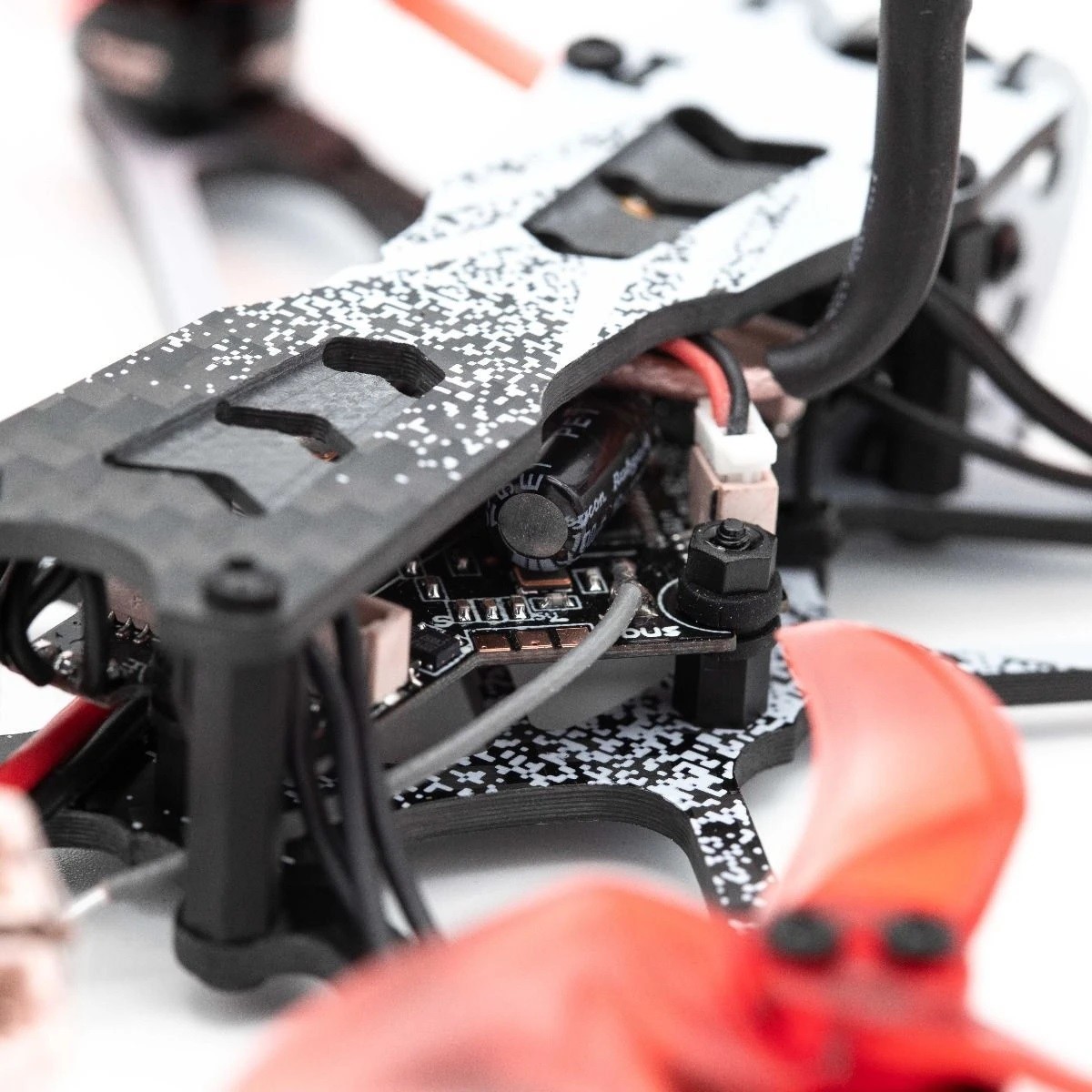

All-In-One (AIO) Flight Controller
- Flight Controller: F4 (MATEKF411RX Firmware)
- ESC: 4-in-1 5A BlHeli_S
- Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
- Battery Connector: JST-PH2.0 Duo

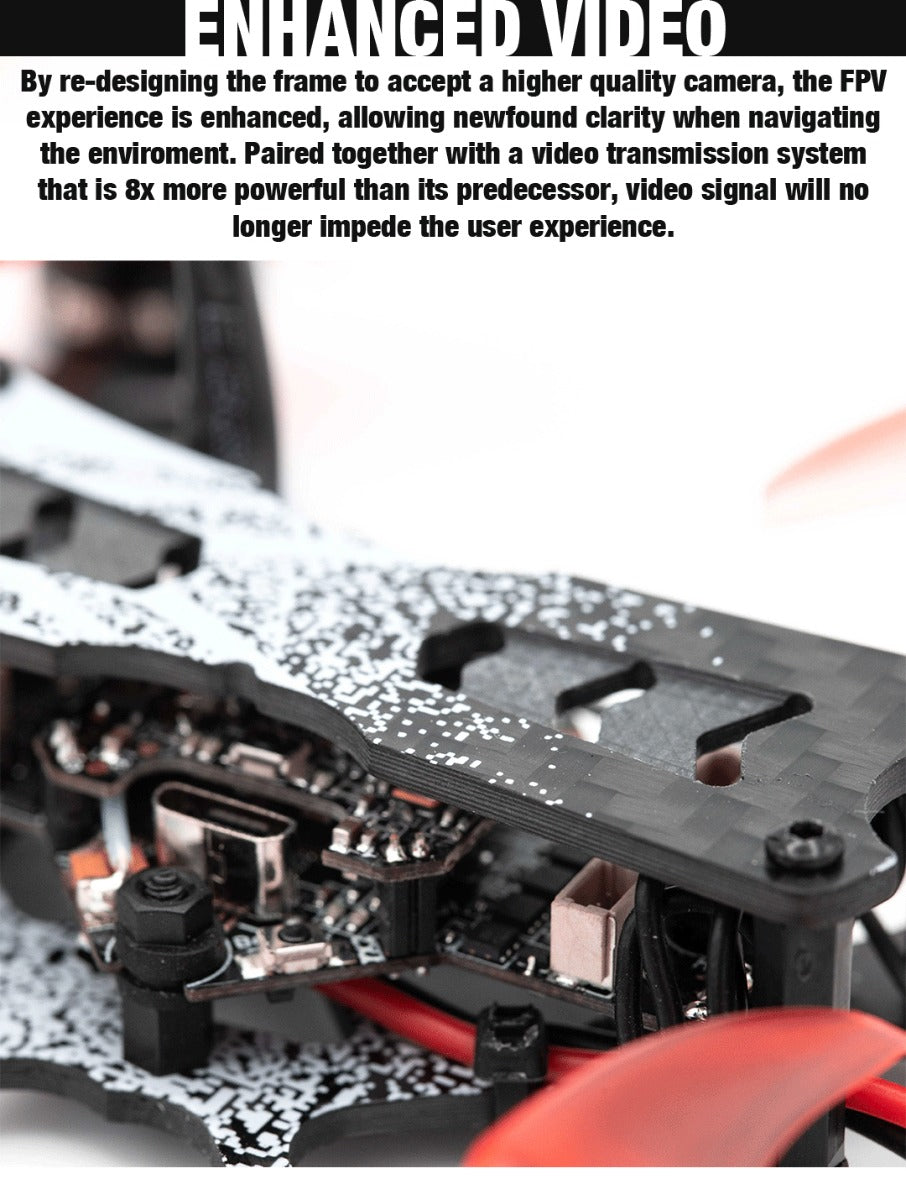

FPV System
- Ham radio license required for use in North America.
- VTX Power: 25/100/200mw Switchable (set to stay at 25mW until armed)*
- Channels: 37CH incl. Raceband

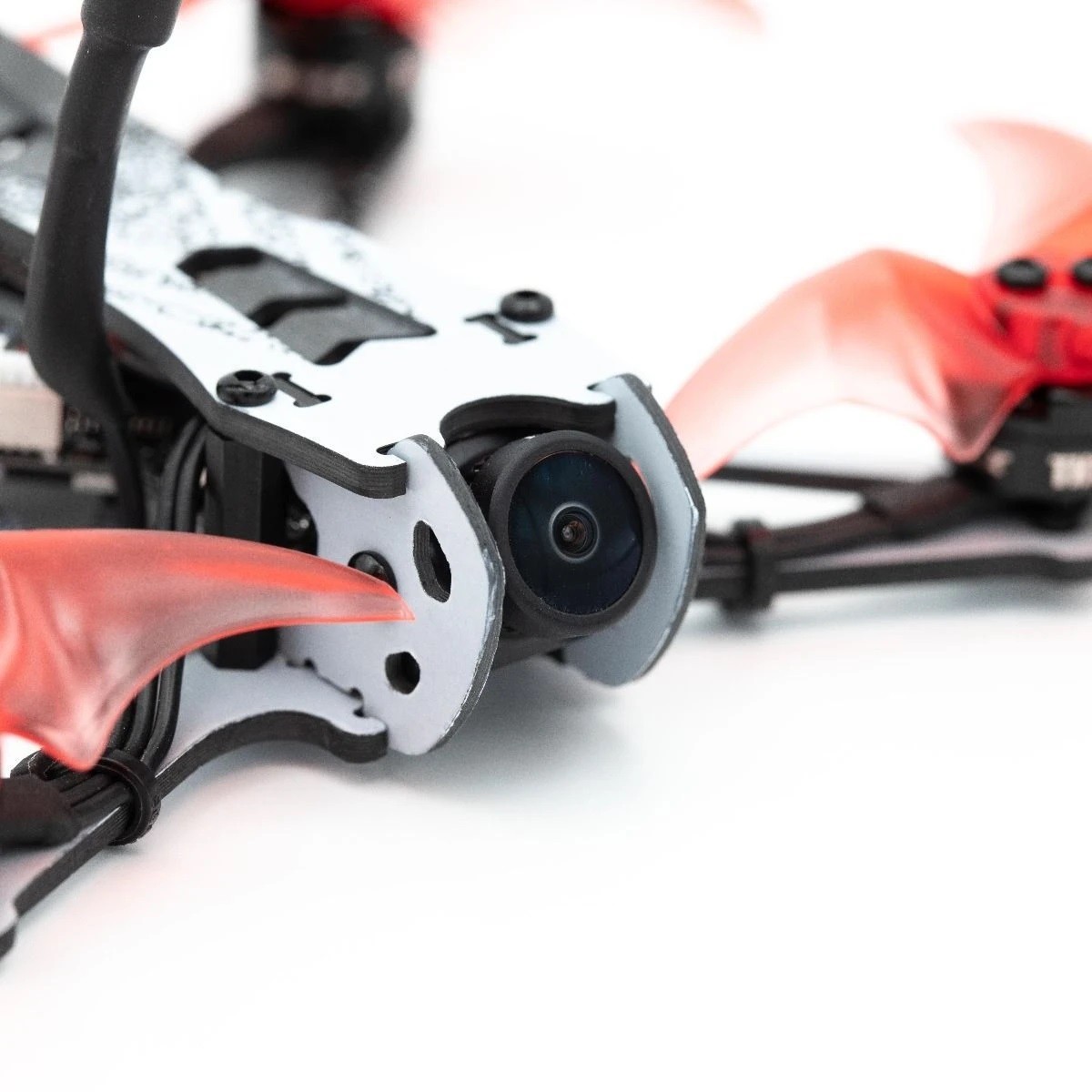

- Camera: RunCam Nano 2 1/3″ 700TVL CMOS
- Smart Audio Connected

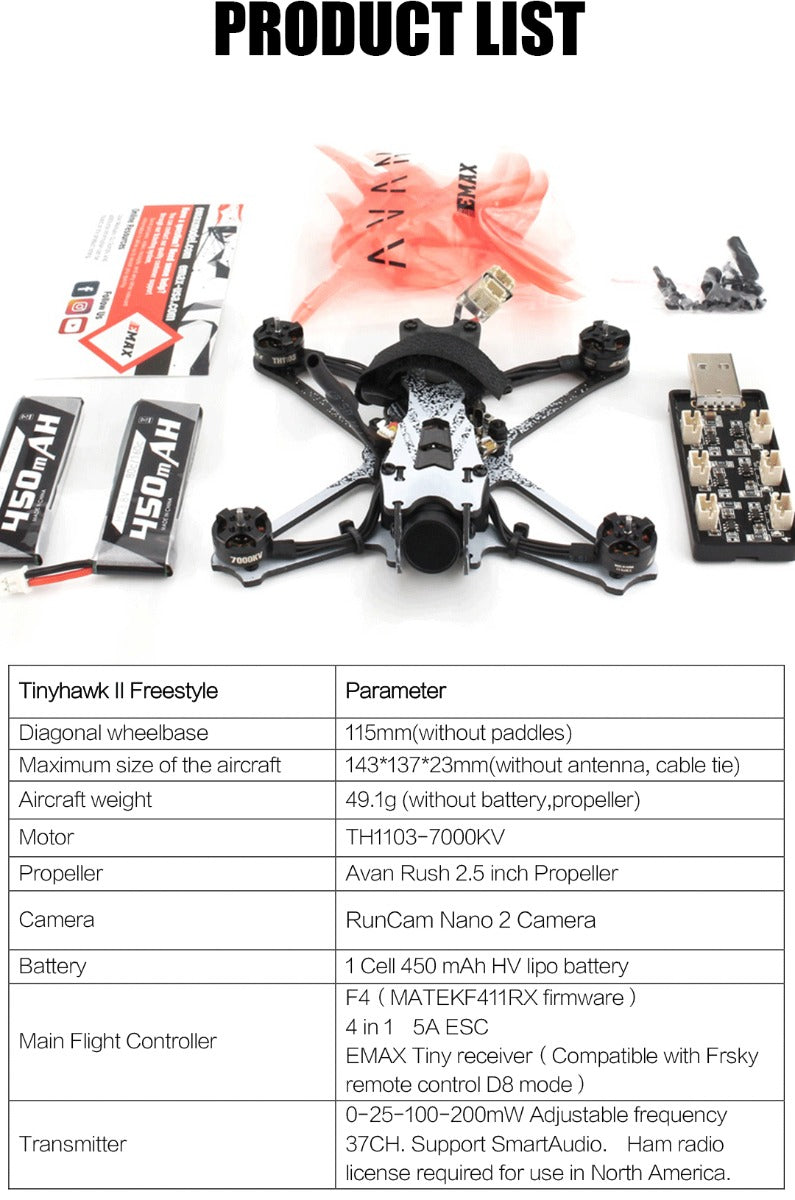

Includes
- 1x Tinyhawk II Freestyle BNF
- 2x EMAX 450mAh 1S HV Battery
- 1x 1S USB LiPo Charger
- 1x Screwdriver + Hardware Kit
