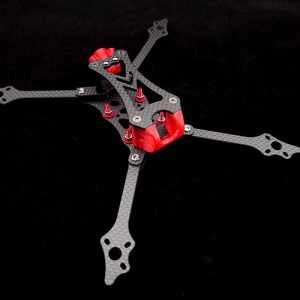

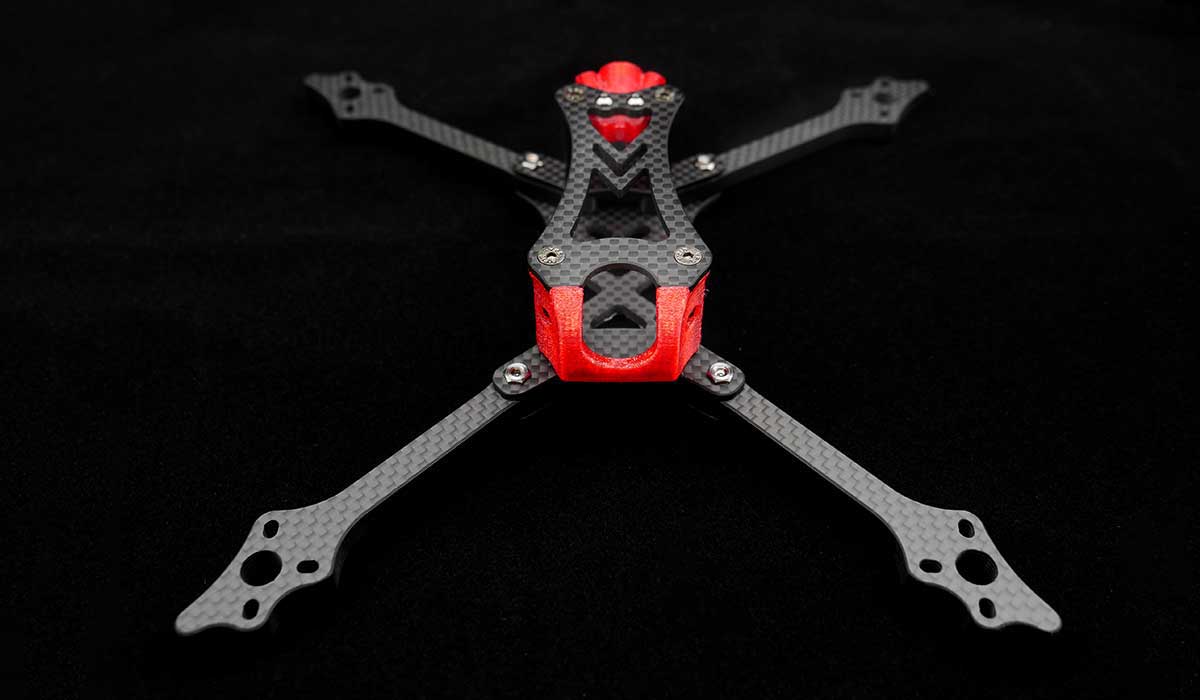

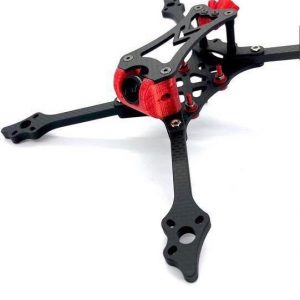

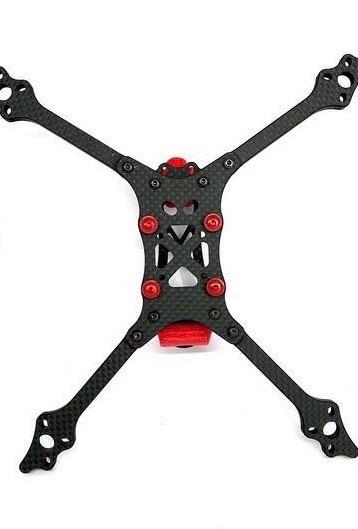

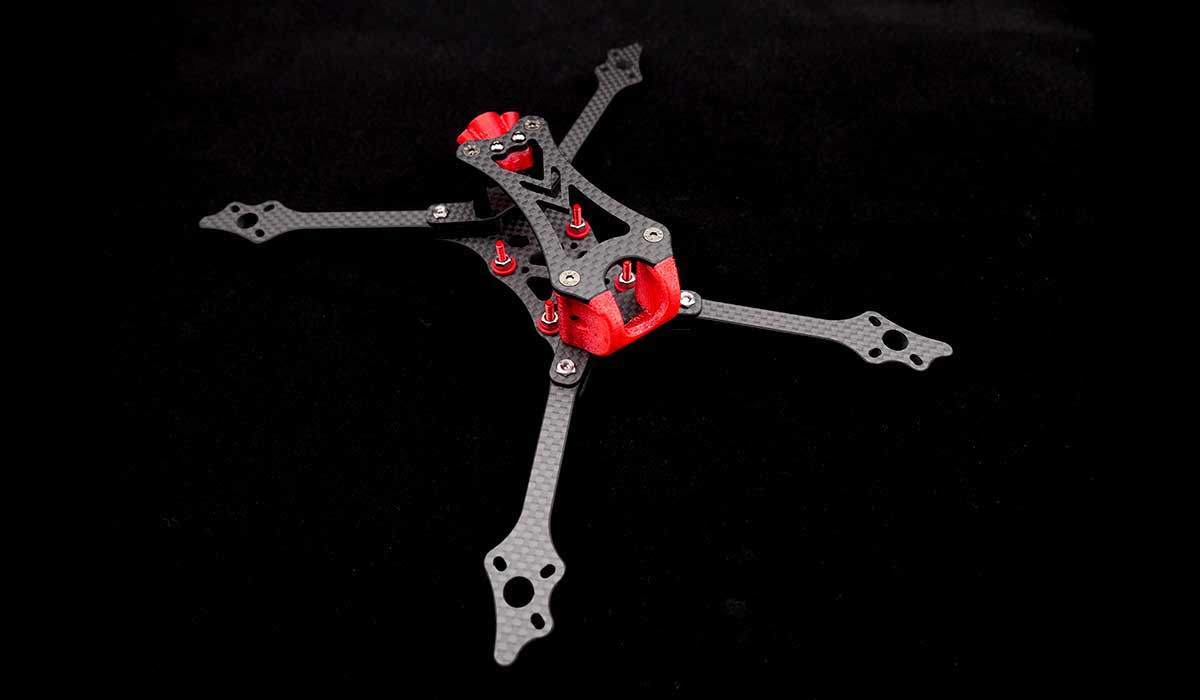

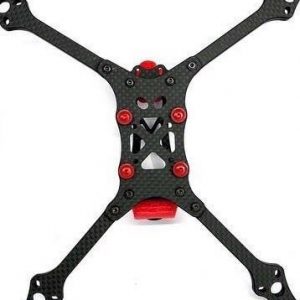

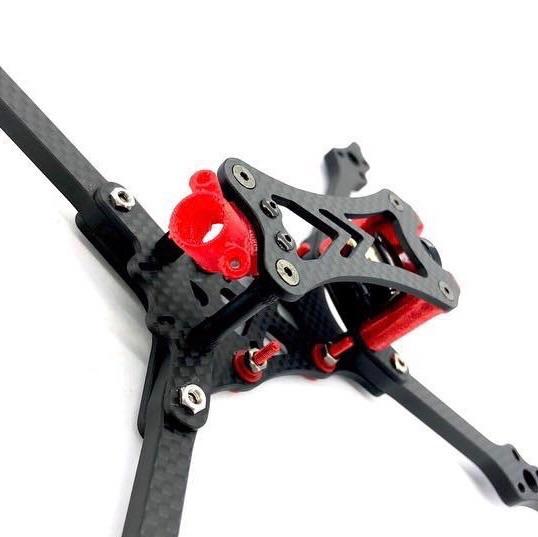

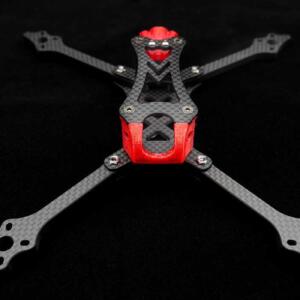

TransTEC Laser S Hybrid FPV Frame

*Feature

—Full 3K imported premium quality and structurally rigid carbon fiber

—All Carbon Fiber with chamfered and round edge

—All Carbon plates cut with TransTEC Soft Coating Crafts

—super durable 6mm arms with a quick switch

—3mm Hybrid bottom plate with soft mount hole

—2.5mm thickness ultra-light roof plate

—2mm thick top plate ensures stable arms

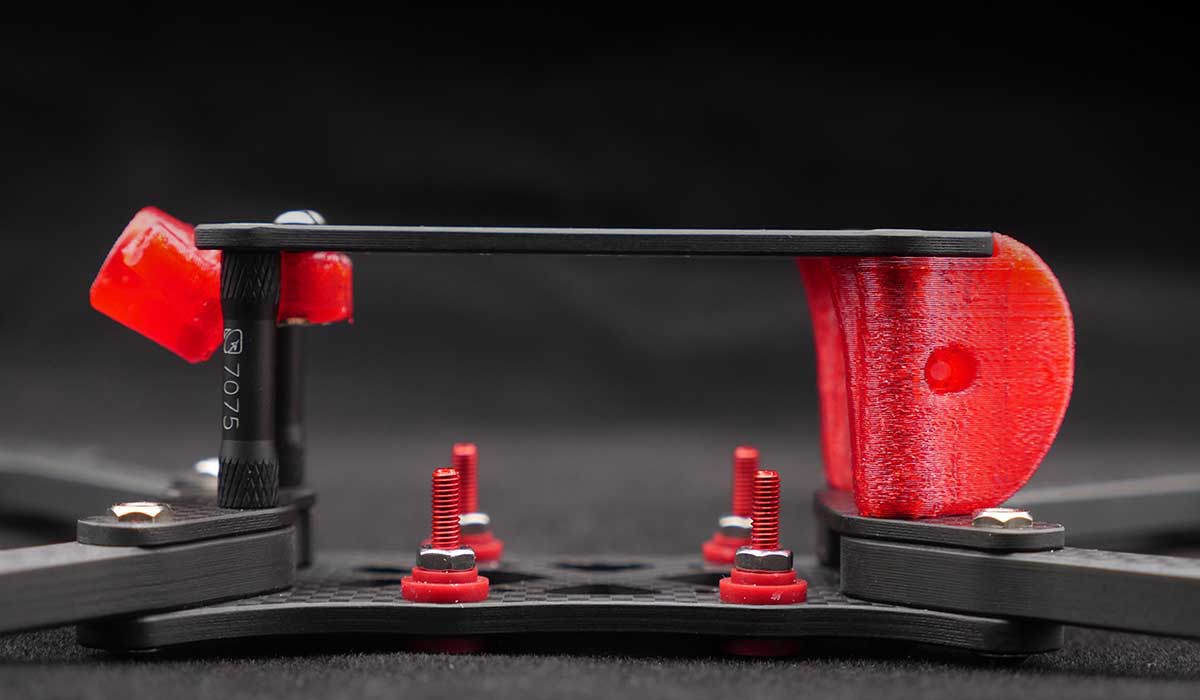

—Aerospace application TransTEC 7075Alu standoffs for incredibly solid

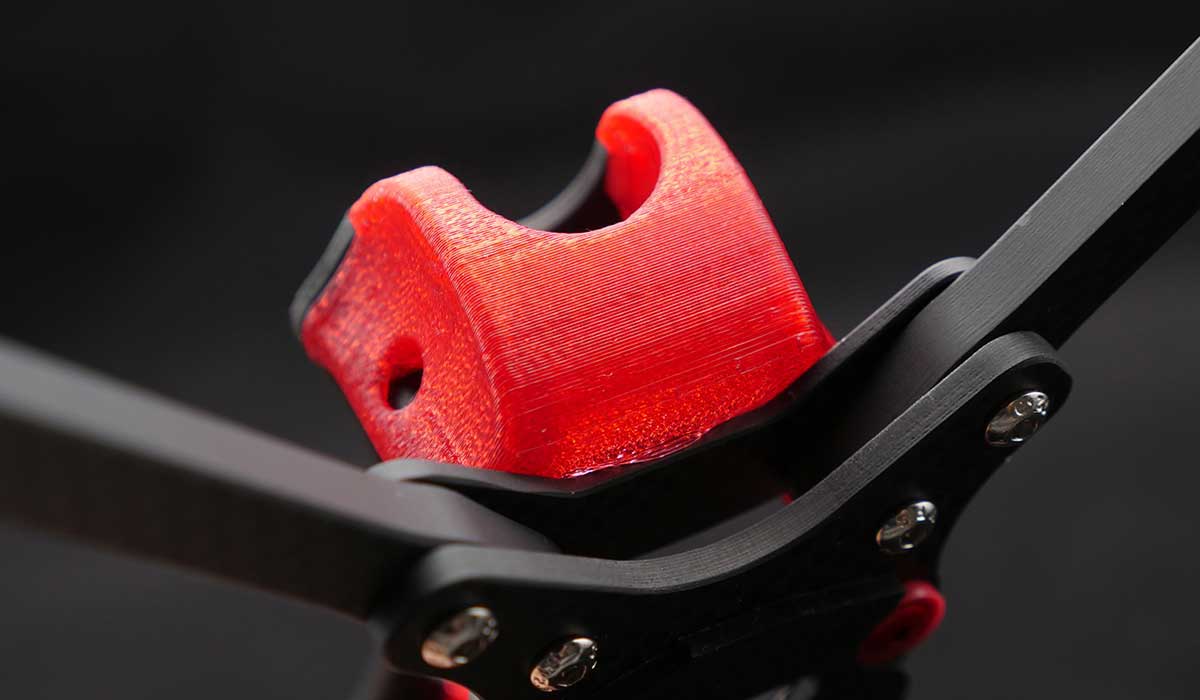

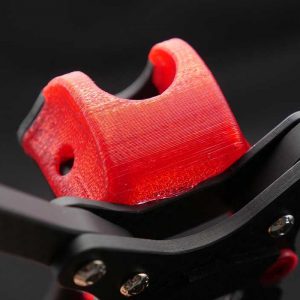

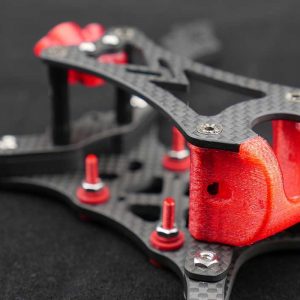

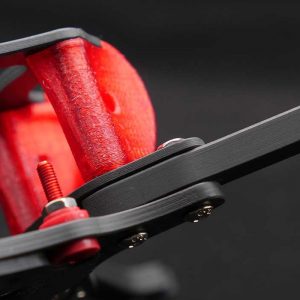

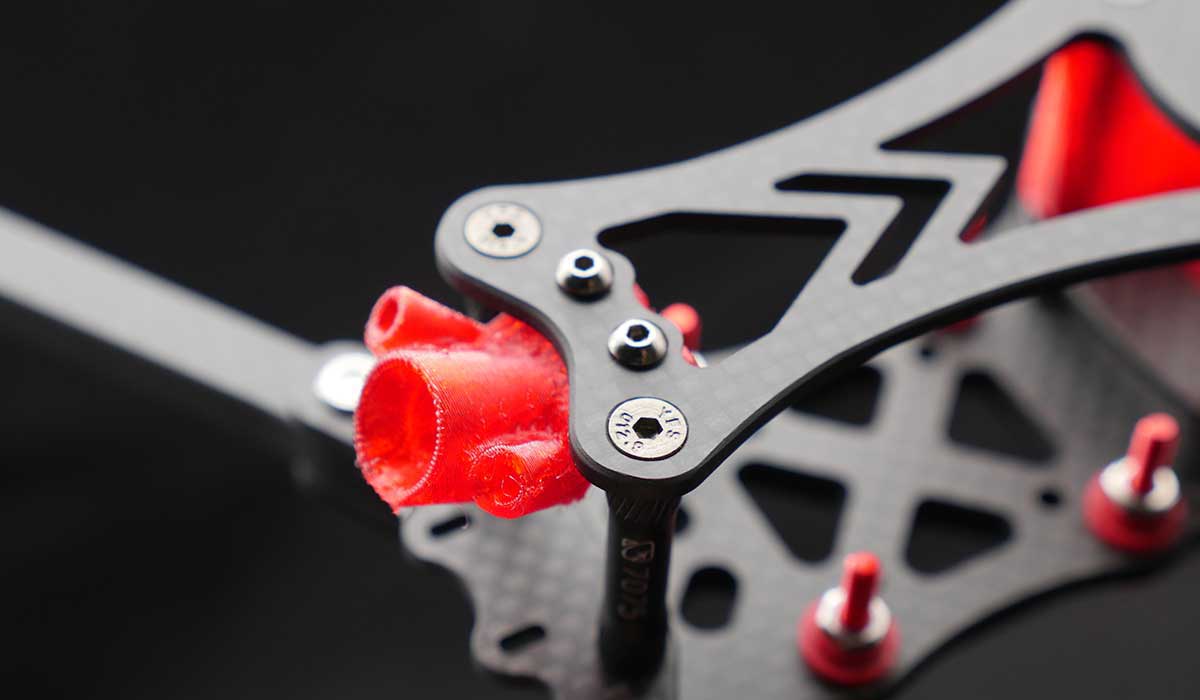

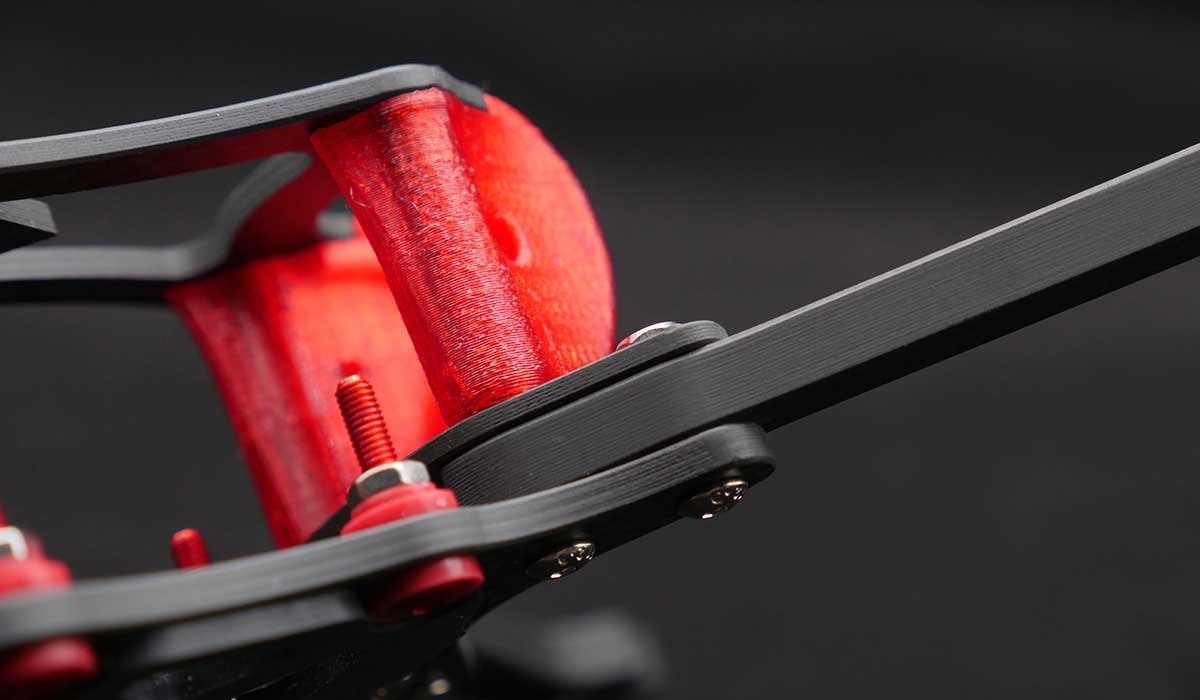

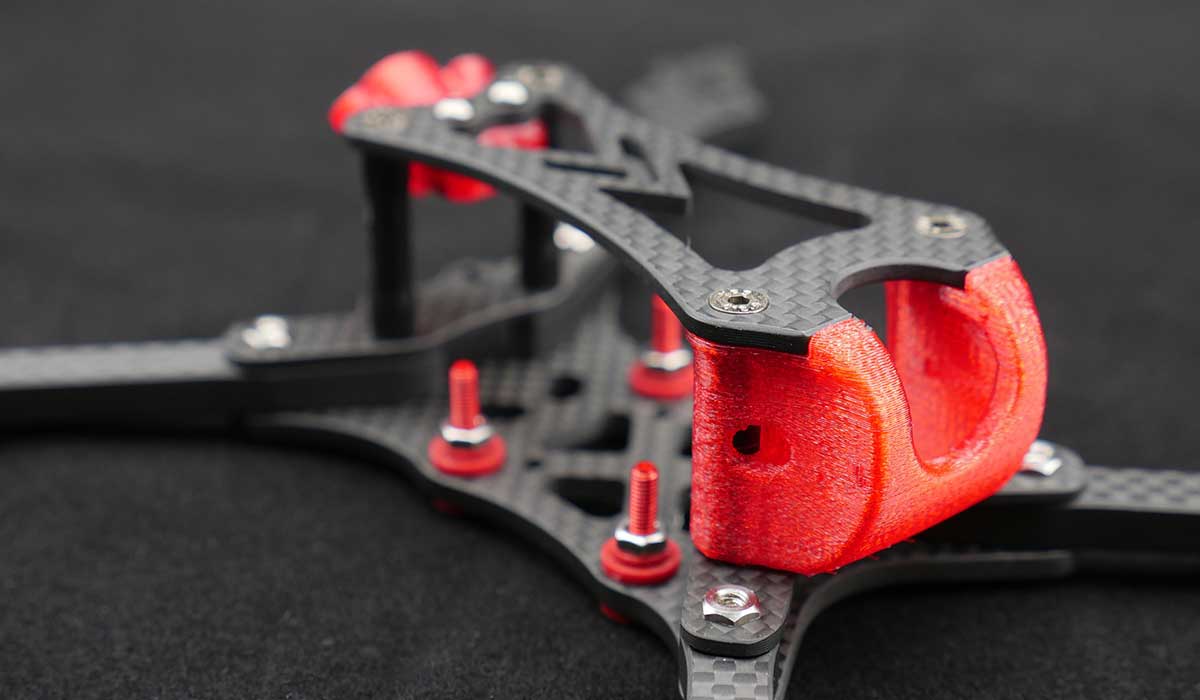

—High precise 3D print camera holder and new design to protect your cam

—Two alternative antenna fixed way for more convenience installation

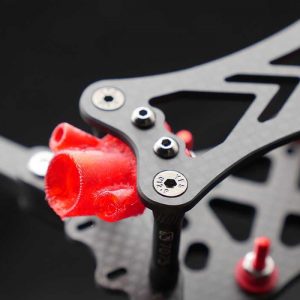

—304 stainless steel custom insert nut for more stable frame

—YFS first class 12.9 screws to secure whole frame

—20x20mm and 30x30mm FC mount hole

—Large internal space possible for 3 board FC stack

—Allowing to fit micro camera.

—Wheelbase 224mm

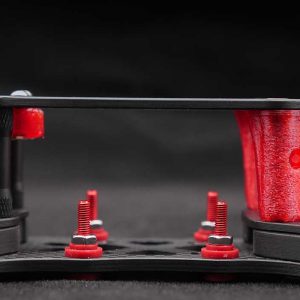

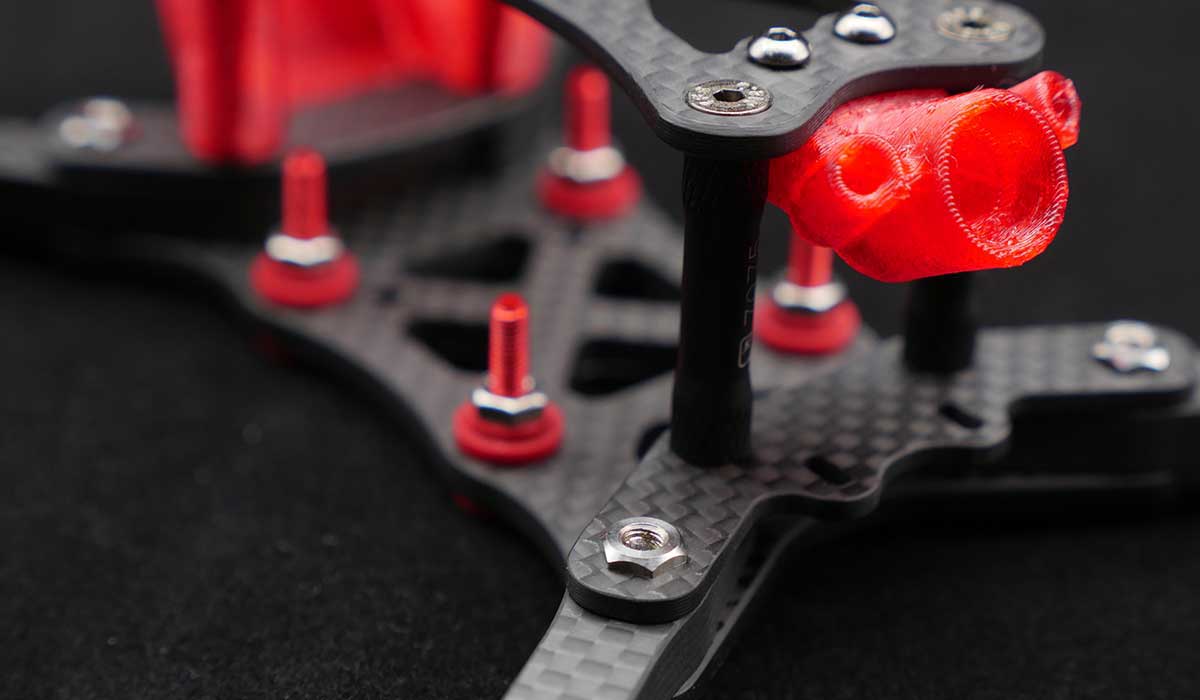

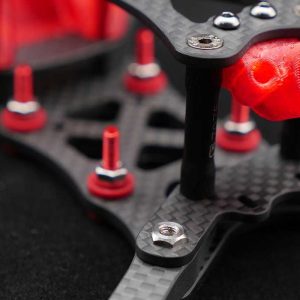

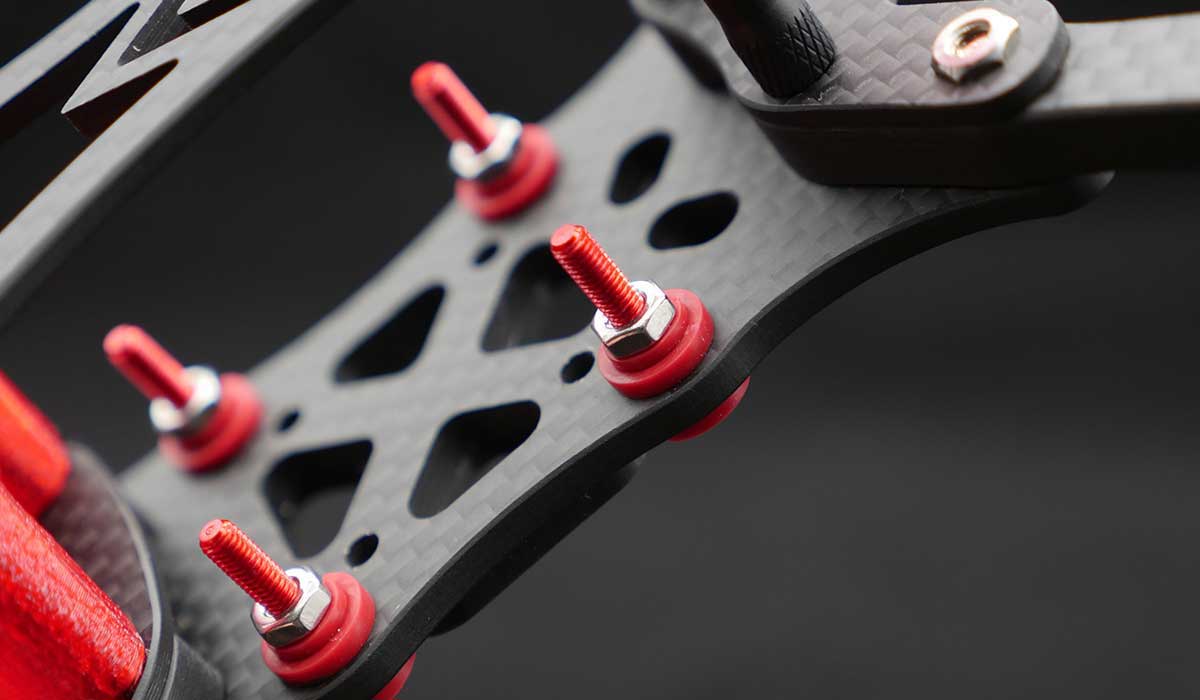

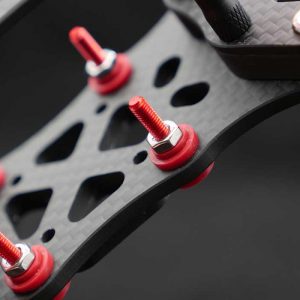

—TransTEC Damping System , unique design soft rubber ring and custom 7075 limit screws, let the rubber remains same force

*Suggestion

Battery: 4S-6S Lipo 1000mah – 1800mah

Camera: 19mm Micro size

*Packing list

Carbon parts  (all chamfered/rounded)

4 x 6mm removable Arms

1 x 3mm Bottom plate

2 x 2mm Top plates

1 x 2.5mm Roof plate

Metal Parts

M3x12 * 4

M3x16 * 4

M2.5×8 * 2

M2.5 Metal Nut * 2

M3 Metal Nut * 4

M3 Insert Nut * 4

M3x8 Countersunk screws * 4

M3 7075 Limit Red screws * 4

Accessories

TPU camera mount * 1

TPU SMA antenna mount * 1

TPU lollipop antenna mount * 1

Battery strap 2pcs

Battery pad 1pcs

Note:

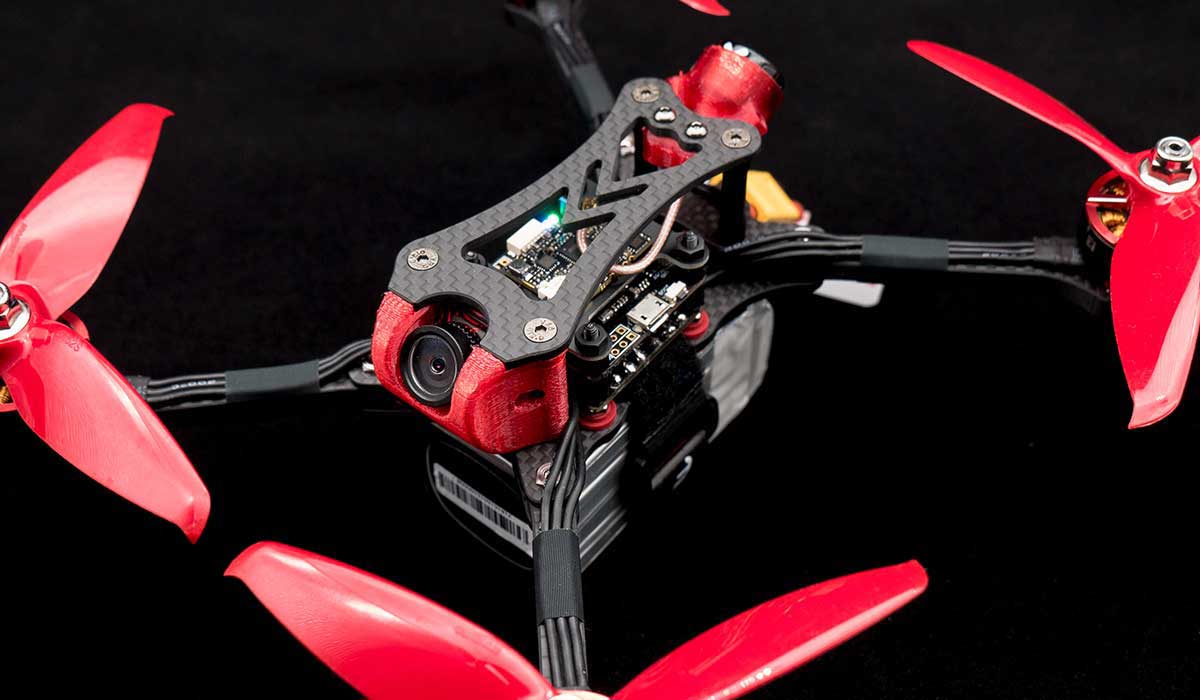

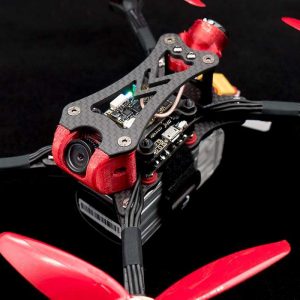

PNP photos are just for reference,  this link is Fame Kit.

The new batch is slightly different and updated the strong structural design for user friendly control.
