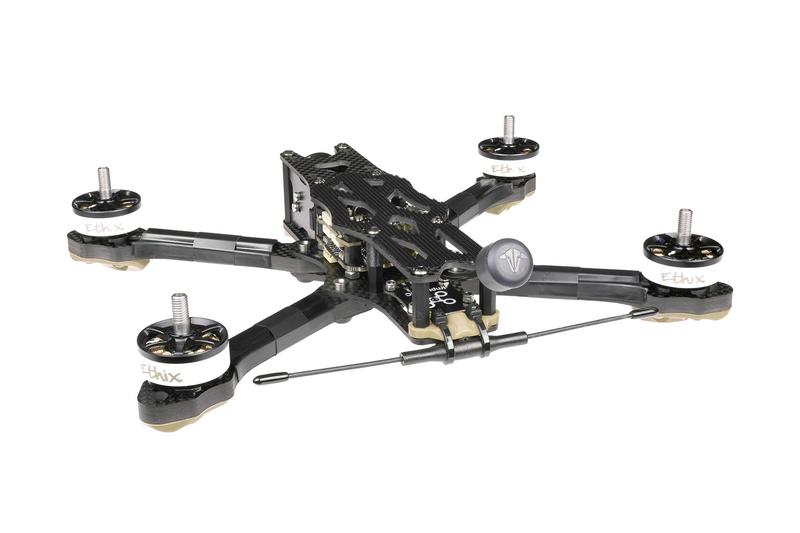

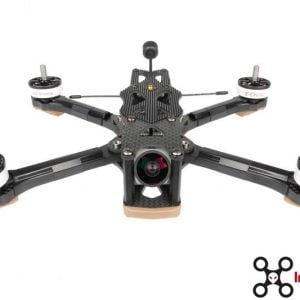

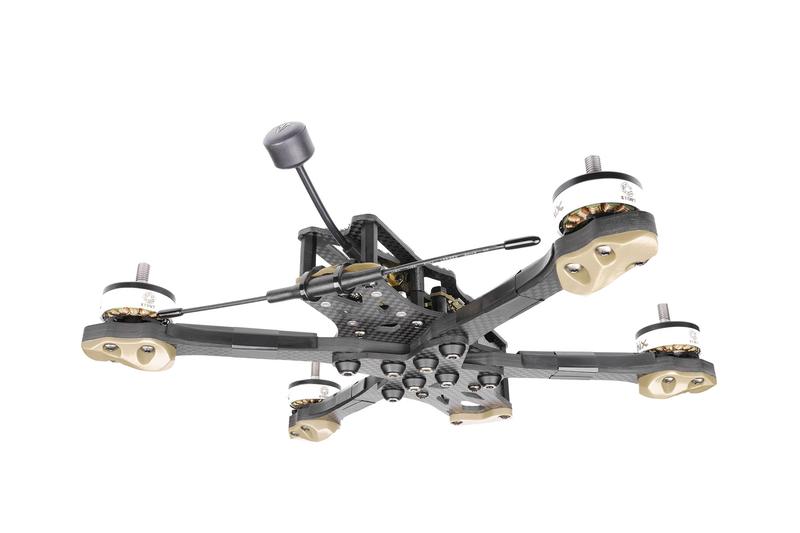

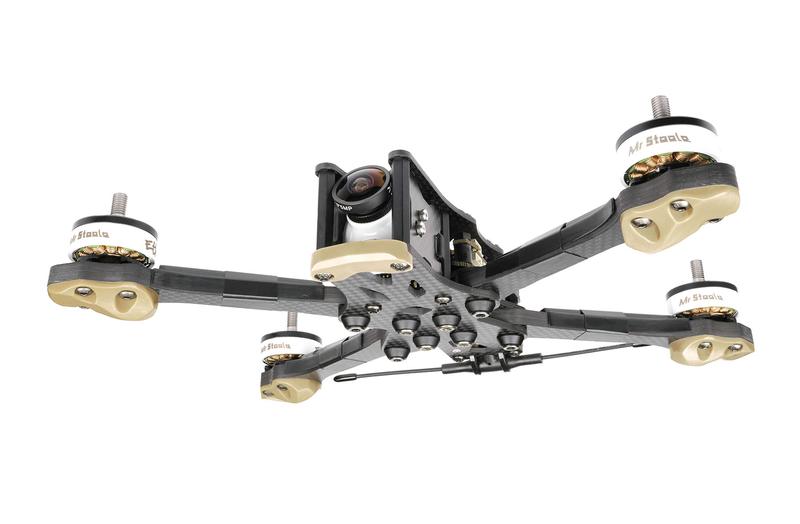

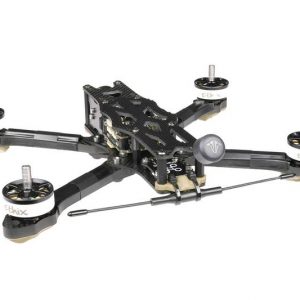

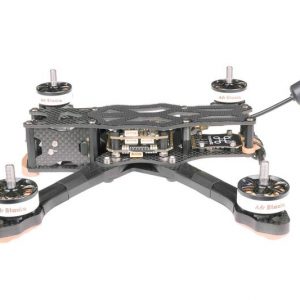

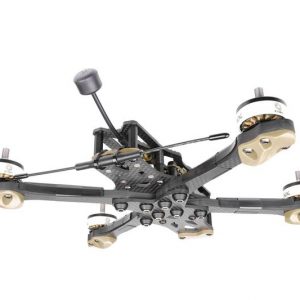

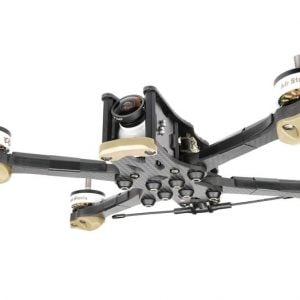

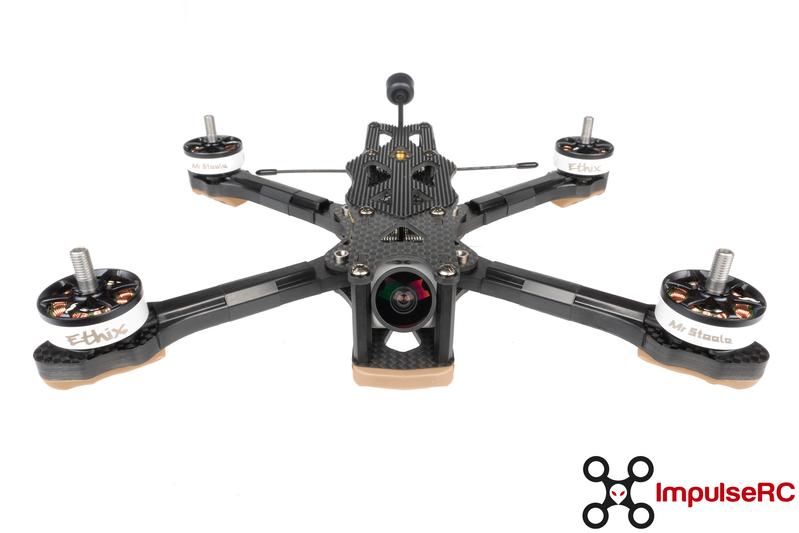

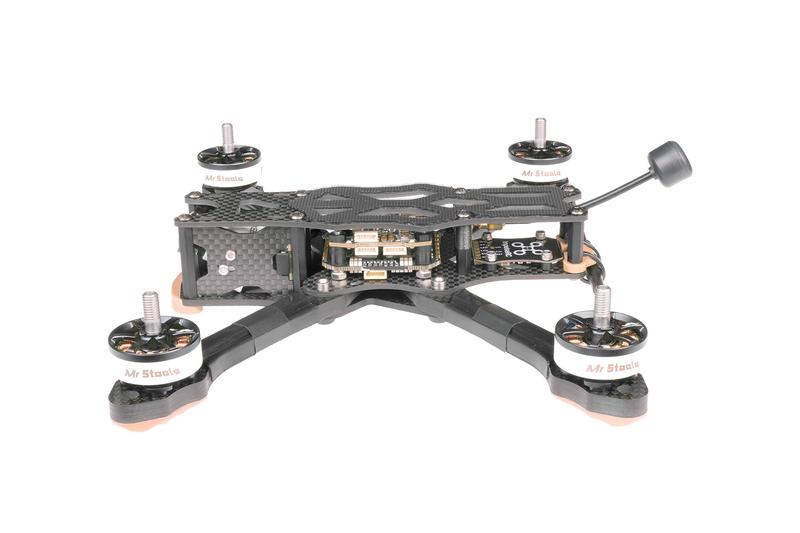

ImpulseRC Apex 5″ Mr Steele Apex Frame Kit – Light weight
This is the ultra light weight Mr Steele version of the Apex frame. This version comes bundled with our new OSD, regulator board, LED strips and wiring harness. Also included is both Mr Steele’s exclusive Coyote Brown plastics and the Classic Black plastics, as well as  multiple other extras.
Introducing the future of freestyle
The Apex shatters the glass ceiling in freestyle frame design.
Through a process of continous refinement and always striving to improve we have created a new breed of freestyle frame. The Apex does not compromise in stiffness or durability, so you never have to choose between confidence and performance.
Unique design elements new to the FPV world make your build and maintenance more simple than ever before. Toughness of the frame itself is increased while also offering much better protection for your investment in flight electronics.
This is what you have been waiting for.
Apex Arm Design
The arms of an FPV frame are the key structural component which translate the thrust from the motors to the majority of the mass in the aircraft, which is secured to the body of the frame. The design of the arms and how they are attached to the body is one of the most vital aspects that influences the performance of an FPV frame.
There are multiple problems which can occur with existing arm designs which can lead to poor performance, difficulty tuning and added cost. The Apex addresses all of these problems with a simple and unique new design that eliminates all arm slop and drastically increases durability.
Symmetrical arms make it possible to pocket one side of the part without introducing the need for distinct left and right arms, making you require more spare parts. We use a pocket instead of a hole under the motor to increase durability and we embed a press nut to simplify attachment and avoid clearance issues under your stack.
Simple Maintenance

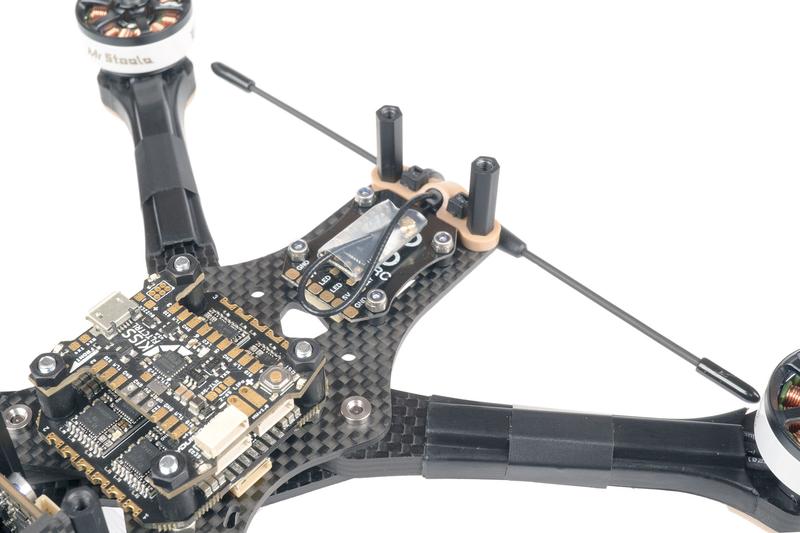

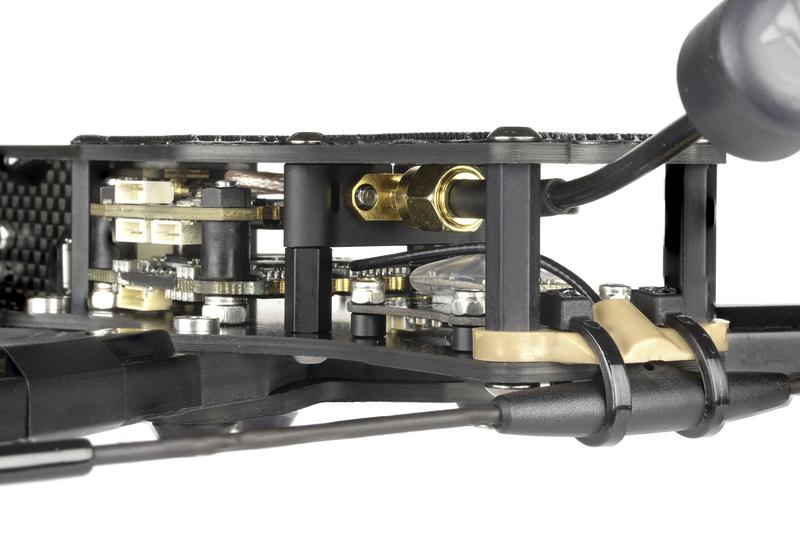

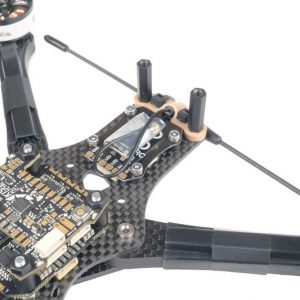

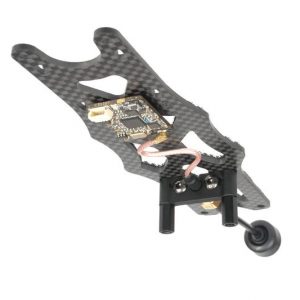

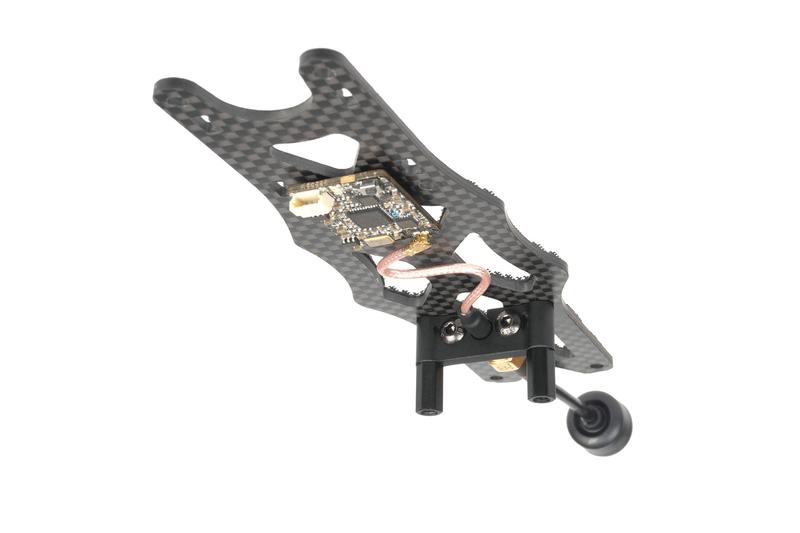

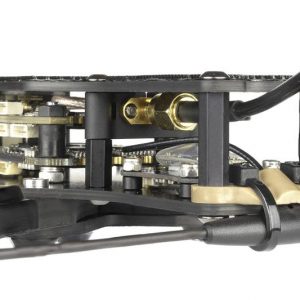

Flight electronics are mounted to the upper main plate using countersink bolts. This completely decouples the arm attachment from the electronics mounting. Arms can be replaced using two bolts without any disturbance to your stack.

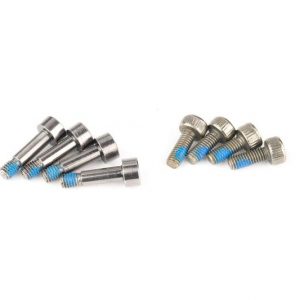

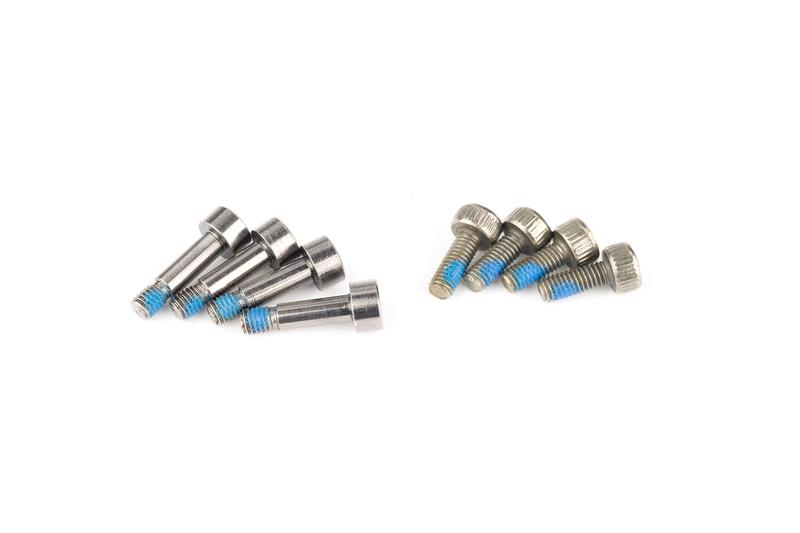

Our custom machined shoulder bolts act as a solid steel pin through the arm which eliminates slop and tolerance issues. The precision shaft passing through the arm removes all side-loading of the carbon laminations on to the chisel-like threads of a regular bolt. Factory added thread-locker and custom aluminum cone washers spread the load of the clamping force and ensure the bolts will not vibrate loose.
Key to the apex
At the apex of a masonry arch a keystone locks all the stones in to position and allows the arch to bear weight and be self supporting. A keystone is a hallmark of strength and good design, the Apex FPV frame is no different and the carbon key sits at the heart of the frame to distribute forces applied to the arms.
Accessories

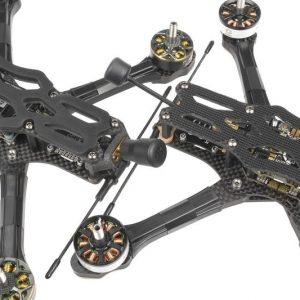

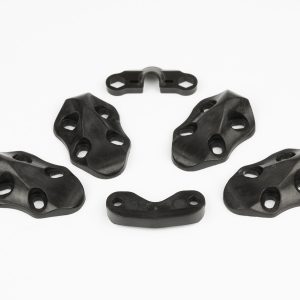

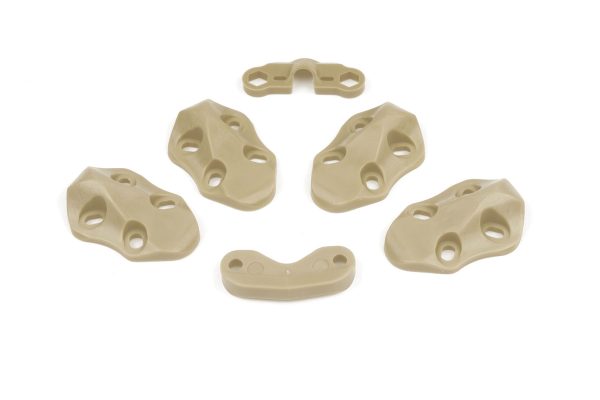

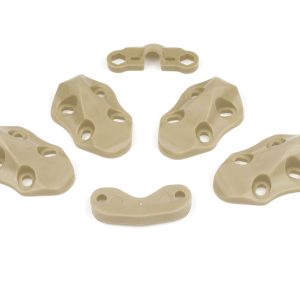

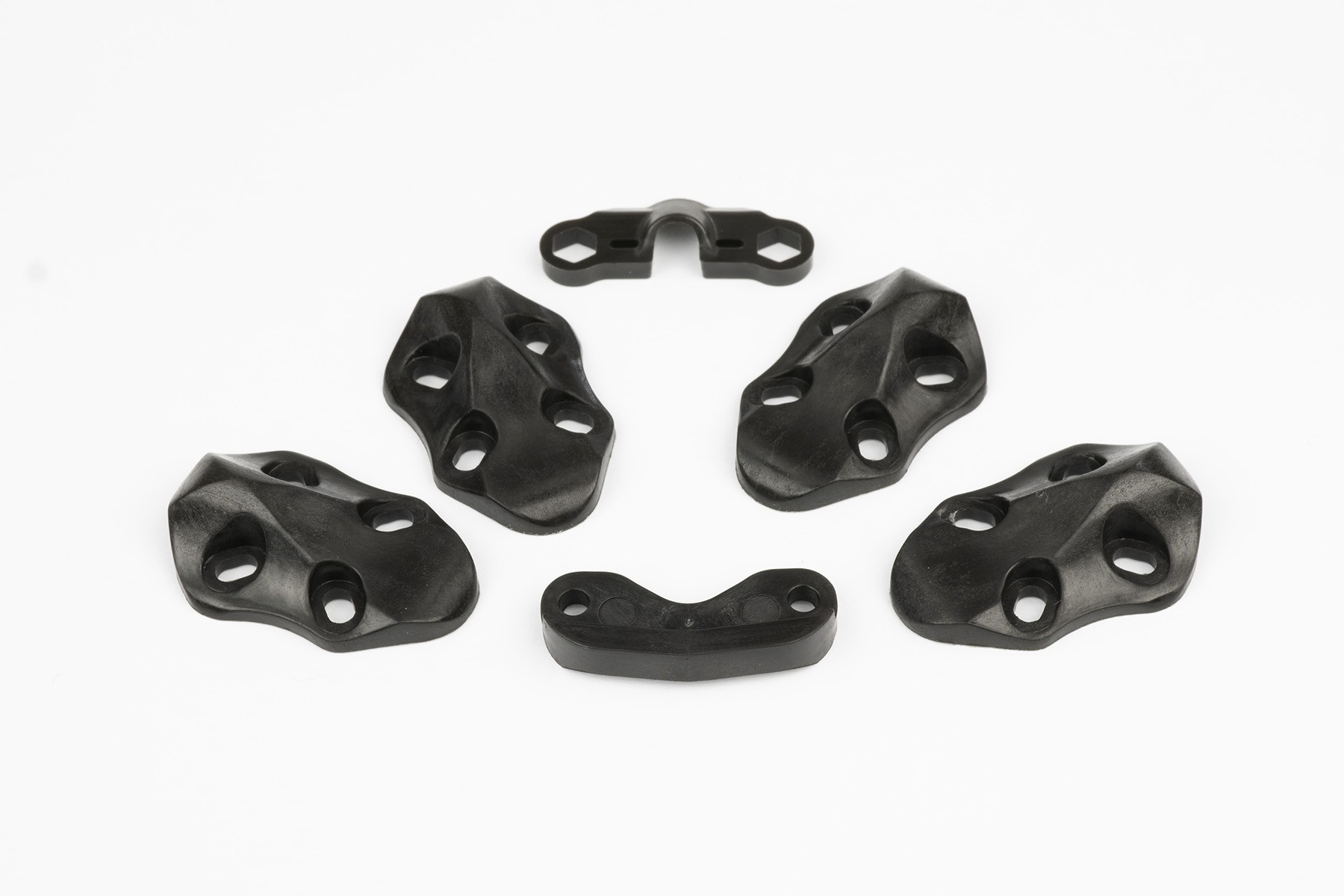

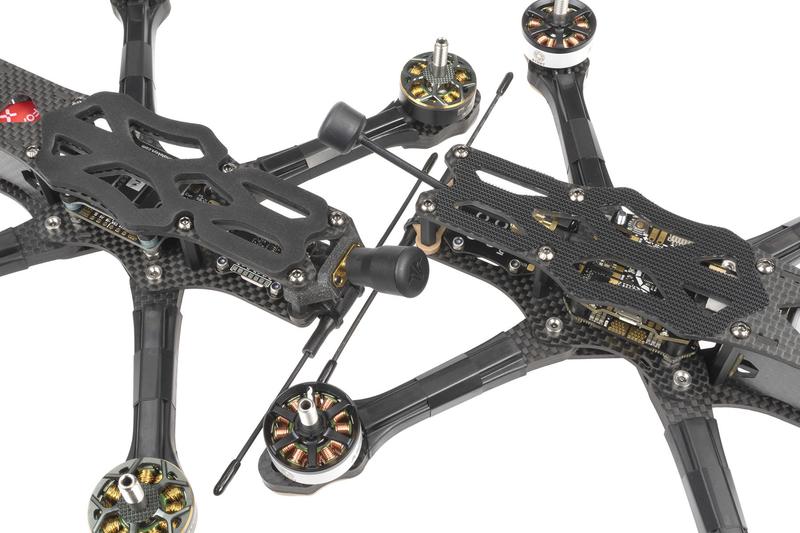

Manufactured by the legendary HQProp and included free with every frame are custom skids, bumper and Crossfire antenna mount, injection molded in abrasion resistant glass filled nylon. At launch we have available Classic Black, ImpulseRC Red and Military Coyote Brown, with more colours to follow in the future.
Also in each frame kit are two die cut lipo pads for you to choose from, both an ultra durable natural rubber pad as well as a light weight velcro option for those wanting to shave every last gram.
This is the base version of the Apex frame and is suitable for all common FPV builds.
Carbon
- (1x) Apex Arm Key CF 5mm
- (1x) Apex Top Plate CF 2mm
- (1x) Apex Main Lower CF 2.5mm
- (1x) Apex Main Upper CF 2mm
- (2x) Apex Cam Side Plate CF 2mm
- (4x) Apex 5″ Arm CF 5.5mm
Accessories
- (1x) Apex Full Screw Pack – High Tensile Carbon Steel – Gunmetal
- (1x) Apex Hook LIPO pad – BLACK
- (1x) Apex LIPO pad – 3mm BLACK
- (1x) Diamond File – Flat (Mini)
- (1x) Diamond File – Round (Mini)
- (1x) Lipo Strap – Medium – ImpulseRC
- (4x)Â M3 28mm Standoff – Aluminium – Black
- (4x) M3 20mm Standoff – Aluminium – Black
- (2x) M3 10mm Standoff – Aluminium – Black
- (1x) Apex Antenna Clamp – Aluminium – Black
- (1x) Apex Plastics Kit – BLACK or RED
- (1x) Apex Arm Covers – BLACK – (4 Pack)
Extra included parts over the base model Apex frame kit
- (1x) Apex Full Screw Pack – 7075-T6 Aluminium – Black
- (2x) Lipo Strap – Medium – ImpulseRC
- (1x) Apex Plastics Kit – Coyote Brown
- (1x) Apex Plastics Kit – BLACK
- (1x) Foam Wedge for HD Camera
- (1x) Foam Strip 150mm – Landing Feet
- (1x) Apex Regulator Board Kit
- (1x) Apex OSD Board Kit
- (2x) Apex RGB LED Strips
- (1x) Apex OSD Wire Harness Kit – KISS
Where to find spare accessories for your Apex:
Apex Arms 5inch with 5.5mm Thick Carbon – 2pack
