Redefine your long-range missions with the iFlight Helion 10, the flagship ultra-range FPV frame developed in collaboration with pilot and videographer 2RAW. This 10-inch frame kit was built to meet the rising demands for more range and flight time, all while maintaining the weight and stability needed to perform flawlessly in windy conditions. This version is specifically configured to be the ultimate platform for the DJI O4 Air Unit Pro.

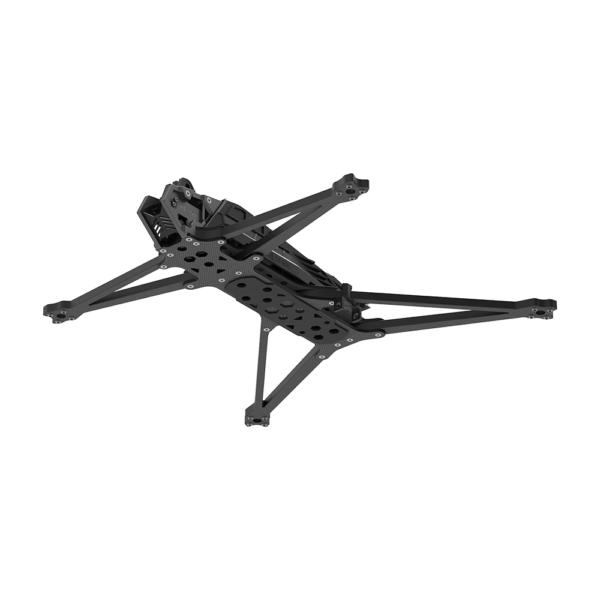

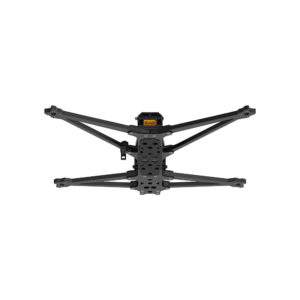

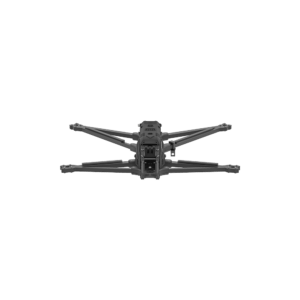

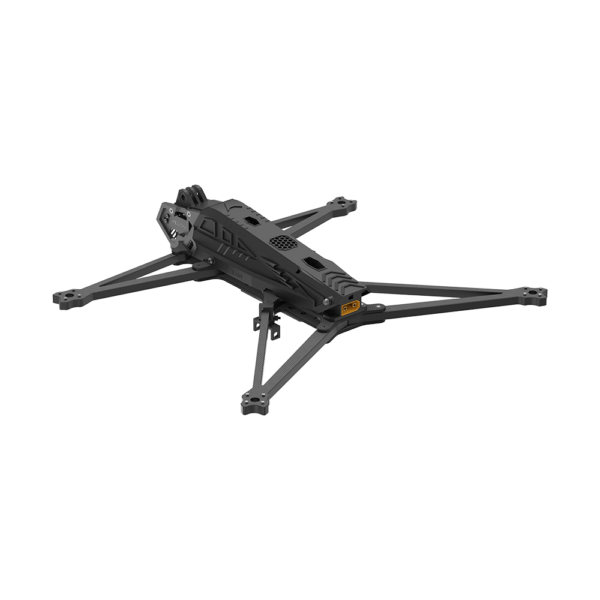

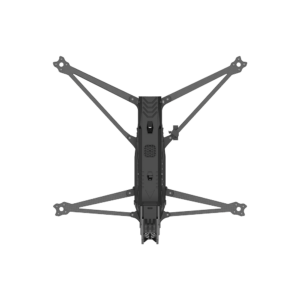

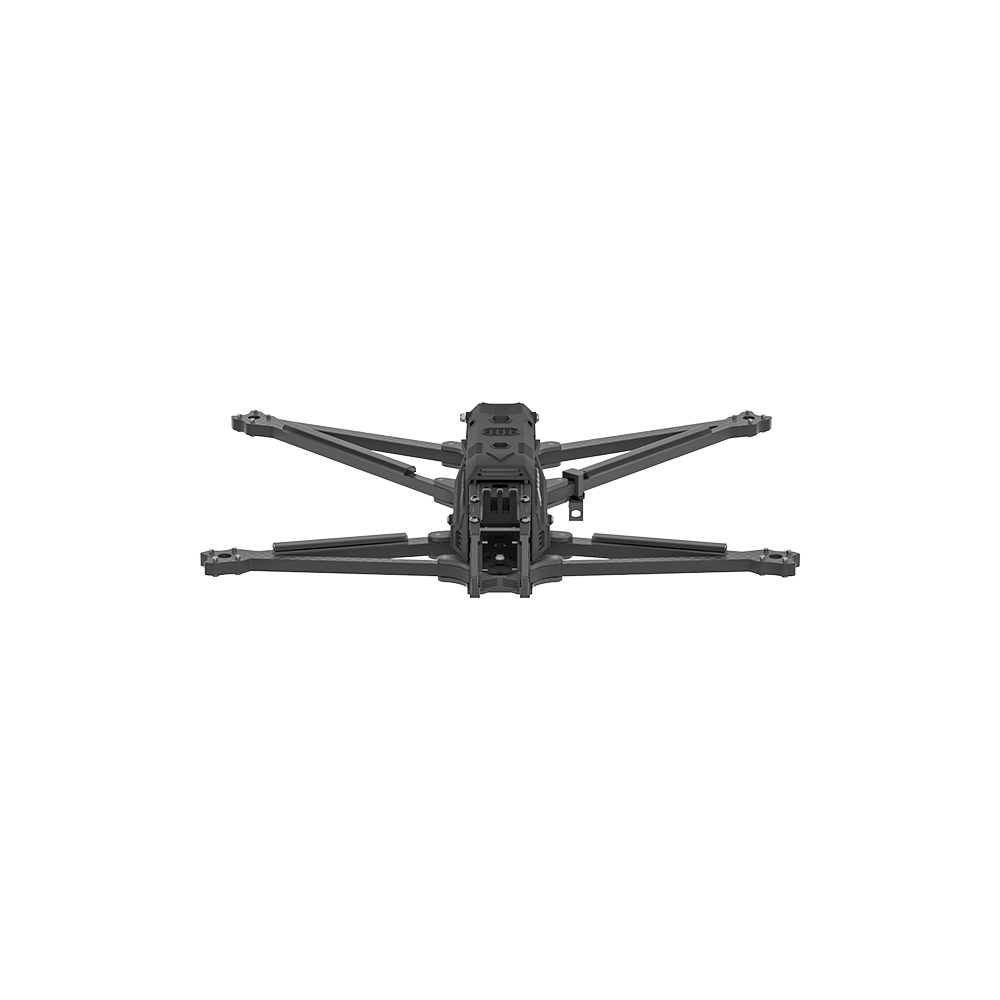

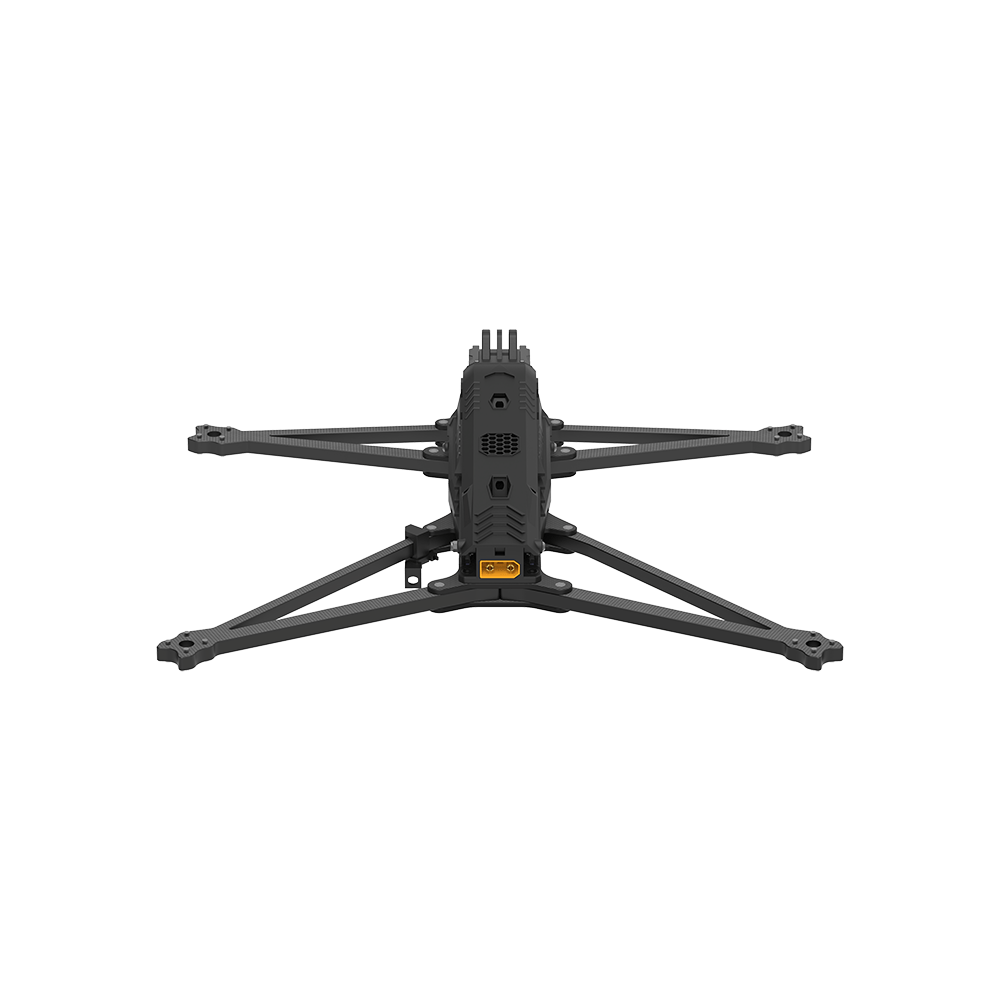

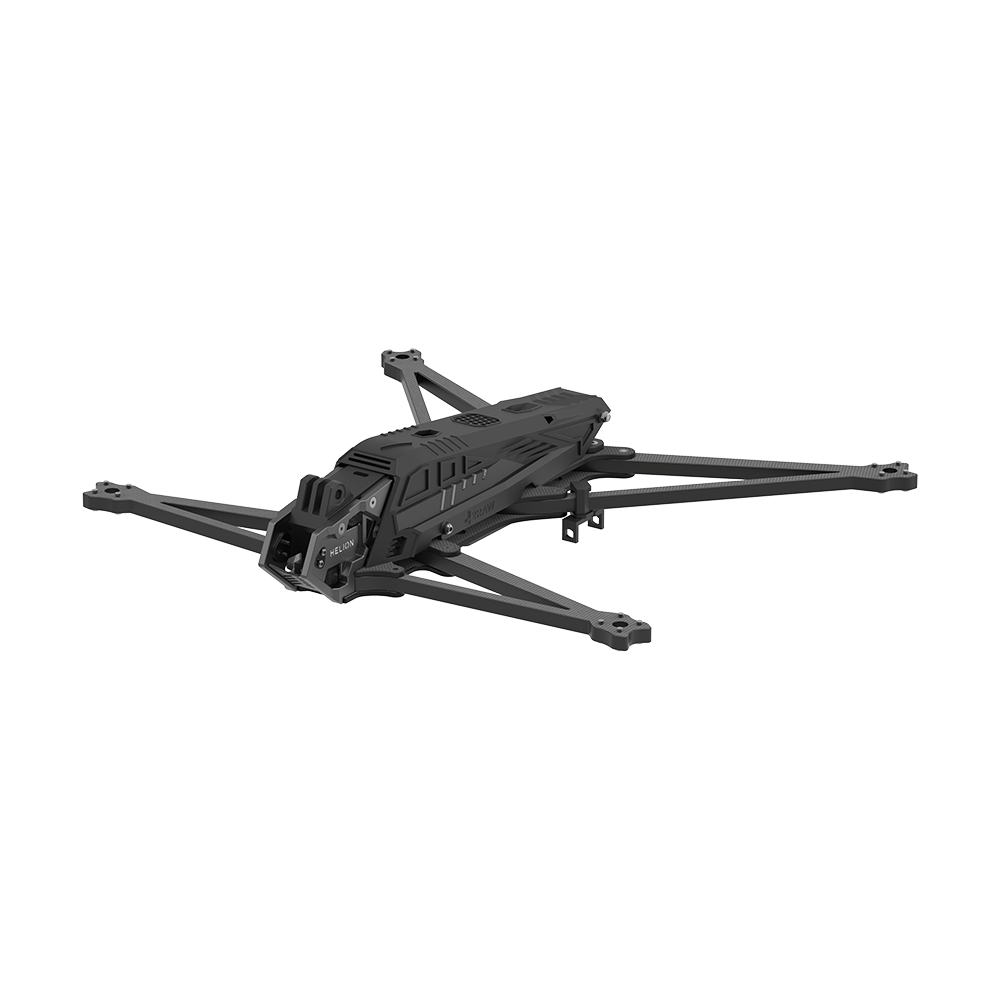

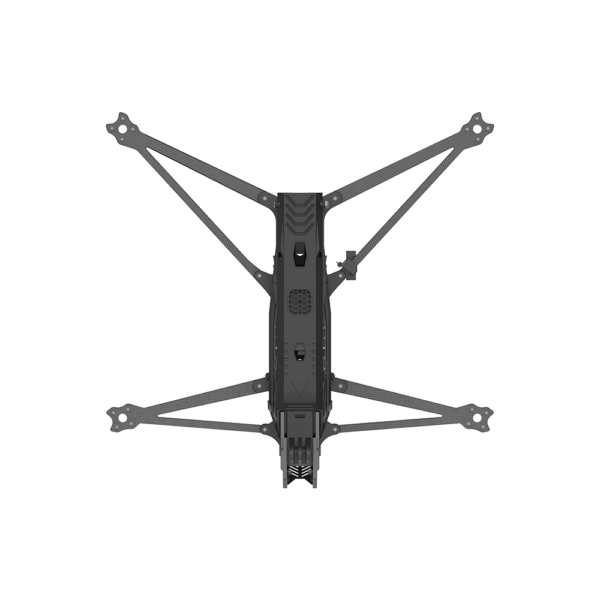

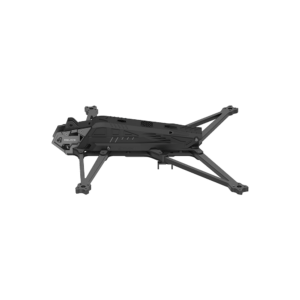

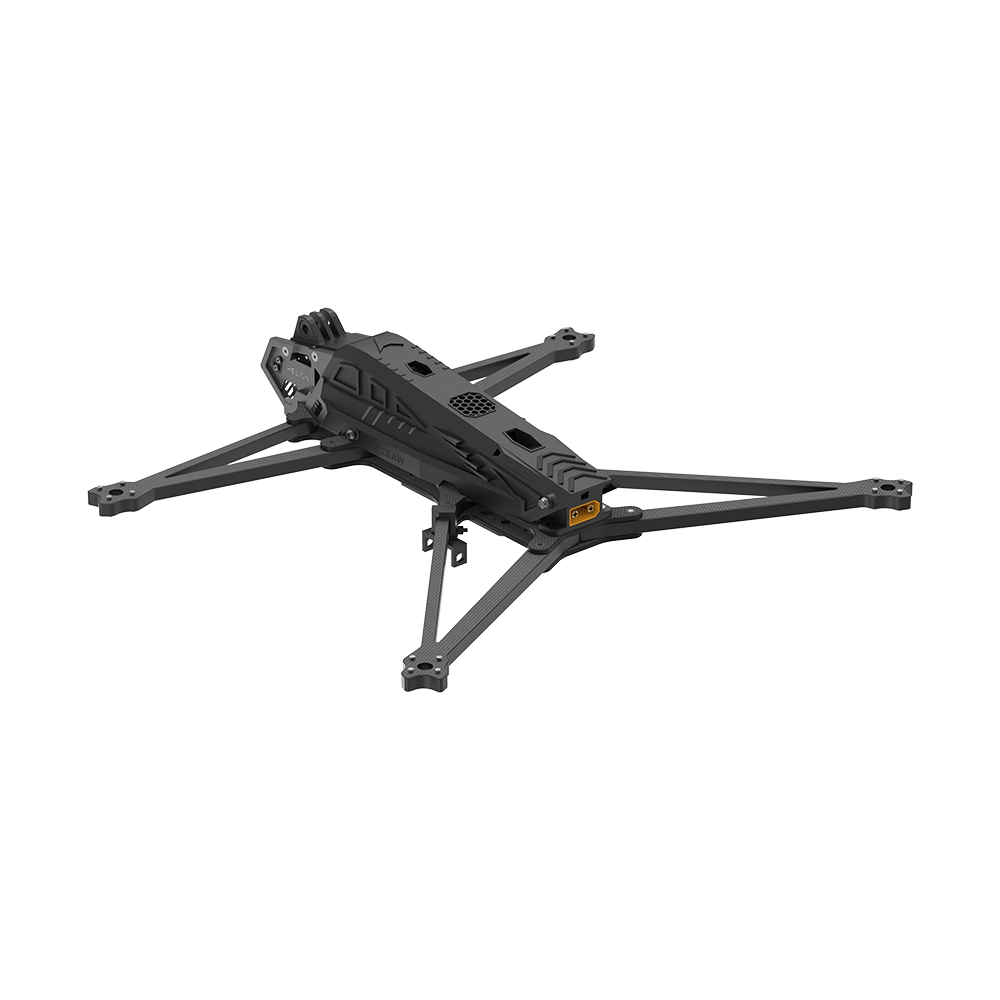

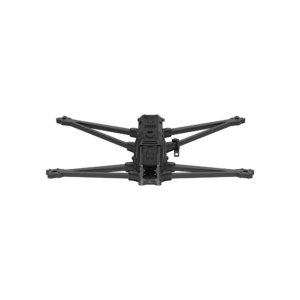

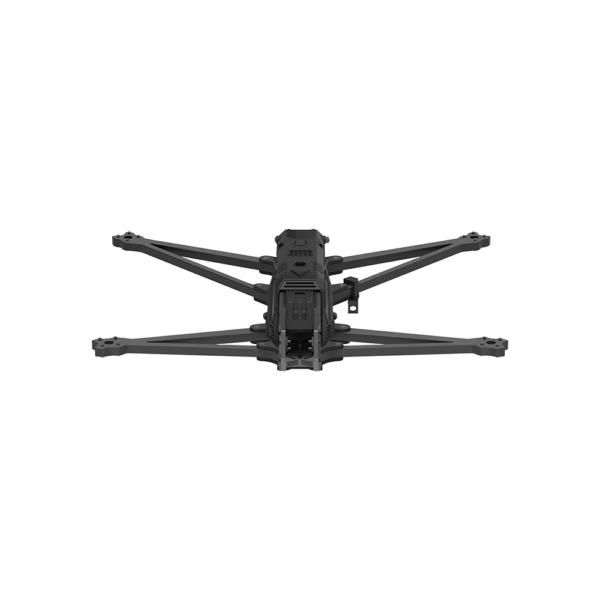

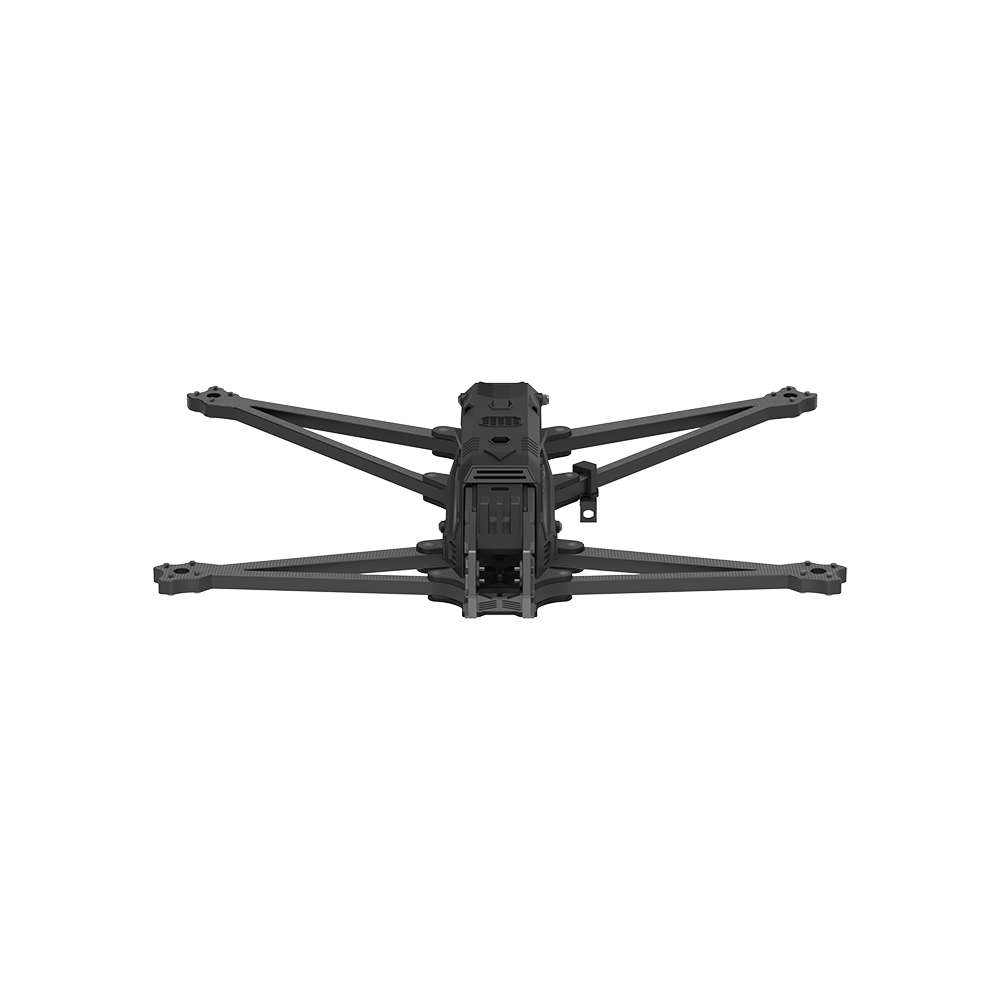

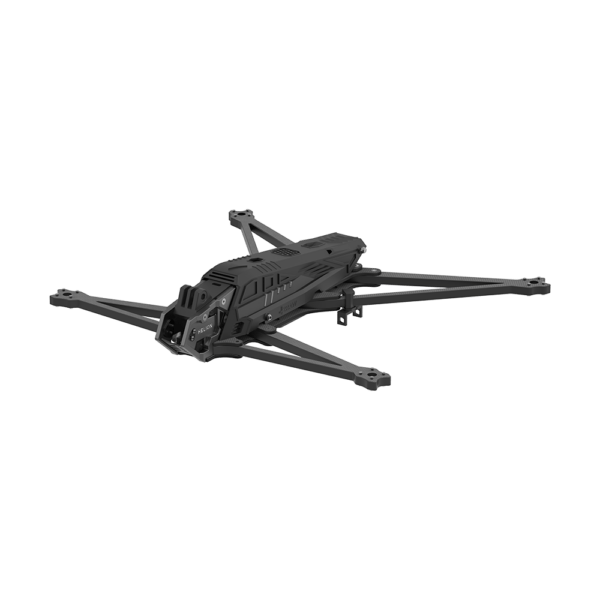

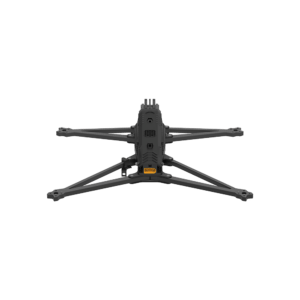

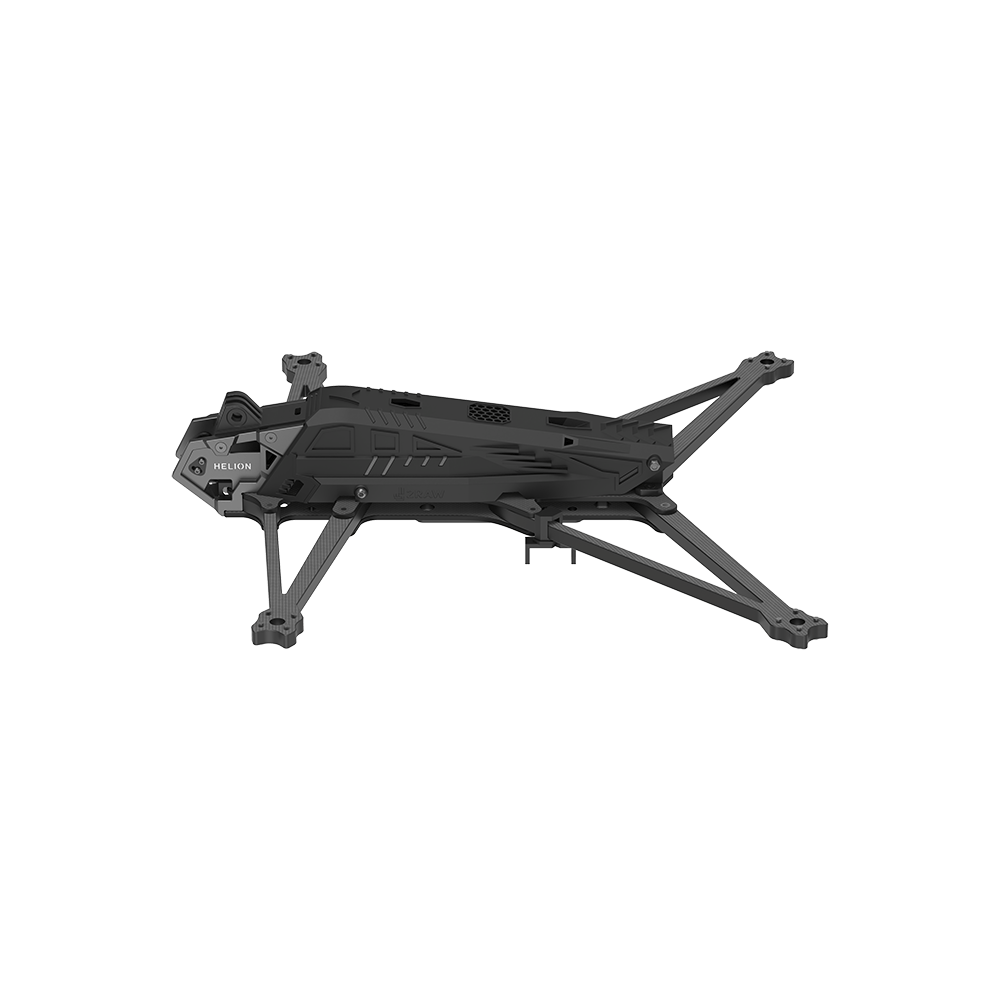

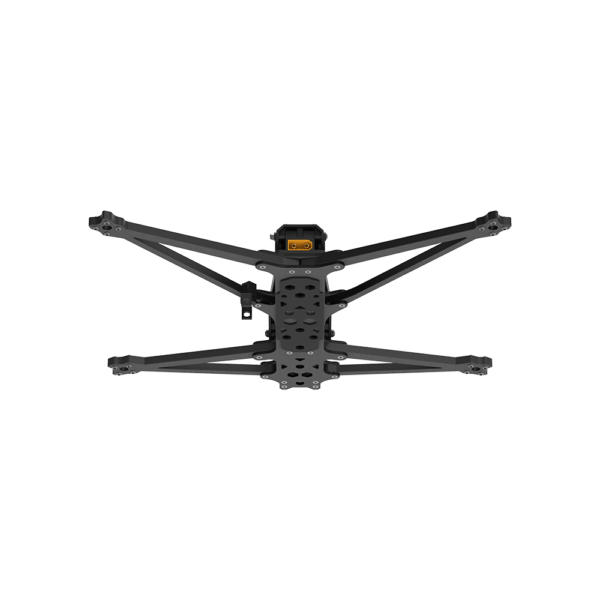

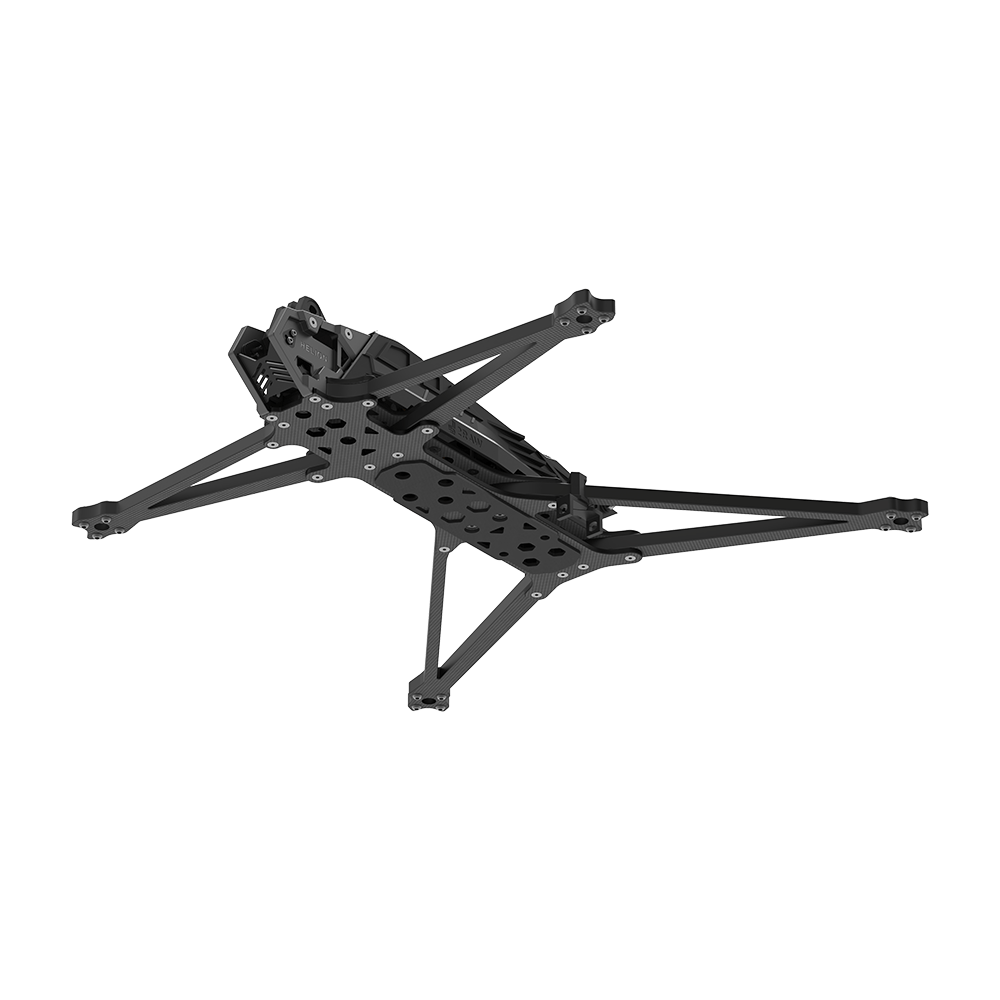

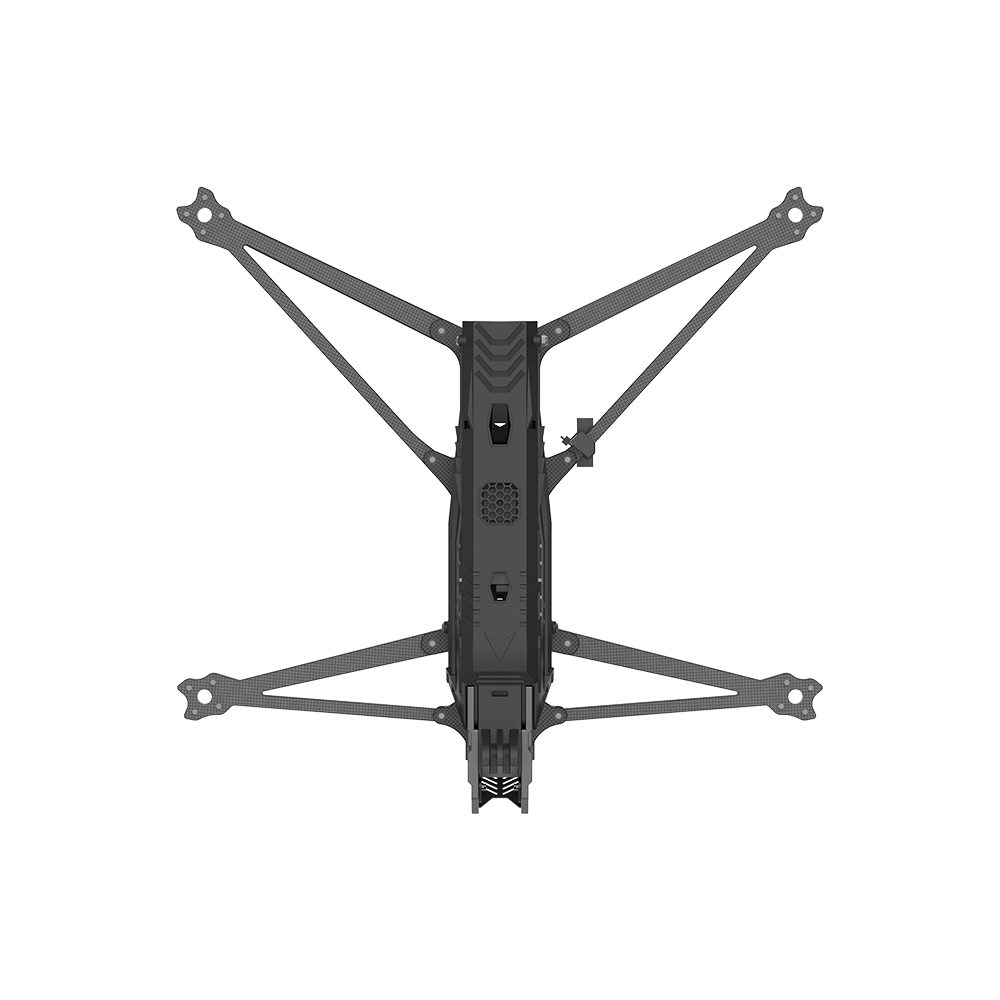

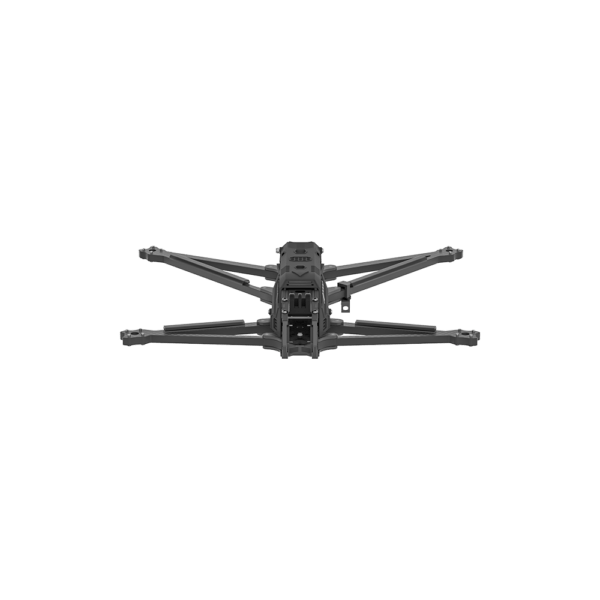

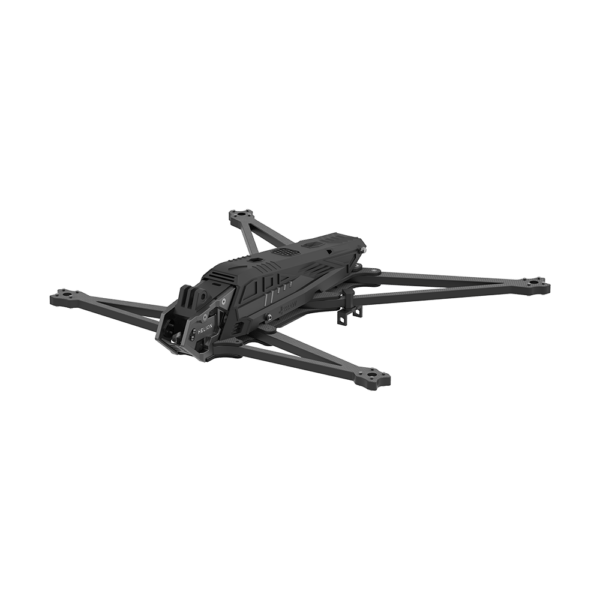

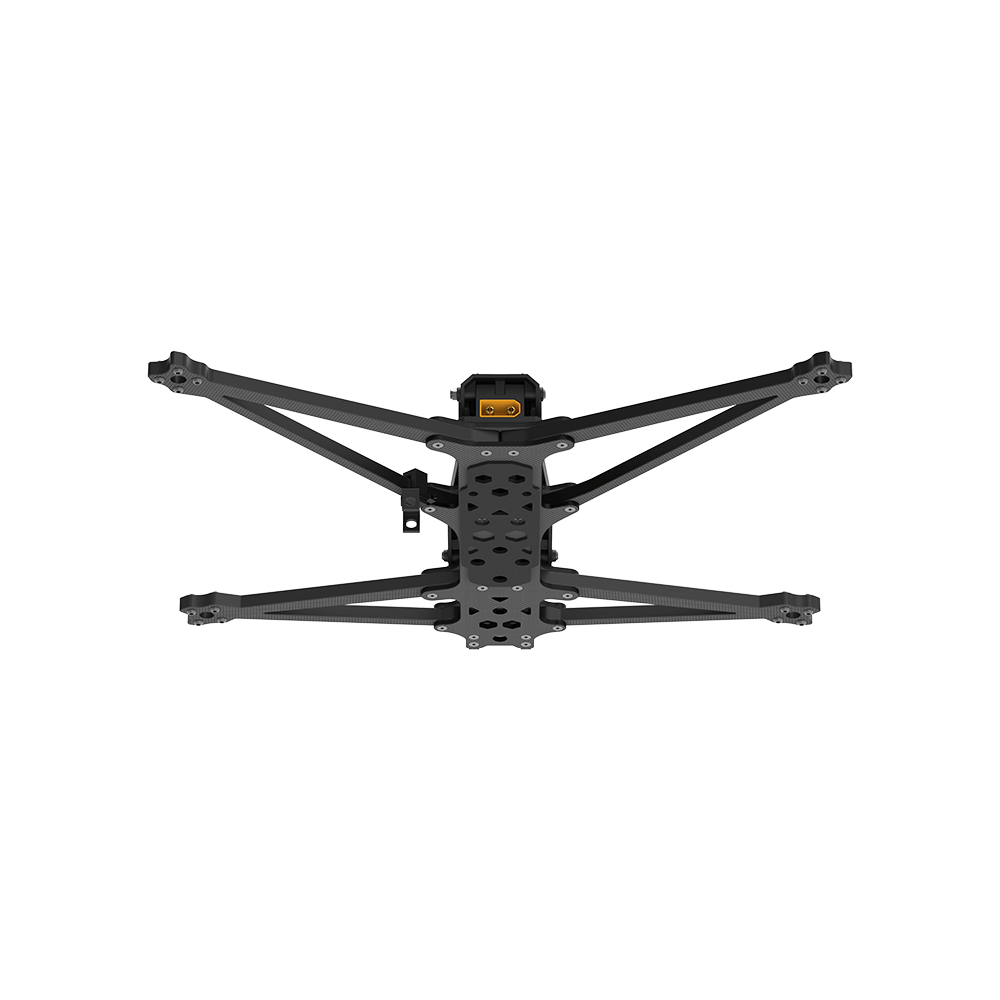

Innovative Aero-Shell & A-Frame Design The Helion 10 is engineered from the ground up for stability and durability. The innovative A-Frame design minimizes vibrations and torsion—one of the biggest challenges on large drones. This rigid structure is protected by a unique Aero-Shell, which allows for easy access and maintenance while shielding your core electronics from the elements.

Optimized for DJI O4 Pro This frame is the perfect foundation for a top-tier digital long-range build. The internal mounting and included TPU parts are specifically designed for a clean and secure installation of the DJI O4 Air Unit Pro. With massive 8mm thick arms, the Helion 10 is capable of carrying large batteries ($4500\text{mAh}$ and above) to achieve incredible flight times, giving you more control and better recovery when diving than traditional long-range drones.

Key Features:

• A 2RAW & iFlight Collaboration: A flagship frame designed by a long-range expert for the ultimate in stability and performance.
• Optimized for DJI O4 Pro: Includes the correct mounting and TPU parts for a seamless installation of the DJI O4 Air Unit Pro.
• Protective Aero-Shell: A unique shell offers protection from the elements while providing easy access for maintenance.
• Anti-Vibration A-Frame: A scientifically optimized design that maximizes rigidity and minimizes vibrations for smooth cinematic footage.
• Ultra-Durable Construction: Features massive $8\text{mm}$ thick arms and $4\text{mm}$ body plates to handle the demands of a heavy, long-range build.
• Designed for Endurance: Capable of carrying large batteries ($4500\text{mAh+}$) for extended flight times.

Specifications (O4 Version)

• Product Name: Helion 10 Frame Kit
• Frame Wheelbase: $418\text{mm}$
• Frame Dimension (L×W×H): $324\times 264\times 63\text{mm}$
• Arm Thickness: $8\text{mm}$
• Bottom Plate Thickness: $4\text{mm}$
• Upper Plate Thickness: $4\text{mm}$
• Max Flight Stack Height: $21\text{mm}$
• Flight Stack Mounting: $30.5\text{x}30.5\text{mm}$
• VTX Mounting: $25.5\text{x}25.5\text{mm}$
• Motor Mounting: $19\text{x}19\text{mm}$
• Weight: $540\text{g}\pm 20\text{g}$

Packing List

• 1 x Helion 10 Frame Kit
• 1 x TPU Set
• 4 x Motor Wire Shield Tubes
• 2 x Battery Anti-Slip Pads
• 2 x Battery Straps
• 1 x Screw Bag
