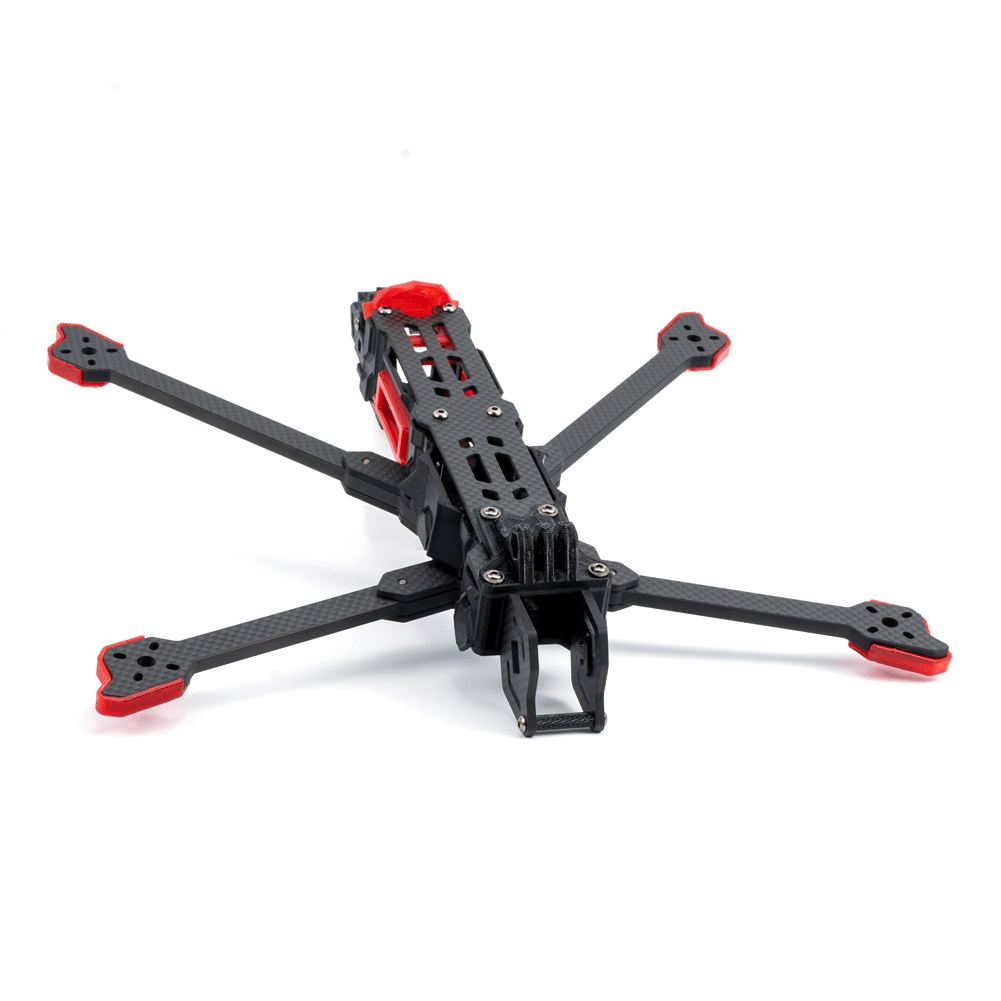

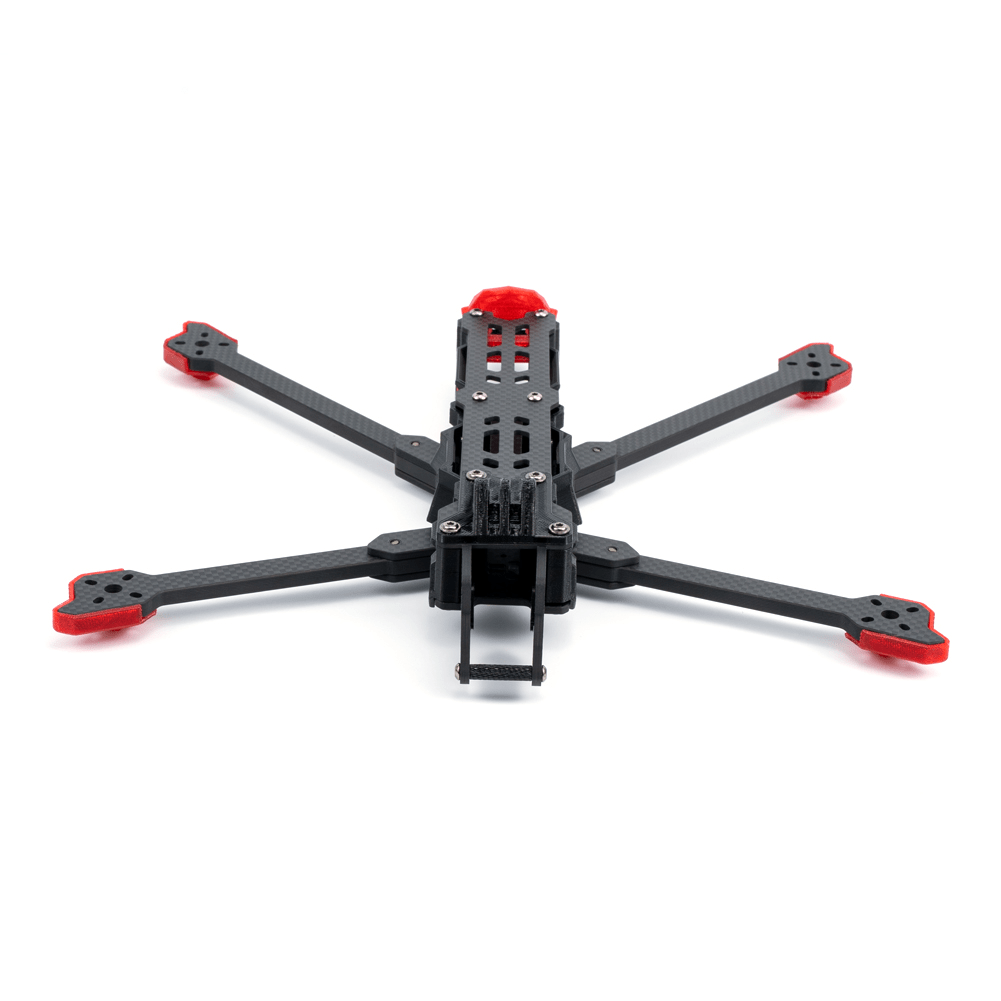

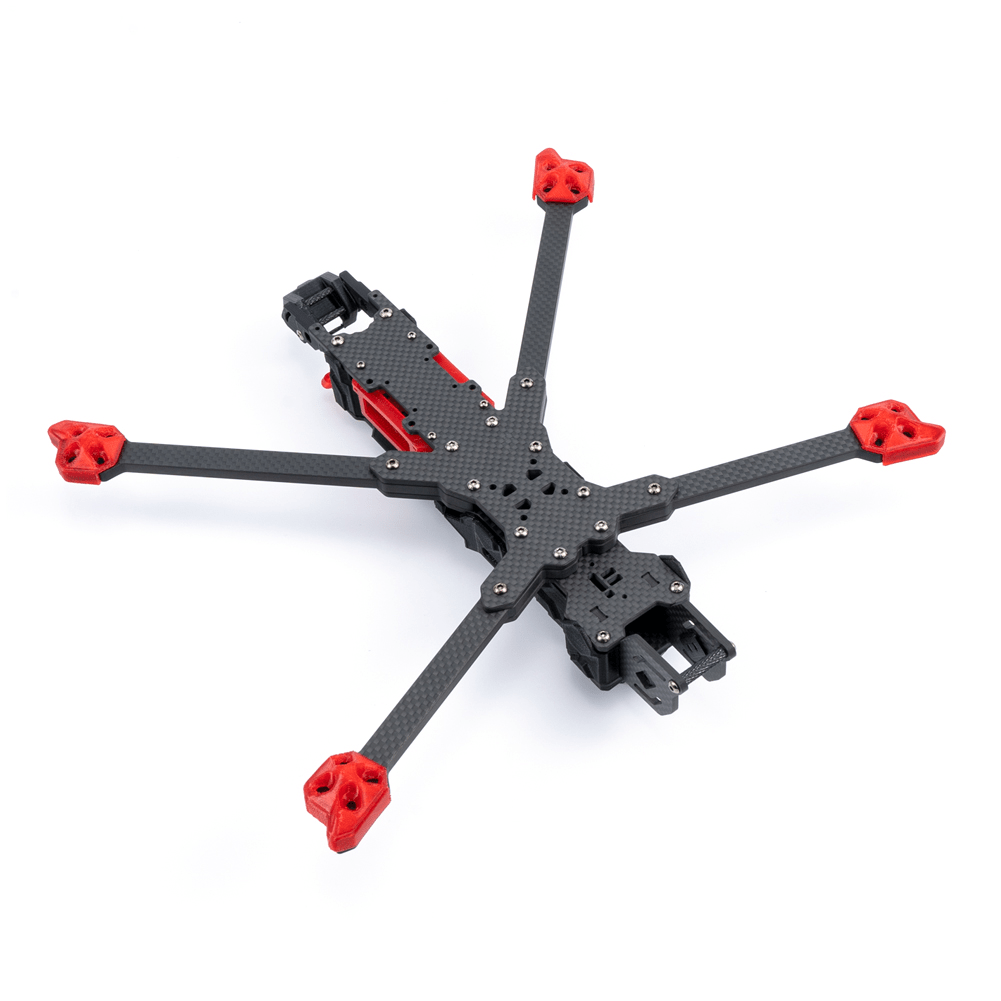

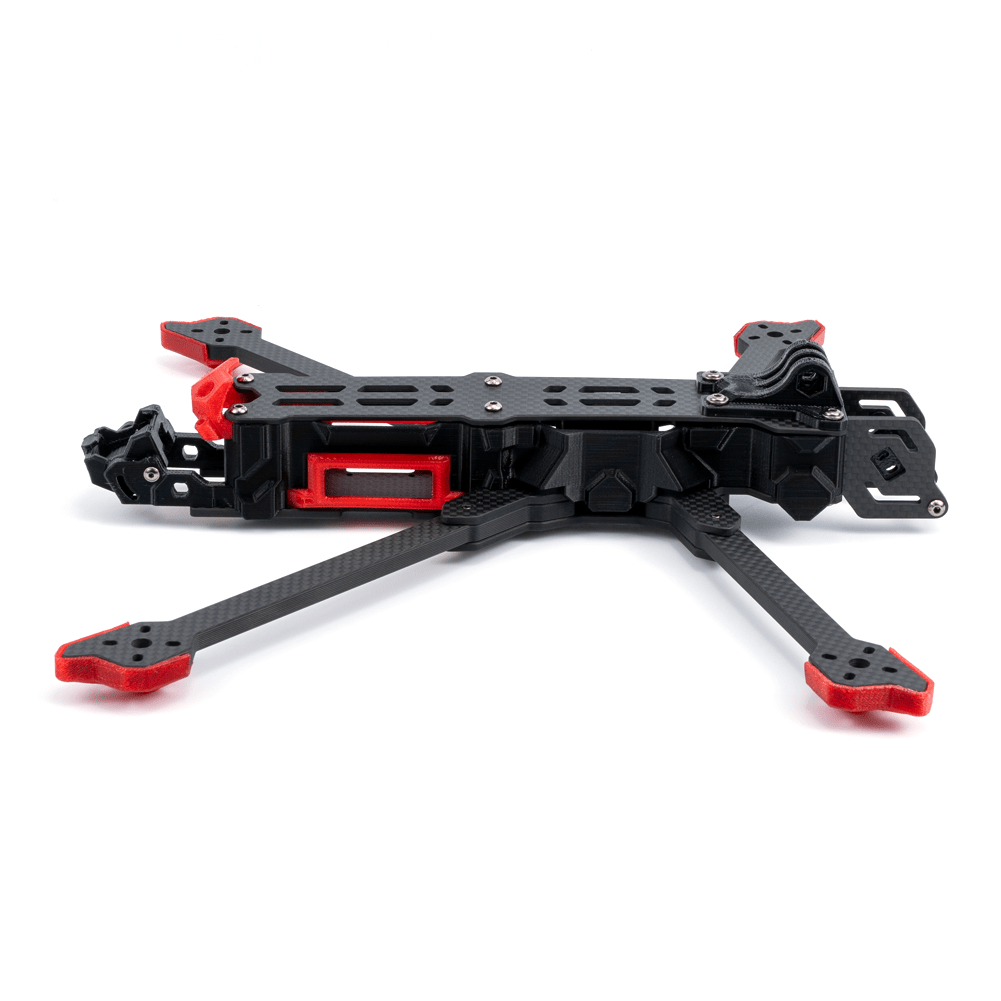

iFlight Chimera7 Pro FPV LR Frame Kit

Main Changelog from Chimera7 to Chimera7 Pro:

– New Lightweight Side Panels Design – Keep Your Rig Clean

– 7inch frame upgraded to 7.5inch

FRAME // ：Chimera7 Pro

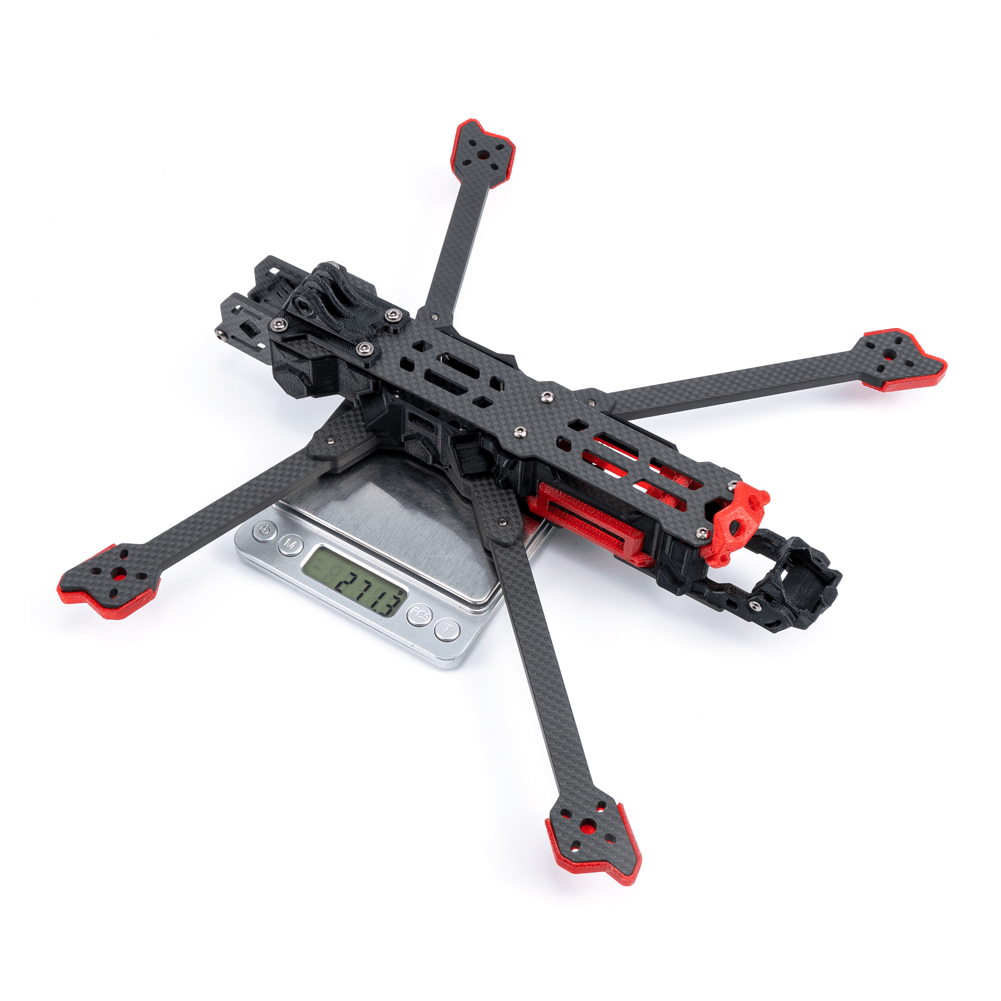

– Weight: 271.3g (without battery and GoPro mount)

– Total Dimensions: 258*200mm (body dimension)

– Upper(middle) Plate Thickness: 3mm

– Bottom to Top Distance: 20-29mm

– Stack options: 30.5mm*30.5mm

– Camera Plate Thickness: 3mm

– Bottom Plate Thickness: 3mm

– Top Plate Thickness: 3mm

– Geometry:  DC (DeadCat)

– FPV cam spacing: 20mm

– Arm Thickness: 6mm

– Wheelbase: 321mm
