iFlight Chimera5 DC LR FPV Frame Kit

Main Features:

-Full 3K Carbon Fiber airframe

-The 5 inch version of Chimera 7 is more lightweight

-360° TPU protection and Antenna mounts

– Compatible with Vista Air Unit

Specifications:

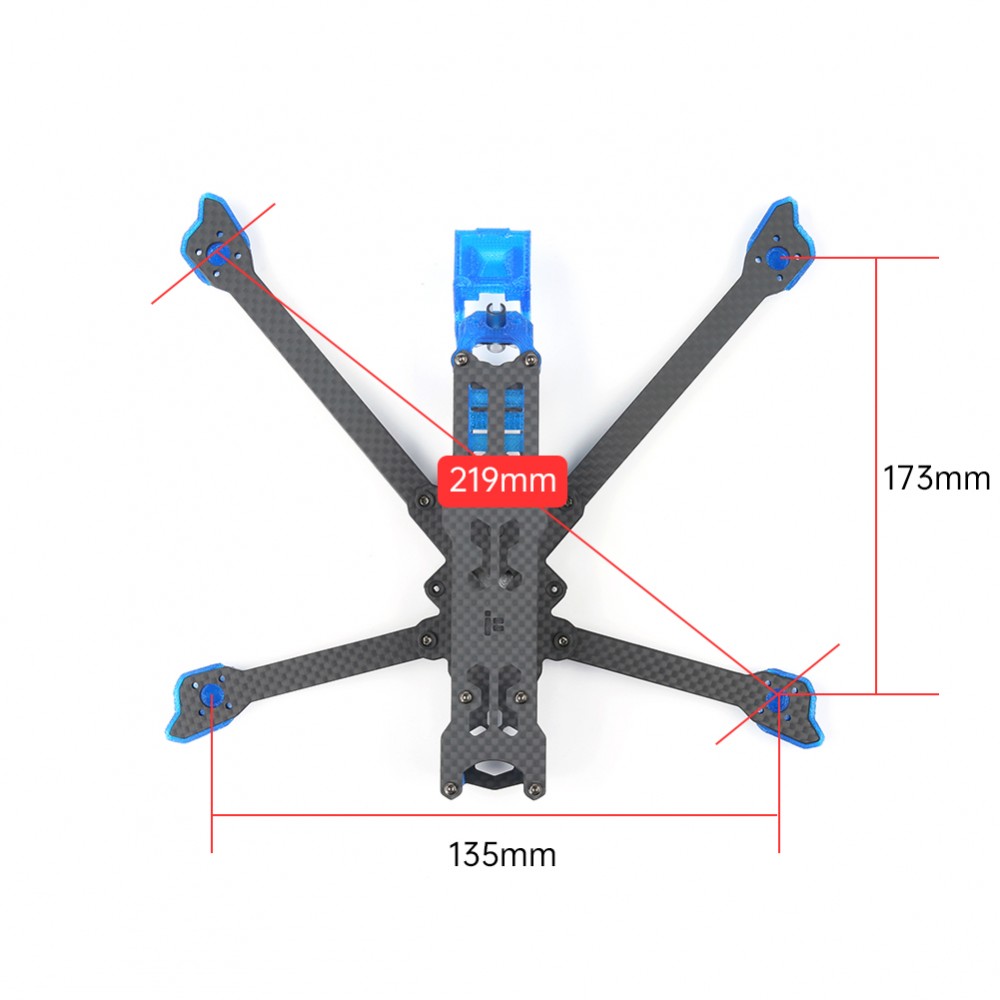

-Wheelbase: 219mm

-Main body dimension: 135*173mm

-Bottom to top distance: 28mm

-Arm thickness: 4mm

-Bottom plate thickness: 2mm

-Top plate thickness: 2mm

-Middle Plate thickness: 2.5mm

-TPU Camera plate

-FC: 25.5*25.5mm/20*20mm

-FPV Cam: 19mm Micro / 20mm
