Hyperlow RS+ Squashed X 5″ Frame
An extension of the Hyperlow RS series / the RS+ caters toward the freestyle crowd with its extended body, true-X and squashed-X arm options, and new dual GoPro mount.
FEATURES
Top mount low profile freestyle frame
5mm True-X & stretched X-arm options
Woven chamfered matte carbon
Antennas + mounts + straps
Battery and antenna pads
New dual GoPro mount
With the RS originally being conceived as an all-in-one top mount racer and freestyle quad – the RS+ continues its trend by offering a small footprint lightweight freestyle setup with its skinny arms and narrower chassis for micro cams and 4in1 ESC’s.Â
A Closer Look:
+ The two RS+ arm designs allows you to switch between squashed and true x arms on the same body, even allowing you to mix the two for a deadcat option. This ensures clean HD footage, clear of props if you wish.
+Â The modular design features 4 separate arms which butt up against each other and are secured with slim braces at two different points to ensure rigidity.
+Â The carbon has a subtle chamfer and silky matte finish. A departure from traditional layered sheets, it is fully woven which means zero delamination.
+ As standard on Hyperlow frames, the RS+ features a removable front camera plate which can be easily and quickly replaced instead of an entire bottom plate.

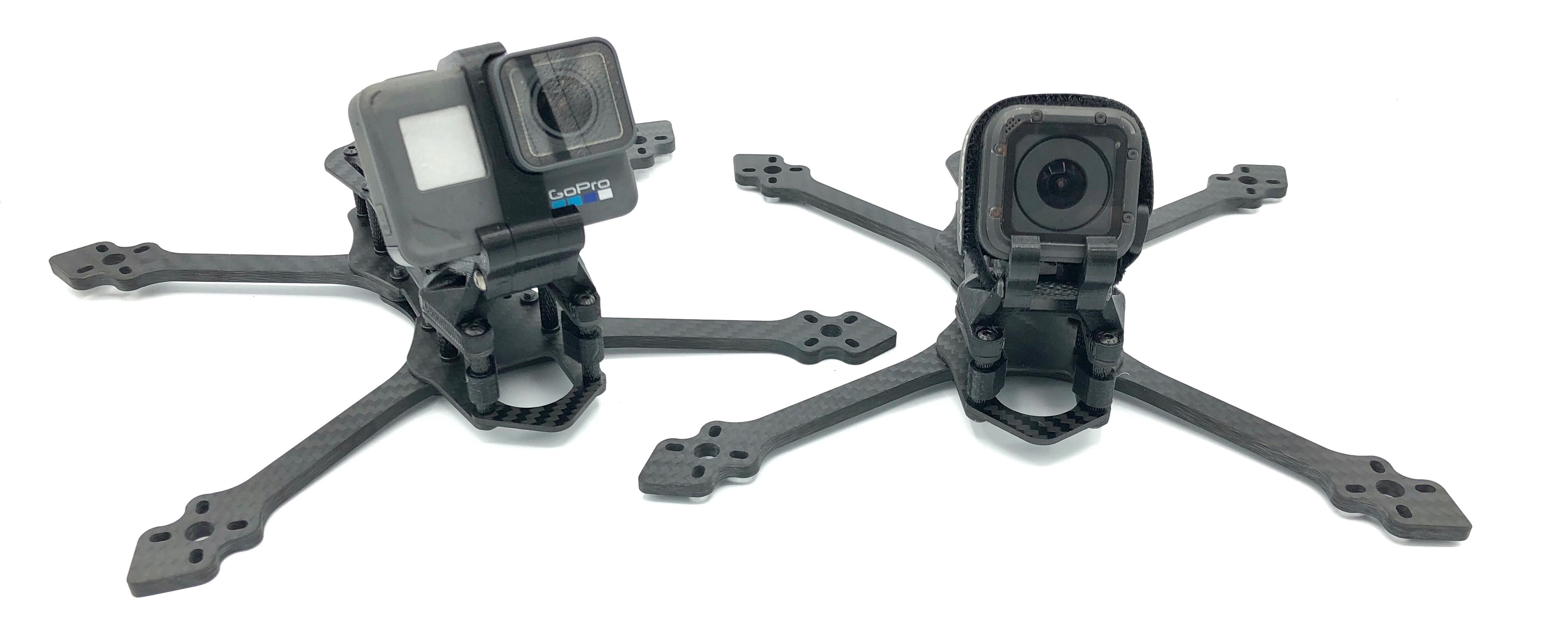

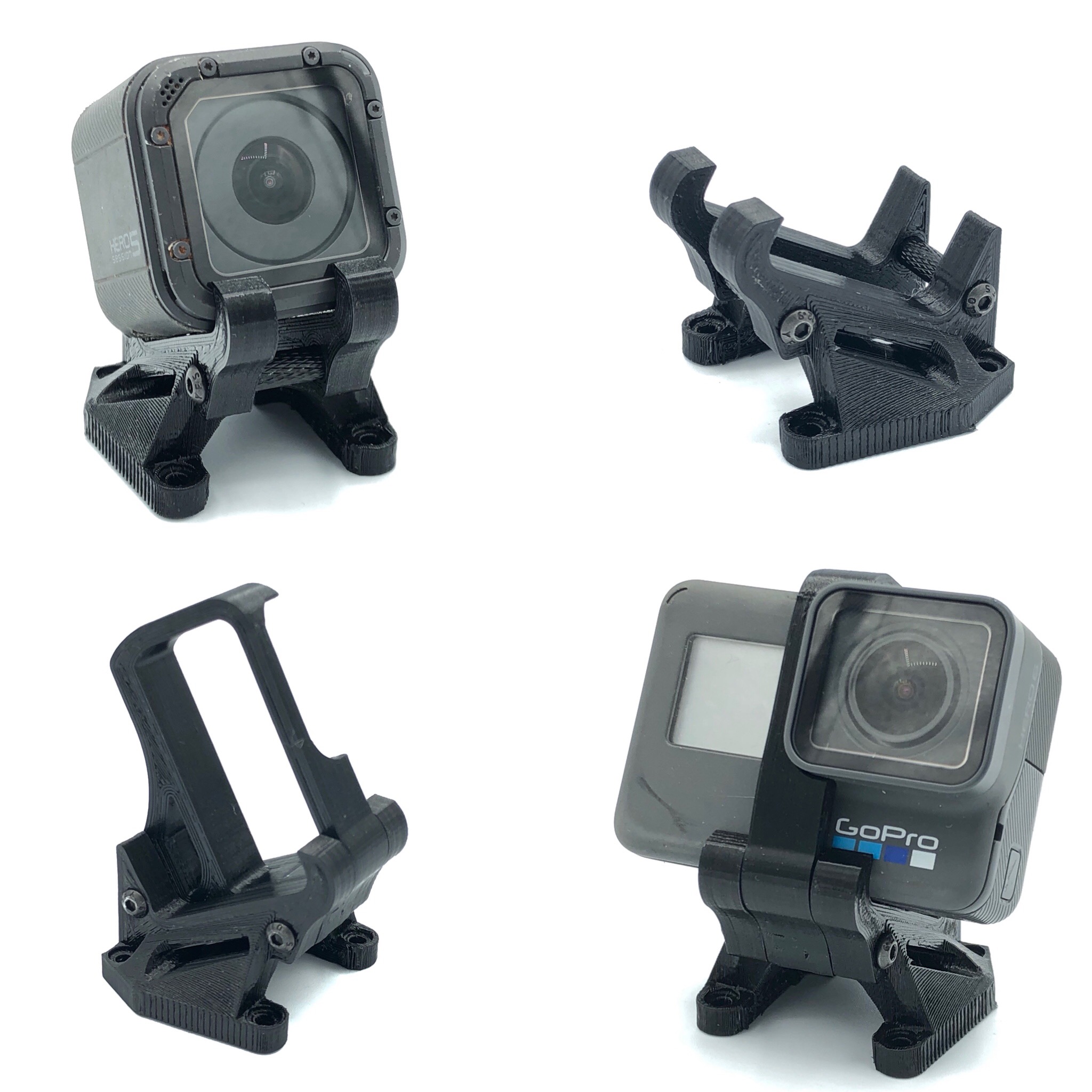

+Â No matter which GoPro form factor you fly the new HD mount has you covered with a snug Session fit, and a strapless Hero 5/6/7 adapter.
+ All other Hyperlow and Brain3D mounts are compatible due to standardized FC mounting pattern around the FPV cam.
If mixing and matching other RS Frames/Frame Parts see below.
RS and RS+ Part Compatibility:
– The RS arms (stretched X 4″, 5″ and 6″) are compatible with the extended RS+ body. Likewise, the RS+ arms (SQUASHED X and TRUE X) are compatible with the shorter RS body.
– Top plates and bottom plates are not cross compatible, however. An RS+ top plate cannot be used with an RS bottom plate, and vice verse.
– The underside brace plates have slightly different geometries to match the arm angles also – so please pay attention when pairing arm type with BRACE TYPE for an exact match (they are compatible otherwise).
Includes
- 5mm arms x 4
- 2mm top plate
- 2mm bottom plate
- 2mm braces x 4
- 2mm camera plate
- Hardware bag
- Micro FPV camera mounts
- Antenna straws, mounts, and caps
- Battery and antenna pads
- Hyperlow straps x 3
- GoPro Mount
- Zip ties
- Sticker
