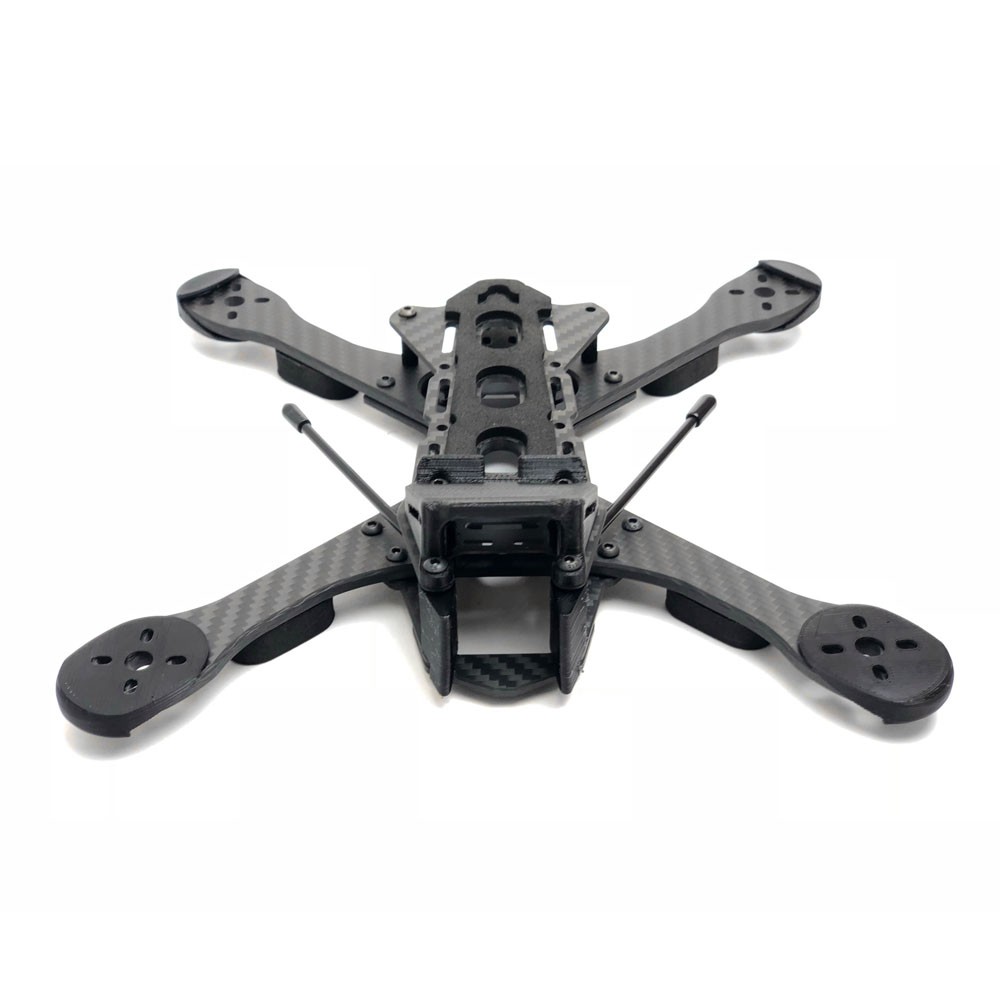

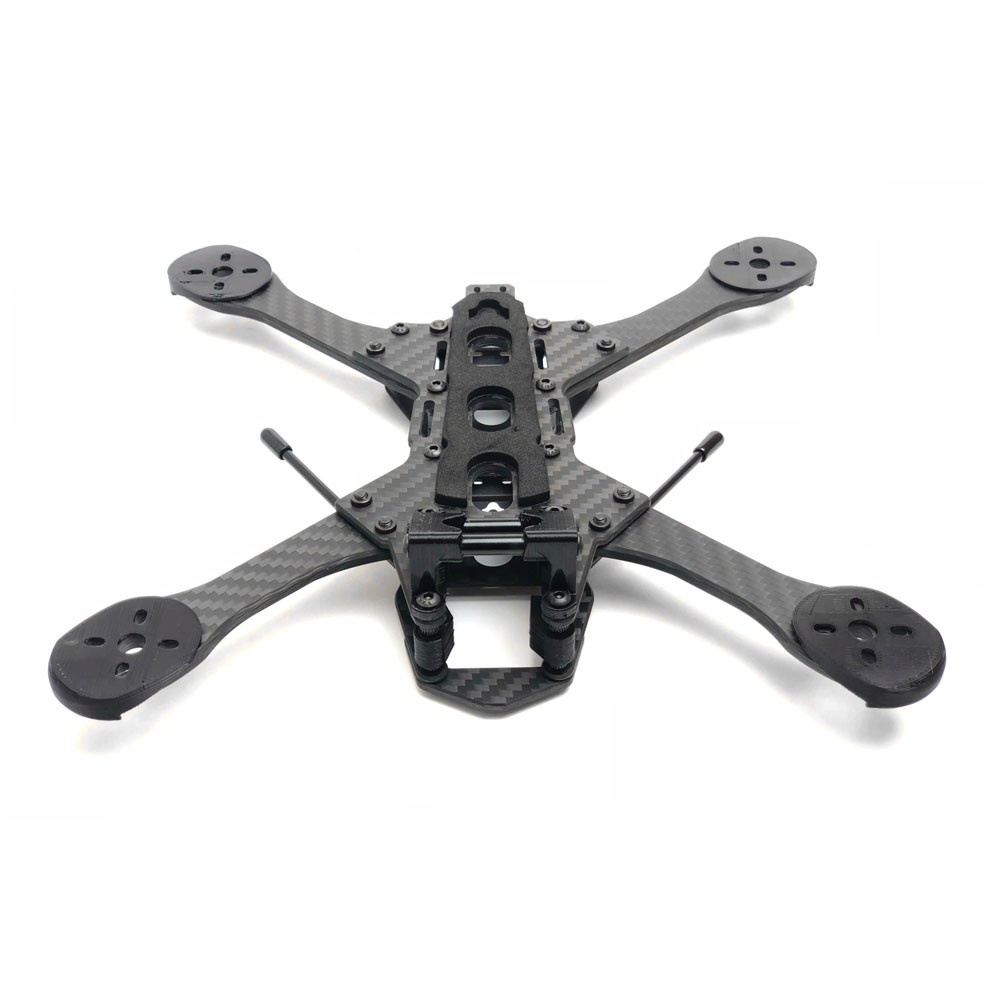

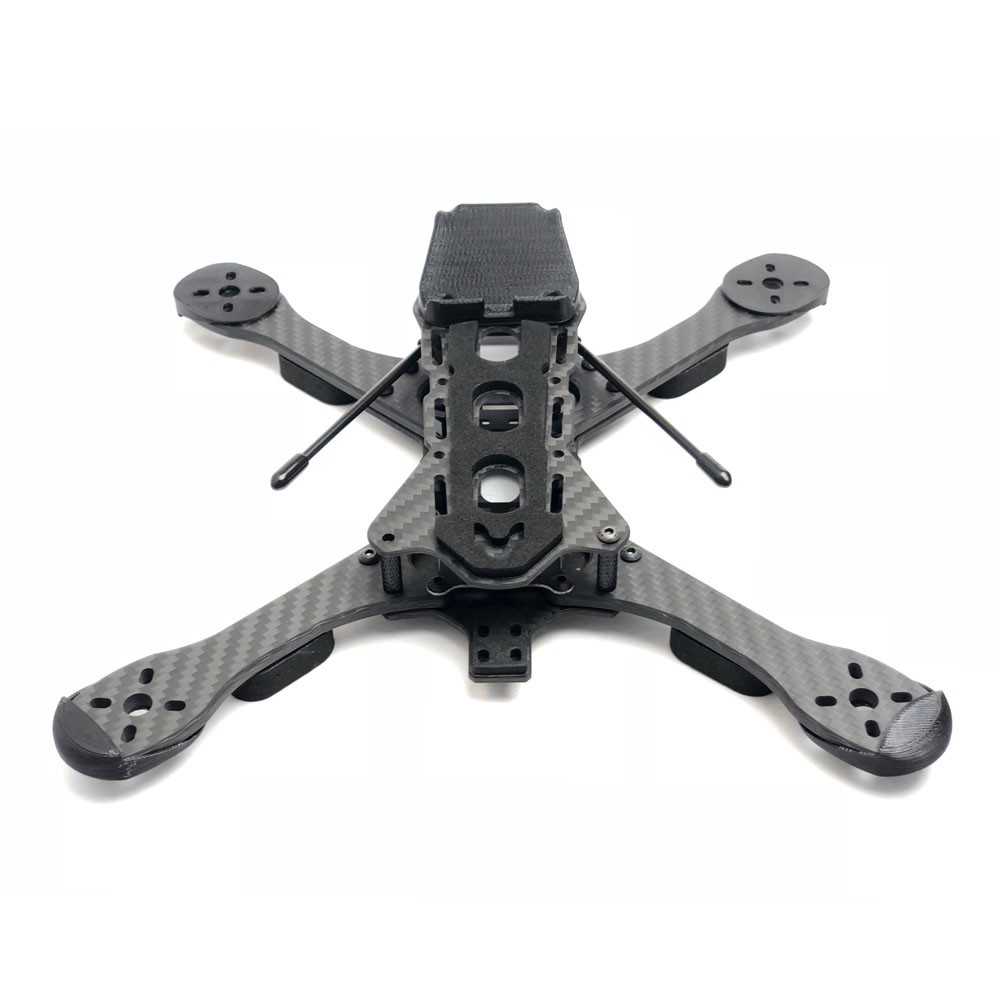

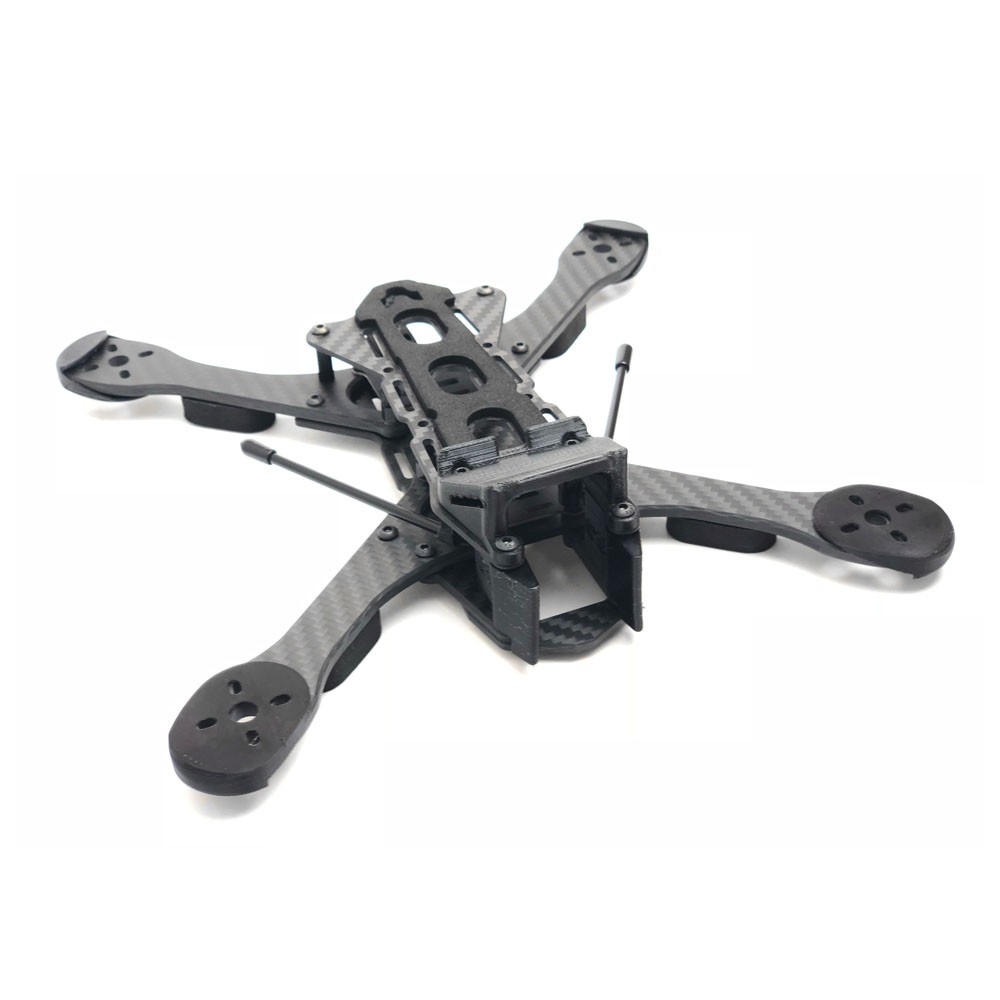

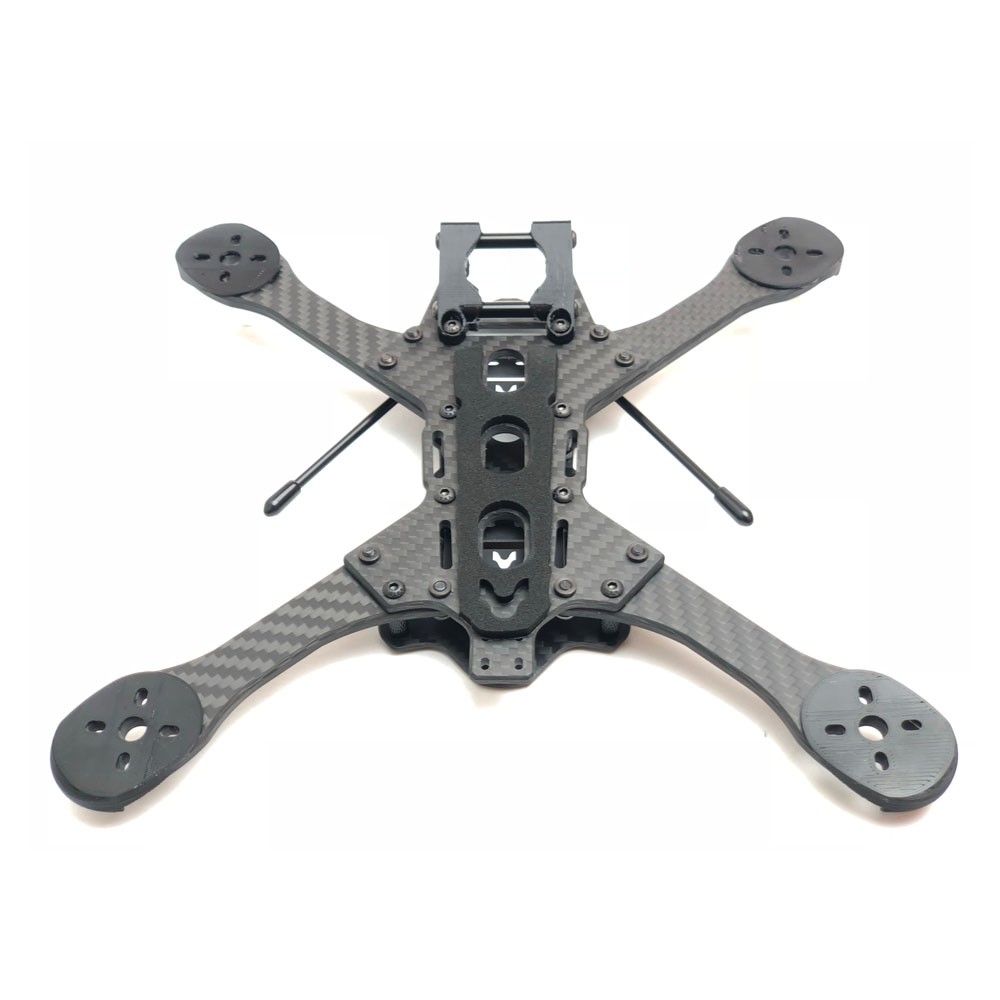

Hyperlow CG – 5″ Frame
The new HYPERLOW CG freestyle frame; a classic bus-style quad redesigned and refined. This frame is packed full of features making it subtly unique and highly customizable.
True X top mount & mid-mount freestyle frame
4mm modular arms
Woven chamfered carbon with silk matte finish
Triple strap top plate
Replaceable camera plate
Gopro couch V1
Component mounting system
Battery and antenna pads
Full, mini, and micro cam mounts
Antenna tubes and mounts
15mm (stack) and 10mm (AIO) build hardware
3 x Hyperlow battery straps
CG stands for Center of Gravity. This continues to be a key focus of Hyperlow design. Centralizing the mass of your quad through low profile builds is key for smoother, more predictable performance. The HYPERLOW CG continues this trend by offering variable top mount build heights to fit your choice of electronics, while also allowing for an invertible mid-mount build option AND modularity all in one!
With many other frame companies in 2017 following suit and dropping their build heights, Hyperlow frames continue to offer the lowest profile builds AND allows the use of full size FPV cameras. This year we are taking it up a notch with this redesign that also takes the guesswork out of building practices.
With the HYPERLOW CG you are no longer presented with an empty cavity and left to your own devices to figure out where and how to place your electronics.
The design of this frame was focused around the standardized FC mounting pattern. This layout exist down the full body of the frame and doubles as mounting points for the new forked arms, and as individual mounting areas for each electronic component.

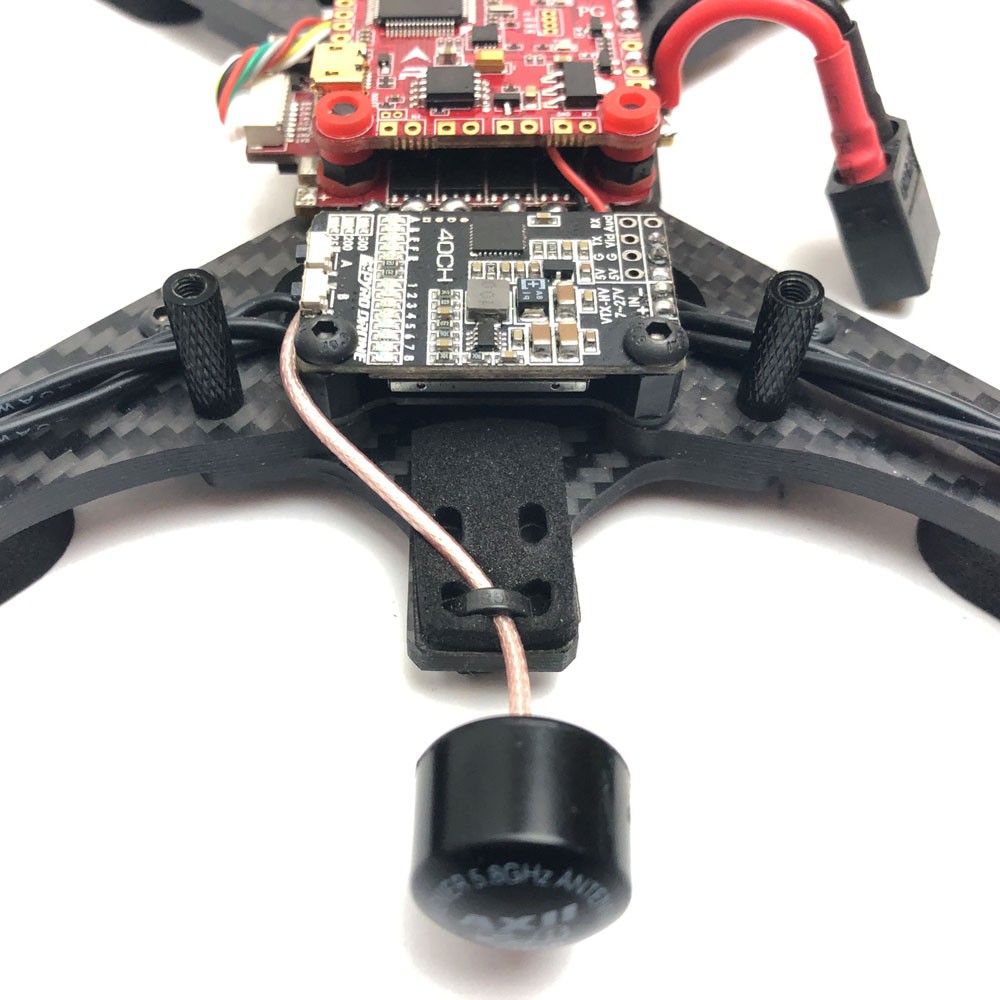

The FPV cam, receiver, flight controller, and VTX, all have their designated mounting positions along this horizontal layout. Thanks to the flared top plate leaving the rear clear from structural standoffs, you are also free to mix the RX, FC, and VTX order should you wish.

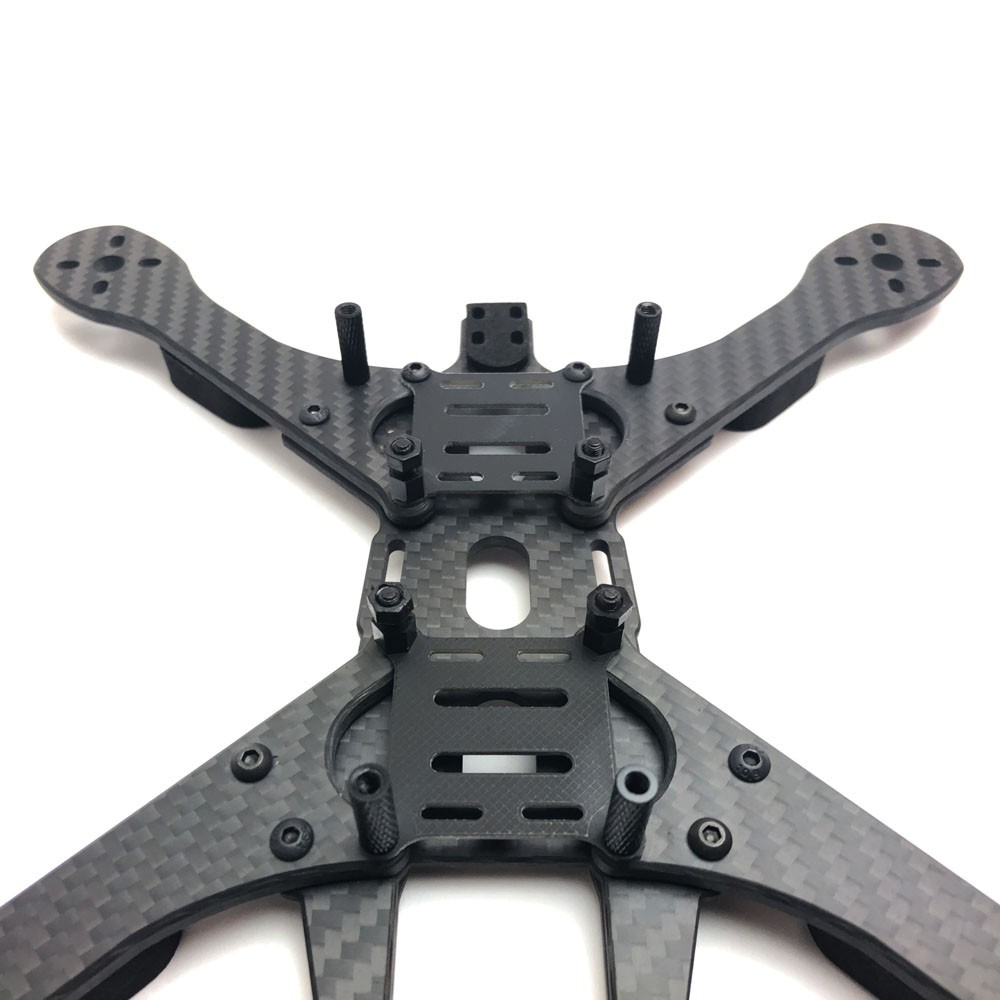

Component mounting plates provide a platform for easy attachment areas which also offer carbon isolation, increased airflow, and force a much tidier build. Having the components raised from the bottom plate then offers the opportunity for cleanly routing wires underneath the horizontal stack, and also allows for convenient battery strap space in the mid-mount configuration.
Extras and Optionals

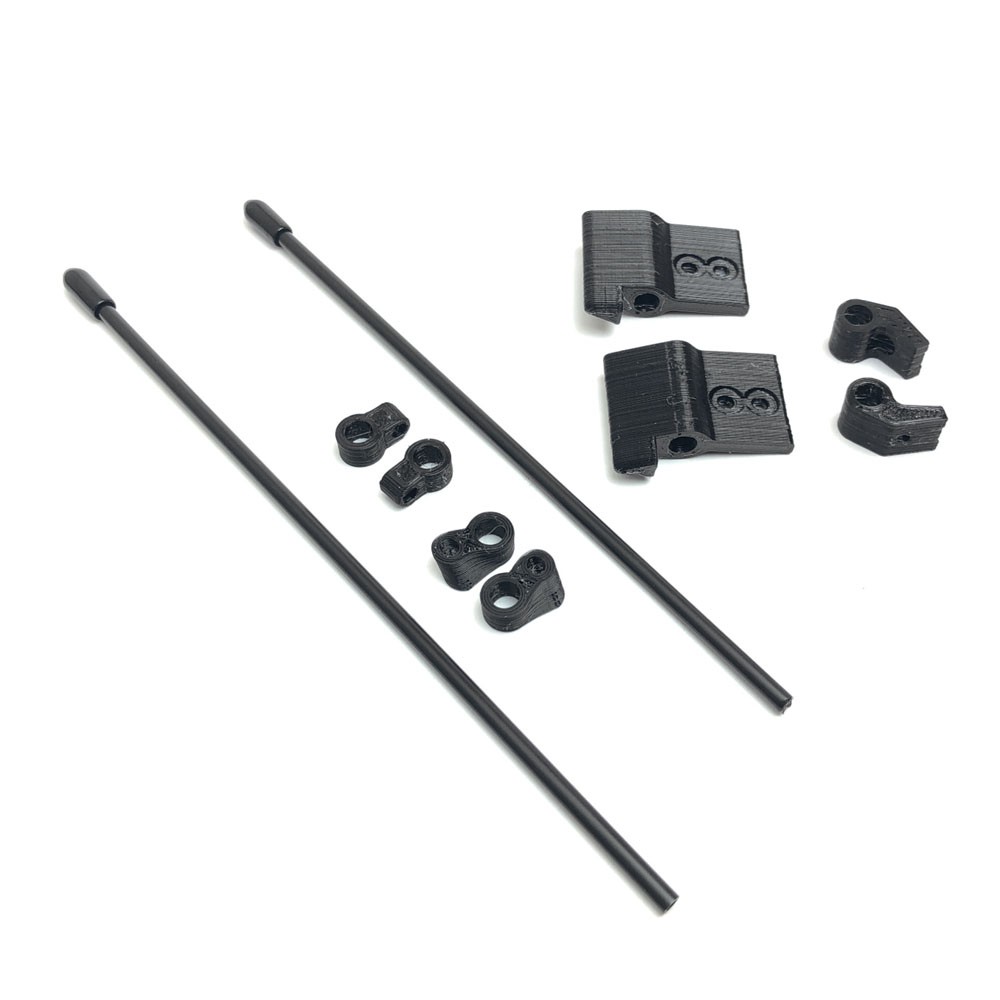

Rounding off the kit are the various camera and antenna mounts, as well as battery, antenna, and landing pads for protection and isolation. Also included is a HYPERLOW GOPRO COUCH; ready to mount a Session, or provide overhead protection for a Runcam Split.
- 1 x 2mm top plate
- 1 x 3mm bottom plate (pressnuts preinstalled)
- 4 x 4mm arms

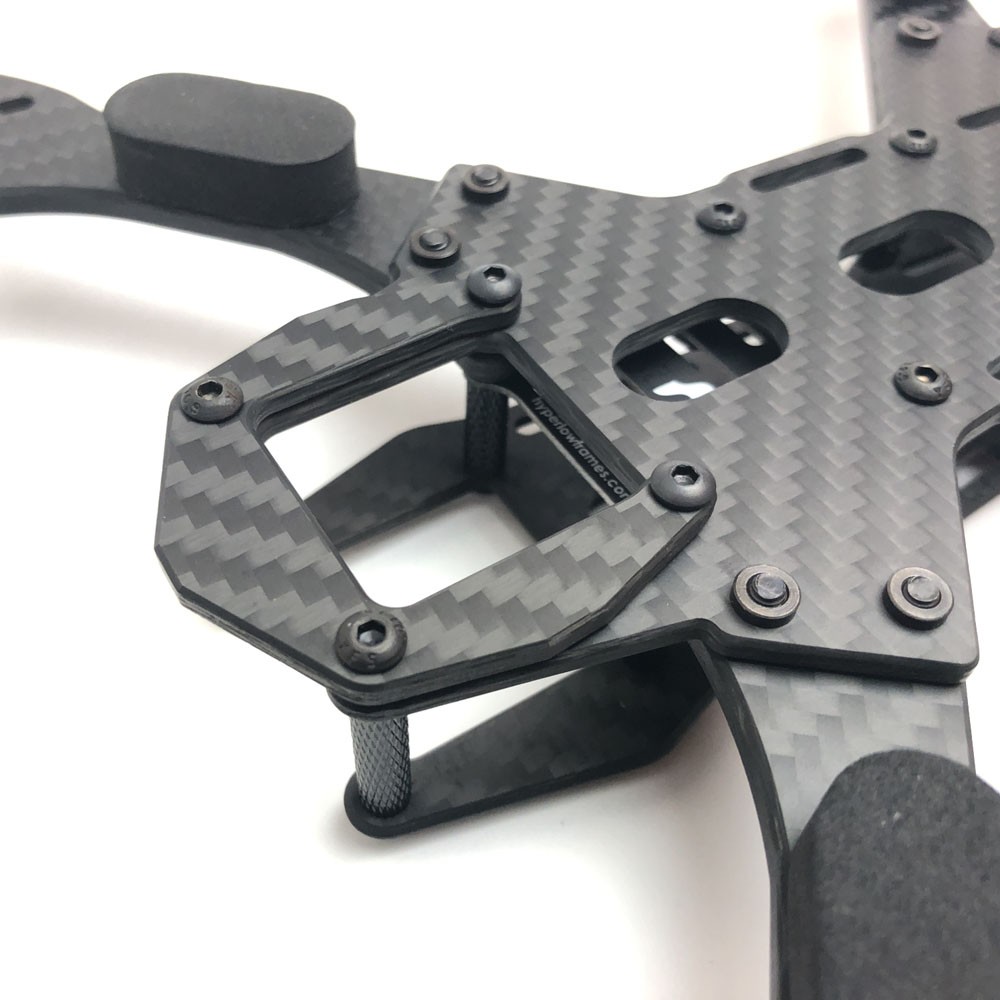

- 1 x 3mm camera bumper
FPV Camera Mounting
- 1 x 20mm full size TPU camera mount set
- 1 x micro cam TPU mount set
- 2 x TPU prints
- 2 x 30mm standoffs
- 4 x bolts
- 2 horizontal mount
- straws + caps
- 4 x 1mm nylon washers
- 4 x 5mm nylon standoffs
- 4 x nylon nuts
- Hyperlow mounting plates
- 2 x 6mm bolts (rear top plate)
- 4 x 8mm bolts (front top plate / Session mount)
- 8 x 10mm bolts (arm + pressnut attachment)
- 8 x 12mm bolts (4 for front and rear standoffs, 4 optional for FC mounting)
- 2 x 14mm bolts (middle standoffs)
- 4 x 20mm bolts (option for FC mounting)
- 2 x 20mm standoffs
- 4 x 15mm standoffs
- 4 x 10mm standoffs
- 1 x Battery pad
- 1 x Antenna pad
- 4 x landing pads
- 3 x Hyperlow 250mm battery straps
