HGLRC Wind5 Lite True X FRAME Kit 5 Inch for FPV Racing Drones

Check out all of our HGLRC Products!

Features:

Material:3K Carbon Fiber
Type:5″ frame
Wheelbase:208mm
size:148*148mm
Top plate thickness:2mm
Bottom plate thickness:2mm
Middle plate thickness2.5mm
Arm Thickness:5mm
Top and middle plate spacing:25mm
Installation holes:20×20/30.5×30.5mm
Support camera:14mm

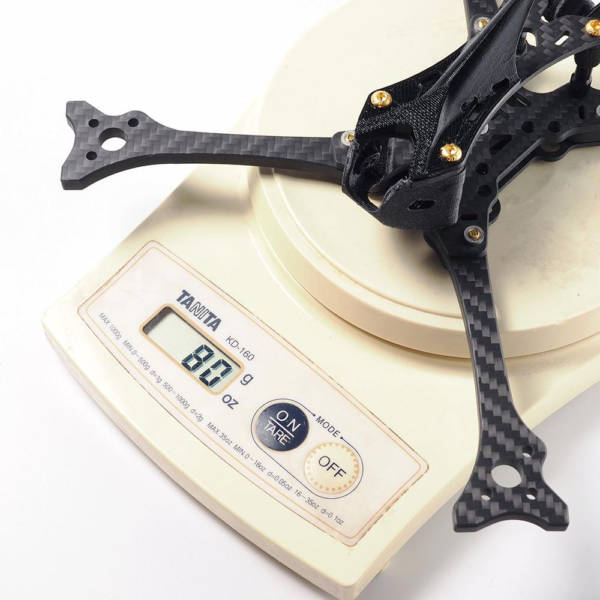

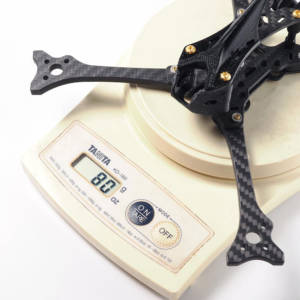

Weight:80g

Features:

Flight control installation damping system
4mm protective bar
SMA antenna Mount
Camera Mount
Anti-turtle Shark Fin

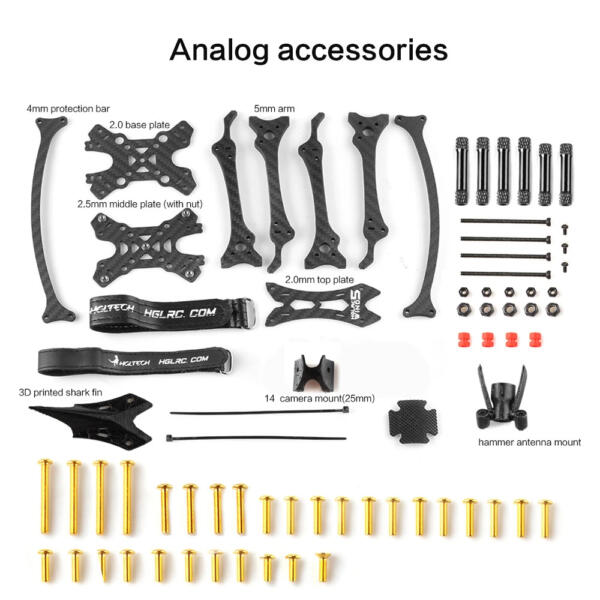

Package Includes:

1x 2mm top plate
1x 2mm bottom plate
1x 2.5mm middle plate
4x 5mm arm
2x 4mm protective bar
4x M3*25mm black aluminum column
2x M3*23mm black aluminum column
4x round head screw M3*25
4x round head screw M3*16
12x round head screw M3*12
1x Sink head screw M3*10
2x round head screw M3*10
8x round head screw M3*8
2x round head screw M2*4
4x M3 Self-tightening nut
4x M3*6.6 shock absorber ball
1x Battery cable tie 15x250mm
1x Battery cable tie 20x250mm
1x Battery Anti-slip tape
2x strap
1X Anti-turtle Shark Fin
1X SMA antenna Mount
1X Camera Mount

Recommended Parts ( Not Included )

Flight Controller: Kiss/F4/F7 FC
Motor:2207/2306/2408
ESC:35A-65A
Camera:14x14mm size
Propeller: Sector 5 – 5.2 Inch
Battery:4S 1300mAh ~ 6S 1800mAh
