Capture flawless, professional-grade footage with the GEPRC Vapor-D O4 Pro, the ultimate cinematic frame designed specifically for the DJI O4 Air Unit Pro. The defining feature of this frame is its “DC” or “Deadcat” structure, which strategically positions the front arms further back to guarantee a completely clear, prop-free field of view. Available in both a 5-inch (D5) and 6-inch (D6) version, the Vapor-D is the perfect choice for aerial videographers and pilots who demand an unobstructed image.

Engineered for smooth, stable flight, the Vapor-D ensures your cinematic shots are free from interference. The frame features redesigned aluminum camera mounts and improved vibration-damping silicone, creating a secure and resonance-free housing for the O4 Pro camera and air unit. This meticulous design results in incredibly smooth video, allowing you to focus on getting the perfect shot.

Built from high-strength carbon fiber, the Vapor-D is both lightweight and durable. Thick 5mm arms and dual-protection camera side panels provide excellent crash resistance, while the quick-release arm design allows for easy field maintenance. The frame boasts universal mounting holes for a wide range of flight controllers and VTXs, giving you maximum flexibility for your custom build. With its bold, mech-inspired side panels and superior performance, the Vapor-D is the premier choice for cinematic FPV flight.

KEY FEATURES

• “Deadcat” DC Structure: Guarantees a completely clear, “no prop in view” image for professional cinematic recording.
• Two Sizes Available: Choose the 5-inch (D5) for agile cinematic flight or the 6-inch (D6) for greater stability and flight time.
• Optimized for DJI O4 Pro: Custom camera mount and versatile antenna solutions specifically for the O4 system.
• Durable Construction: Thick 5mm arms and a reinforced camera cage provide excellent crash resistance and component protection.
• Striking “Mech-Inspired” Design: Unique side panels and sharp lines give the frame a bold, modern aesthetic.
• Universal Component Mounting: Supports a wide variety of FC and VTX mounting patterns (20×20, 25×25, 30.5×30.5).
• Quick-Release Arms: Allows for easy maintenance and arm replacement in the field.

SPECIFICATIONS

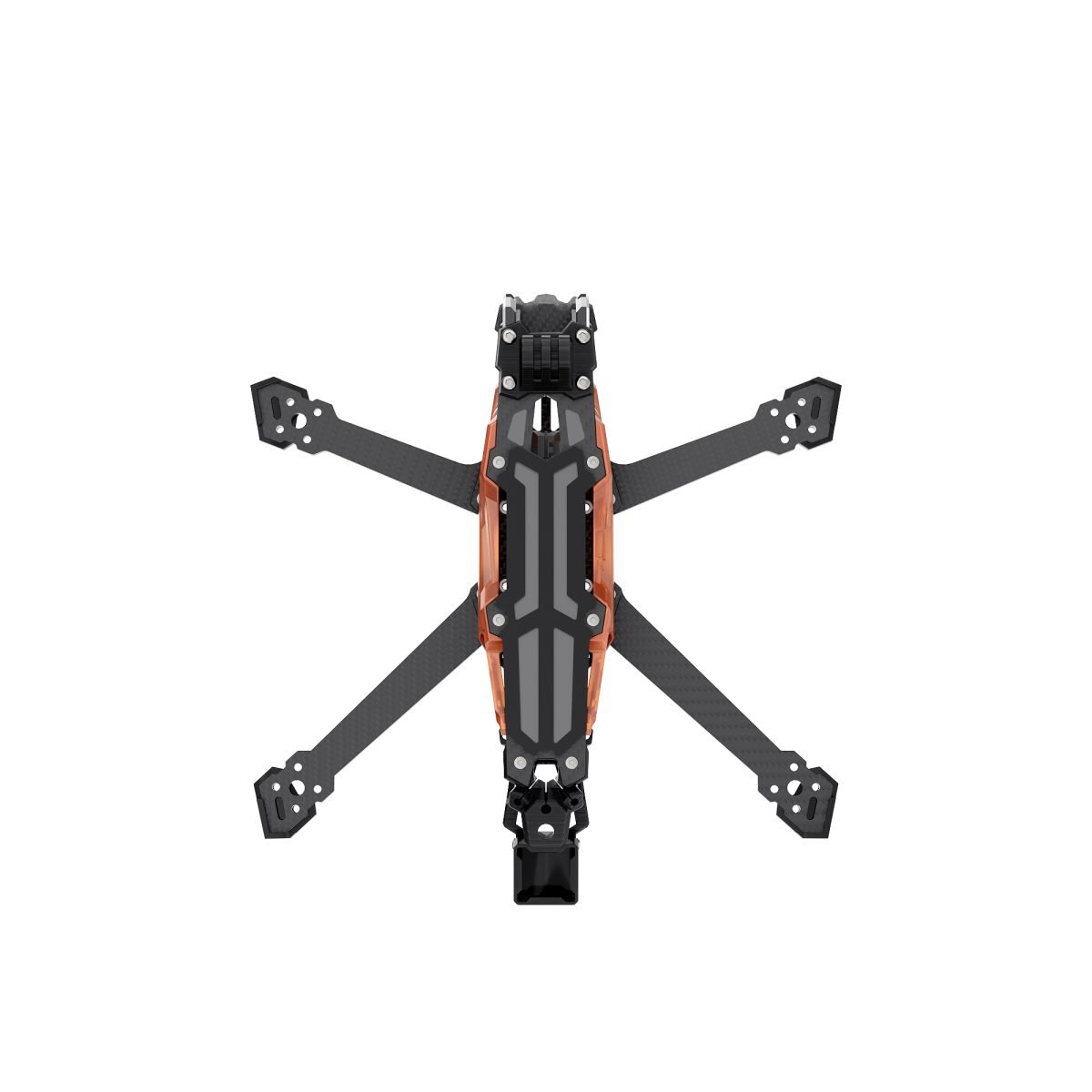

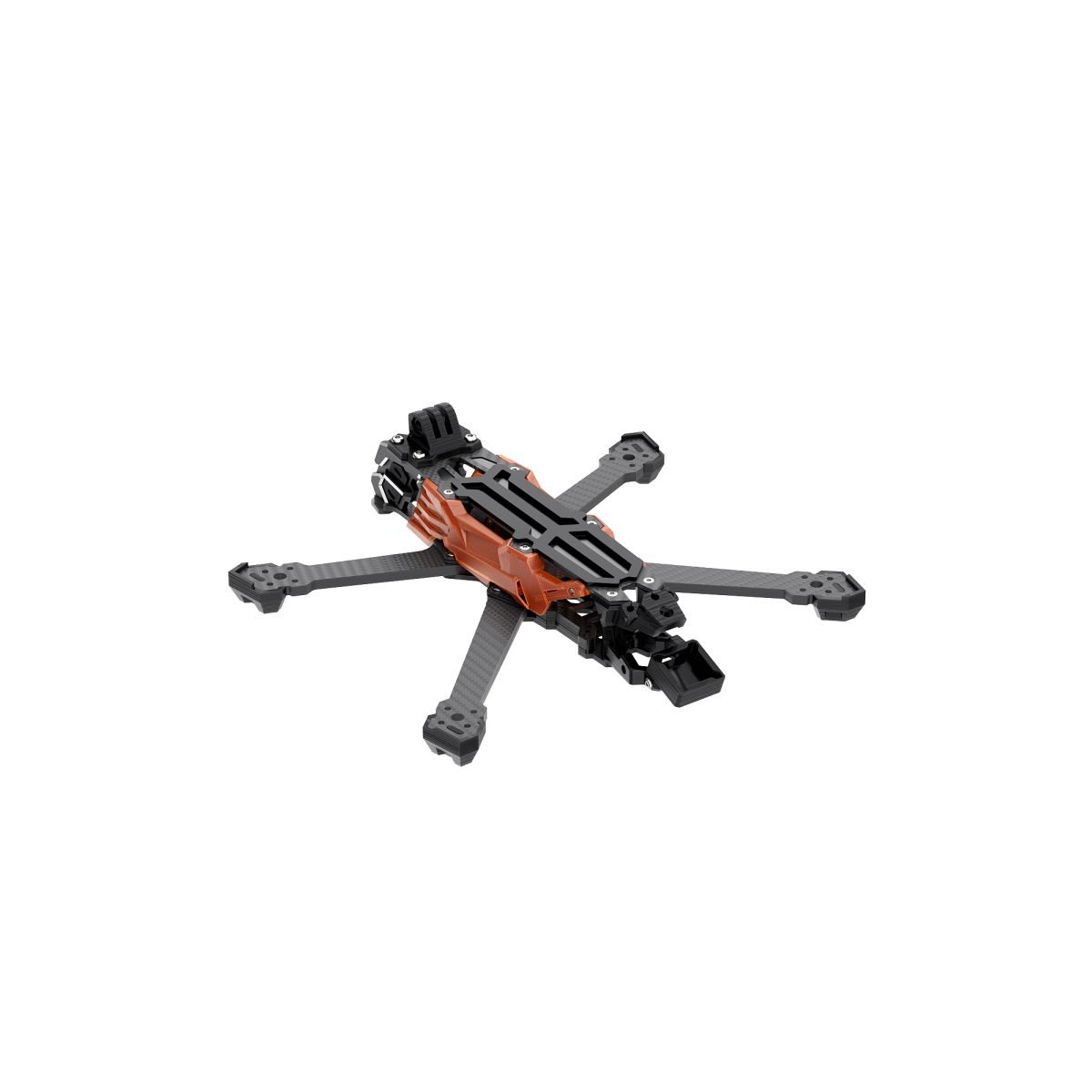

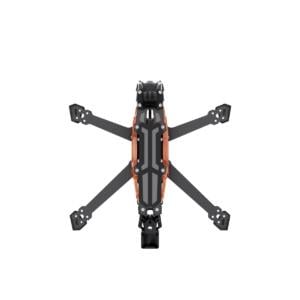

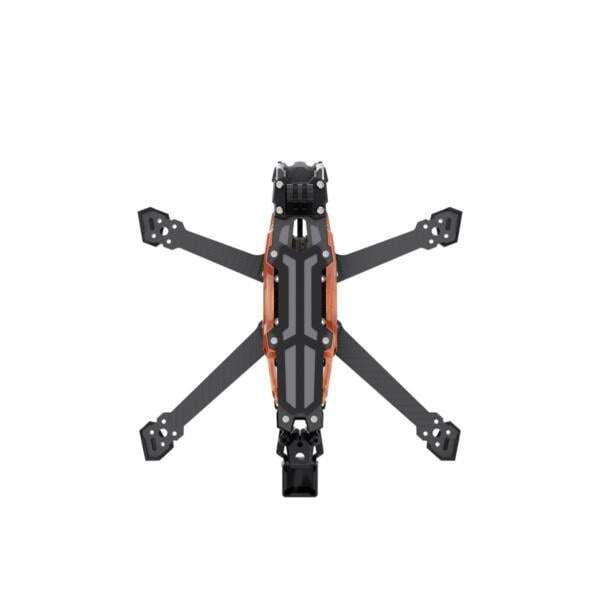

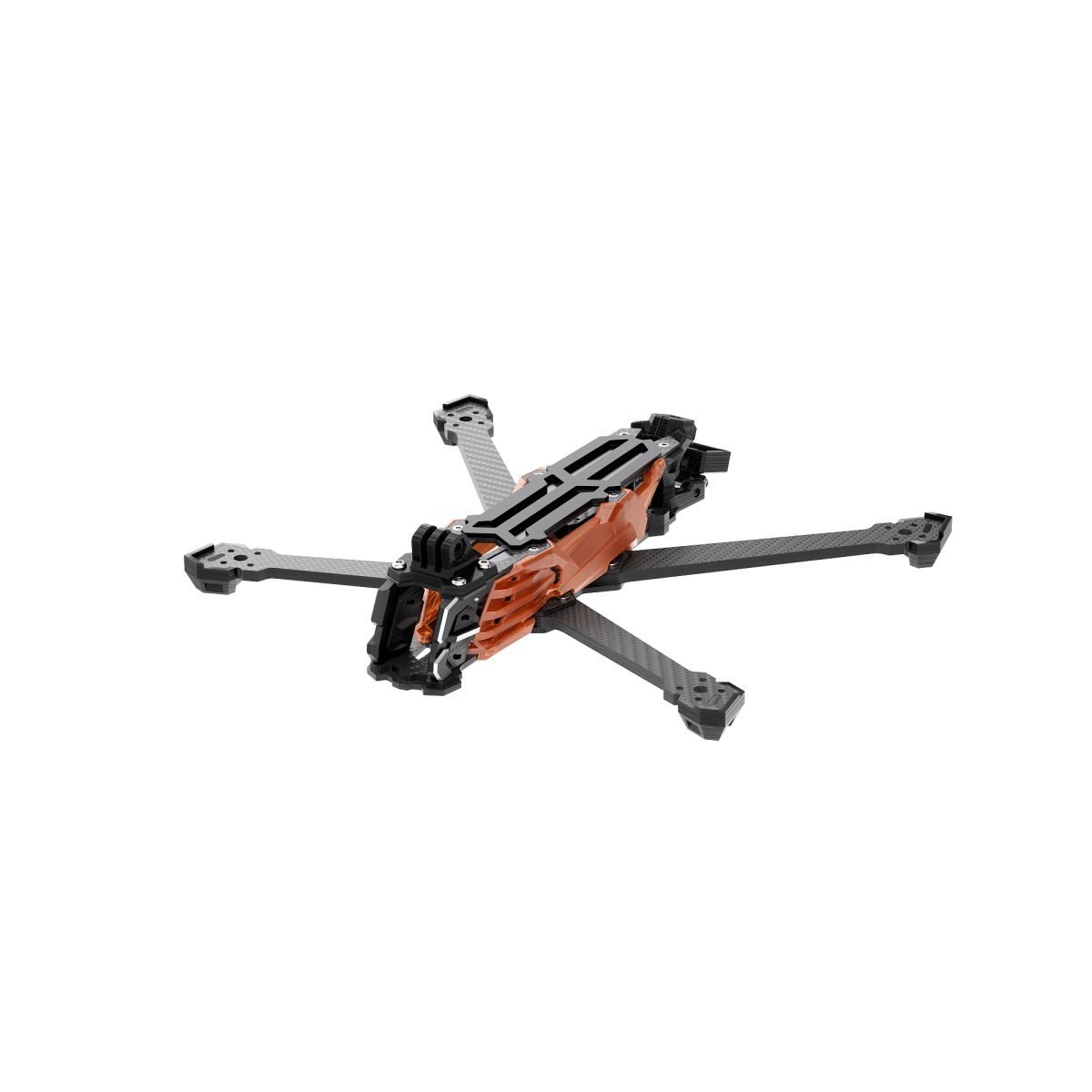

Vapor D5 (5-inch)

• Model: GEP-Vapor-D5 O4 Pro Frame
• Wheelbase: 238.4mm
• Arm Thickness: 5.0mm
• Recommended Propeller: 5-inch
• Weight: 221±5g

Vapor D6 (6-inch)

• Model: GEP-Vapor-D6 O4 Pro Frame
• Wheelbase: 274.6mm
• Arm Thickness: 5.0mm
• Recommended Propeller: 6-inch
• Weight: 224±5g

INCLUDES

• 1 x GEP-Vapor-D O4 Pro Frame (D5 or D6, depending on selection)
• 2 x M20*250mm Battery Straps
• 2 x Battery Silicone Pads
• 1 x Set of screws
• 1 x 3D Printed Parts Package
• 1 x Set of L-shaped screwdrivers (1.5mm, 2mm, 3mm)
• 1 x M8 wrench
