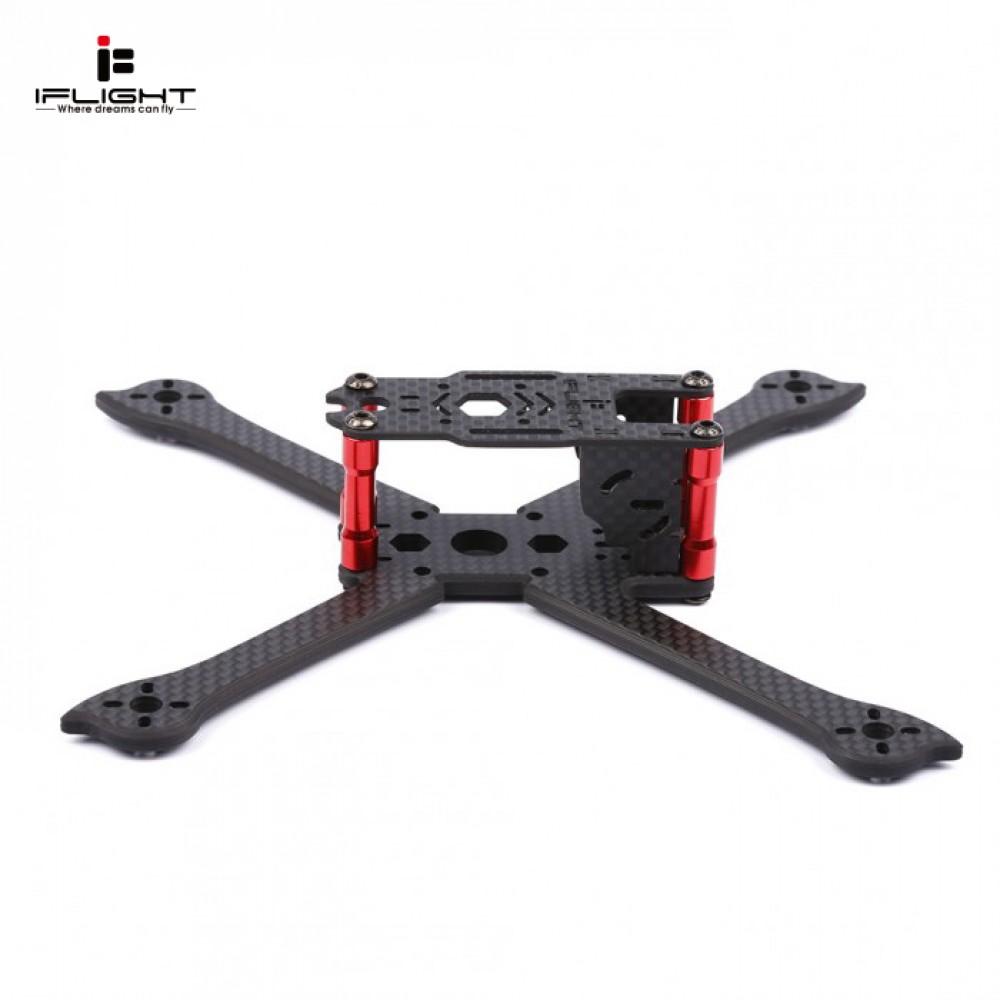

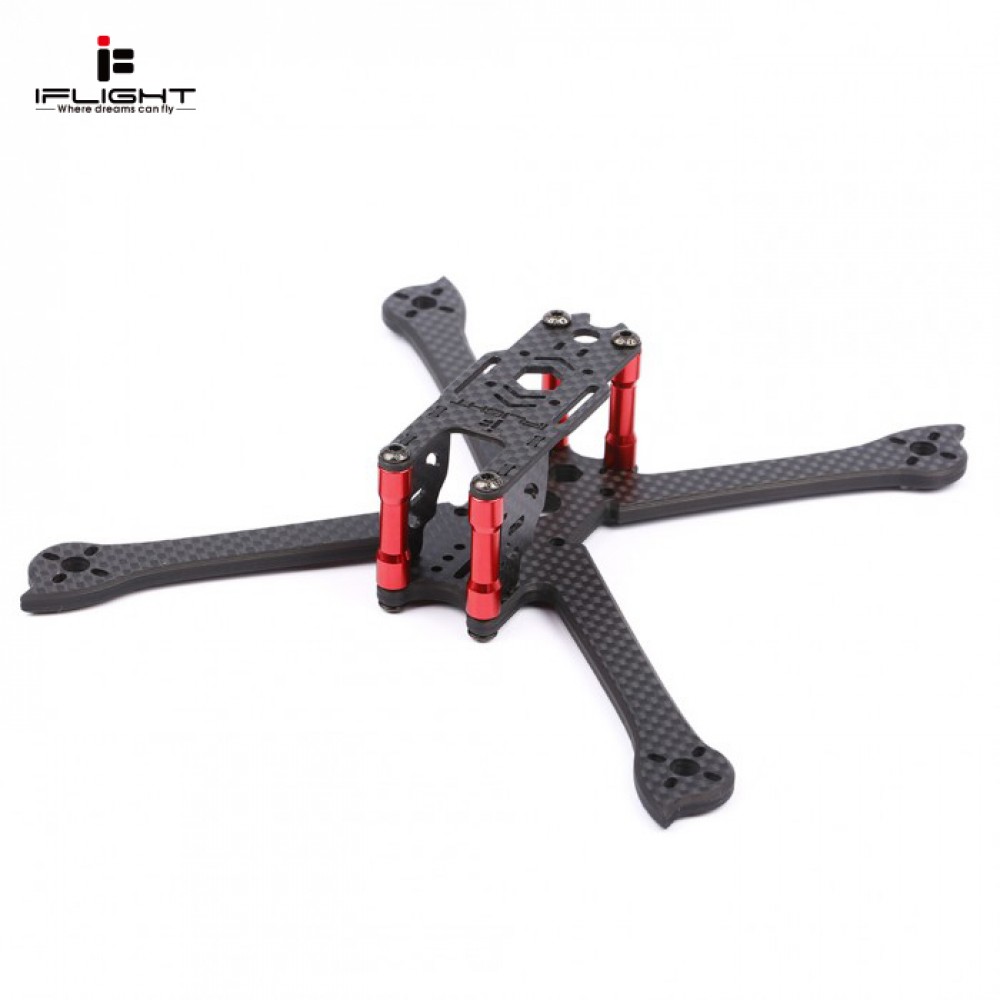

iFLIGHT IX4 LITE V3 4 INCH FPV RACING DRONE FRAME
This is upgraded version & slim size of RACER iX4, with similar body size but slim 9.6mm wide frame arms which make it wheelbase 164mm long but super lightweight only 39.8g compared to iX4 63.9g.
Bottom carbon fiber plate and arms of iX4 Lite V3 are combined into one complete 4mm 100% pure carbon fiber and specially designed to be Squish X Hybrid design.
It helps to increase the computational efficiency of the flight control and makes flighting more nimble while makes it strong and anti-shock. There’s no need to do tedious assembling arms job anymore.
The super lightweight design helps to decrease the weight while ensuring the iX4 Lite V3 is strong enough.
What’s more, the motor mount on the arm has been strengthened to protecting the motor from crashing. Perfect matches with 4-inch propellers, work with 11XX,14XX motor.
– Squish X Hybrid design
– MINI design,164mm wheelbase, super light, only 39.8g
– 3K High Strength Carbon Fiber Plate, durable from Crashing
– Super lightweight design, decrease the weight but ensure the iX4 Lite V3 strong enough
– Motor mount strengthen to protecting motors from crashing
– Camera mounting plate with fashion design to ensure that the fast forward when you can see the front
– Product Name: iX4 Lite V3
– DesignSquish X Hybrid, unibody
– Wheel Base: 164mm
– Dimension: 123*116mm
– Arm Width(Narrowest):9.6mm
– Top plate thickness: 2mm
– Bottom plate thickness: 4mm
– Vertical side plates: 1mm
– Net weight: about 39.8g
– Motor c-clip hole: φ8mm
– Max Stack Height :25mm
– Motor Mount Pattern: 9*9mm-13*13mm
– FC Mounting Holes:20*20mm
– Support 19mm wide micro camera
– Support 11XX,14XX motor
– 1pc x iX4 Lite V3 164mm FPV Frame Kit
