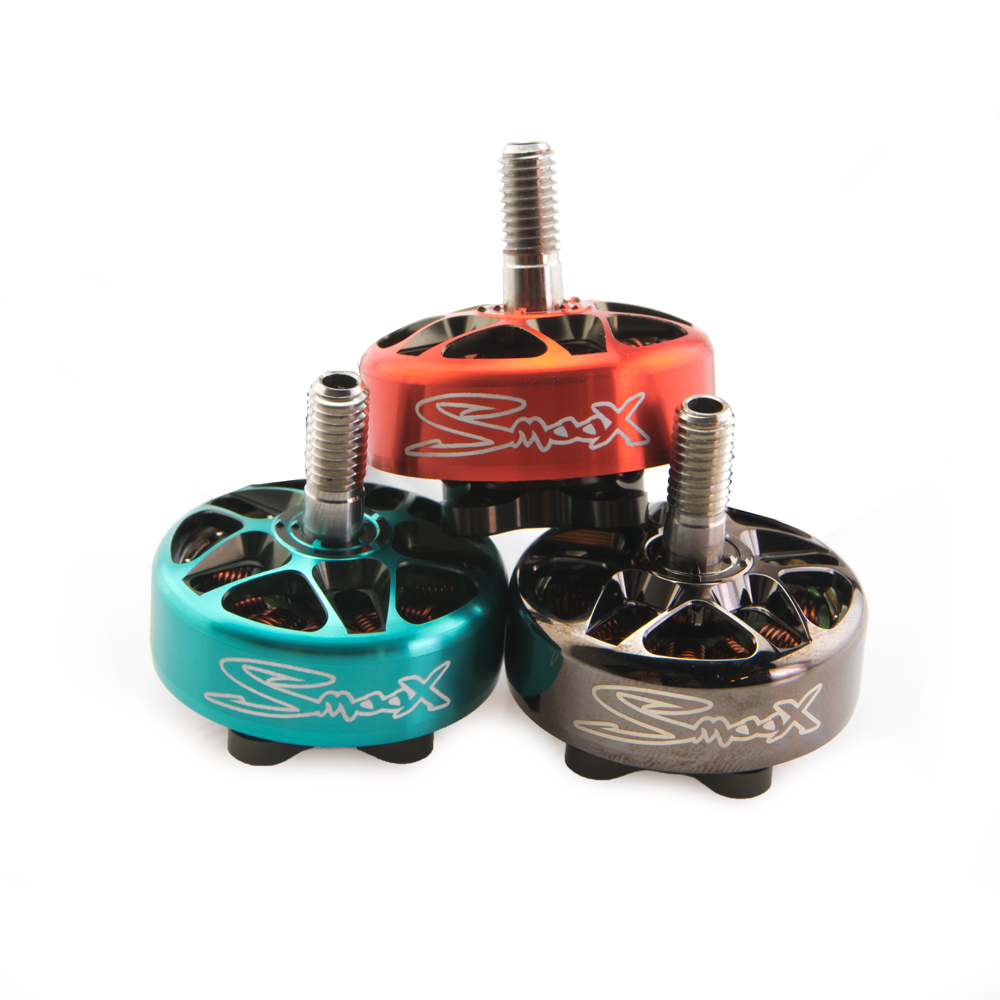

RCinPower Smoox 2306 Motor (1880kV / 2280kV / 2580kV)

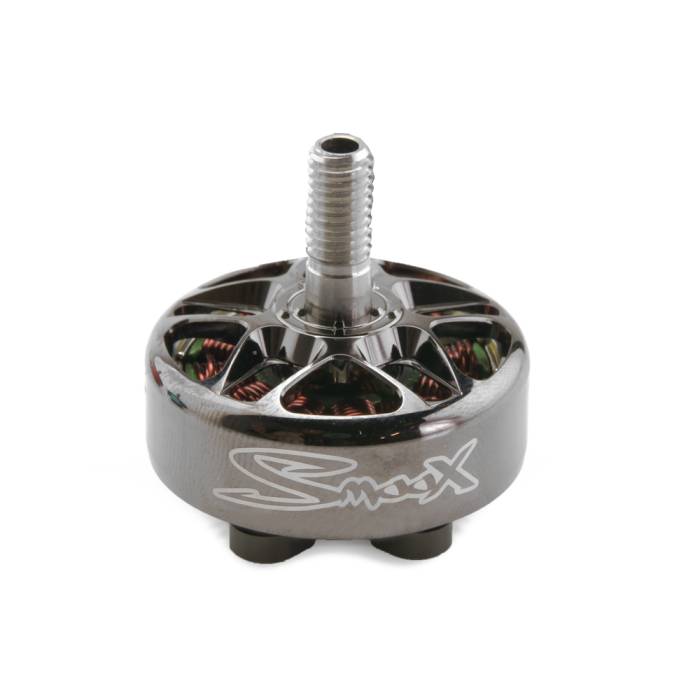

1880kV is Gun Metal

2280kV is Orange

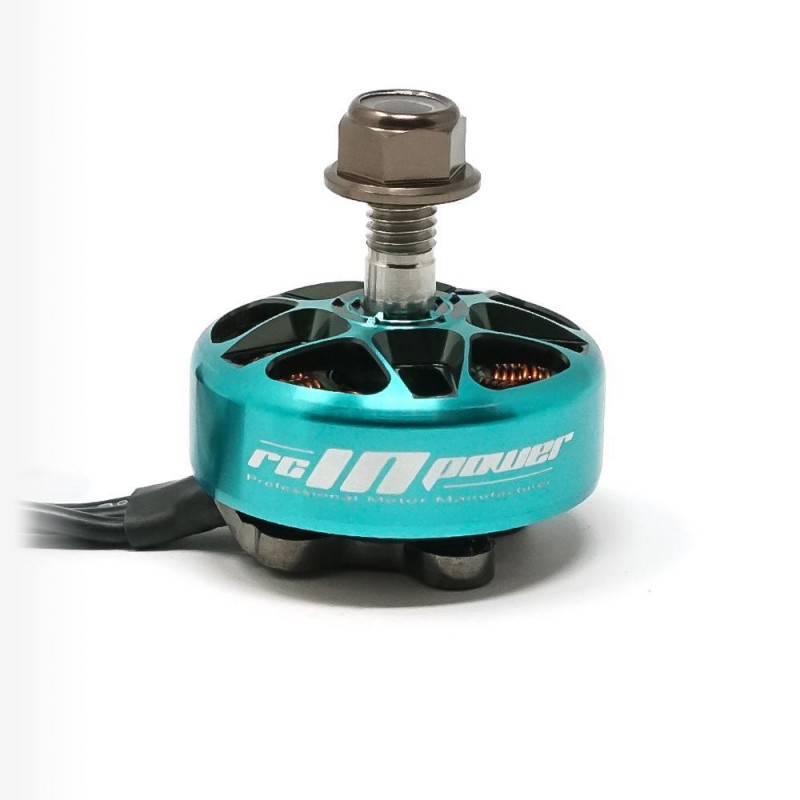

2580kV is Teal Blue

Check out our RCinpower motors!

Specifications

• Brand Name: RCINPOWER
• Model: SmooX 2306 Plus
• Item Name: 2306 1880KV 5-6S / 2280KV 2580KV 4-5S Motor
• KV: 1880KV /   2280KV / 2580KV
• Color: Blue / Orange/ Black
• Version: CW Screw Thread
• Quantity: One PC
• Configuration: 12N14P
• Stator Diameter: 23mm
• Stator Length: 6.6mm
• Shaft Diameter: 4mm ( Hollow)
• Idle Current(10V): 1.35A @ 1880KV ;  1.95A @ 2280KV ; 2.3A@2580KV
• Max. Con. Power (5S): 900W @ 1880KV; 850W  @ 2280KV ; 1100W@2580KV
• Internal Resistance: 49mΩ@ 1880KV ; 40mΩ @ 2280KV ; 30mΩ @2580KV
• Max. Current(5s): 36A @ 1880KV ; 40A @2280KV  ; 55A @ 2580KV
• Cable Length: 15cm

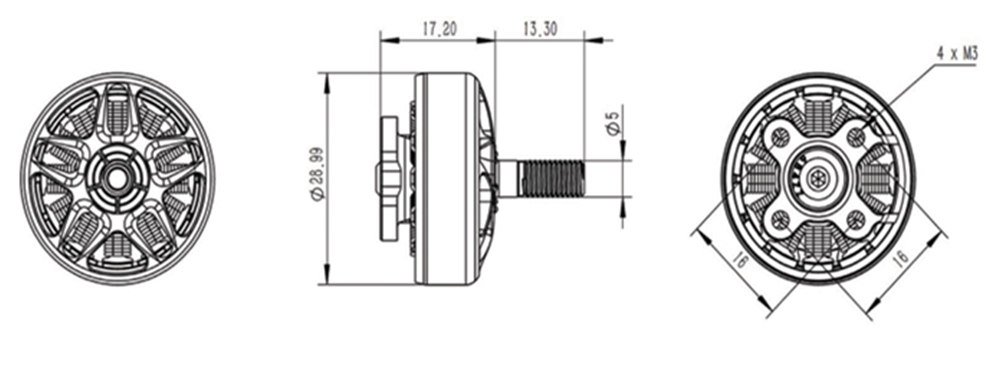

• Motor Dimension(Dia*Len):29×30.5mm
• Weight: 33g ( 3cm wire)

Included

• 1 x Smoox 2306.5 plus Brushless Motor
• 1 x prop nut
