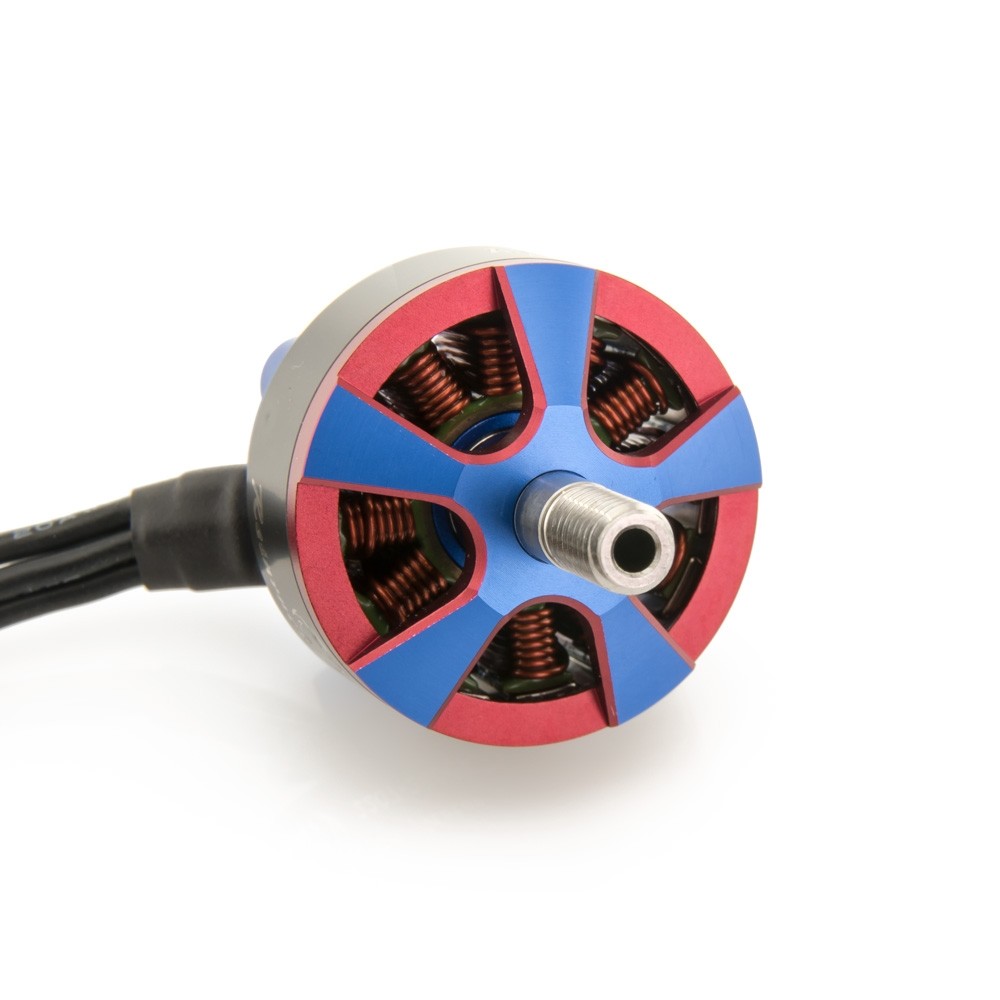

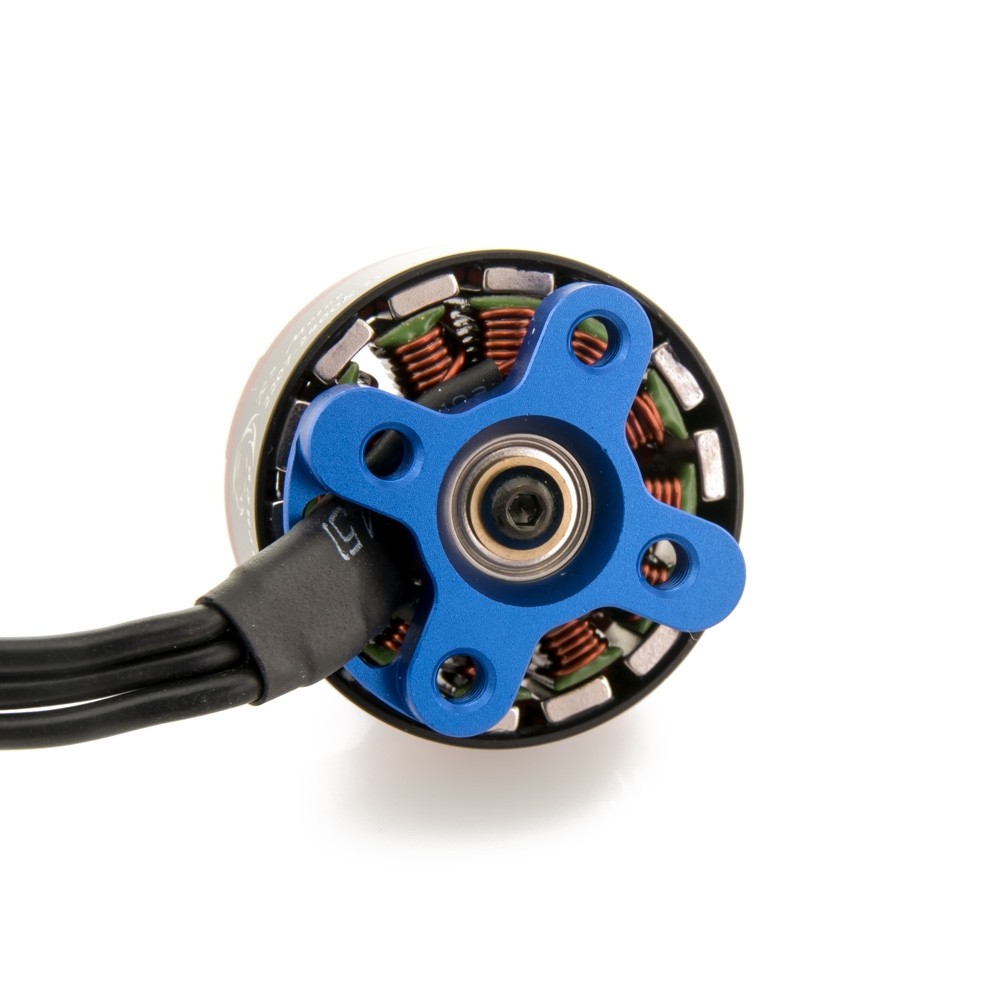

BrotherHobby Returner R5 2207 1750kv Brushless Motor
Check out all of our BrotherHobby Products, and all of our 1750kv Motors!
Experience the legendary smooth, reliable, and powerful performance of the BrotherHobby Returner R5 2207 1750KV brushless motor. Trusted by FPV drone pilots worldwide, the Returner series is synonymous with quality and precision engineering. This motor is a premium drone part, perfect for builders creating a high-performance freestyle or long-range FPV drone on a 4S or 5S power system.
Engineered with Premium Components
The Returner R5 is built from the ground up with top-tier materials. It features high-quality Japanese EZO bearings for exceptional smoothness and longevity, powerful N52H arc magnets for instant throttle response, and a lightweight yet durable bell and base made from 7075 aluminum. This commitment to quality ensures a motor that performs consistently flight after flight.
Optimized for 4S-5S Performance
The 1750KV rating makes this 2207 stator motor an excellent choice for various FPV drone applications. It’s ideal for spinning larger 6-inch or 7-inch propellers on a 4S or 5S LiPo battery for long-range and cinematic builds, or for creating a highly efficient 5-inch freestyle machine. If you’re planning a new FPV drone kit, this motor offers a great balance of power and efficiency.
Proven “Returner” Reliability
When you choose a BrotherHobby Returner motor, you’re choosing a legacy of performance. This motor series has been a favorite in the FPV drone community for years due to its robust construction and consistent power delivery. It’s a drone part you can rely on for any demanding FPV flight.
Specifications
- KV: 1750KV
- Configuration: 12N14P
- Stator Size: 2207
- Recommended Cells (Lipo): 4-5S
- Stator Material: 0.15mm Nippon Silicon Steel
- Magnets: N52H Arc Magnets
- Bearings: Japanese EZO 8x4x3mm
- Wire AWG: 20AWG
- Bell & Base Material: Al 7075 Aluminum
- Weight: 33g
What’s in the Box?
- 1x BrotherHobby Returner R5 2207 1750KV Brushless Motor
- 4x M3 Motor Screws
- 1x Propeller Lock Nut
