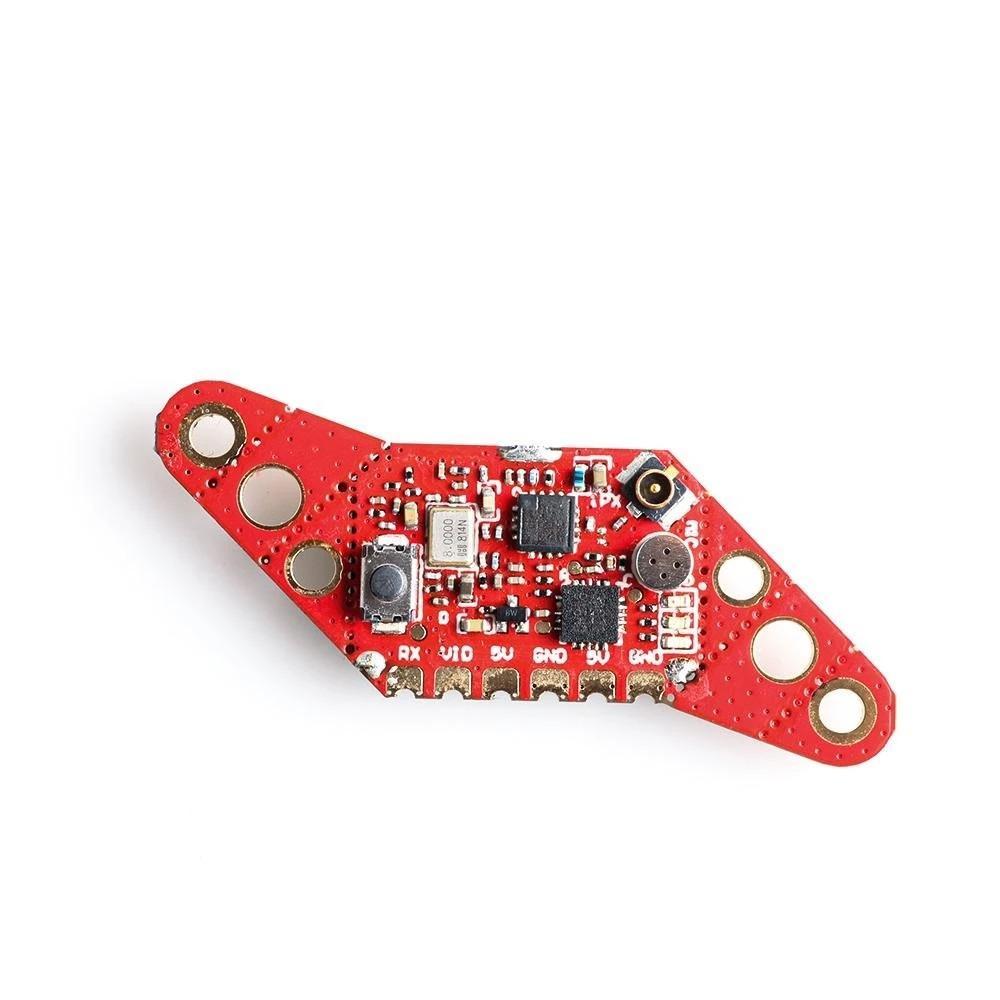

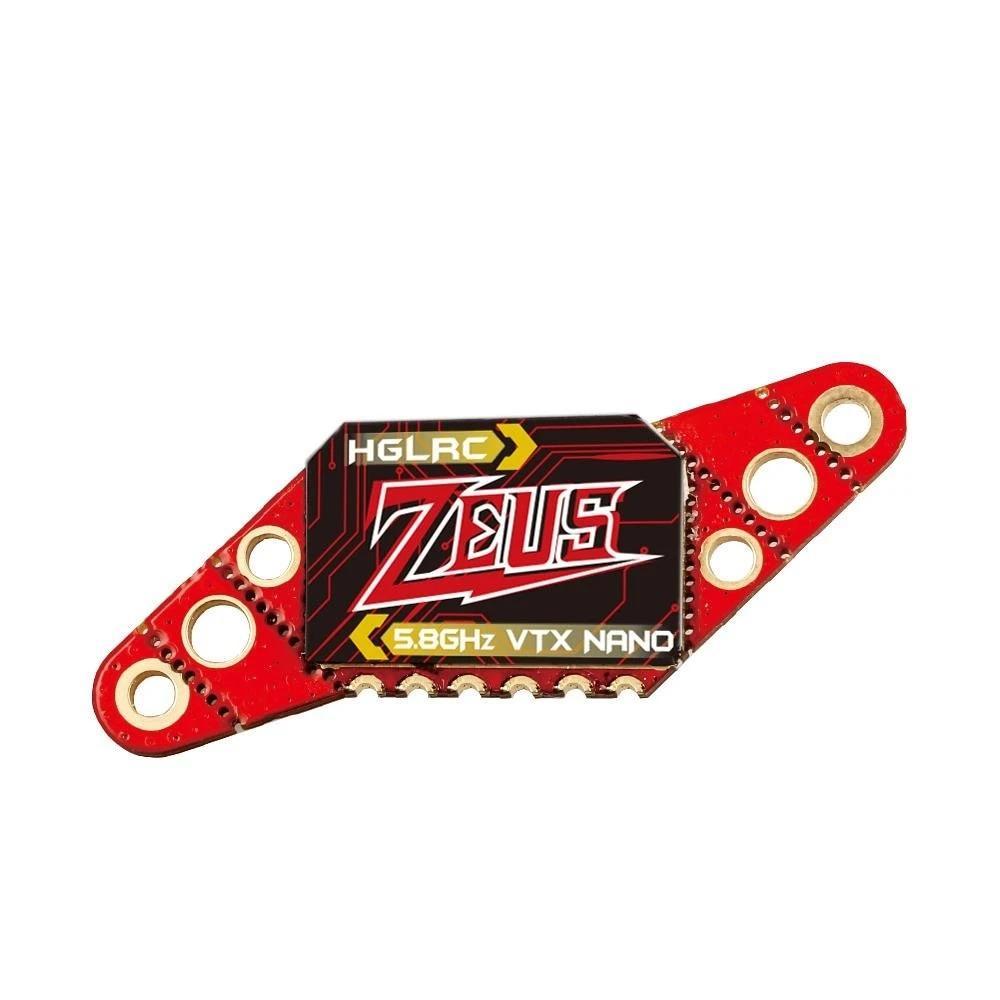

HGLRC Zeus Nano 25-350mW 5.8GHz 16×16/20×20/25×25 VTX – U.FL & SMA

New innovative mounting VTX, fits 16×16, 20×20, and whoop/toothpick mounting patterns, there really is no limit to how you can mount this new VTX.

Features

• 5V input
• 16×16, 20×20, and whoop/toothpick mounting patterns
• Up to 350mW output
• Covers 40 Channels and 5 bands
• Built in microphone

Specifications

• Model:Zeus nano VTX
  Built-in Microphone
  Input voltage:DC 5V
  PIT@75mA
  25mW@180mA/16dBm
  100mW@280mA/21.5dBm
  200mW@330mA/24.5dBm
  350mW@400mA/27.5dBm
  Antenna interface:ipex
  Output power:PIT/25/100/200/350mW
  Standard 40 channels. A/B/E/F/R frequency group
  Installing Hole:16X16/25.5X25.5mm.M2
  20X20mm.M3
  Size:18.6mm x 13.6mm x 6mm
  Weight:2.4gPackage Included:
  1 x Zeus nano VTX
  1 x ipex Linear Brass Antenna
  1 x ipex to SMA Adapter Cable
  6 x VTX Cable
