Caddx Polar HD Vista Kit for DJI – Pick Your Color

This all new Polar Edition has finally hit the shelves! With a larger, more sensitive image sensor collecting more light thanks to a larger aperture, this camera is a DJI night flyer’s dream! This kit pairs the Polar cam with a Caddx Vista Module.

Features

• Fantastic Low Light Performance
• 720p 60FPS recording to DJI Goggles
• New Lightweight Polar Antenna

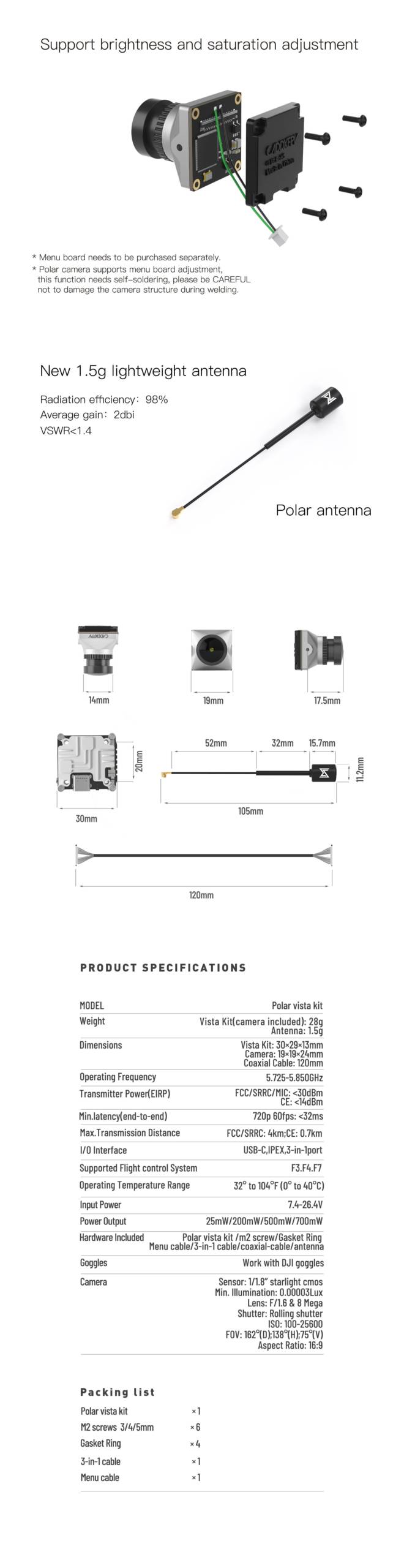

Specifications

Polar Camera

• Sensor: 1/1.8″ Starlight CMOS
• Min. Illumination: 0.00003Lux
• Shutter: Rolling Shutter
• ISO: 100-25600
• S/N Ratio: >65dB (AGC Off)
• Lens: F1.6 8MP
• FoV: 162° Diag.
• Aspect Ratio 16:9
• Image Menu: Supported
• Dimensions: 24x19x19mm
• Weight: 9g

Vista Module

• Input Voltage: 7.4-26.4V
• Output Power: 25mW / 200mW / 500mW / 700mW
• Dimensions:
  • Vista: 30x29x13mm
  • Camera: 24x19x19mm
  • Coaxial Cable: 120mm
  • Antenna: 105×11.2mm
• Weight: 28g (+1.5g for Antenna)

Polar Antenna

• Radiation Efficiency: 98%
• Avg. Gain: 2dbi
• VSWR: <1.4
• Dimensions: 105×11.2mm
• Weight: 1.5g

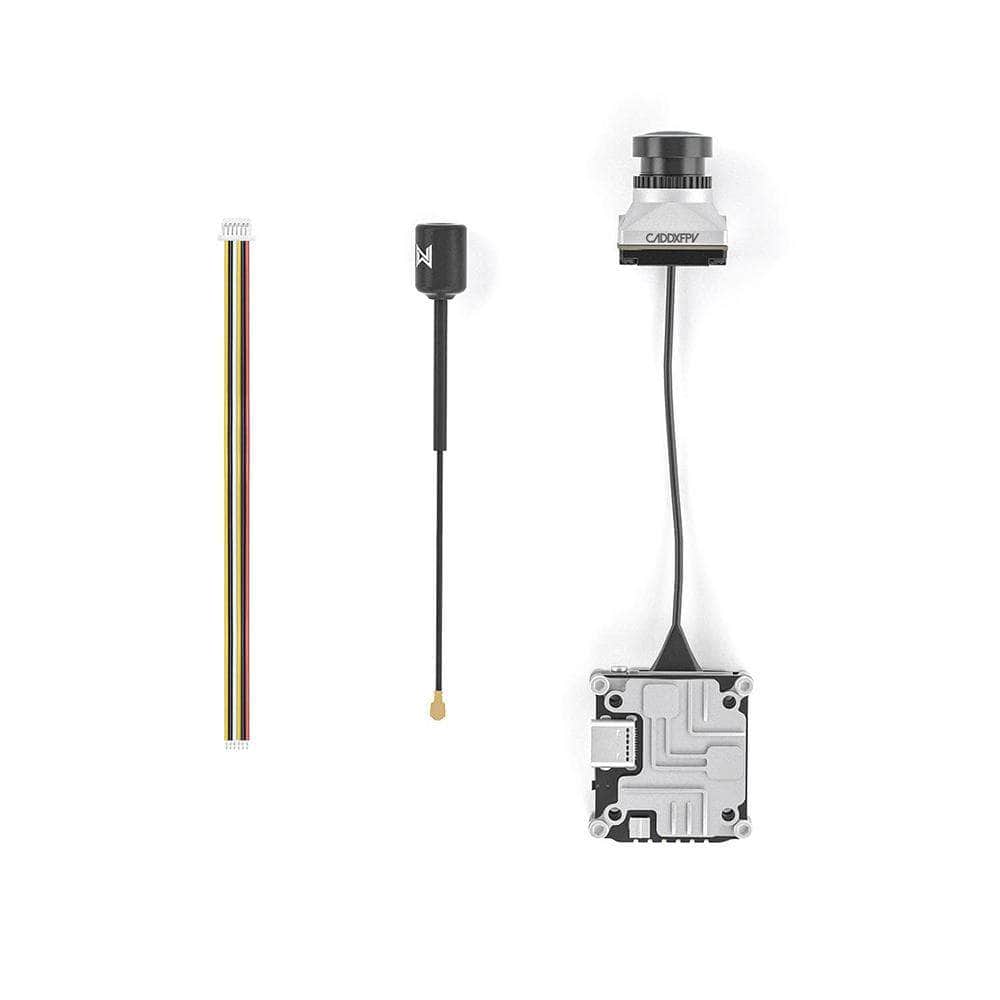

Includes

• 1x Caddx Polar Starlight Camera
• 1x Caddx Vista Module
• 1x 12cm Coaxial Cable
• 1x Polar Antenna
• 1x 3in1 Cable
• 1x Menu Cable
• 1x Hardware Set

Manual Download
