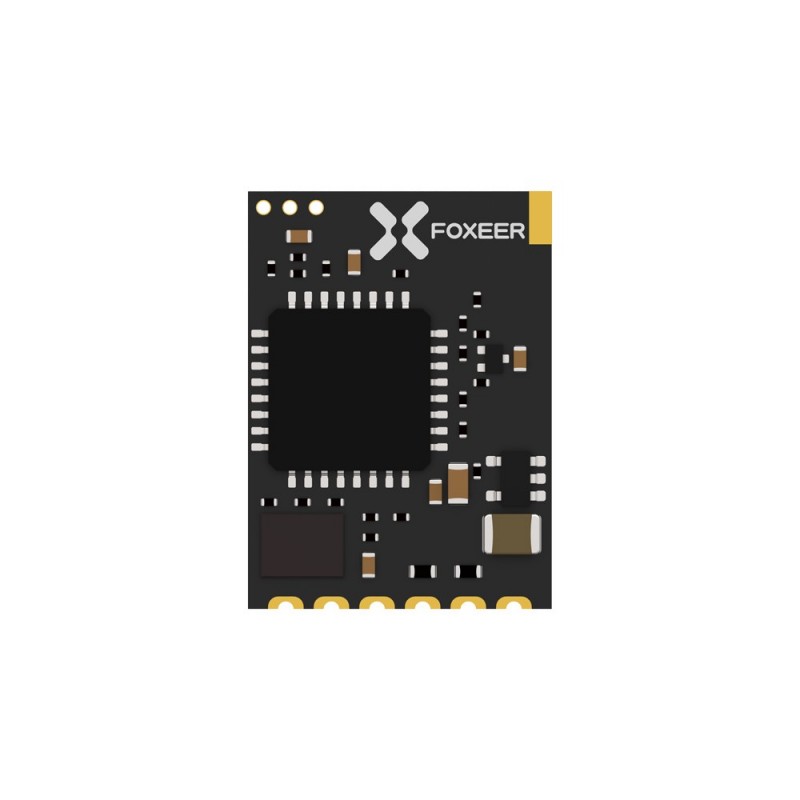

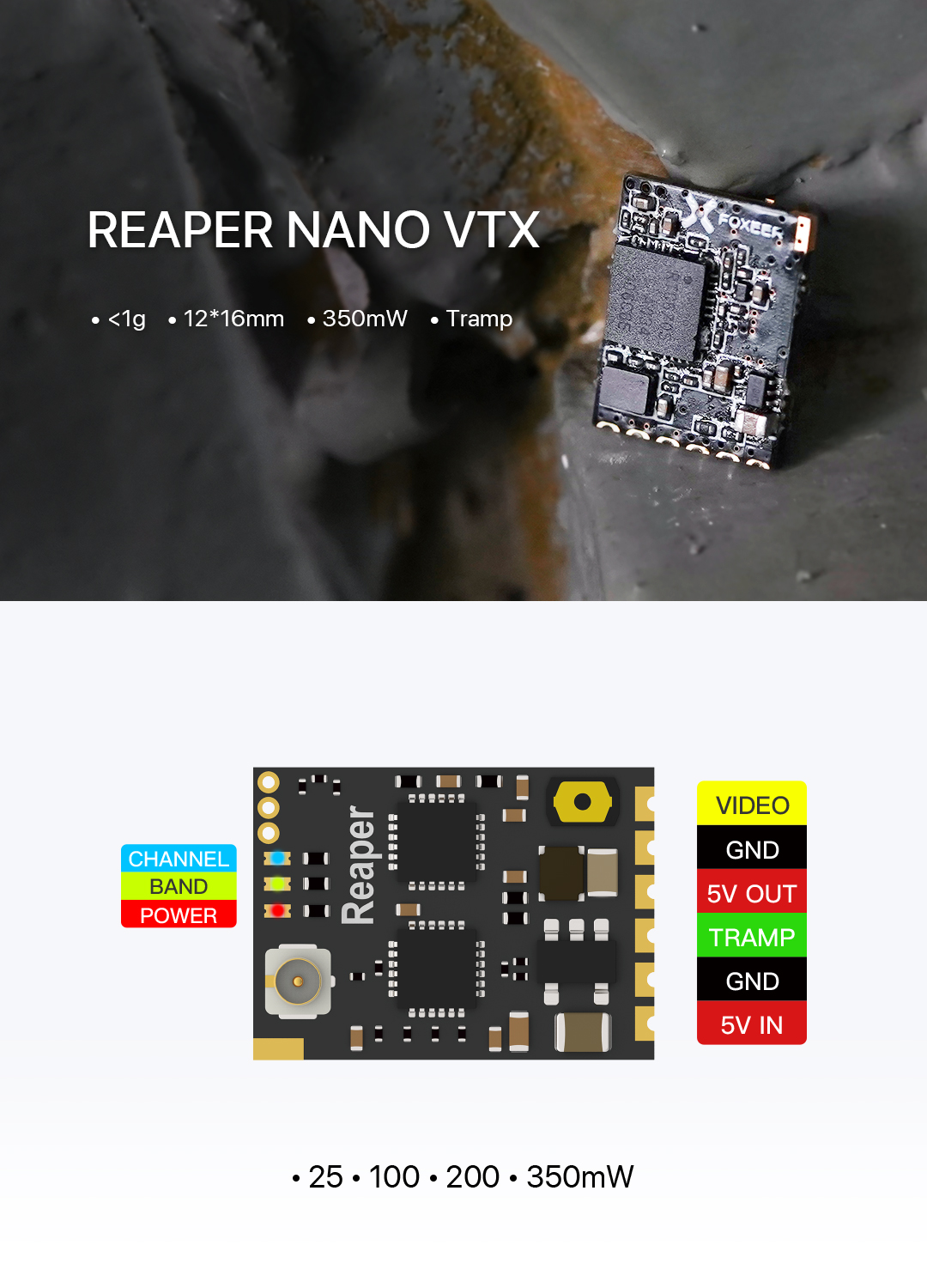

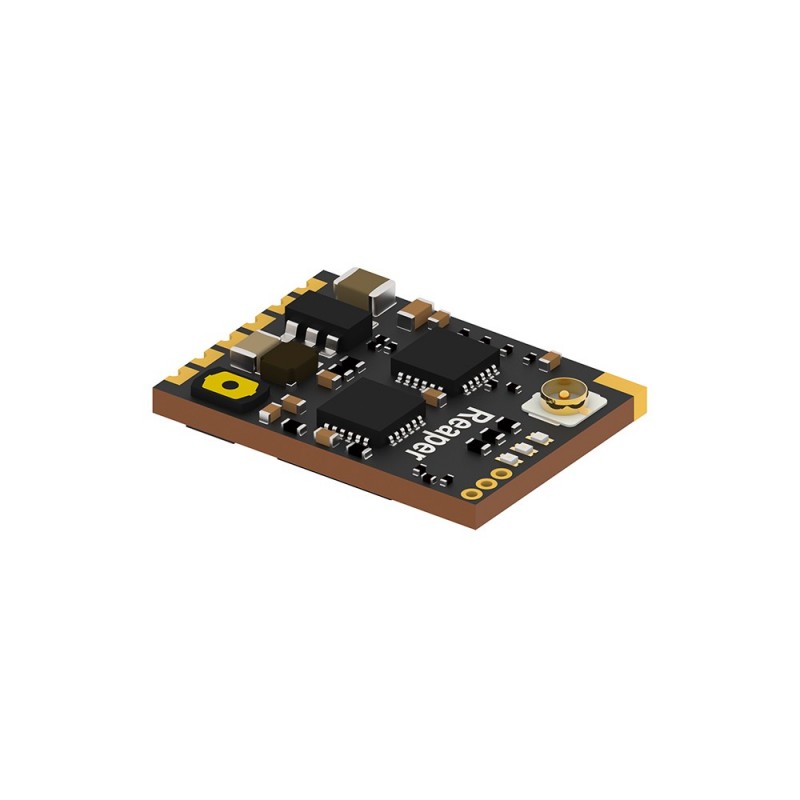

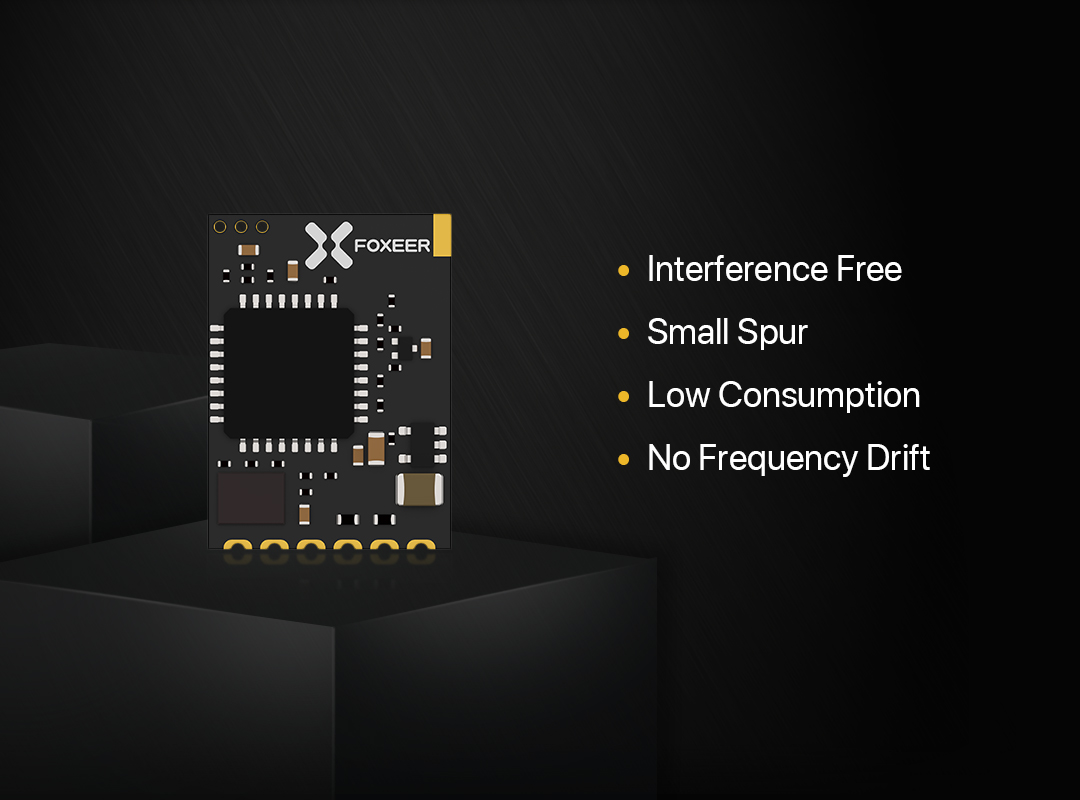

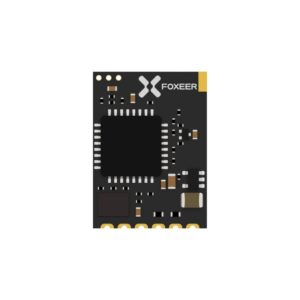

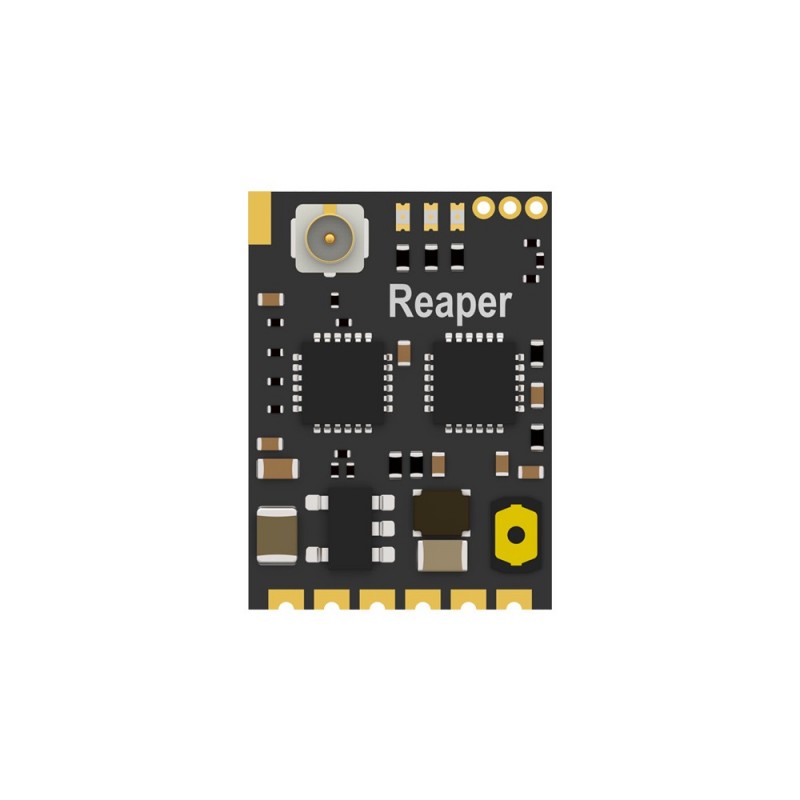

 Foxeer Reaper Nano 5.8G 40CH 350mW 1g Tramp VTx
Specifications
| Name | Reaper Nano |
| Input Voltage | 5V |
| Output Voltage | 5V |
| Channels | 40CH |
| Power | 25mW/100mW/200mW/350mW |
| Weight | <1g |
| Size | 12*16mm |
| Consumption | 340mA @ 350mW |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
