Home » Store » FPV Equipment » Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) – Black

Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 1
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 2
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 3
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 4
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 5
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 6
Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 7

Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) – Black

$17.90

Foxeer presents the sharpest FPV camera in their line up – meet the Razer!

In Stock

Categories: FPV Equipment, FPV Cameras
Product categories
  • 3D Printed Quad Parts
  • Accessories
    • Battery Accessories
    • Build Accessories
    • Cables and Connectors
    • Drone Accessories
    • Goggle Accessories
    • Racing Gear
    • Radio Accessories
  • Antennas
    • 2.4G Antennas
    • 5.8G Antennas
    • Long Range Antennas
  • Batteries
    • Micro Quad Batteries
    • Mini Quad Batteries
    • X Class Batteries
  • Battery Chargers
  • DJI/HD FPV
  • Electronics
    • Electronic Speed Controllers (ESC)
    • Flight Controllers
    • LED Lighting
    • PDBs
  • FPV Drone Bundles
  • FPV Equipment
    • Action Cameras
    • FPV Cameras
    • FPV Monitors
    • Video Goggles
    • Video Receivers
    • Video Transmitters
  • Merch
  • Motors
  • Propellers
    • 10" Propellers
    • 12" Propellers
    • 13" Propellers
    • 2" Propellers
    • 3" Propellers
    • 4" Propellers
    • 5" Propellers
    • 6" Propellers
    • 7" Propellers
    • Micro Props
  • Quadcopter Frames
    • 3" Quad Frames
    • 4" Quad Frames
    • 5" Quad Frames
    • 6" Quad Frames
    • 7" Quad Frames
    • Micro FPV Frames
    • Spare Parts
  • Radios
    • Long Range FPV Equipment
    • Radio Controllers
    • Radio Receivers
  • Ready to Fly Drones
    • Bind-N-Fly
    • Plug-N-Play Quads
  • Toothpick FPV
  • Uncategorized
  • Whoop Drones
    • Ready to Fly
    • Whoop Drone Parts
  • X-Class FPV
  • Description
  • Additional information
  • Reviews (0)

Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 8

Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) – Black

The Foxeer Razer is an incredible value! The image quality and performance are on par with much more expensive cameras. This is the new benchmark for a budget camera. Check out the test footage below, and in the “Test Videos” tab above!

You can find this camera in 16:9 Here!

We also carry the Razer Mini in 4:3 and Razer Mini in 16:9!

Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 9 Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 10 Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 11 Foxeer Razer Micro 1200TVL 4:3 PAL/NSTC CMOS FPV Camera (1.8mm) - Black 12

Features

  • 1200TVL High Definition Natual Image
  • Low Latency
  • Good Low Light Performance
  • NTSC/PAL Switchable
  • Wide Input Voltage Range

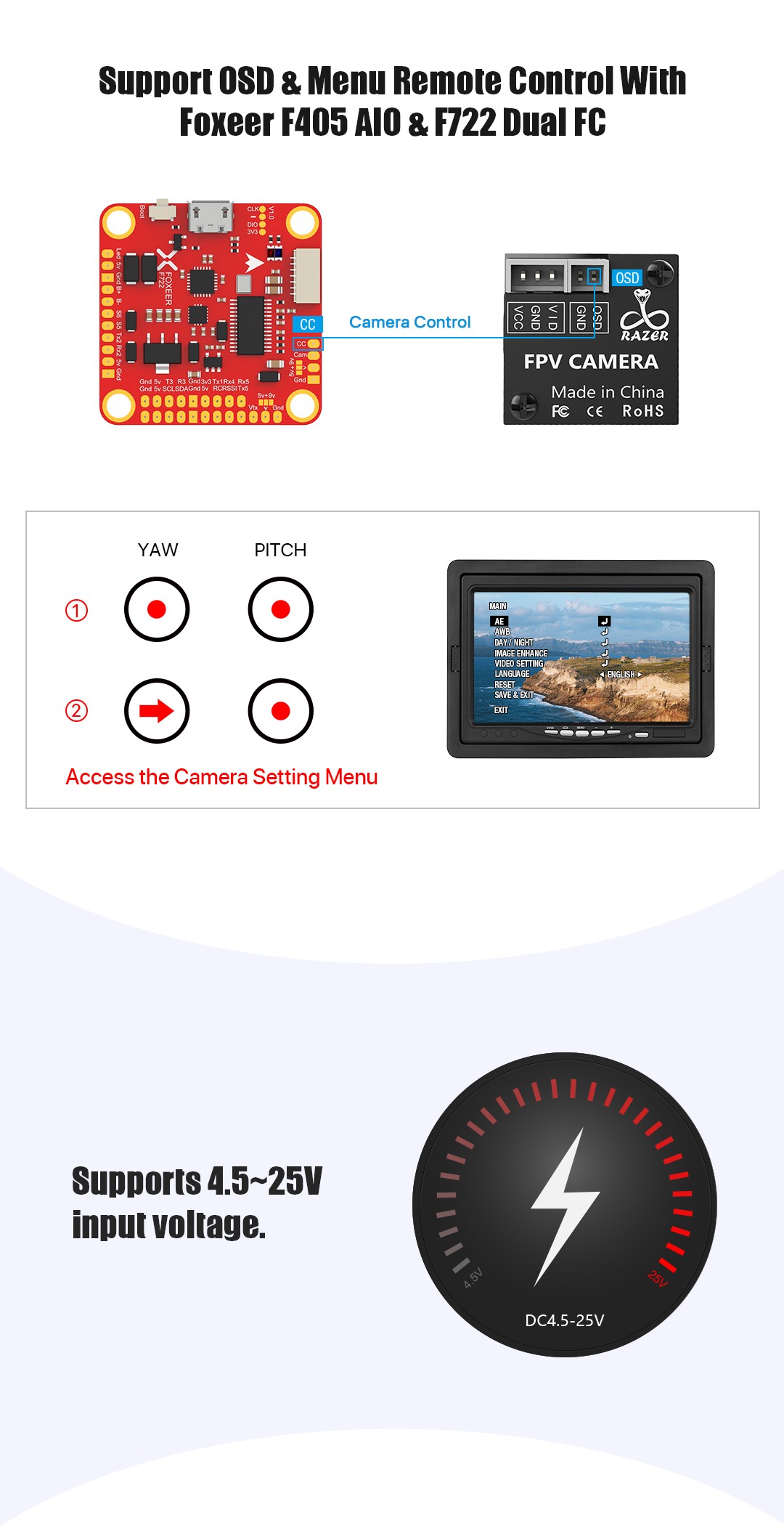

  • Supports OSD & Menu Remote Control

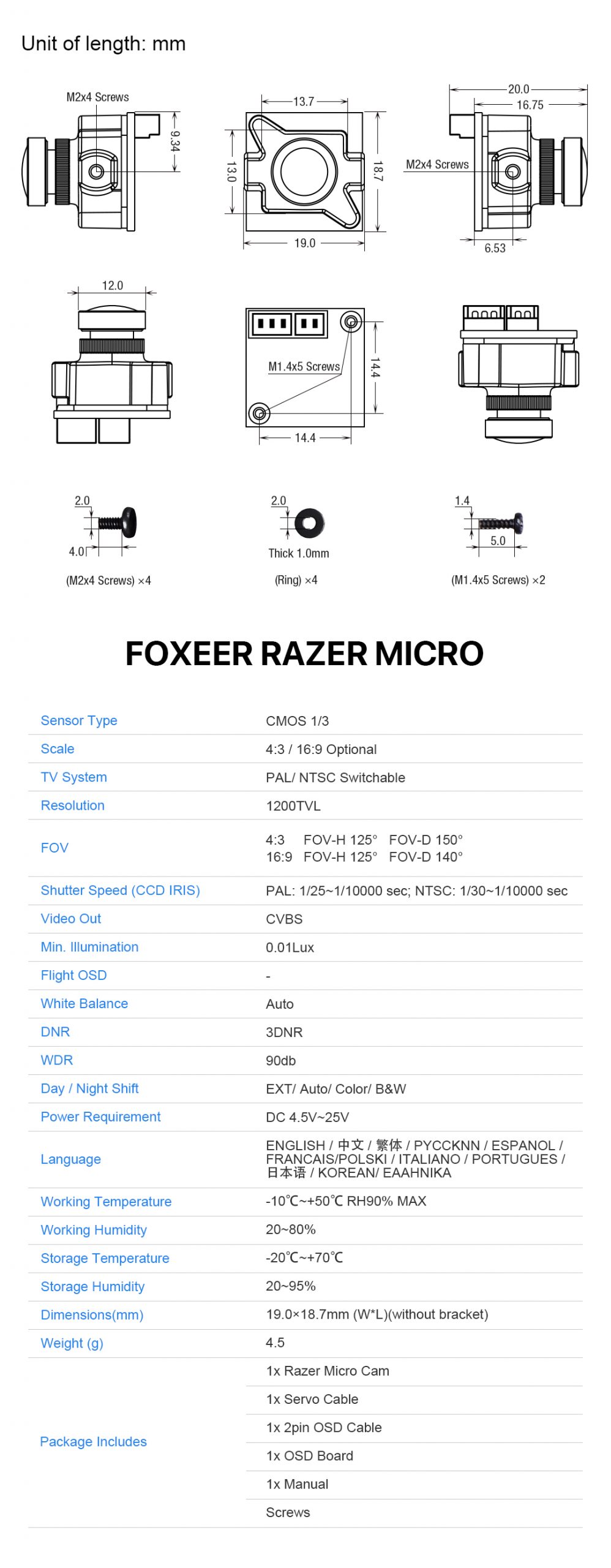

Specifications

    • Sensor Type: CMOS 1/3
    • Scale: 4:3
    • TV System: PAL/ NTSC Switchable
    • Resolution: 1200TVL
    • FOV: 4:3 FOV-H 125° FOV-D 15W, 16:9 FOV-H 125° FOV-D 145°
    • Shutter Speed(CCD IRIS): PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec
    • Video Out CVBS
    • Min. Illumination 0.01Lux
    • Flight OSD: –
    • White Balance: Auto
    • DNR: 3DNR
    • WDR: 90db
    • Day / Night Shift: EXT/ Auto/ Color/ B&W
    • Power Requirement: DC 4.5V-25V
    • Working Temperature: -10°C–,50°C RH 90%
    • MAX Working Humidity: 20-80%
    • Storage Temperature: -20°C-+70°C
    • Storage Humidity” 20-95%
    • Dimensions(mm) 19.0×18.7mm (W*L)(w/o bracket)
    • Weight: 4.5g



Includes



  • 1x Razer Micro Cam
  • 1x Servo Cable
  • 1x 2pin OSD Cable
  • 1x OSD Board
  • 1x Manual
  • 1x Screw Set



Weight 0.01875 lbs
Dimensions 3 × 3 × 2.5 in
Brand

Foxeer

Color

Black
