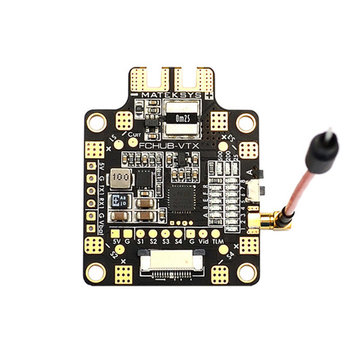

Matek FCHUB-VTX /W 5.8G Video Transmitter
Check out all of our Matek Products!
Simplify your FPV drone build with the innovative Matek FCHUB-VTX, a single board that intelligently combines a robust Power Distribution Board (PDB) with a feature-rich 5.8GHz Video Transmitter (VTX). This 2-in-1 solution is designed for builders who want a cleaner, lighter, and more integrated electronics stack. It’s the perfect drone part for reducing clutter and streamlining the assembly of your FPV drone kit.
Integrated PDB and VTX for Clean Builds

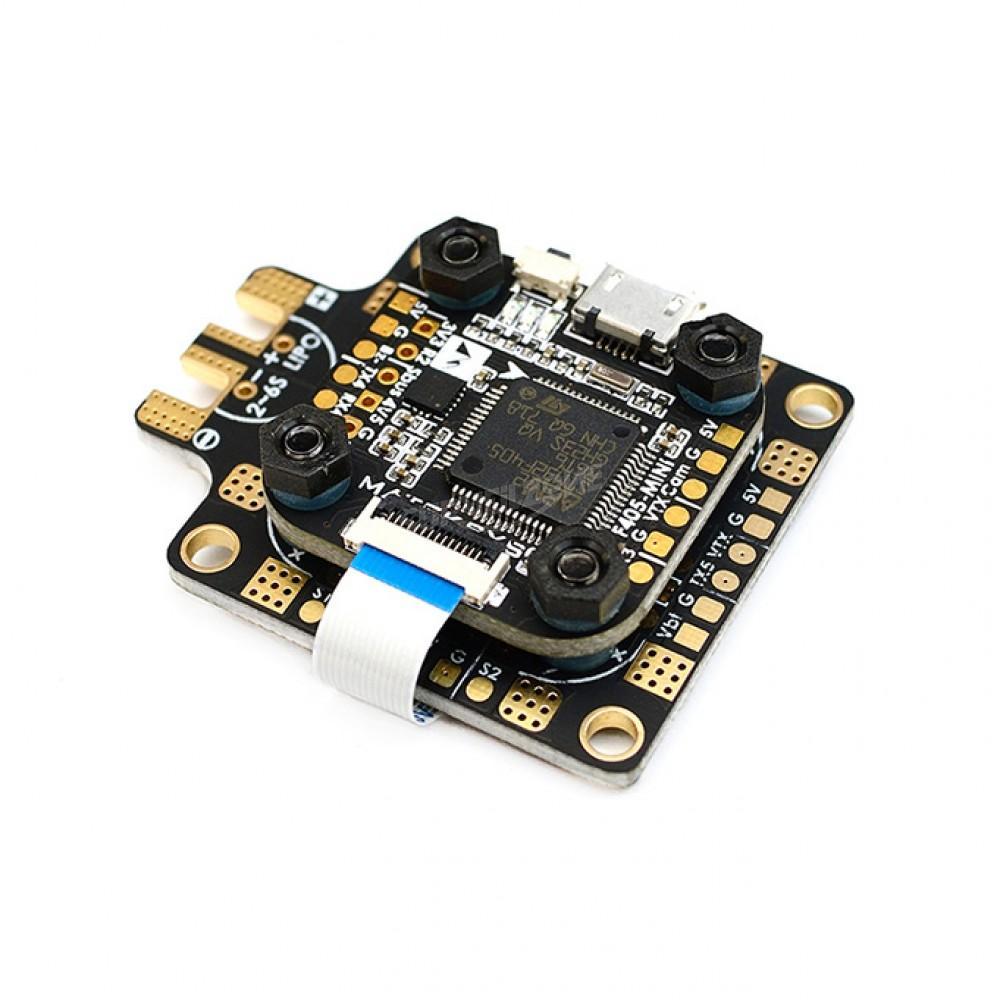

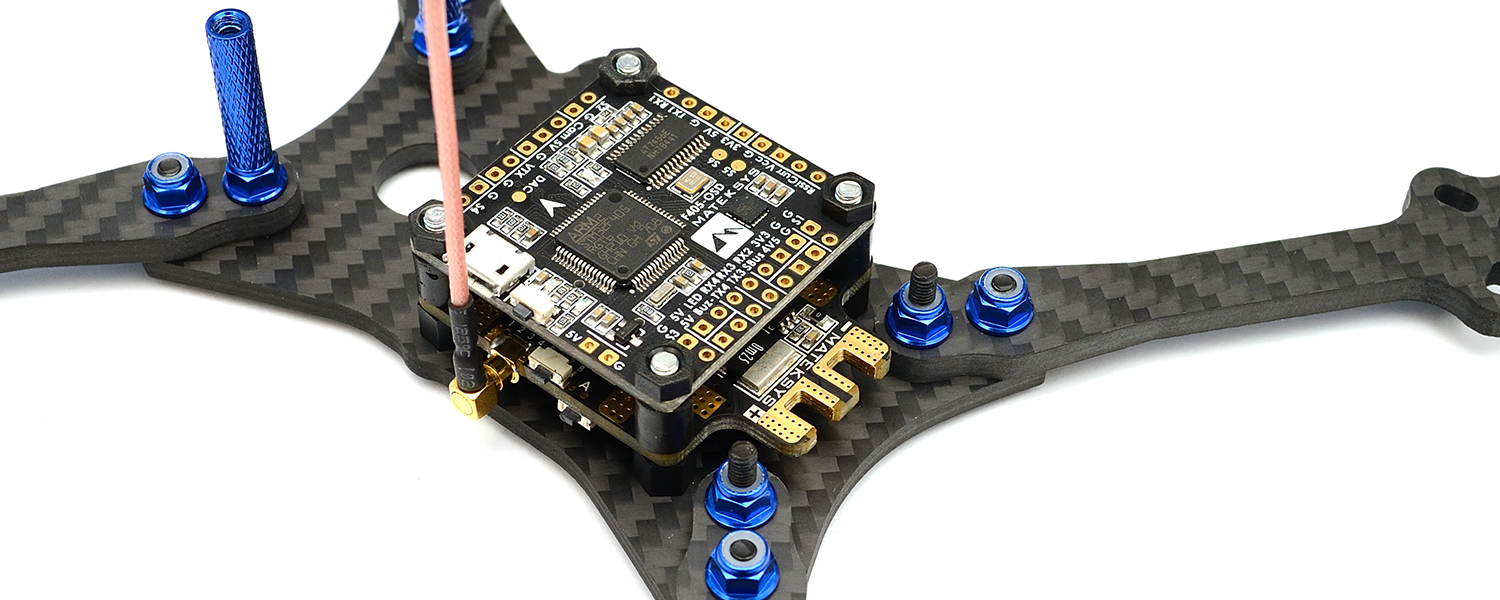

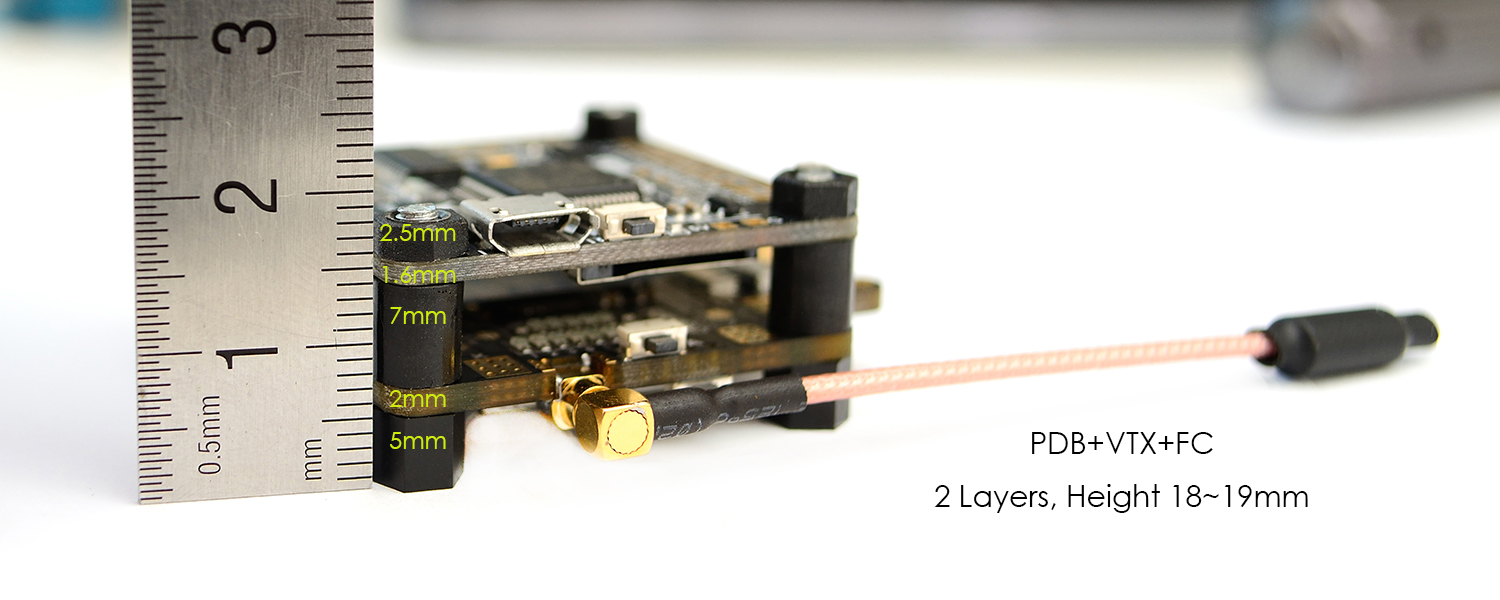

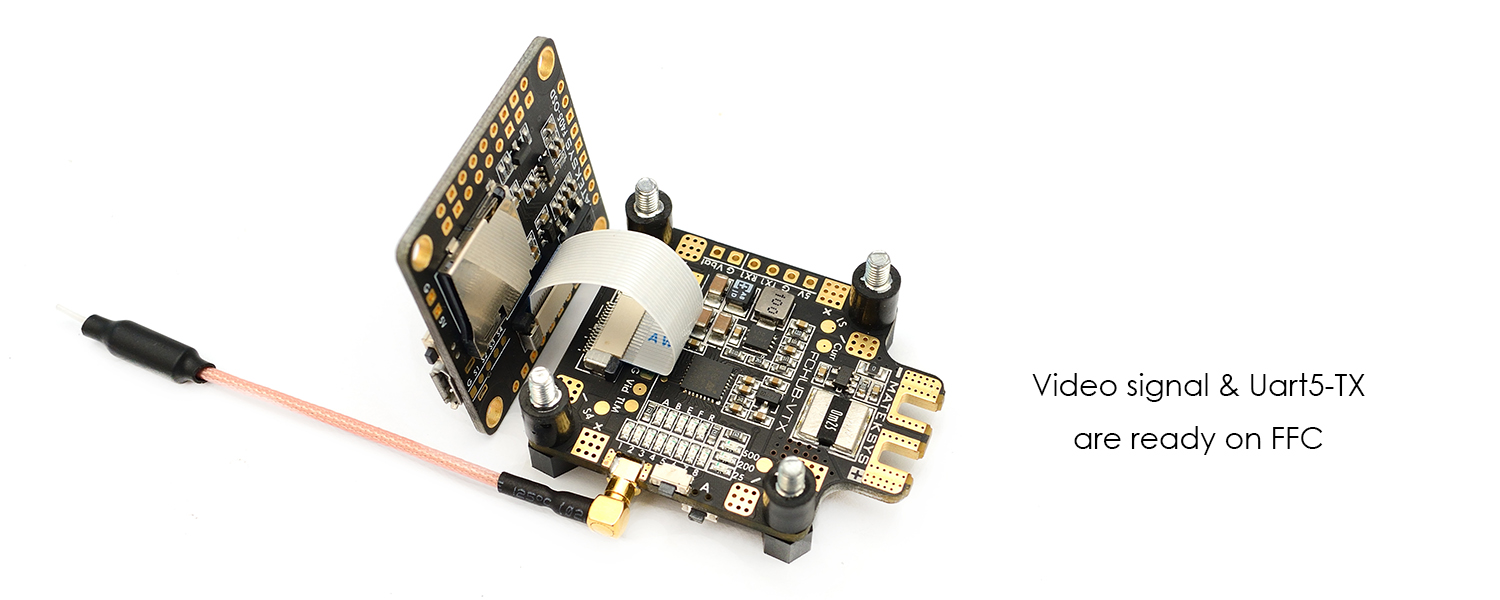

By combining two essential components onto a single 30.5×30.5mm board, the FCHUB-VTX eliminates complex wiring between your PDB and video transmitter. This not only saves valuable space and weight but also reduces potential points of failure. For users of Matek flight controllers like the F405-OSD, a convenient FFC ribbon cable allows for a completely solder-free connection, creating an exceptionally clean stack.
Powerful & Reliable Power Distribution
The PDB side of the board is built to handle demanding FPV drone setups. It can distribute power for up to 4x30A ESCs (46A burst) and supports a wide 2-6S LiPo input voltage. A built-in 184A current sensor allows for accurate power monitoring through your OSD, while a 5V/1A BEC provides clean, regulated power for your FPV camera or flight controller.
Feature-Packed 500mW Video Transmitter

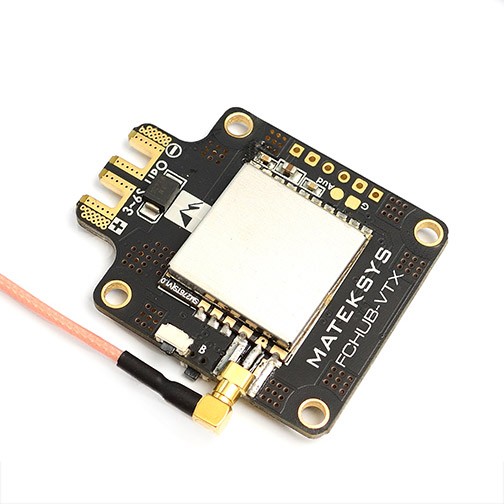

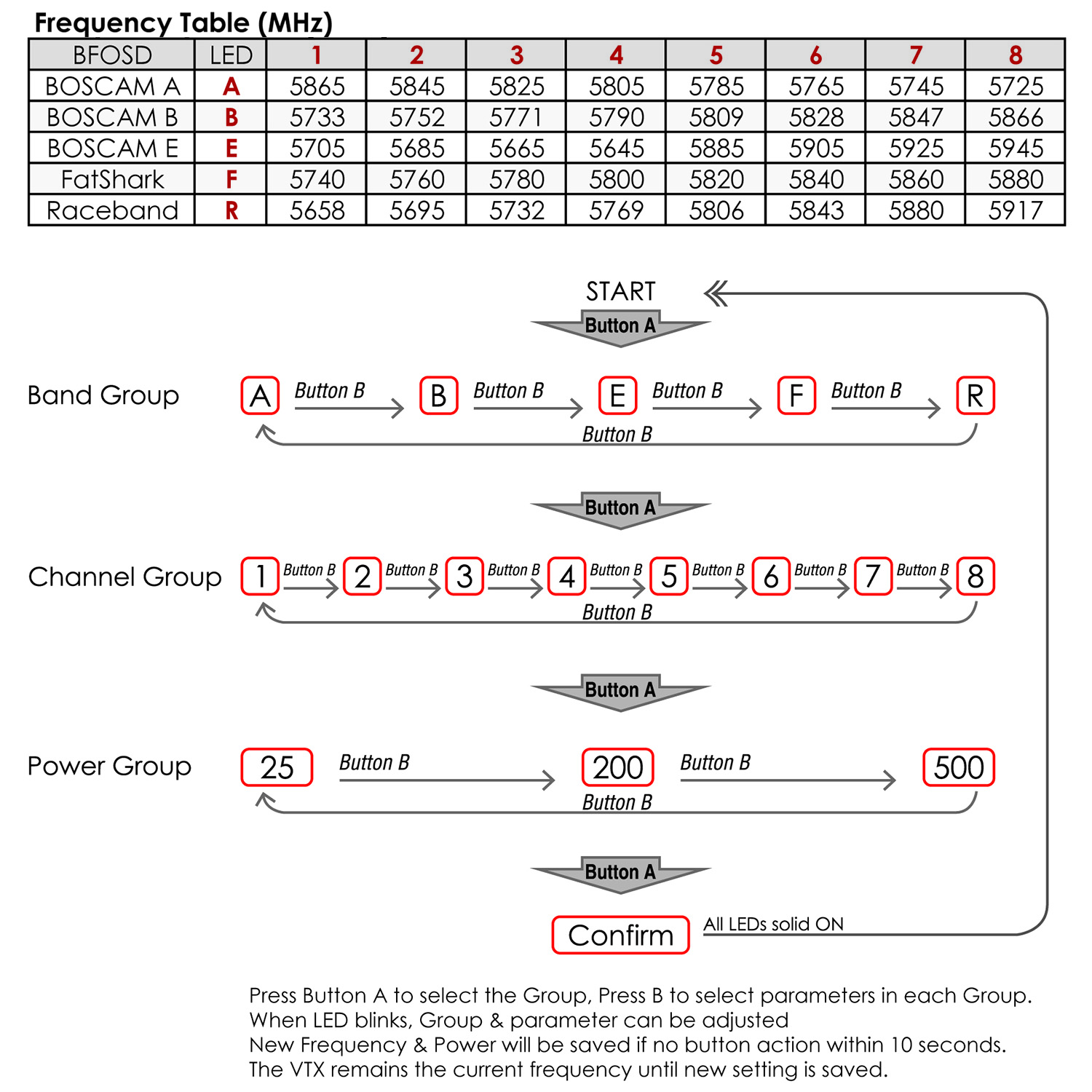

The integrated 5.8GHz VTX offers flexible power outputs, with switchable 25mW, 200mW, and 500mW levels to suit any flying environment. It supports 40 standard channels and can be controlled either by a traditional onboard button or, more conveniently, via your flight controller’s UART (BFCMS/Betaflight OSD). The MMCX connector provides a durable and secure connection for your antenna.
Specifications
- Input Voltage: 6V – 27V (2-6S LiPo)
- PDB Continuous Current: 4x 30A
- PDB Burst Current: 4x 46A (5 seconds)
- Current Sensor: 184A (Scale 179)
- BEC Output: 5V @ 1A
- VTX Output Power: 25mW / 200mW / 500mW (Switchable)
- VTX Control: Onboard Button or BFCMS (Betaflight OSD)

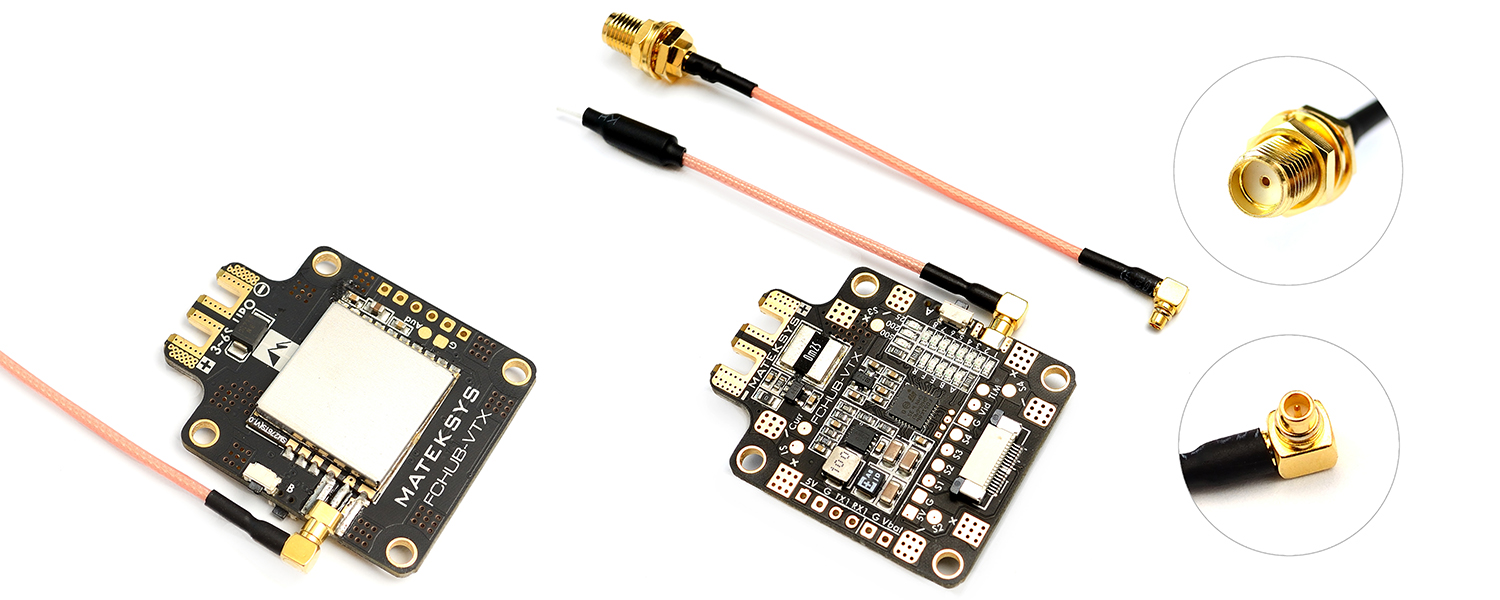

- Antenna Connector: MMCX
- Mounting Holes: 30.5mm x 30.5mm

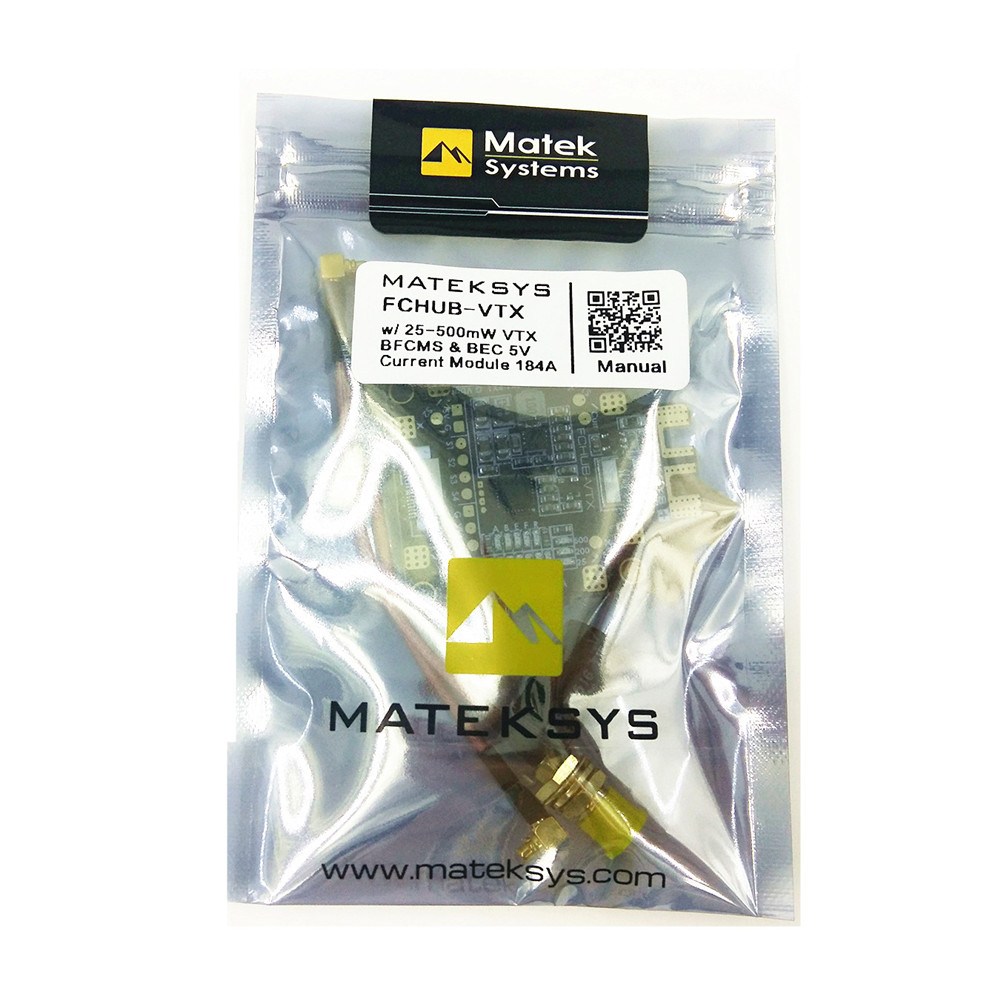

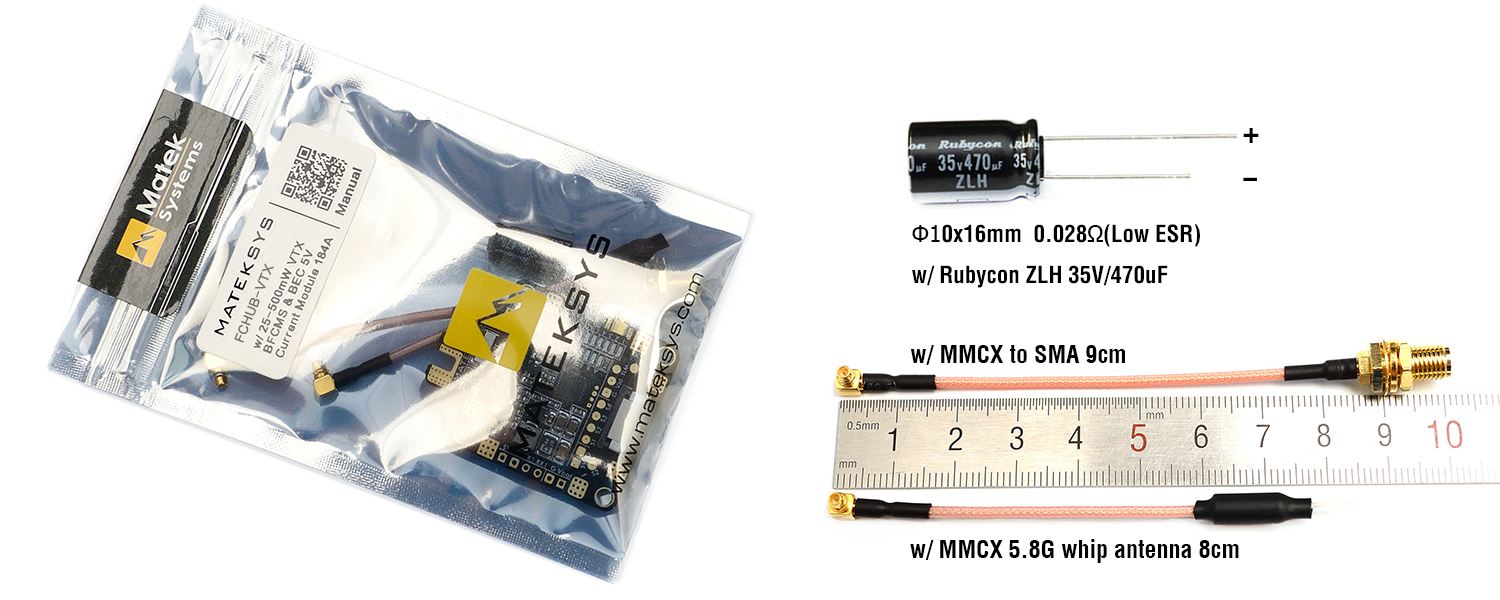

What’s in the Box?
- 1x Matek FCHUB-VTX Board
- 1x MMCX to SMA Female Pigtail Cable (9cm)
- 1x MMCX 5.8G Whip Antenna (8cm)
- 1x Rubycon ZLH 35V/470uF Low ESR Capacitor
