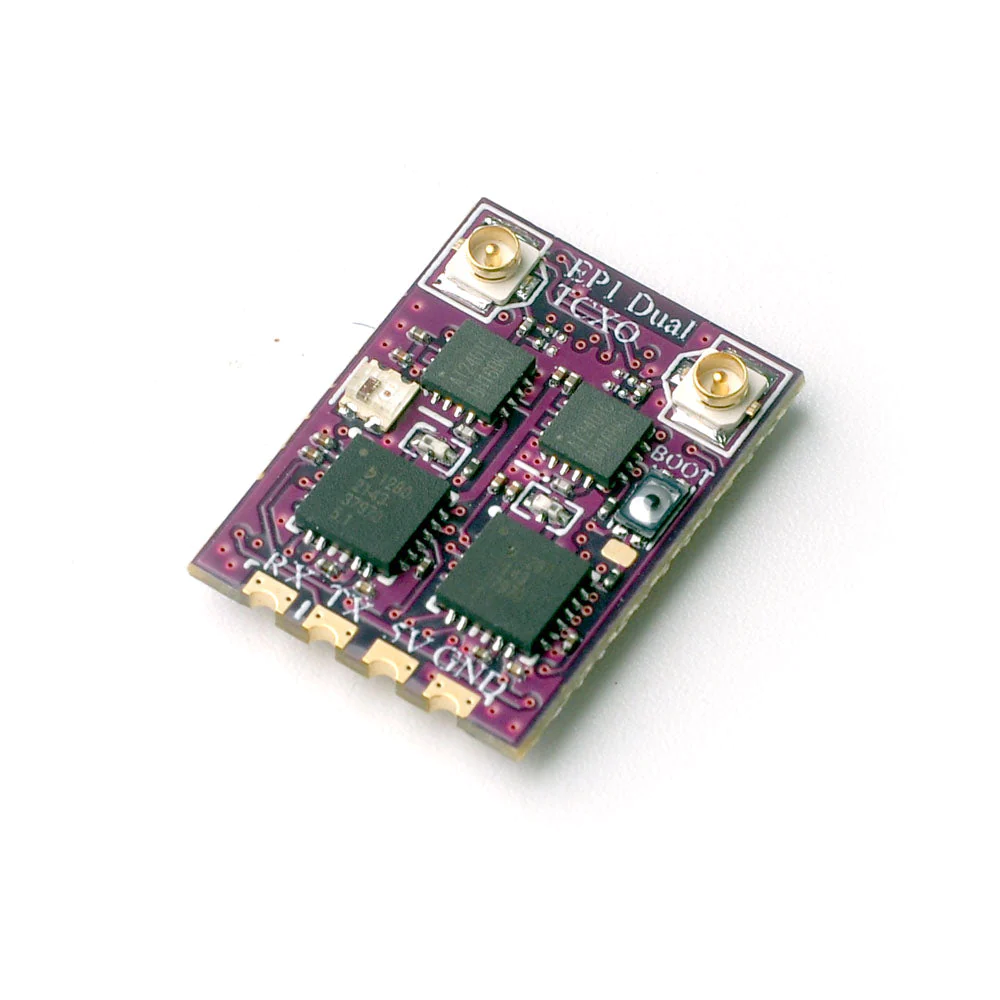

Happymodel 2.4G ExpressLRS EP1 Dual TCXO Receiver
Check out all of our other HappyModel products! Also, take a look at all of our Radio Receivers, and all of our ELRS-compatible products!
EP1 Dual ELRS receiver is the hottest ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver applies a “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXOs very reliable.
Specifications:
- Type: ISM2.4GHz
- ESP32 PICO D4, dual SX1280(SX1281)
- Antenna connector: IPEX MHF 1/U.FL
- RF Frequency: 2.4GHz (2400~2480MHz)
- Telemetry power: >19dbm
- Receiver protocol: CRSF
- Input voltage: +5V DC @ “+” pad
- PCB size: 19mm x 14mm

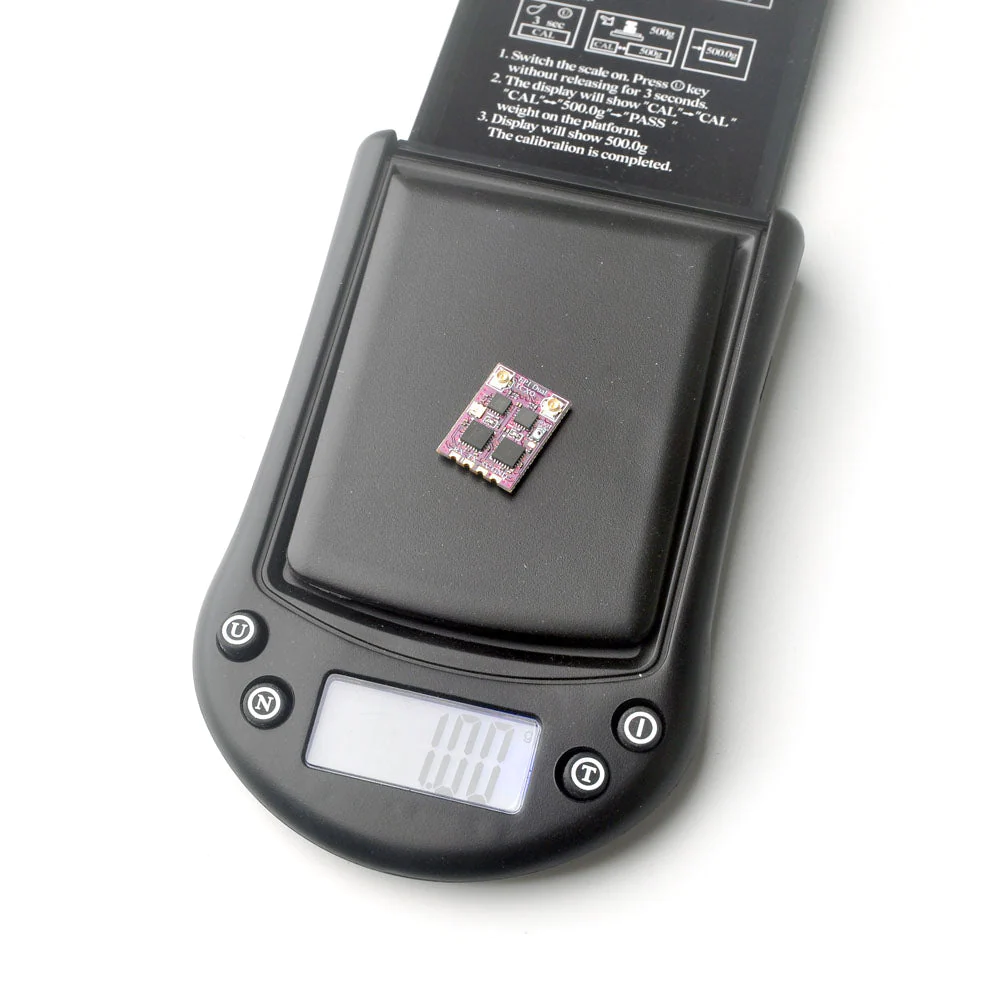

- Weight: 1gram exclude antenna
- Built-in a TCXO (temperature-compensated crystal oscillator)
Firmware:
- Default Firmware out of factory: Unified_ESP32_2400_RX Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
- Firmware update via UART or WIFI
Package Includes:

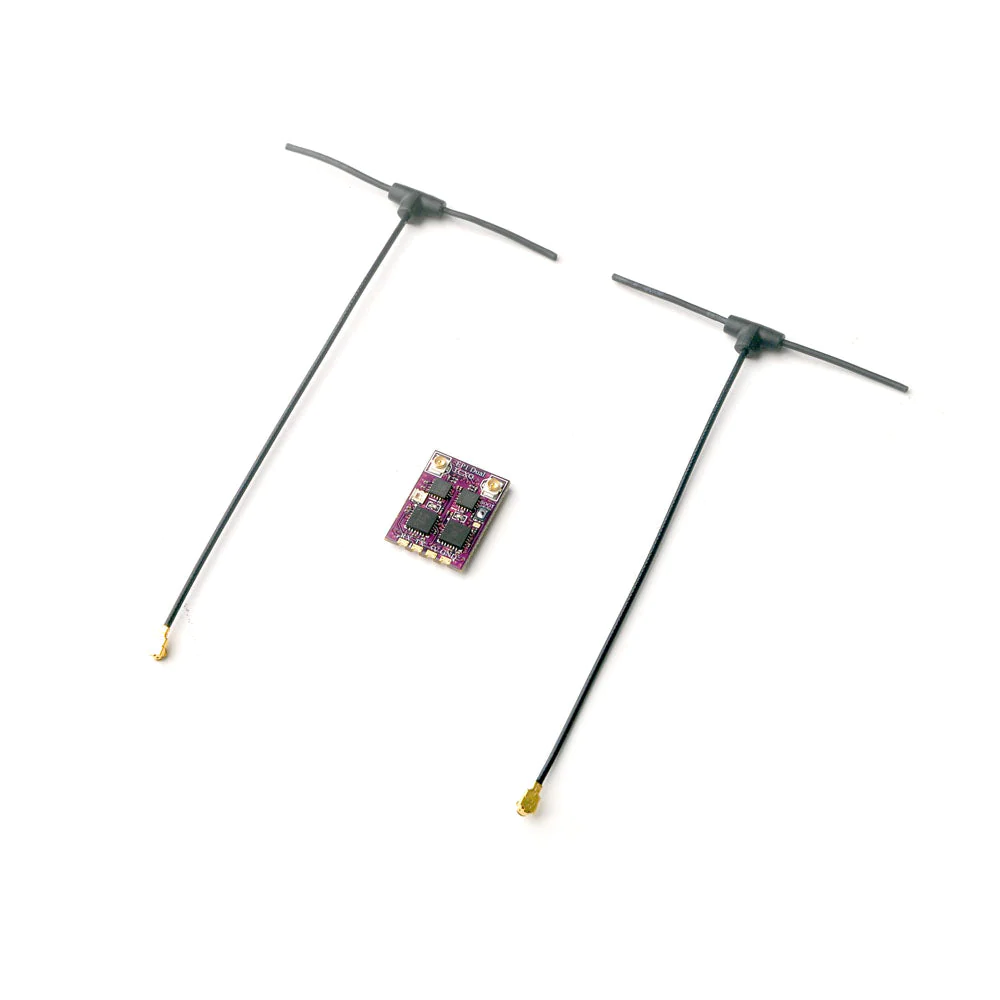

- 1 x Happymodel 2.4G ExpressLRS EP1 Dual TCXO RX True Diversity Receiver Module
