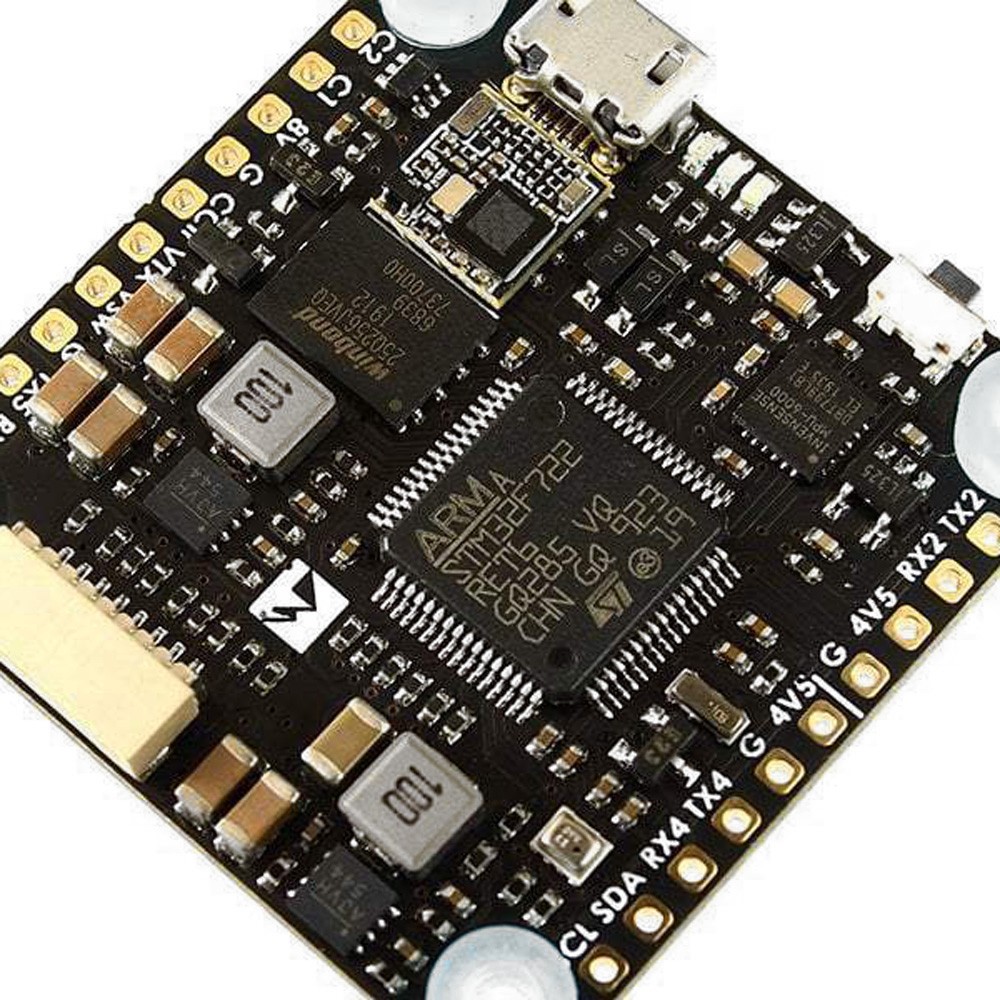

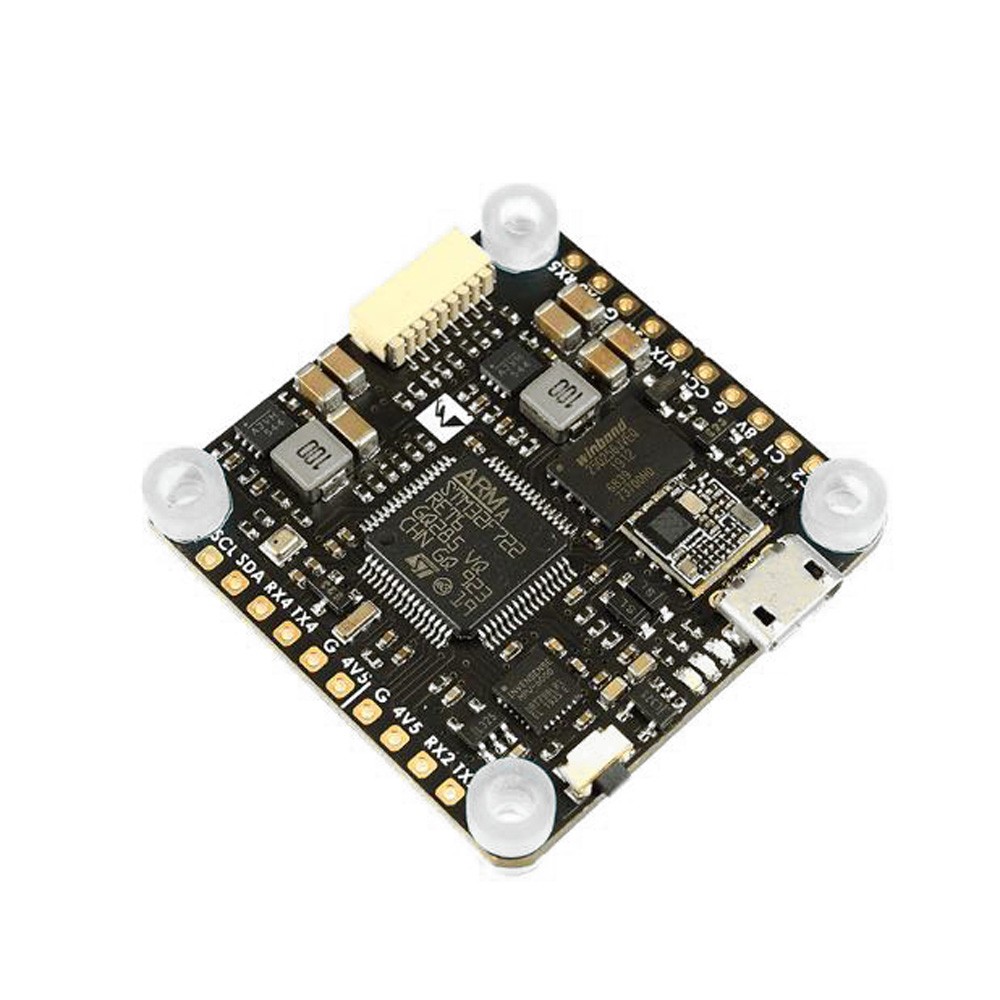

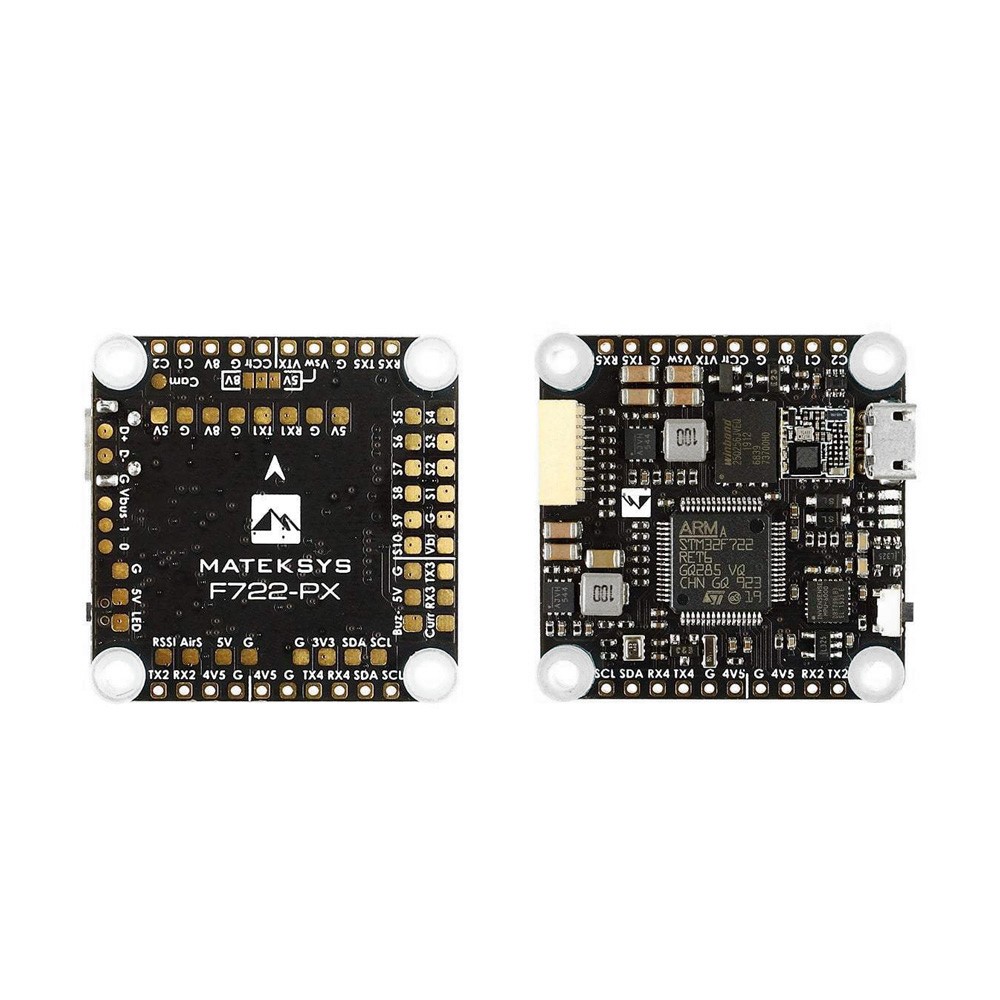

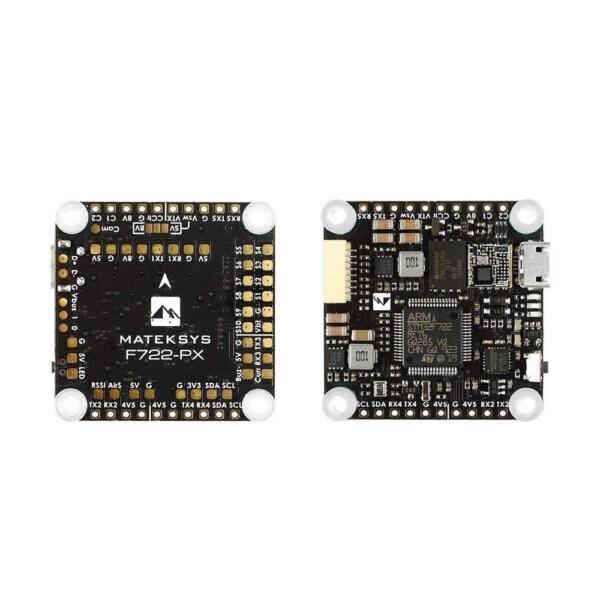

Matek F722-PX Flight Controller & OSD
Check out all of our Matek Products!
FC Specifications
- MCU: 216MHz STM32F722RET6
- IMU: MPU6000 (SPI)
- Baro: BMP280 (I2C)
- OSD: Pixel OSD/FrskyOSD (Uart6)
- Blackbox: 32M-byte Flash memory (SPI)
- 6x Uarts with built-in inversion
- 1x Softserial_Tx option
- 10x Dshot/PWM outputs
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, AirSpeed)
- 1x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1/S2/S3/S4)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Switchable Dual Camera Inputs
- Switchable 5V/8V for VTX
- PWM camera control: Yes
- TR/SA VTX control: Yes
- WS2812 Led Strip: Yes
- Beeper: Yes
- RSSI: Yes
- Analog Airspeed sensor: Yes
- Digital Airspeed sensor: Yes
Power
- Input: 9~36V (3~8S LiPo)
- BEC: 5V 2A cont. (Max.3A)
- BEC: 8V 2A cont. (Max.3A)
- LDO 3.3V: Max.200mA
- Battery Voltage Sensor: 1:10 (Scale 110)
- No Current Sensor built-in
FC Firmware
- BetaFlight unified target: MATEKF722HD(MTKS)
- INAV target: MATEKF722PX
Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Dimensions: 36 x 36 x 5 mm
- Weight: 6.5g
Including
- 1x FC F722-PX
- 6x Silicon grommets M4 to M3
- 1x SH1.0_8pin cable 5cm
- 2x SH1.0_8pin connectors
