Lucid Wing AIO 2-6S 50A For TBS Chupito

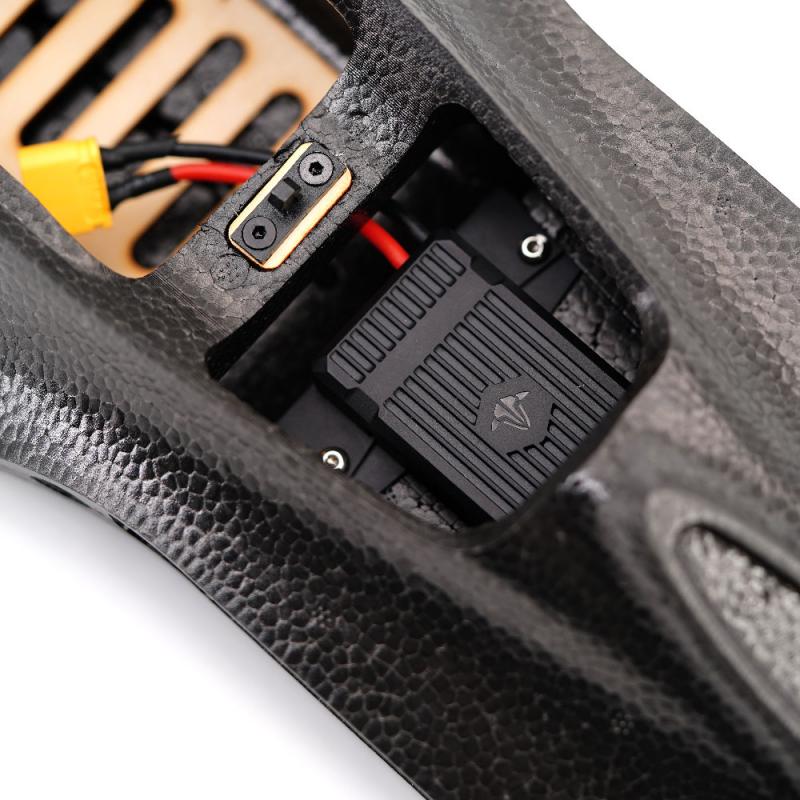

This AIO is intended for TBS Chupito.
Please Check Out Our Other TBS Products!

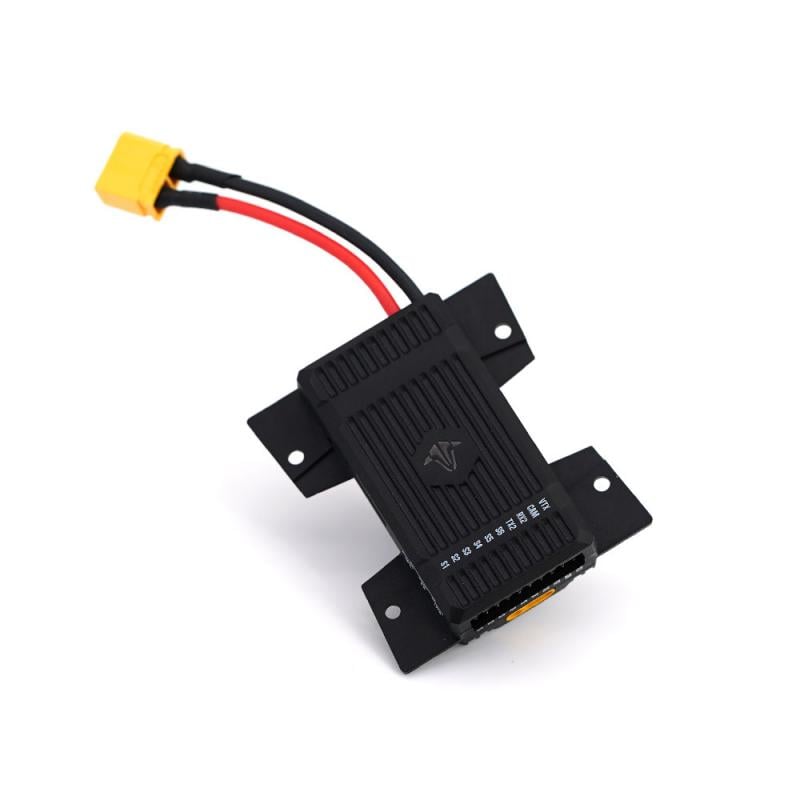

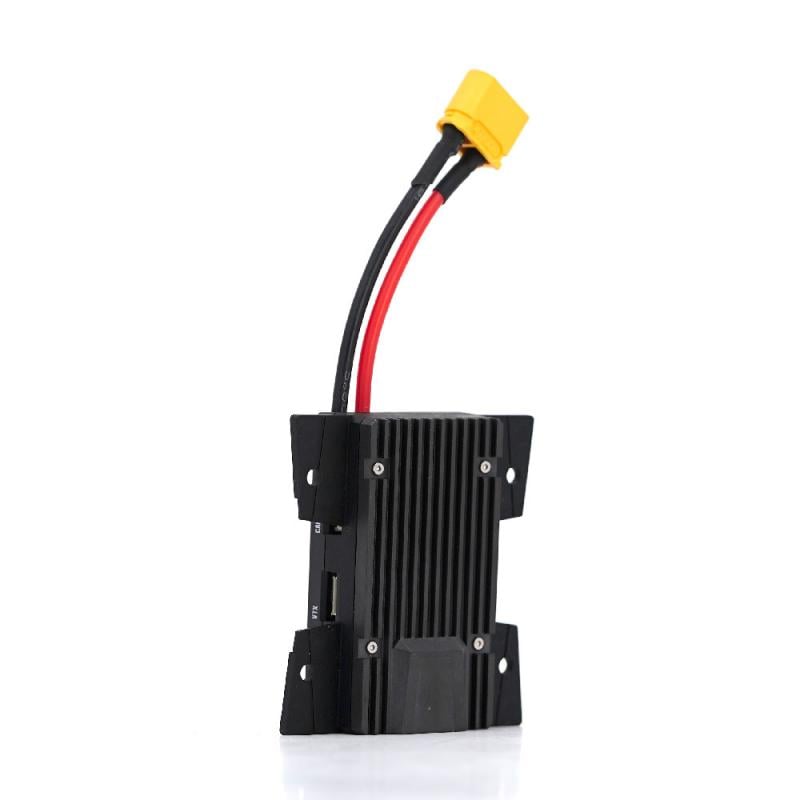

The TBS Lucid Wing AIO is your quick, plug-and-play solution for building high-performance FPV flying wings. This all-in-one board integrates a flagship-level STM32H7 flight controller with a powerful 50A AM32 ESC, all housed in a sleek, heat-dissipating case. With dedicated plug-in connectors for all your peripherals, the Lucid Wing AIO takes the chore out of building and gets you in the air faster and easier than ever before.

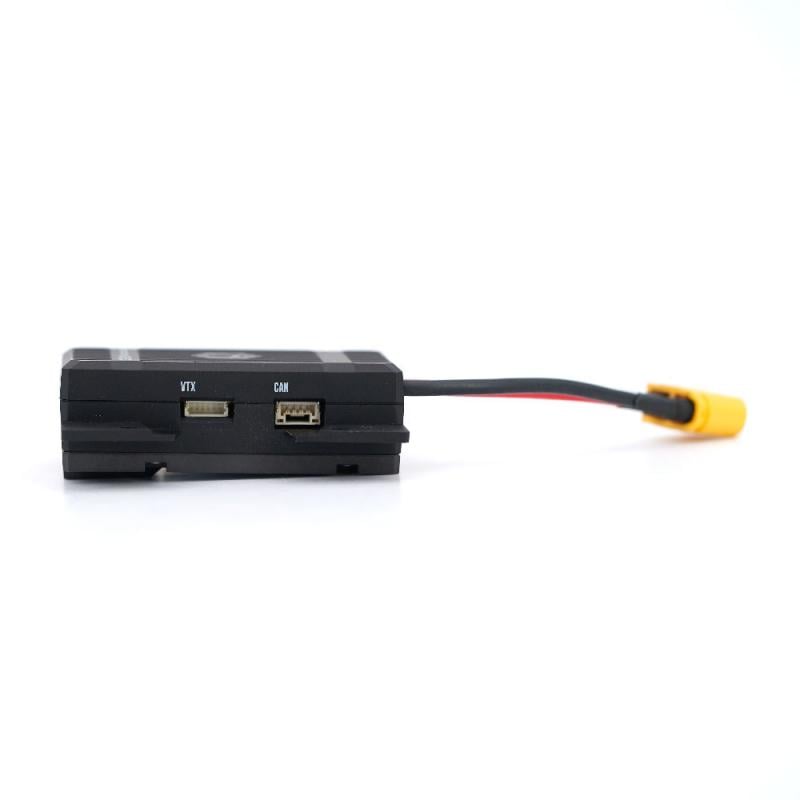

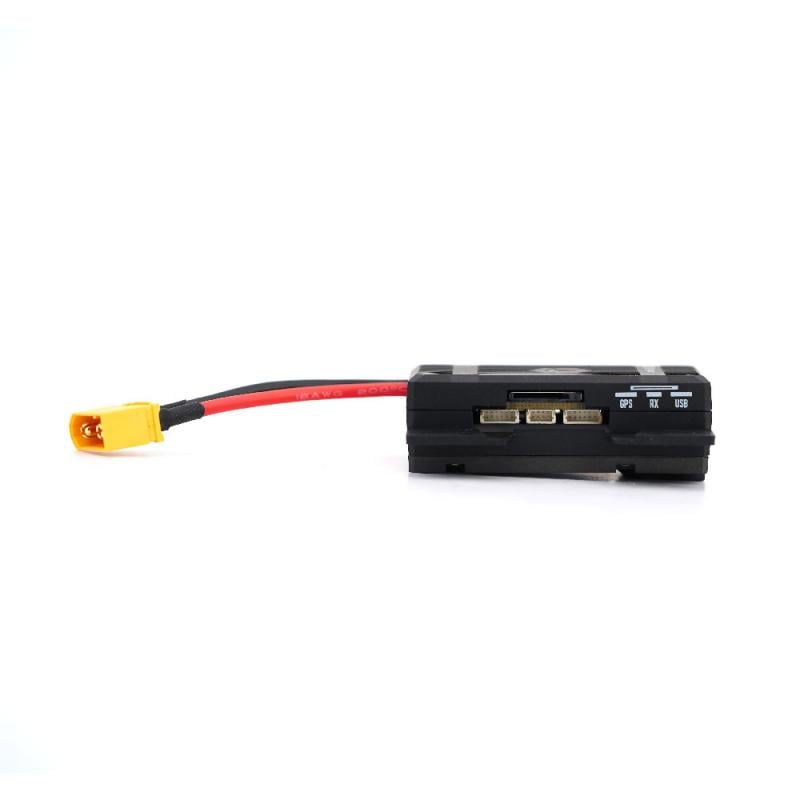

The Ultimate Plug & Play Wing FC Designed for both seasoned pros and enthusiastic newcomers, the Lucid AIO simplifies the entire build process. The board is enclosed in a protective case with clearly labeled JST connectors for your servos, VTX, camera, GPS, and even an external USB port. This plug-and-play design minimizes soldering and ensures a clean, reliable, and easy-to-maintain setup for wings with up to a 1m wingspan.
Flagship-Level Performance This AIO is packed with the most powerful hardware available. It’s driven by a blazing-fast STM32H743 MCU running at and features a dual ICM42688 gyro setup for exceptionally clean and accurate flight data. The integrated 50A ESC runs on modern 32-bit AM32 firmware, delivering smooth, efficient, and powerful performance on up to 6S LiPo. It’s the perfect core for a high-speed or long-range FPV wing.
Key Features:
- All-in-One Wing Solution: Integrates an H7 FC and a 50A 6S ESC into a single, easy-to-use board.

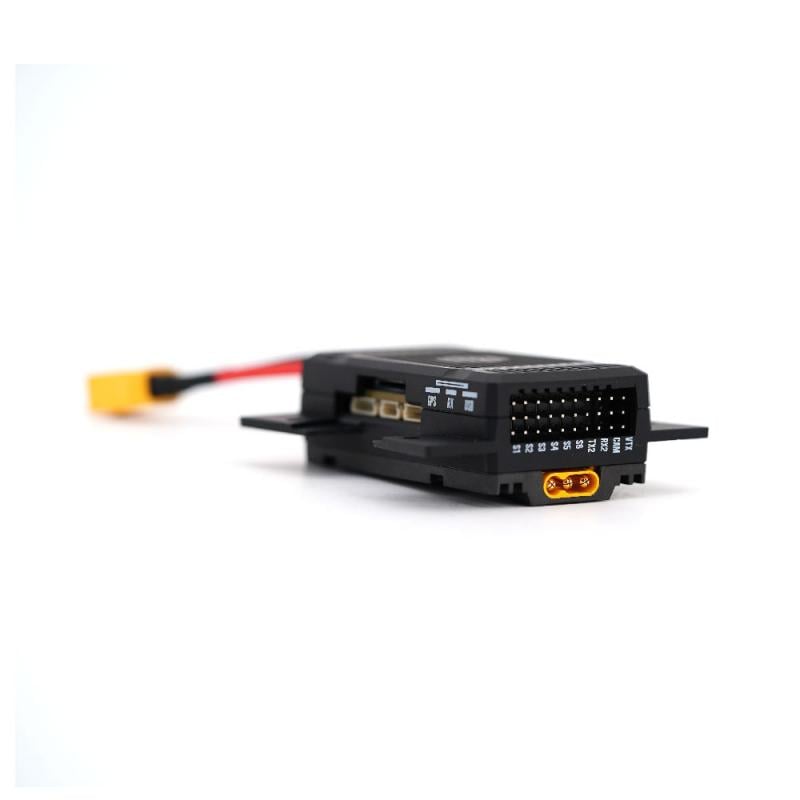

- Plug & Play Connectors: Dedicated JST ports for servos, VTX, camera, GPS, and more for a solder-free build.
- Powerful H743 Processor: A top-of-the-line MCU provides the processing power for advanced features in ArduPilot and INAV.
- Dual Gyro System: Two ICM42688 gyros provide redundant, high-quality data for ultimate stability.
- 50A AM32 ESC: A powerful 32-bit ESC provides smooth, reliable power for demanding setups.
- Powerful Servo BEC: A dedicated, switchable 5A BEC provides robust power for your servos and video system.
Firmware & Setup Notes:
- Firmware Targets: ArduPilot:
TBS_LUCID_H7_Wing/ INAV:TBS_LUCID_H7_WING_MINI - INAV Users: To ensure proper operation, you must apply the recommended CLI settings provided by TBS to correctly map the motor and servo outputs.
- DJI OSD: Fully compatible via a spare UART port. A plug-and-play DJI O3 cable is included.
Specifications (Highlights)
- MCU: STM32H743 @
- Gyro: Dual ICM42688
- Blackbox: MicroSD card slot
- Input Voltage: (2 to 6S LiPo)
- ESC Continuous Current:
- ESC Firmware: AM32
- Servo BEC: @ (Switchable)
- 5V BEC: for FC and peripherals
- UARTs: 5 External, 2 Internal

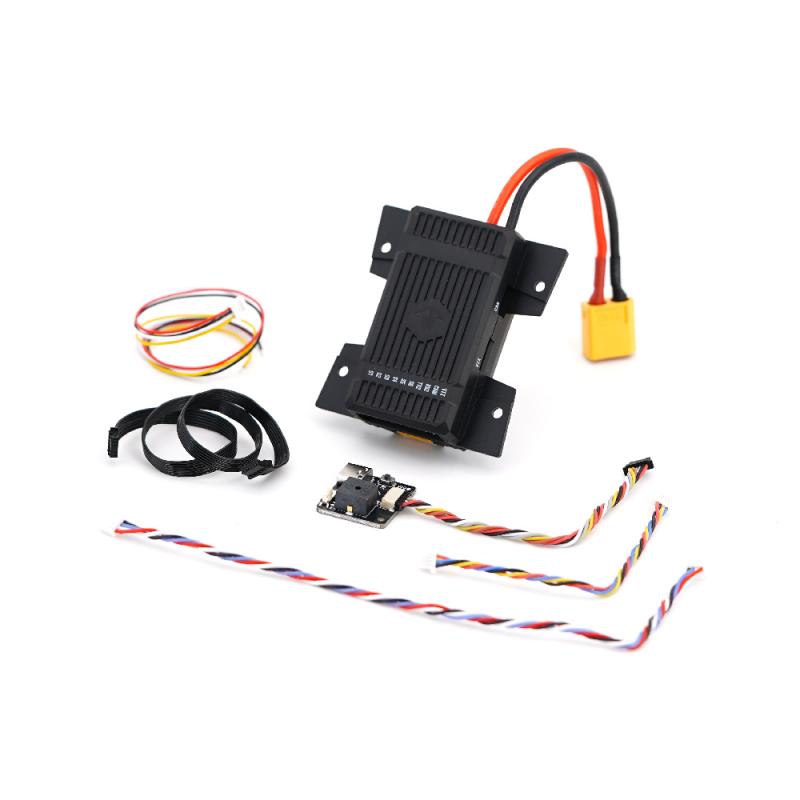

Includes
- 1x TBS Lucid AIO Wing FC
- 1x FC-to-USB Board & Cable
- 1x FC-to-VTX Cable
- 1x DroneCAN Cable
- 1x DJI O3 Cable (Plug & Play)
- 1x Full set of peripheral connector cables
Downloads
