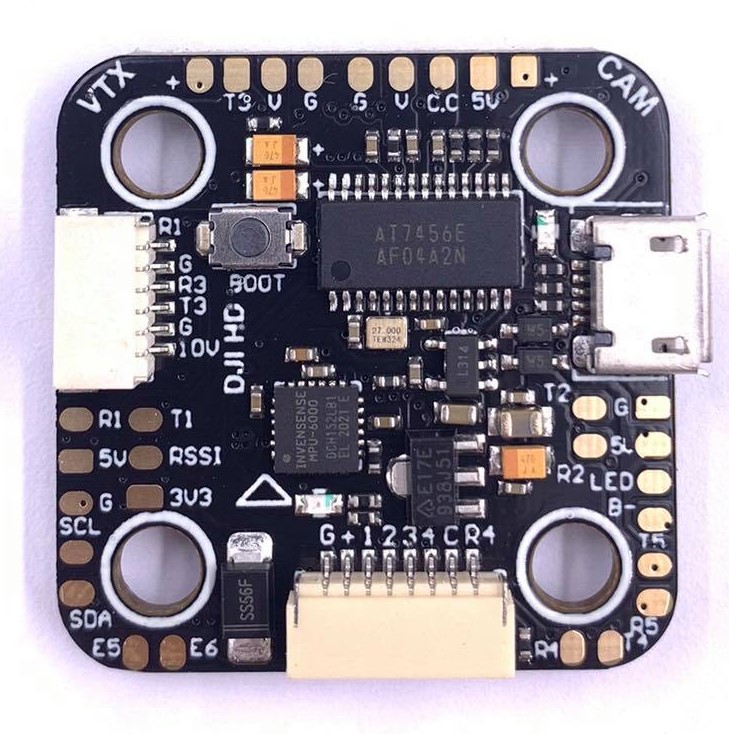

Aikon F7 Mini v3 Flight Controller
See all of our Aikon Products!
The Aikon flight controller is a new generation flight controller designed specifically to work with our Aikon 4-in-1 ESCs. We’ve packed all the greatest features into one seamless flight experience.
What makes the Aikon F7 amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and black box
- Software-controlled VTX power switch (assigned to USER1 mode by default)
- LED outputs
- Quick connection cable for 4-in-1 ESCs
- On-board high overhead voltage regulators up to 6S (50v peak for voltage spikes)
- 10v 1.5A regulator for DJI HD system
- DJI Quick Connect Port
Aikon F7 MINI V3 specifications
Battery | 2-6s |
Mount Hole2 | 20*20mm |
Firmware | Betaflight AIKONF7 Target |
MCU | STM32F722 |
IMU | MPU6000 |
Blackbox | SPI 16MB |
Weight | 8g |
