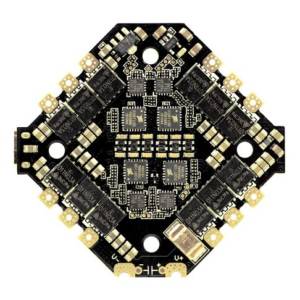

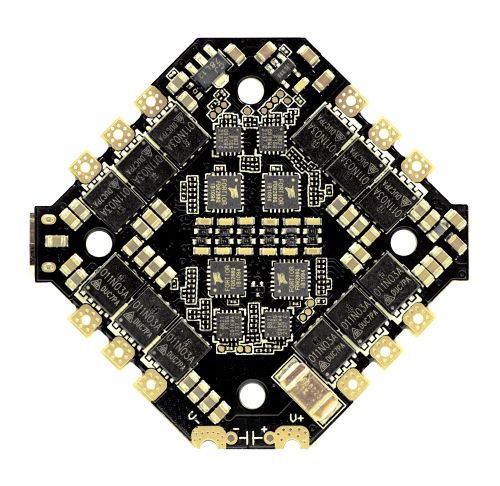

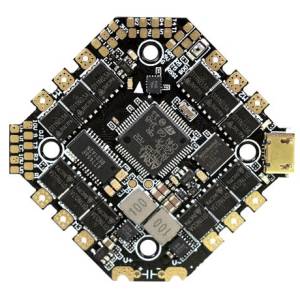

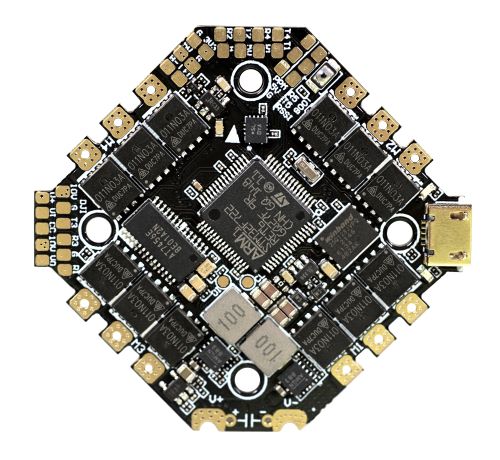

Aikon F7 60A All-In-One Flight Controller
Check out all of our Aikon Products!
The Aikon flight controller is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications. We’ve packed all the greatest features into one seamless flight experience.
What makes the Aikon AIO amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and BlackBox
- Software-controlled VTX power switch (assigned to USER1 mode by default)
- LED and buzzer outputs (LED input doubles as PPM)
- On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
- 10v 1.5A voltage regulator for DJI HD system
- Large 5x6mm high current MOSFETs.
Aikon F7 AIO specifications
Battery | 3-6s |
Mount Holes | 25.5*25.5mm |
Flight Control Firmware | Betaflight AIKONF7 Target |
MCU | STM32F722 |
IMU | BMI270 (interrupt pin connected) |
Blackbox | SPI 16MB |
ESC Firmware | BLHeli_S (Supports BlueJay) |
Constant Current | 60A |
Burst Current | 70A |
Current Sensor Scale | 400 |
Weight | 14g |
