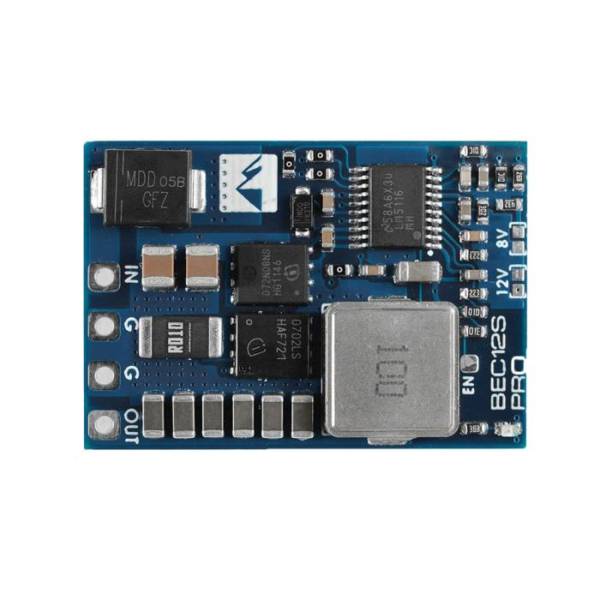

MATEK 12S PRO BEC 5V/8V/12V-5A OUTPUT 9-55V INPUT
The MATEKSYS 12S Pro BEC boasts an extensive 9-55V input range, offering three distinct output voltages: 5V, 8V, and 12V. It consistently supports up to 5A output current and can manage peak currents as high as 9A. Additionally, this voltage regulator comes with a synchronous buck converter, thermal protection, a 2-second tolerance for output short-circuits, overcurrent safeguards, and an ability to self-recover, among other features.
Dive into our BEC/PDB category and explore our Matek assortment!
- Extensive 9V to 55V input range bolstered with TVS protection.

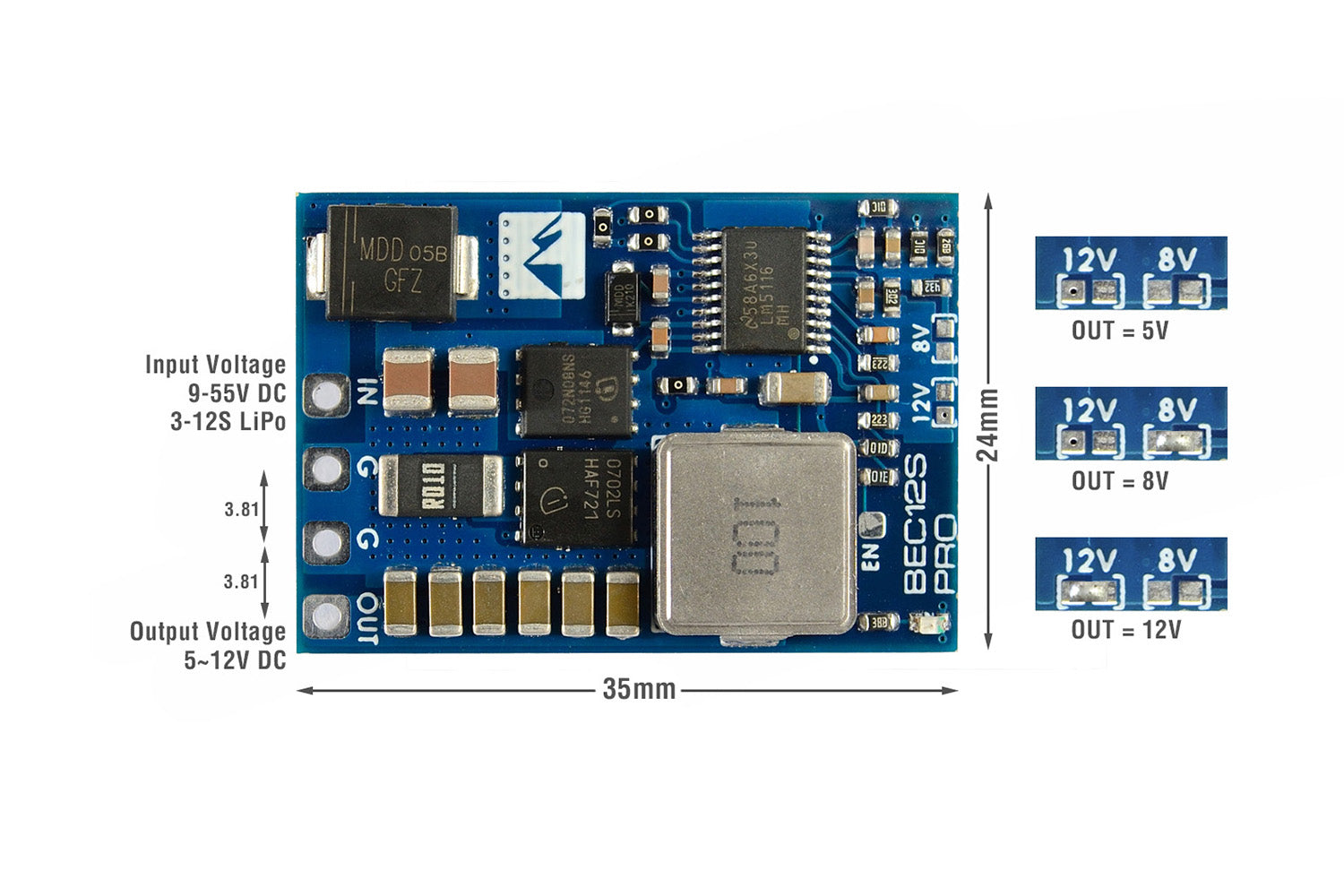

- Trio of output voltages: 5.2V (default), 8V, or 12V.
- Efficient synchronous buck converter, ranging between 88% and 96%.
- Consistent support for output currents up to 5A, with a 9A peak tolerance.
- Output disturbance: 30mV (with 50V input, outputting 5.2V @ 5A) and 60mV (with 50V input, outputting 12V @ 5A).
- Dormant current draw between 5 and 10mA.
- Absence of protection against reverse-input voltage.
- Equipped with thermal protection.
- Endures output short-circuits for up to 2 seconds.
- Features overcurrent safeguards and self-recovery mechanisms.
- Dropout voltage stands at 2V (A minimum of 14V input is necessary for a steady 12V output).
- Pin spacing: 3.81mm.
- Dimensions & Weight: 35 x 24 x 5.5mm and weighing 5g. INCLUDES:
- 1 Matek 12S Pro BEC with 9-55V input and 5V/8V/12V-5A output capabilities.
