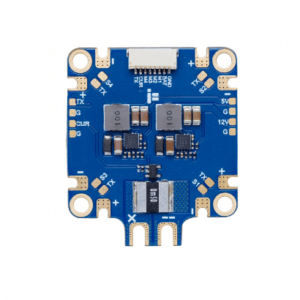

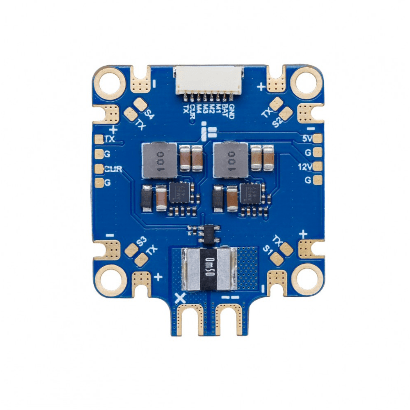

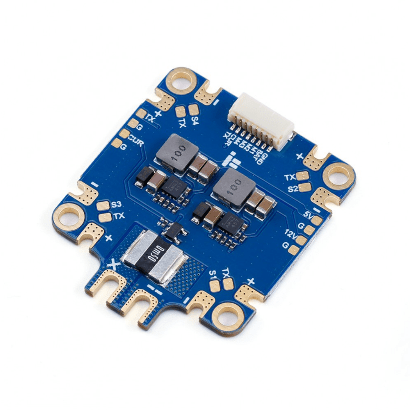

iFlight SucceX 2-8S PDB w/ 5V/12V BEC
The Succex Power distribution board is designed for high voltage and high current applications. It consists of 2+2+3+3 layers of heavy copper to sustain maximum current demand. This PDB can sustain up to a maximum total 330A. Also features 12V 3Amp and 5V 3Amp regulators with a maximum of 8S (36V) input.Â
In addition, it can also collect the signal port of each single ESC to an 8pin port, which can be directly inserted to the iFlight SucceX series flight control, to provide the most convenient and efficient flight experience.
Features:
– Support dual BEC output
– Integrated TX telemetry port and the motor signal port
– The current sensor supports up to total 330A
– High voltage and high current resistance
– Integrated motor signal, current, telemetry, power supply ports on an 8-pin port
Specifications:
– Input Voltage: 2-8S (5-36V)
– BEC: 2-5S: 5V 3A/12V 3A
      5-8S: 5V 2.5A/12V 2A

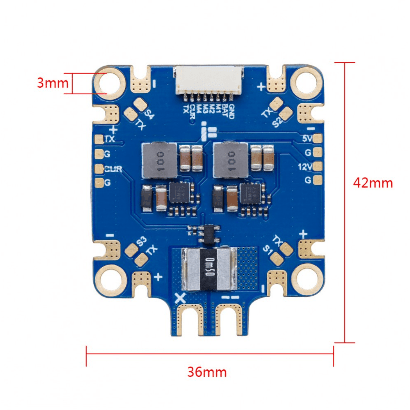

– Mounting hole distance: 30.5 * 30.5 mm
– Dimension: 36 * 36 mm
– PDB: 4*70A Max.4*82.5A

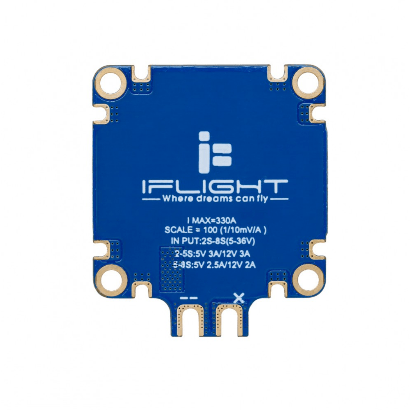

– Current Sensor 330A
– SCALE: 100 (1 / 10mV / A)
– Telemetry output: support

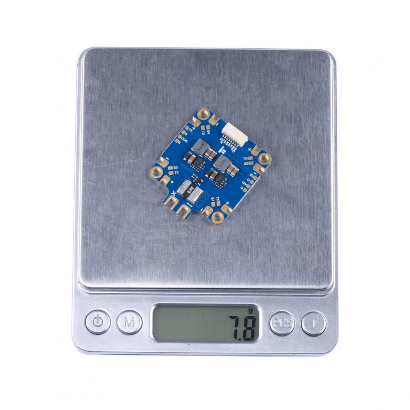

– Weight: 8.7 grams
Package Includes:
– iFlight SucceX 2-8S PDB *1pcs
– Connecing Cables * 1 setÂ
