BetaFPV 4S Whoop Cable Pigtail (XT30)

This power cable with XT30 connector is specially made for 4S whoop drone, soldering with the capacitor specification with 25V/220μF/20%, for protecting ESC board, reducing the defective rate caused by the instantaneous high voltage, Its supportive power is up to 4S, fits for F4 V2 4S FC and F4 2-4S AIO FC on Beta85X 4S.

Bullet Point

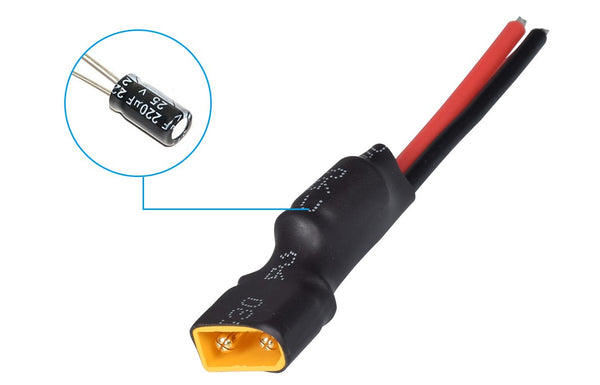

• This XT30 cable has added the capacitor specification with 25V/220μF/20%, for protecting ESC board. The temperature resistance is -20°C~120°C.
• The whoop cable pigtail with XT30 connector can support 2-4S power, you can use F4 V2 4S FC and 4S batteries on Beta85X, get more punch on power.

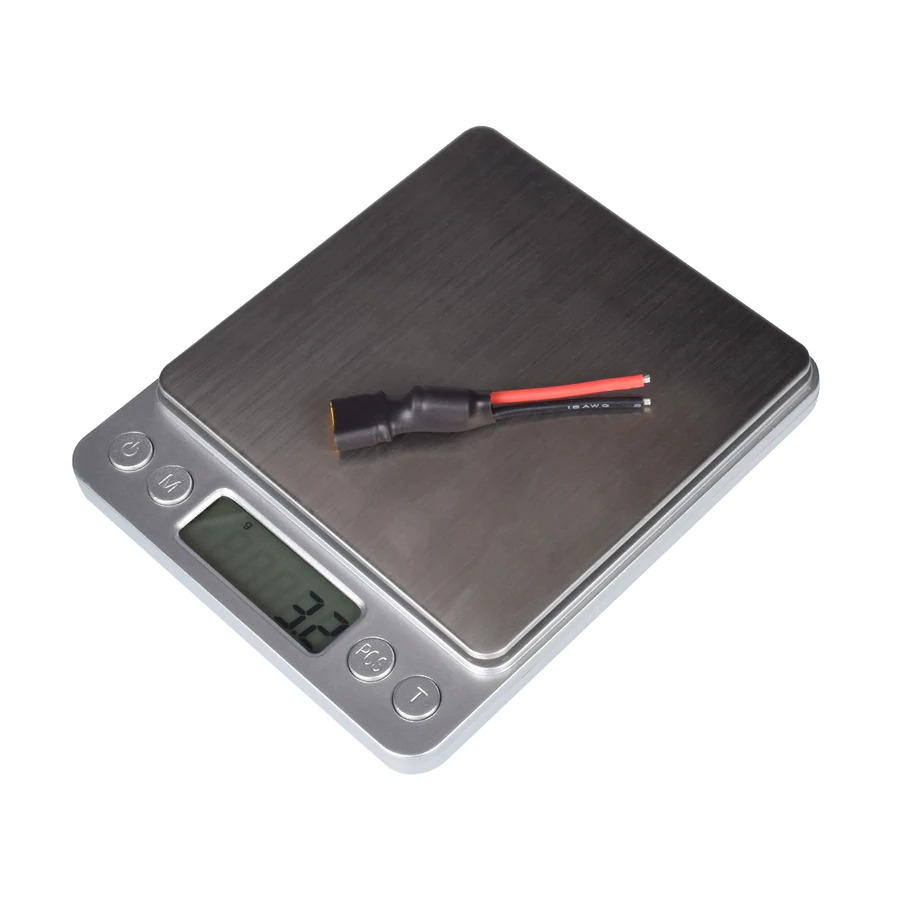

• Weighs only 3.3g/pc. The material of power cable is 18AWG silicone, the internal material of 18AWG Silicone Wires are Nylon/PA.

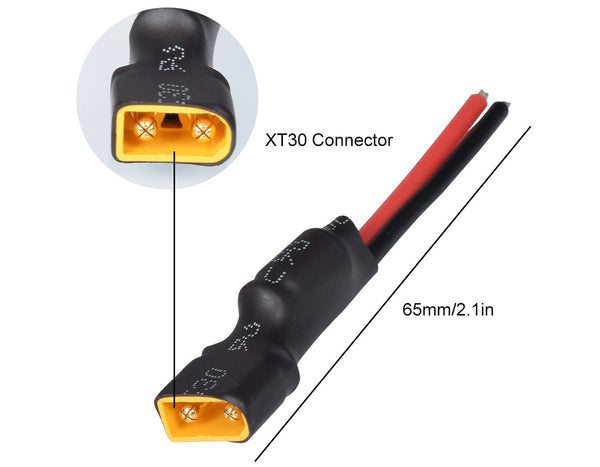

• High quality and super flexible. Firm plug connector on the Amass XT30, no need to worry loose easily, the cable length is 65mm including the plug.

Specification

• Power: 2-4S
• Weight: 3.2g/pc
• Connector: XT30
• Internal Material: Nylon/PA
• Body Material: Gold-plated copper
• Length: 65mm(Including the plug)
• Temperature resistance: -20°C~120°C
• Capacitor specification: 25V/220μF/20%
• Wire: 18AWG Heatproof Soft Silicone Cable
• Adapt FC: F4 V2 4S FC,  F4 2-4S AIO FC

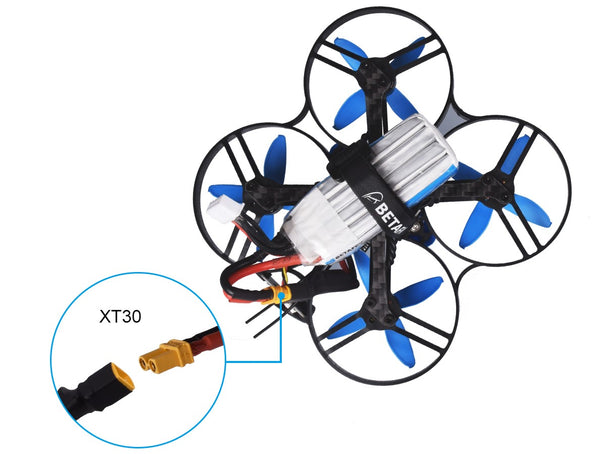

• Adapt Drone: Beta85X 4S, Beta85X 4S HD, Beta85X 4K Whoop Drone

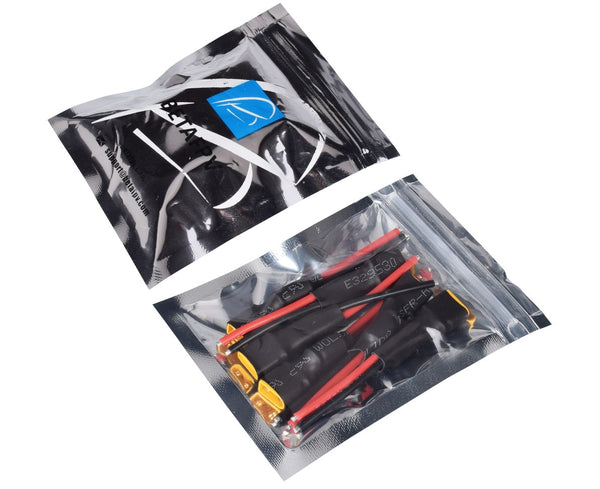

Package
