RUSHFPV Cherry Antenna SMA LHCP/RHCP
Check out all of our RushFPV Products!
FEATURES
- Optimized for FPV racing drones
- Maximum signal coverage. 5.6-6GHz bandwidth covers all of raceband and all channels have nearly uniform transmission strength.
- Perfect circular polarization axis ratio. Effectively suppress screen flicker caused by multi-path interference.
- Small and sturdy. Optimized design obtained through massive impact tests. The flexible tube can withstand angle bends and crash impacts to avoid cable damage.
- Between 5650 and 5950MHz, VSWR is below 1.2 meaning transmission efficiency is up to 98% This can also help reduce VTX heat.
- Quick installation. Antenna clips are designed to be the same size as standard flange SMA sockets. The length of the antenna tube can be cut to meet your needs.
- Quality Assurance. Cherry antennas are tuned for performance by the Rush FPV Professional Microwave Laboratory, and each antenna is qualified by a network analyzer before leaving the factory.
SPECIFICATIONS
- Gain:Â 1.2dBi
- S11 SWR:Â 1.4 max – 1.1 min
- Band Width: 5600-6000-MHz
- Axial Ratio: Around 1.0
- Polarization: LHCP/RHCP
- Connector:Â SMA
INCLUDES

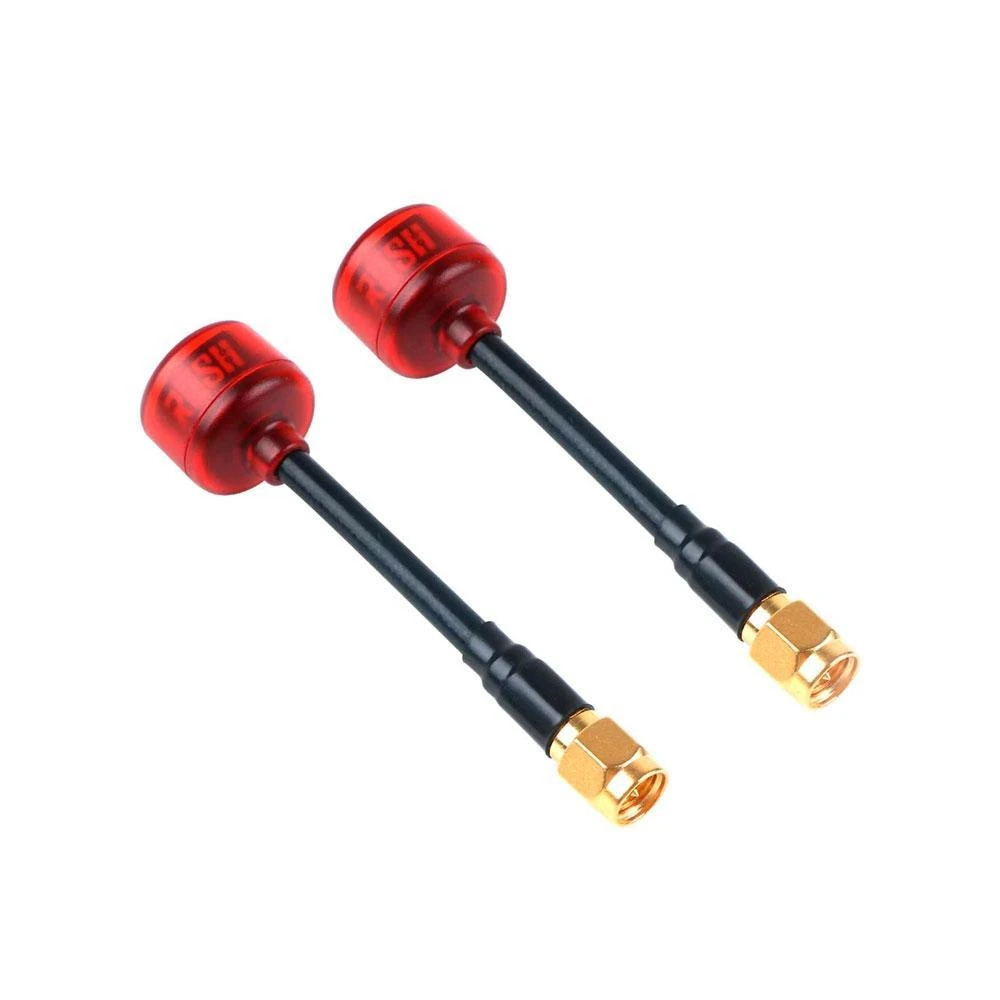

- 2x Rush FPV Cherry 5.8GHz SMA Antenna
