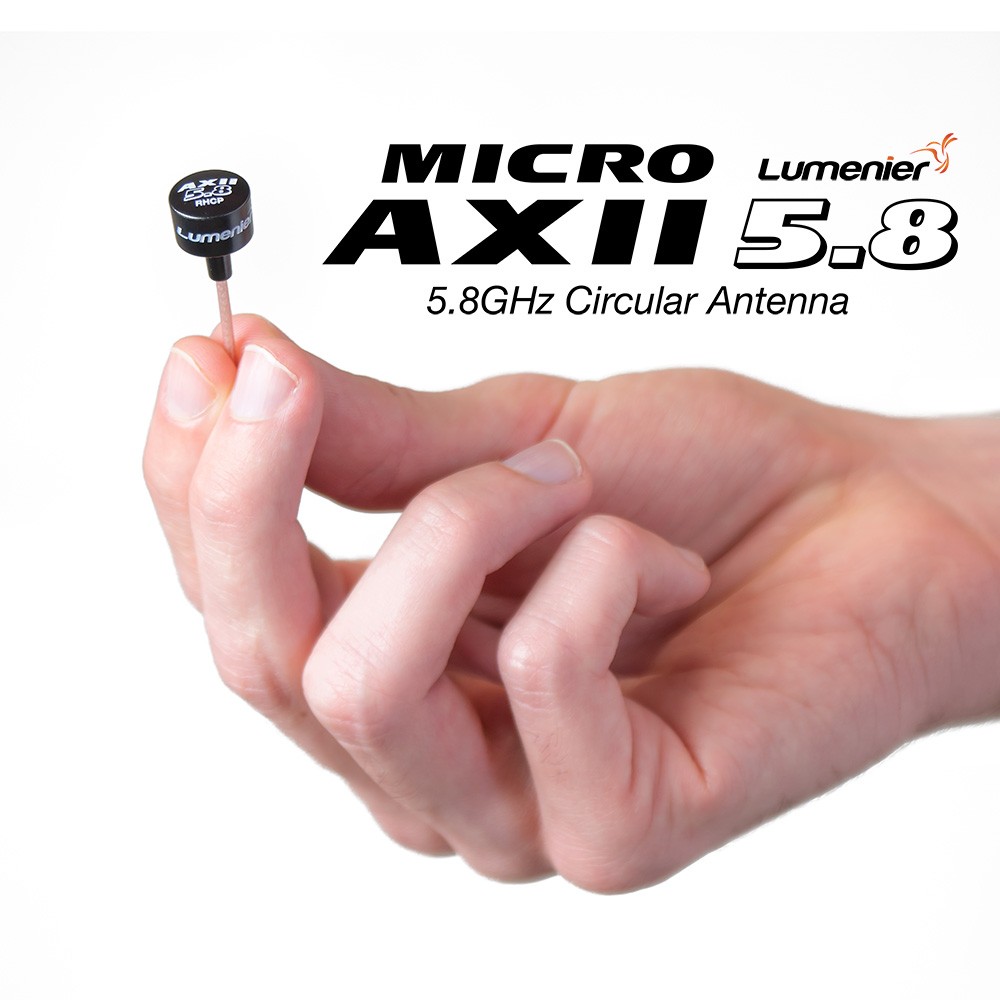

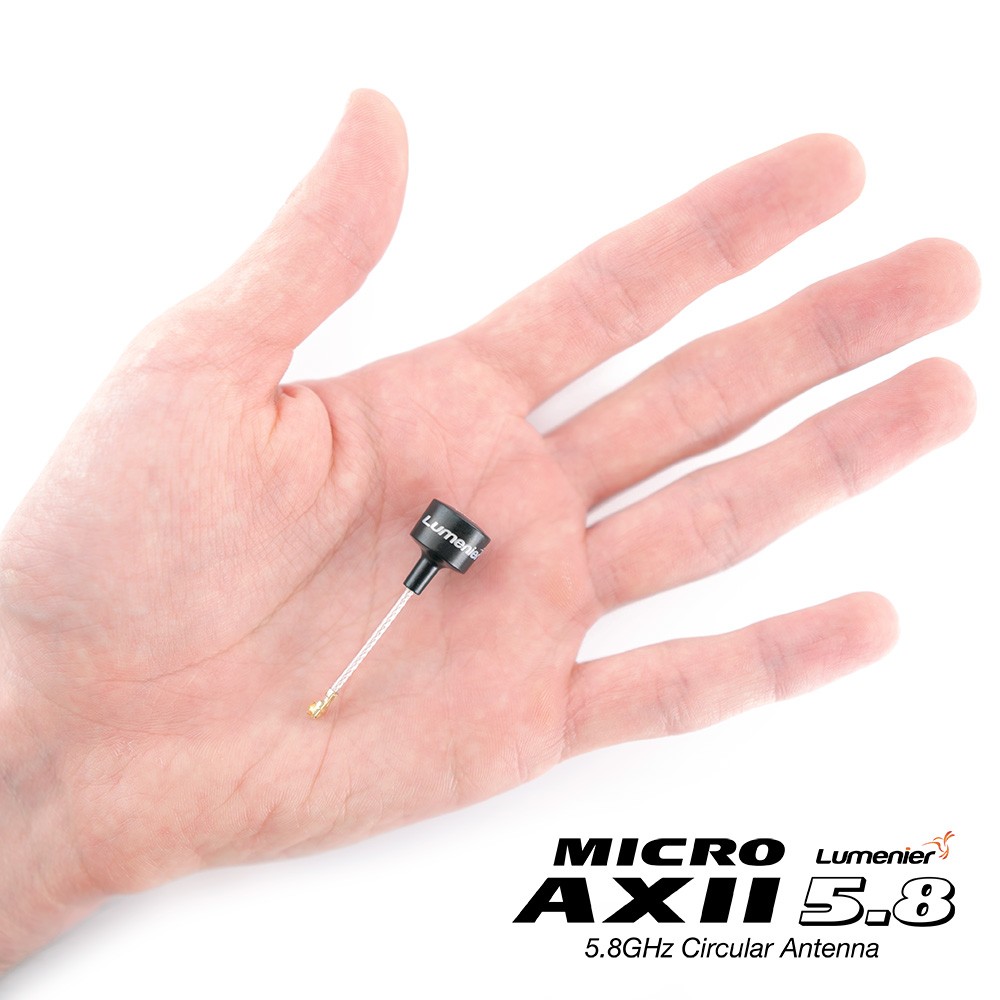

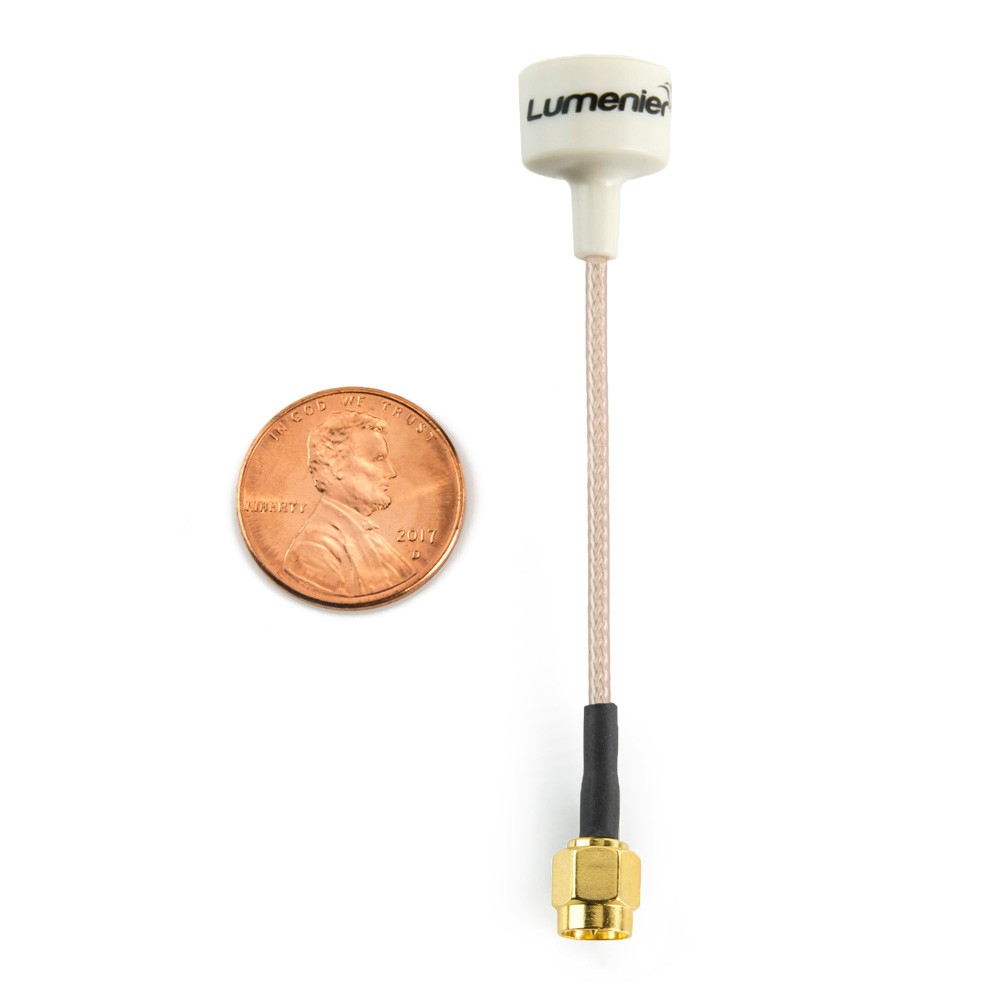

Lumenier Micro AXII SMA 5.8GHz Antenna (LHCP)
Check out all of our Lumenier products, and all of our 5.8GHz Antennas!

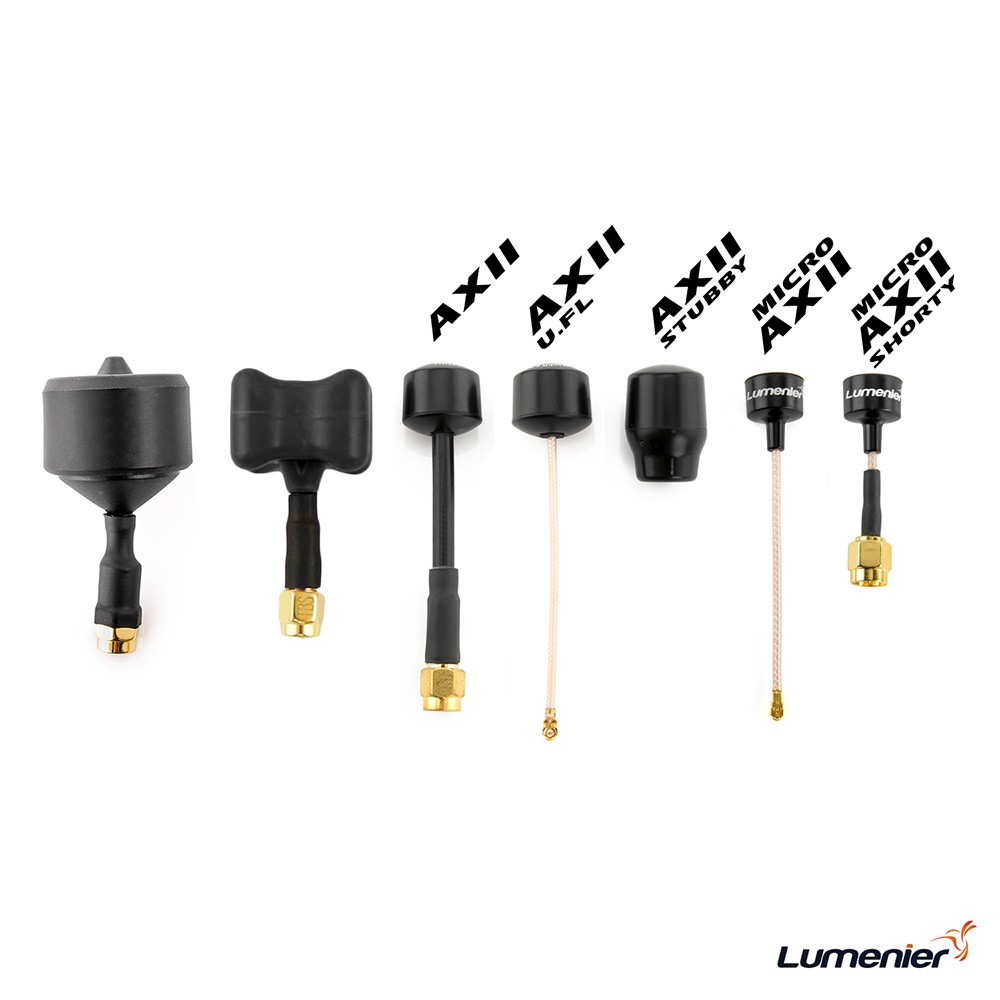

Experience the next evolution of the world’s most popular FPV antenna with the Lumenier Micro AXII. This antenna delivers the same incredible performance as the original AXII but in a package that’s half the size. Developed in a collaboration between Lumenier and renowned antenna designer Hugo of TrueRC, the Micro AXII is one of the smallest, lightest, and best-performing FPV antennas available.
Uncompromised Performance

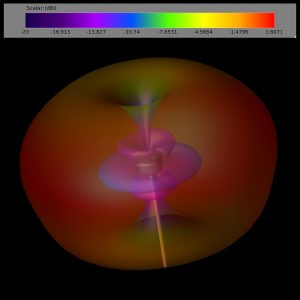

The Micro AXII doesn’t sacrifice performance for its small size. It boasts a market-leading 98% radiation efficiency and a near-perfect axial ratio for a truly circular signal. This results in a strong, crystal-clear video feed that is highly effective at rejecting multipath interference, giving you a locked-in feel whether you’re navigating an abandoned building or a racetrack. A high 1.6dBi gain ensures you have excellent range and signal penetration through obstacles.
Durable & Compact Design
Designed to be ultra-durable, the entire antenna element array is securely protected inside a tough, injection-molded polycarbonate case that is ultrasonically welded shut. This, combined with a flexible 60mm RG178 coax cable and a robust SMA connector, creates a compact and lightweight antenna that can withstand the beatings of modern freestyle and racing.
Key Features:
Lumenier & TrueRC Collaboration: An expertly engineered antenna combining the best in design and manufacturing for unparalleled performance.
Compact & Lightweight: A smaller, lighter profile improves the aerodynamics and handling of your FPV drone.
98% Radiation Efficiency: Delivers a powerful and clear video signal with maximum range by converting nearly all VTX power into a usable signal.
Excellent Multipath Rejection: A near-perfectly circular signal rejects interference, providing a cleaner picture, especially around obstacles.
Durable Polycarbonate Shell: Protects the sensitive antenna elements from crash damage, prop strikes, and daily abuse.
Important: Check Your Connectors & Polarization

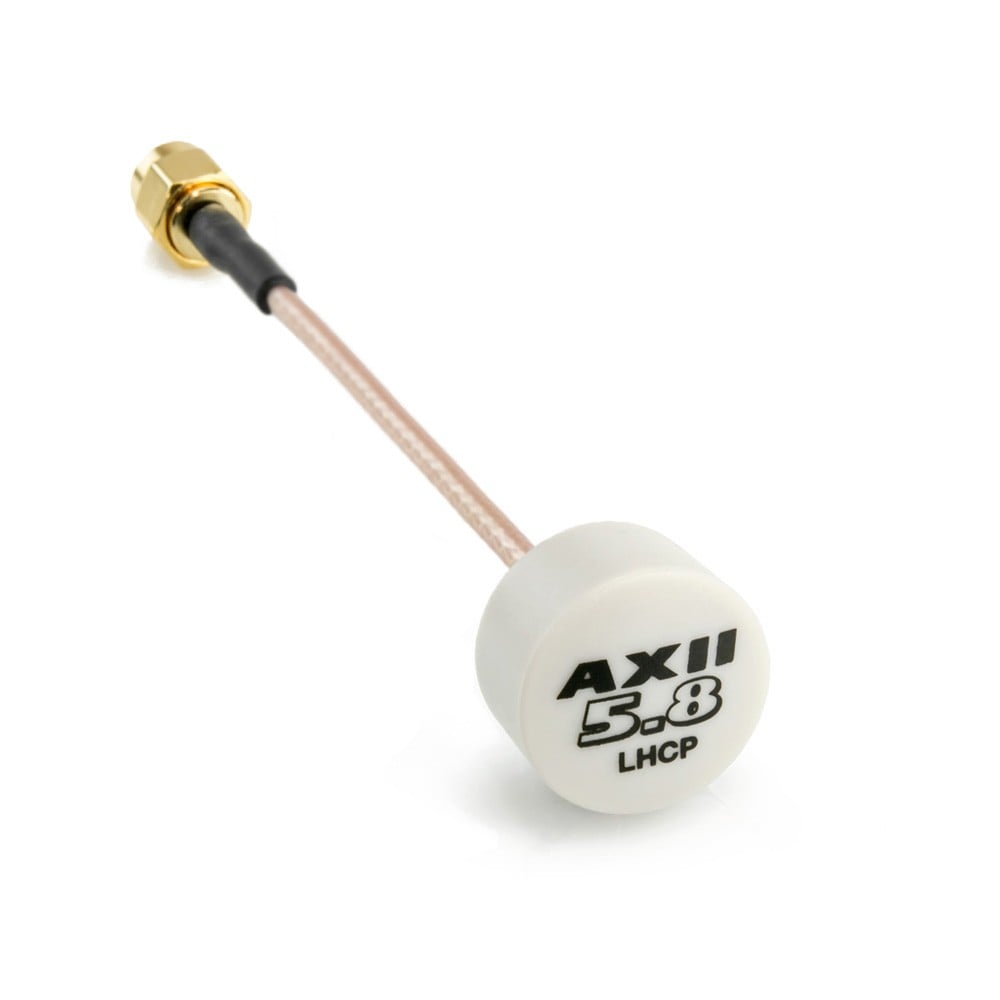

This is an LHCP (Left-Hand Circular Polarized) antenna with a standard SMA connector. For best performance, it must be paired with an LHCP antenna on your FPV goggles. Please verify your VTX has an SMA connector before purchasing.
Specifications

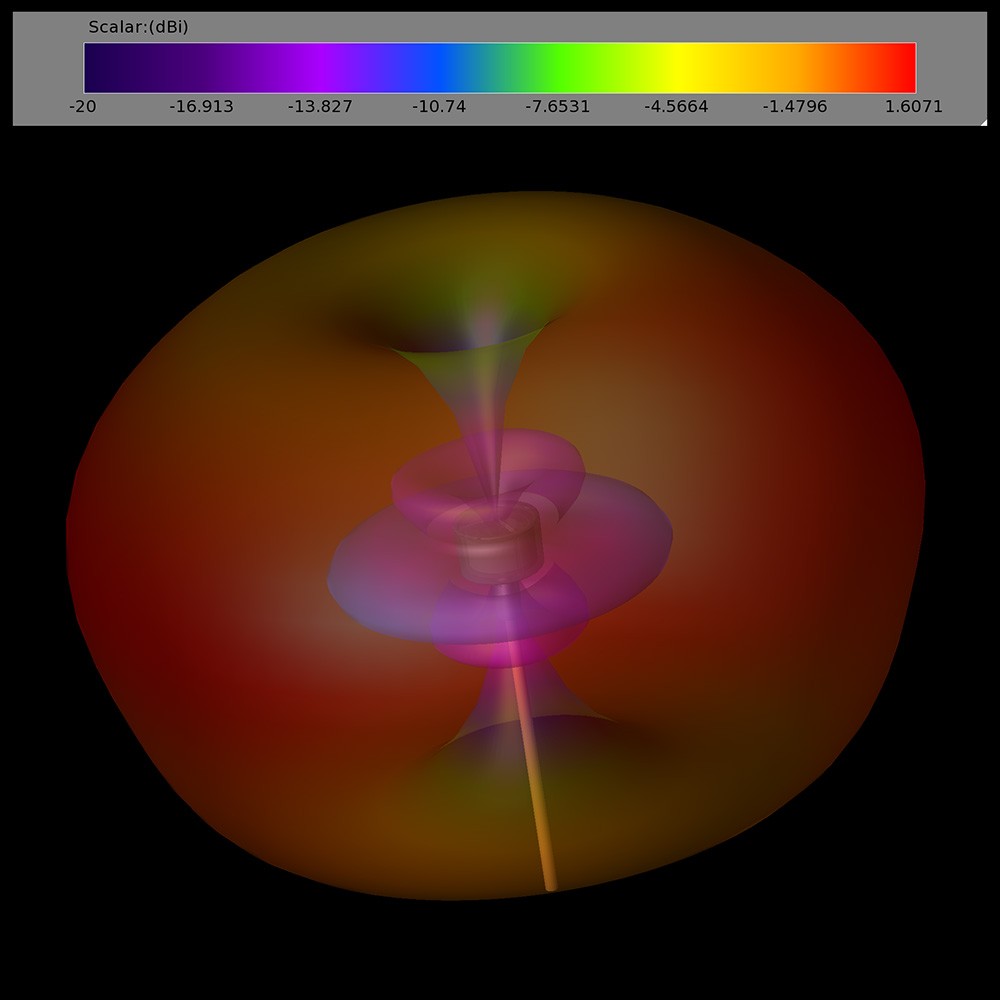

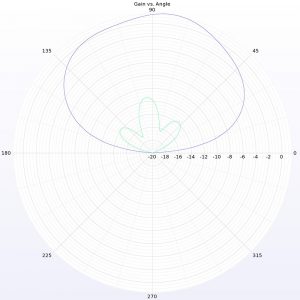

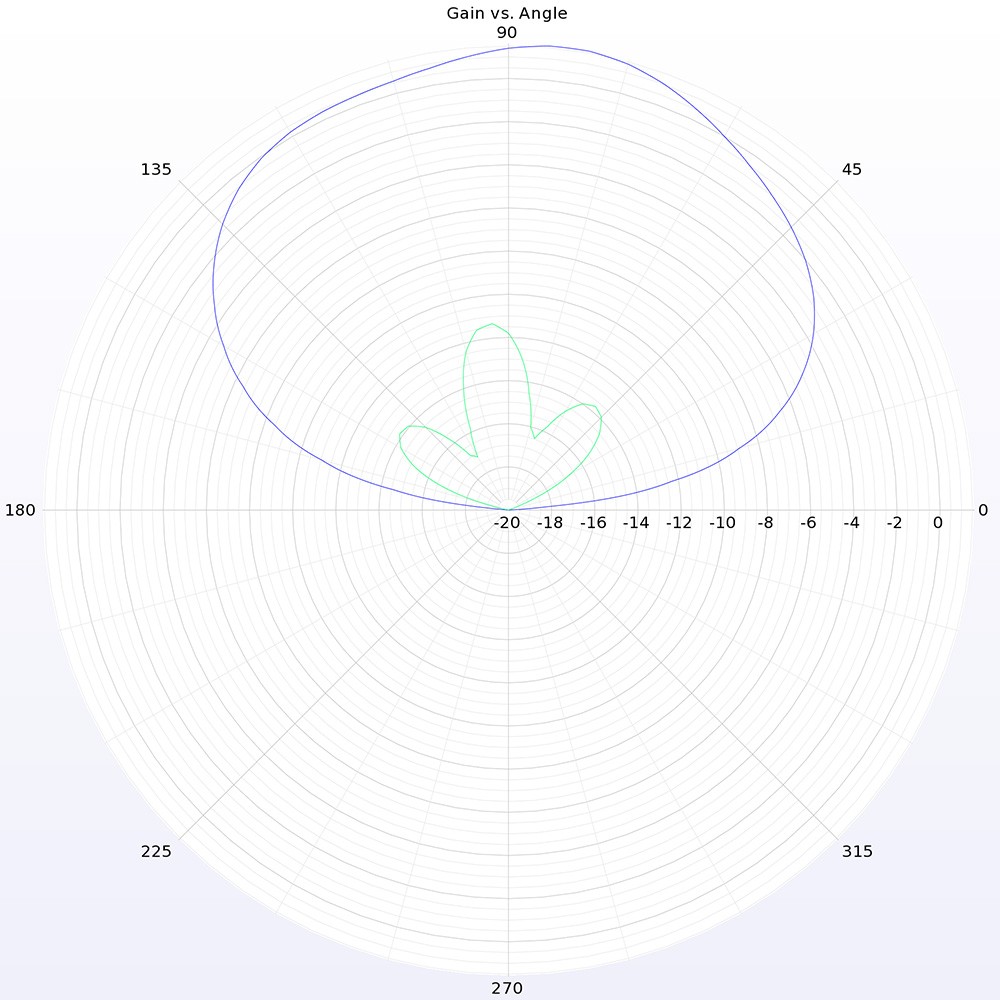

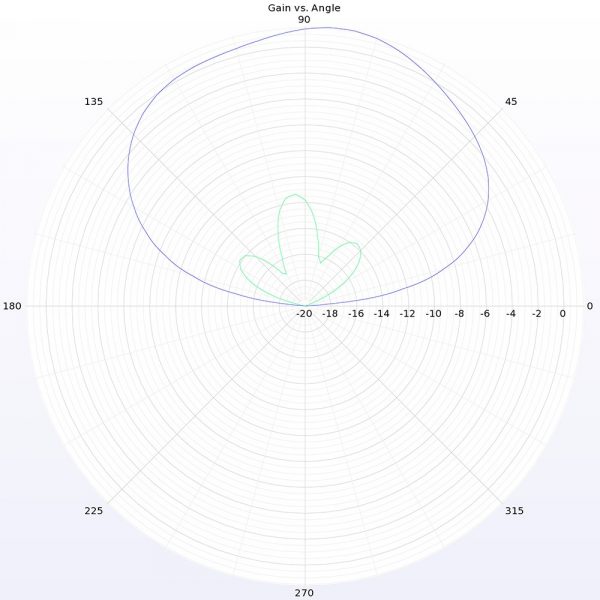

Gain: 1.6dBi
Cross-Polar Rejection: -10 to -28dB
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 5g
Size: 12mm x 9mm (Housing)
Cable: Flexible RG178
Cable Length: 60mm
Connector: SMA Male
Polarization: LHCP
Includes
1x Lumenier Micro AXII SMA 5.8GHz Antenna (LHCP)
Check out this review by Joshua Bardwell
