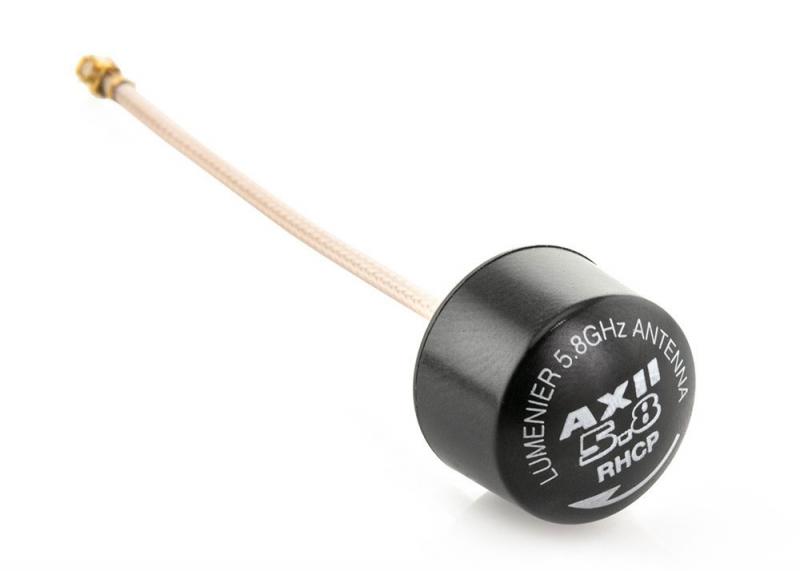

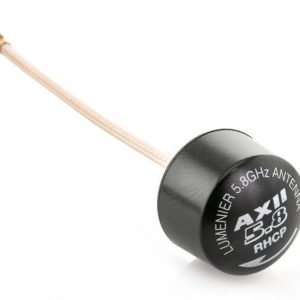

LUMENIER AXII U.FL 5.8GHZ ANTENNA (RHCP)

The AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the outer casing. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.

SPECIFICATIONS

• Gain: 1.6dbic
• Axial ratio: 1.0 (near perfect)
• Bandwidth: 5.5GHz-6.0GHz
• Radiation Efficiency: 98%
• SWR: <=1.5:1
• Weight: 2g
• Size: 15mm x 16mm
• Cable Length: 60mm
• Connector: U.FL
• Compatible with other styles of 5.8GHz RHCP antennas
• Polarization

INCLUDES

• 1x Lumenier U.FL AXII 5.8GHz Antennas (RHCP) with UFL connector
