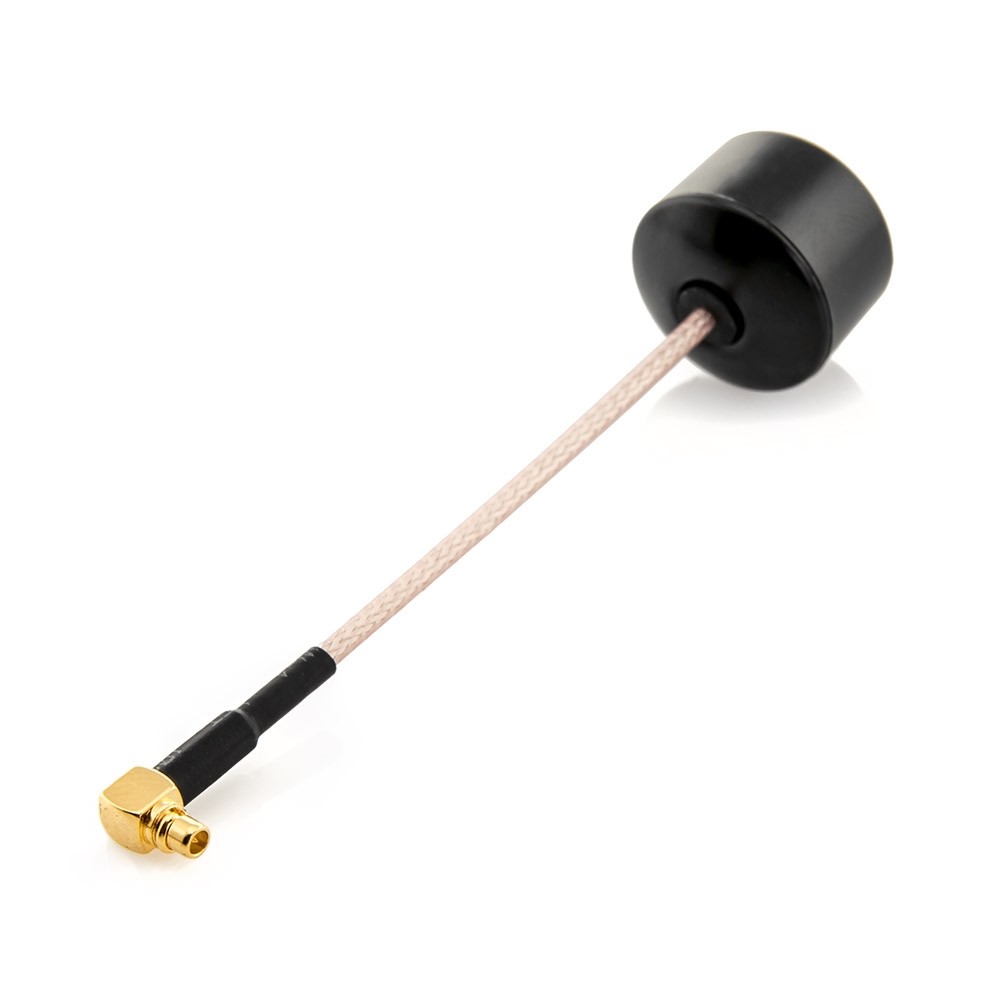

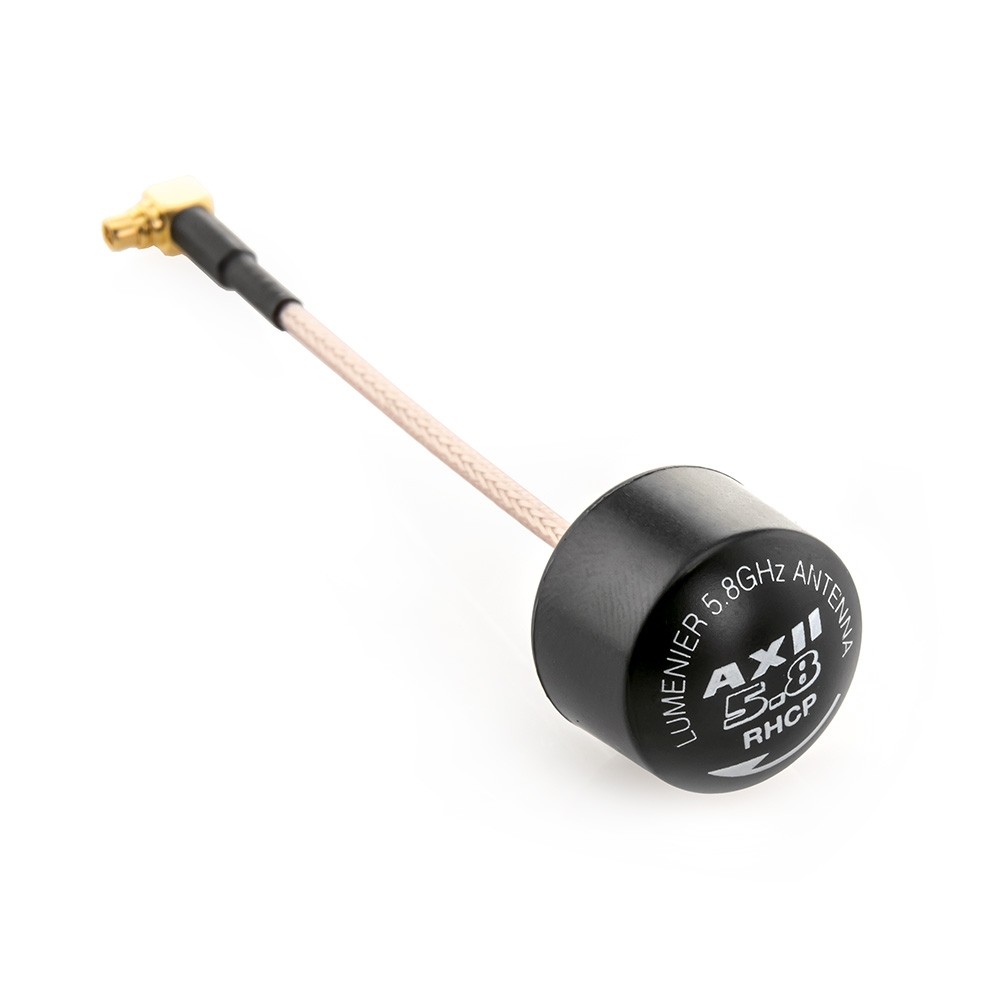

Lumenier AXII MMCX 5.8GHz Antenna (RHCP)
The Lumenier MMCX AXII 5.8GHz Antenna takes all the same technology of the full size AXII and adds a MMCX connector for direct VTX connection! Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the smallest, lightest and best performing FPV antennas in the world. The AXII MMCX antenna is an original design that features a new RF pathway technology (unique hybrid network) allowing it to be incredibly light weight (2g) making it the smallest and lightest 5.8GHz CP antenna.

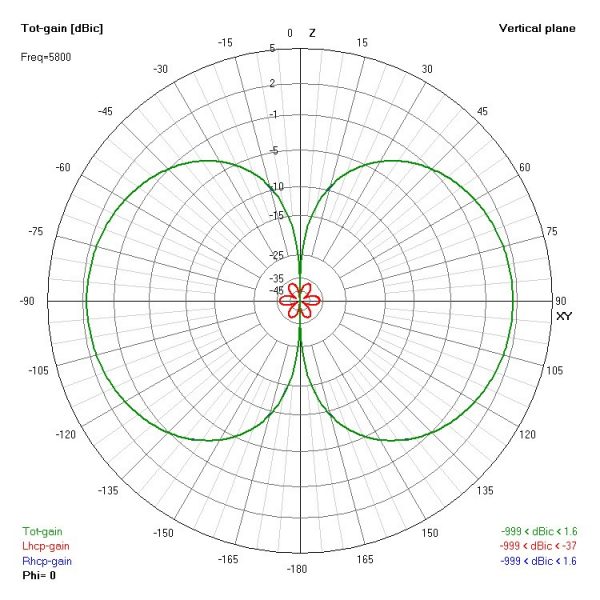

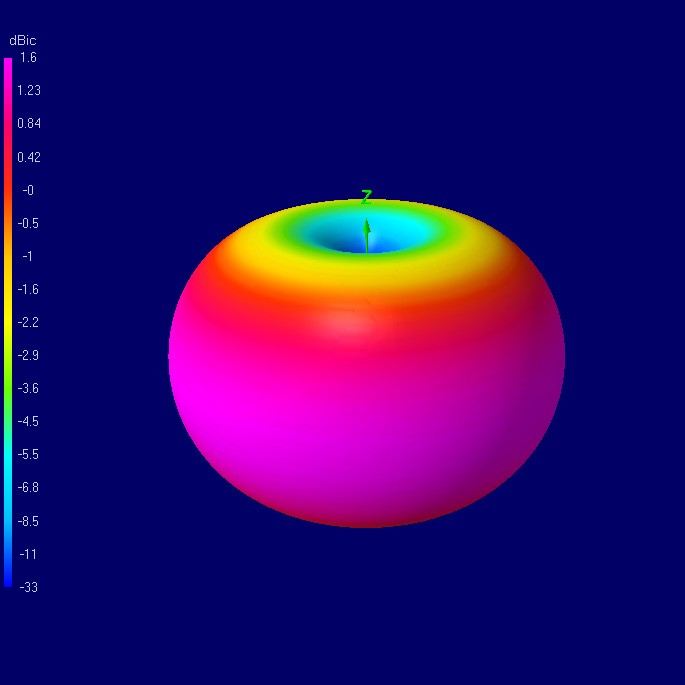

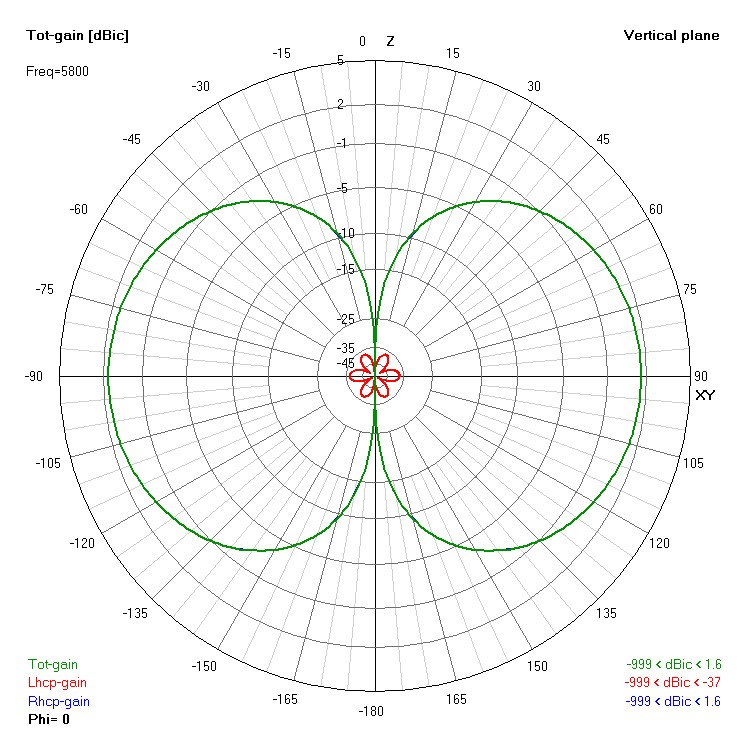

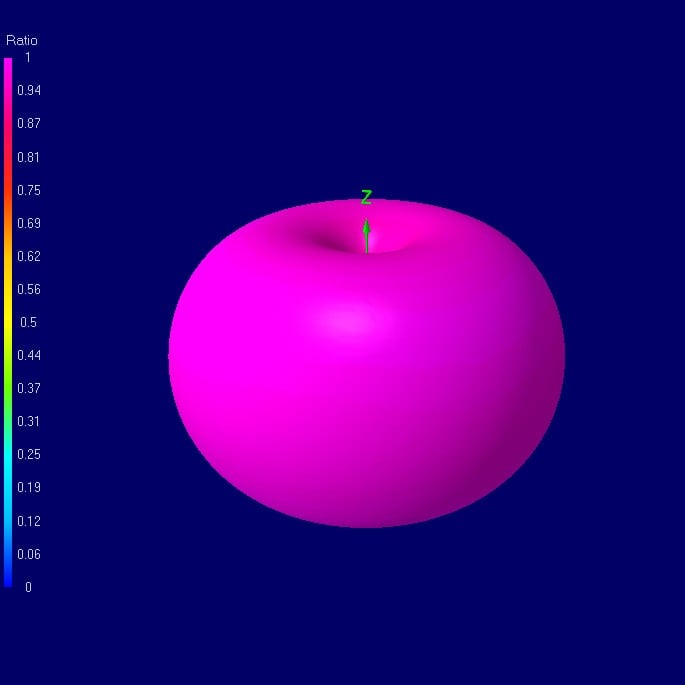

Even though the AXII MMCX is both small and light weight, it does not sacrifice on performance. In fact it out performs most other antennas in all categories. Precision engineering has given this antenna a near perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you’re on.
The AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the outer casing. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.
- Gain: 1.6dbic
- Axial ratio: 1.0 (near perfect)
- Bandwidth: 5.5GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR: <=1.5:1
- Weight: 2g
- Size: 15mm x 16mm
- Cable Length: 60mm
- Connector: MMCX
- Compatible with other styles of 5.8GHz RHCP antennas
- Right Hand Circular (RHCP)
- 1x Lumenier MMCX AXII 5.8GHz Antennas (RHCP) with MMCX connector
