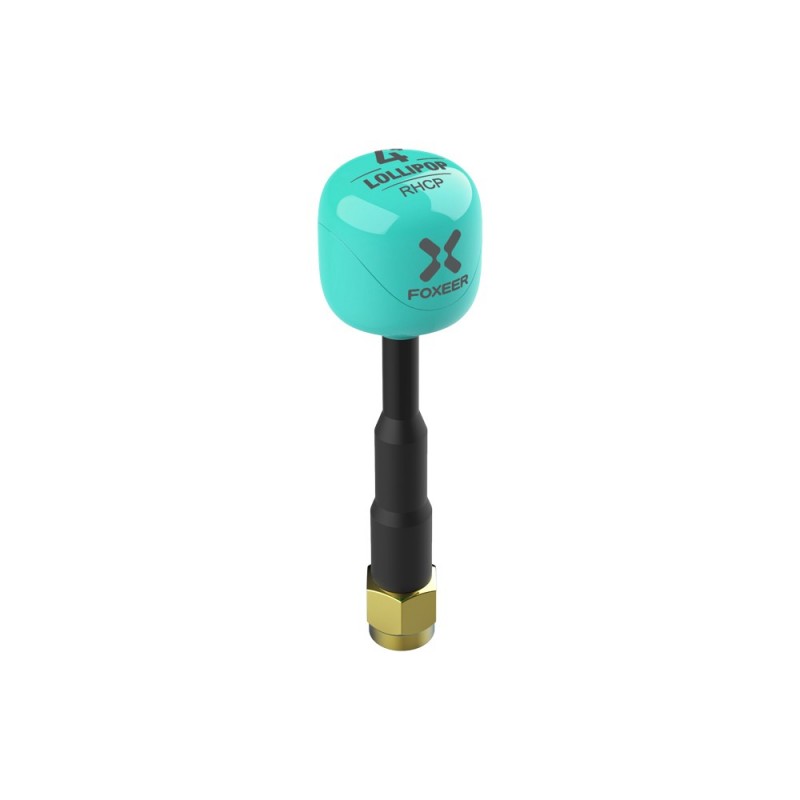

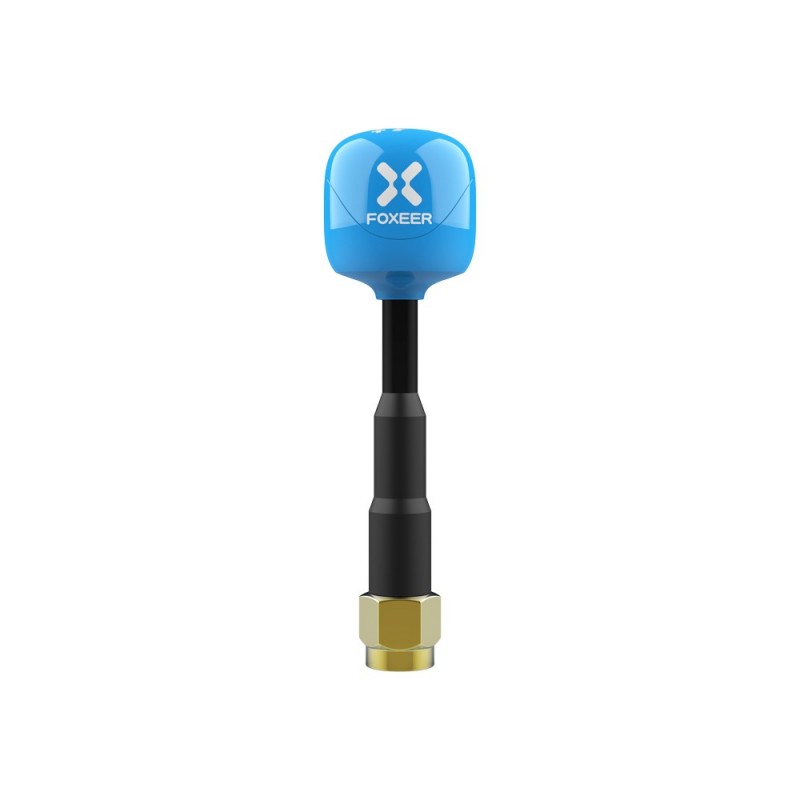

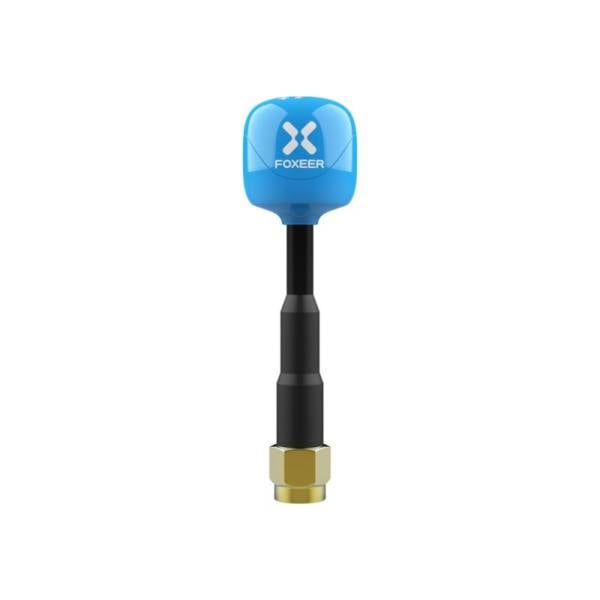

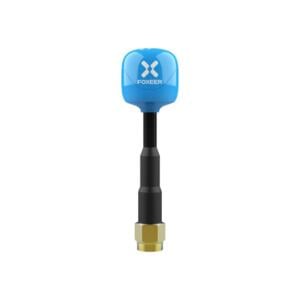

Foxeer Lollipop 4 Plus High Quality 5.8G 2.6dBi FPV Omni Antenna
Introducing the Foxeer Lollipop 4 Plus, the next evolution of one of the most popular FPV antennas in the world. This high-performance 5.8GHz omnidirectional antenna delivers exceptional signal quality, range, and durability in a compact package. With a massive variety of connector, length, and polarization options available in a convenient 2-pack, the Lollipop 4 Plus is the one antenna for any FPV drone build.
Professional-Grade Signal Quality

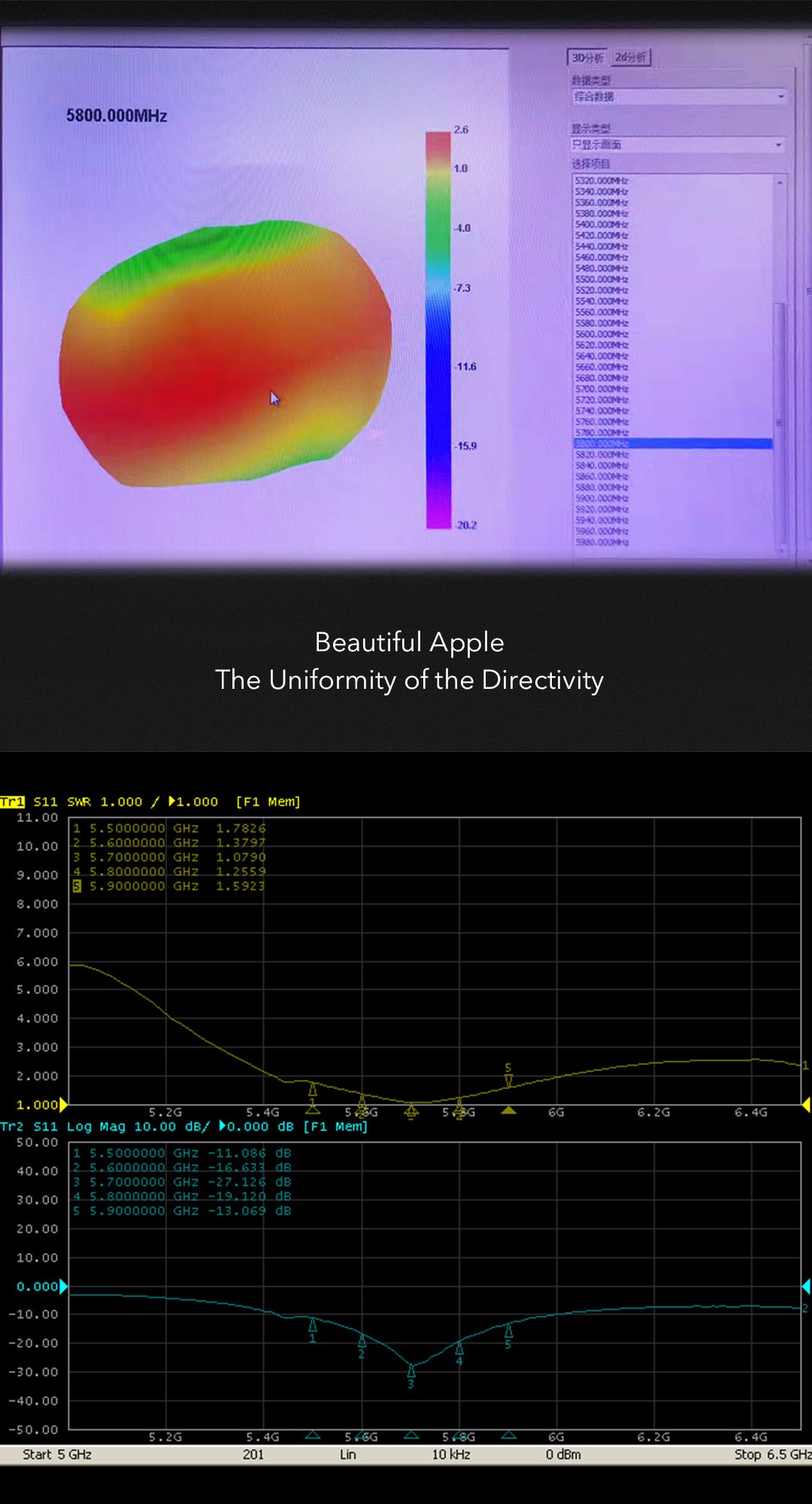

The Lollipop 4 Plus is engineered for a crystal-clear video feed. It features a high 2.6dBi gain for excellent range and an axial ratio that is “close to 1,” providing superior rejection of multipath interference. With an impressive 98% radiation efficiency and a very low SWR of 1.07, this antenna ensures that maximum power is broadcast from your video transmitter, giving you a stable and reliable link to your FPV drone.
Durable & Compact Design

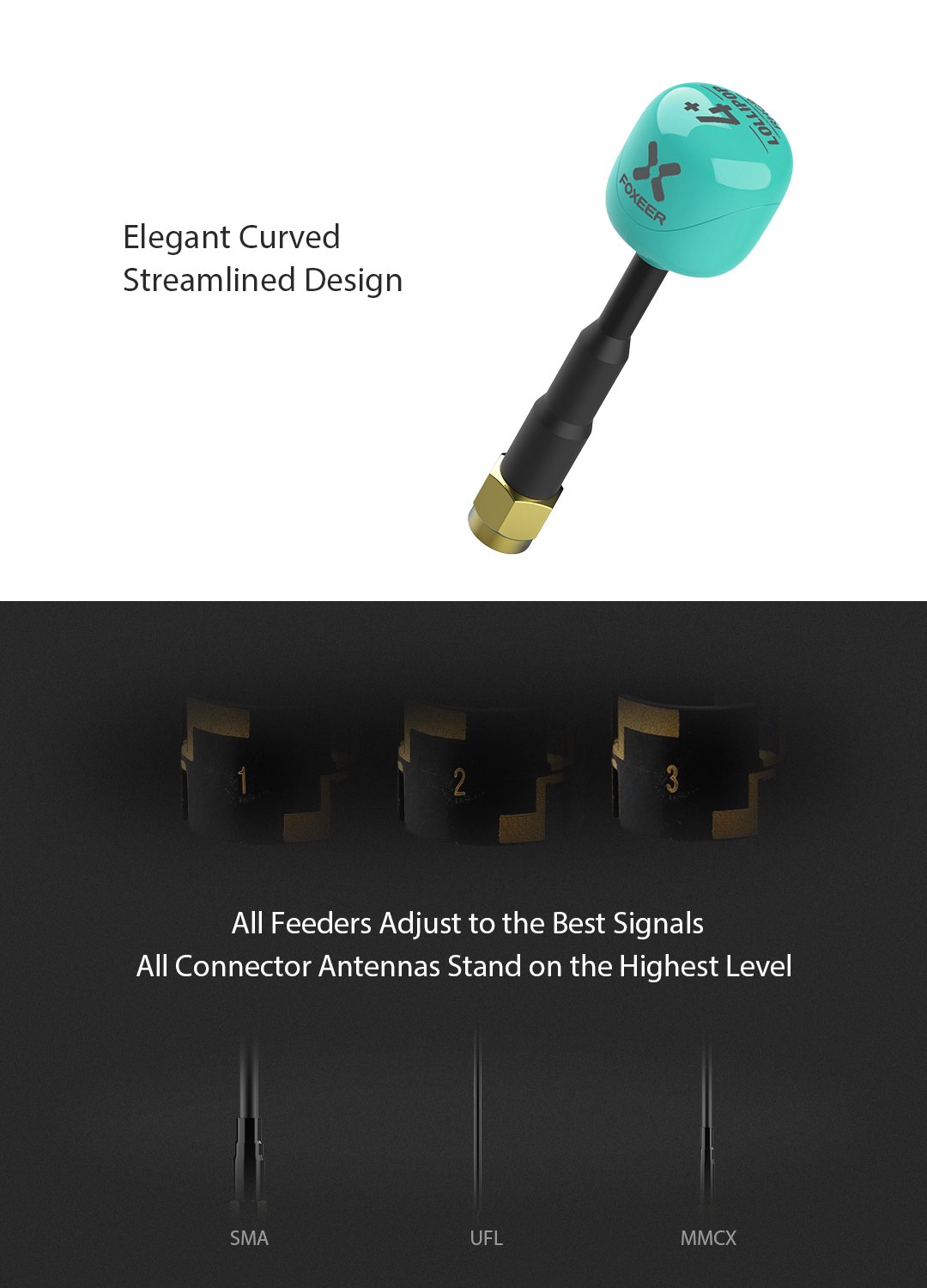

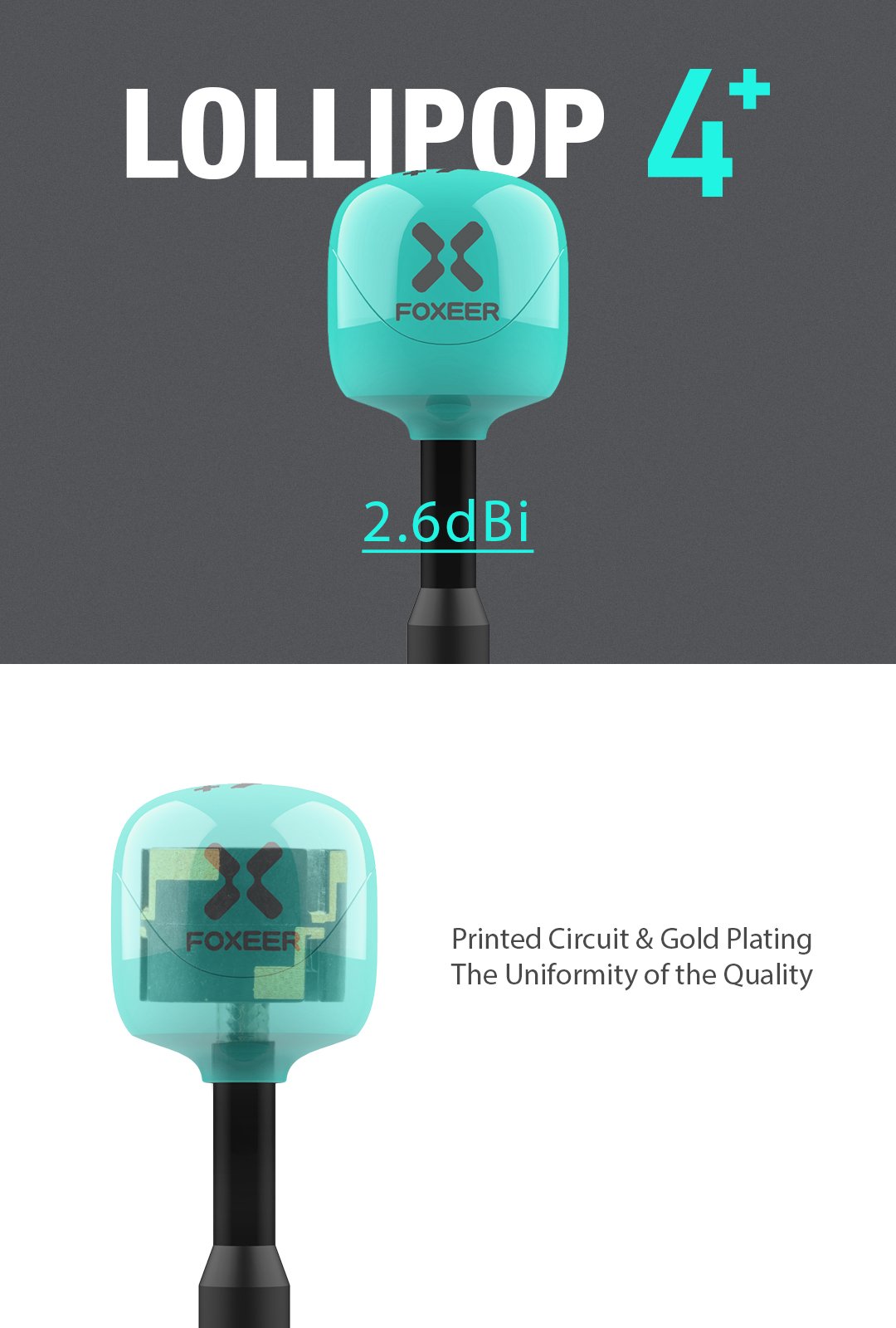

Built to withstand the rigors of FPV flying, the antenna elements are protected by a durable PC+ABS injection-molded case. The iconic “Lollipop” design is both robust and lightweight, making it a reliable drone part that won’t weigh down your FPV drone kit or break easily in a crash.
A Version for Every FPV Drone
This antenna is designed for universal compatibility. It is available in a huge range of configurations to fit virtually any video transmitter and frame on the market. Be sure to select the correct options for your build:
- Polarization: RHCP or LHCP (Remember to match the polarization of your goggle antennas).

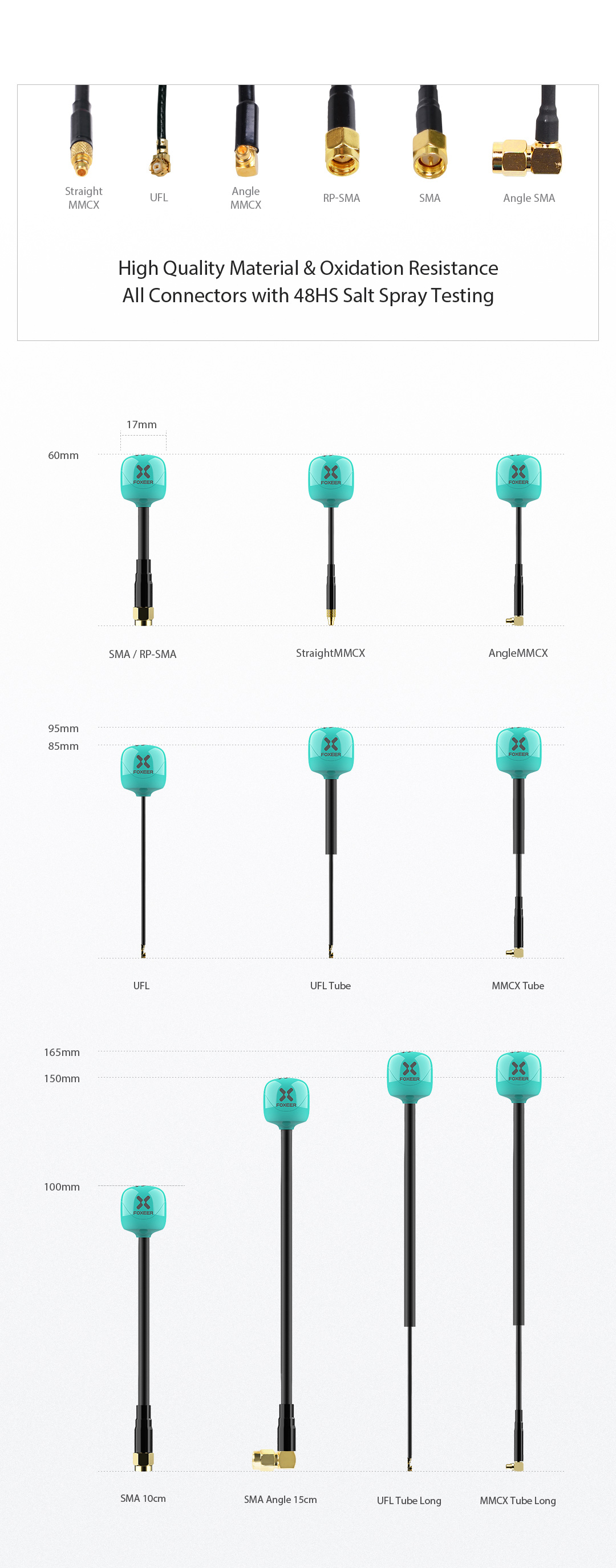

- Connector: SMA, RP-SMA, Straight MMCX, Angle MMCX, and U.FL.

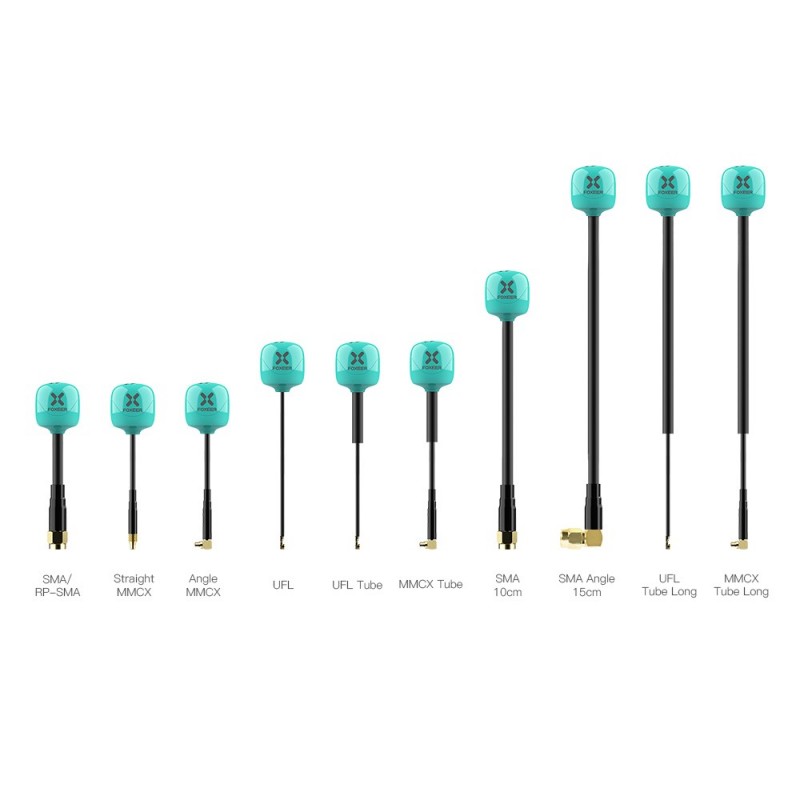

- Length: Multiple lengths available, from short stubbies to long 165mm versions for optimal placement.
Specifications
- Brand: Foxeer
- Model: Lollipop 4 Plus
- Center Frequency: 5.75GHz
- Gain: 2.6dBi
- Axial Ratio: Close to 1
- Bandwidth: 5.5GHz – 6GHz
- Radiation Efficiency: 98%
- SWR: <= 1.07 at Center Frequency
What’s in the Box?
- 2x Foxeer Lollipop 4 Plus 5.8GHz Antennas (in your selected configuration)
